Rexroth Hydraulic Lock 08410203093500B A-VBSO-SE-30-FC1-14-1:4-35
Category: Rexroth / OilControl
CODE: R930003288
CODE: R930003288
Availability: Currently not available
Notify me about availability
Check deliveries
Product description

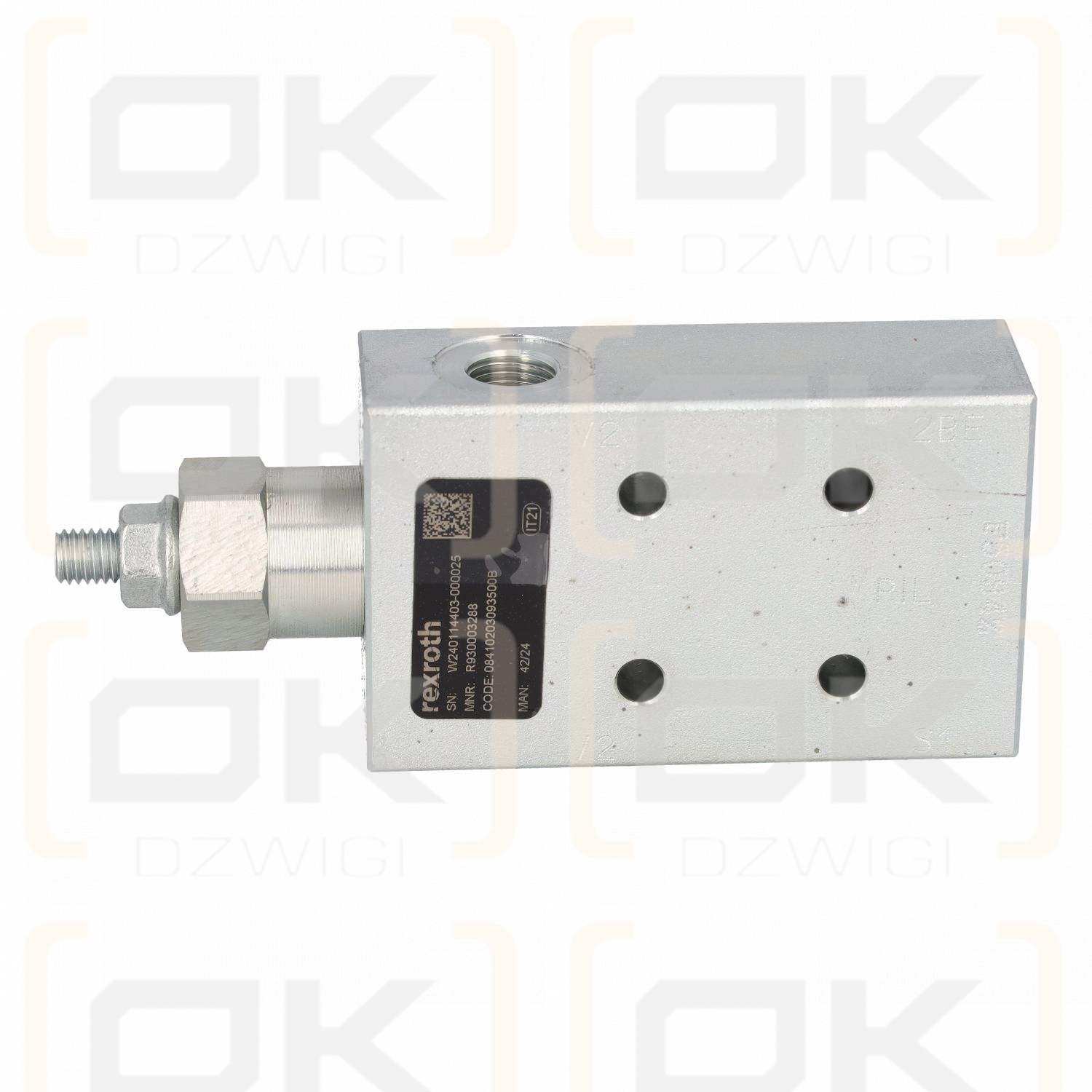

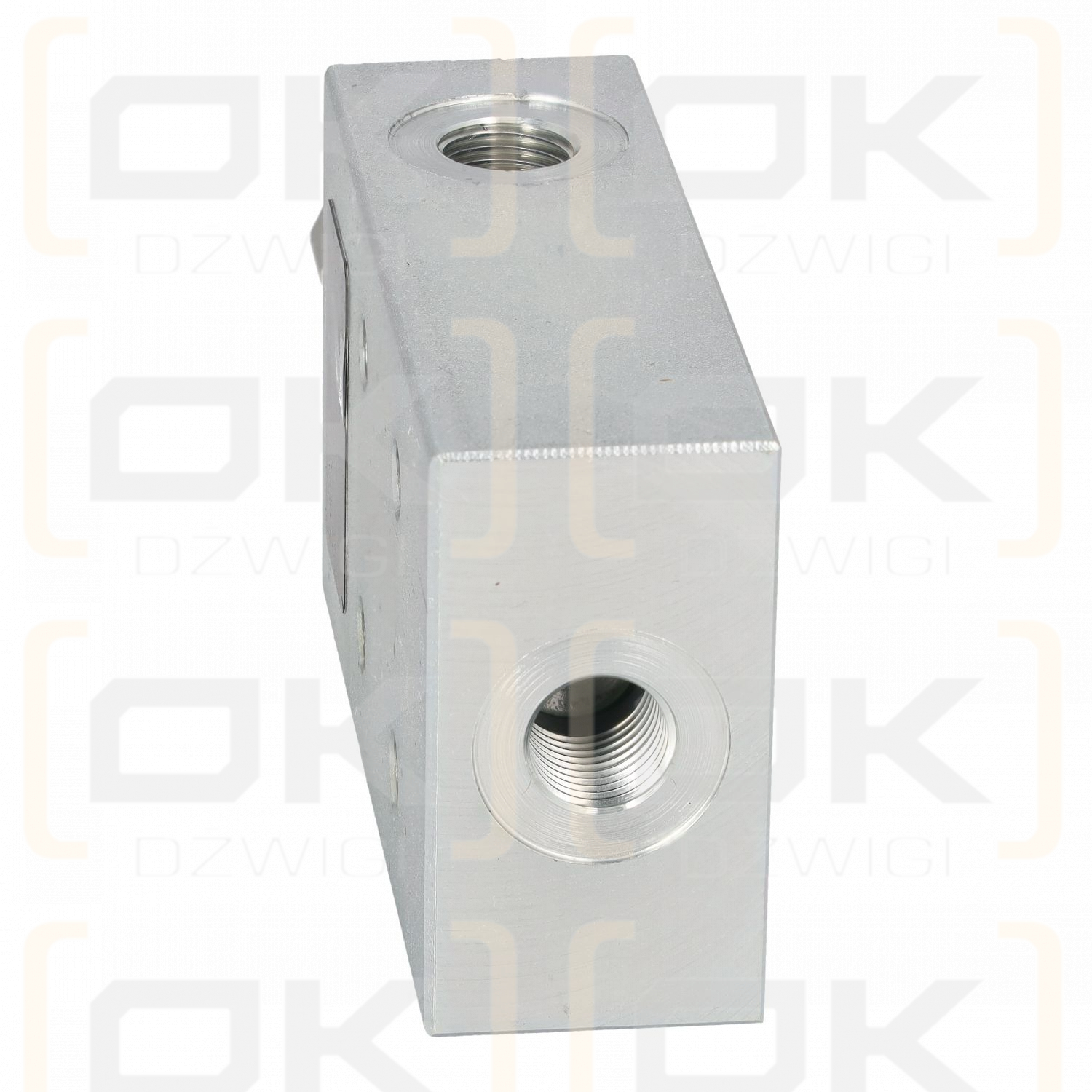

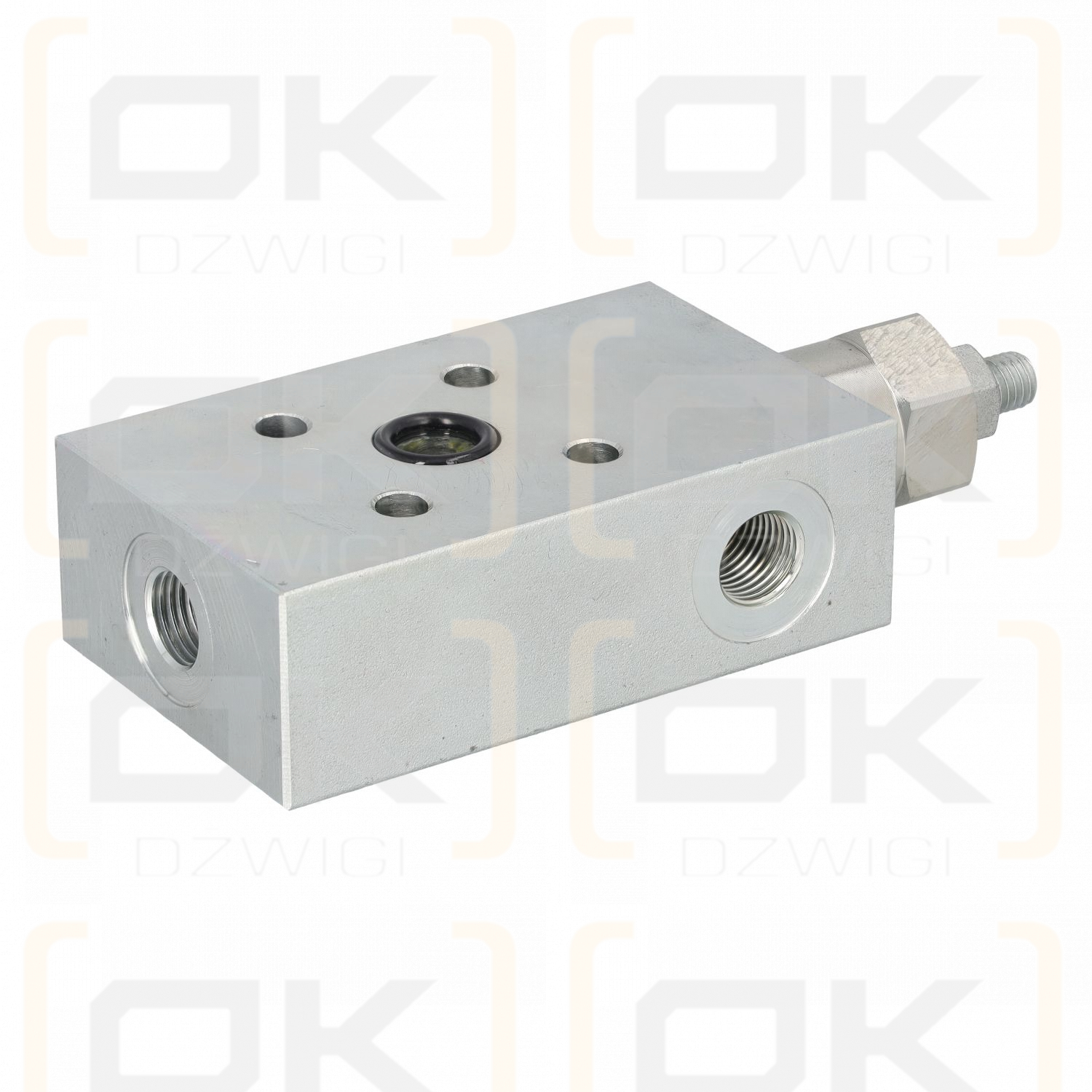

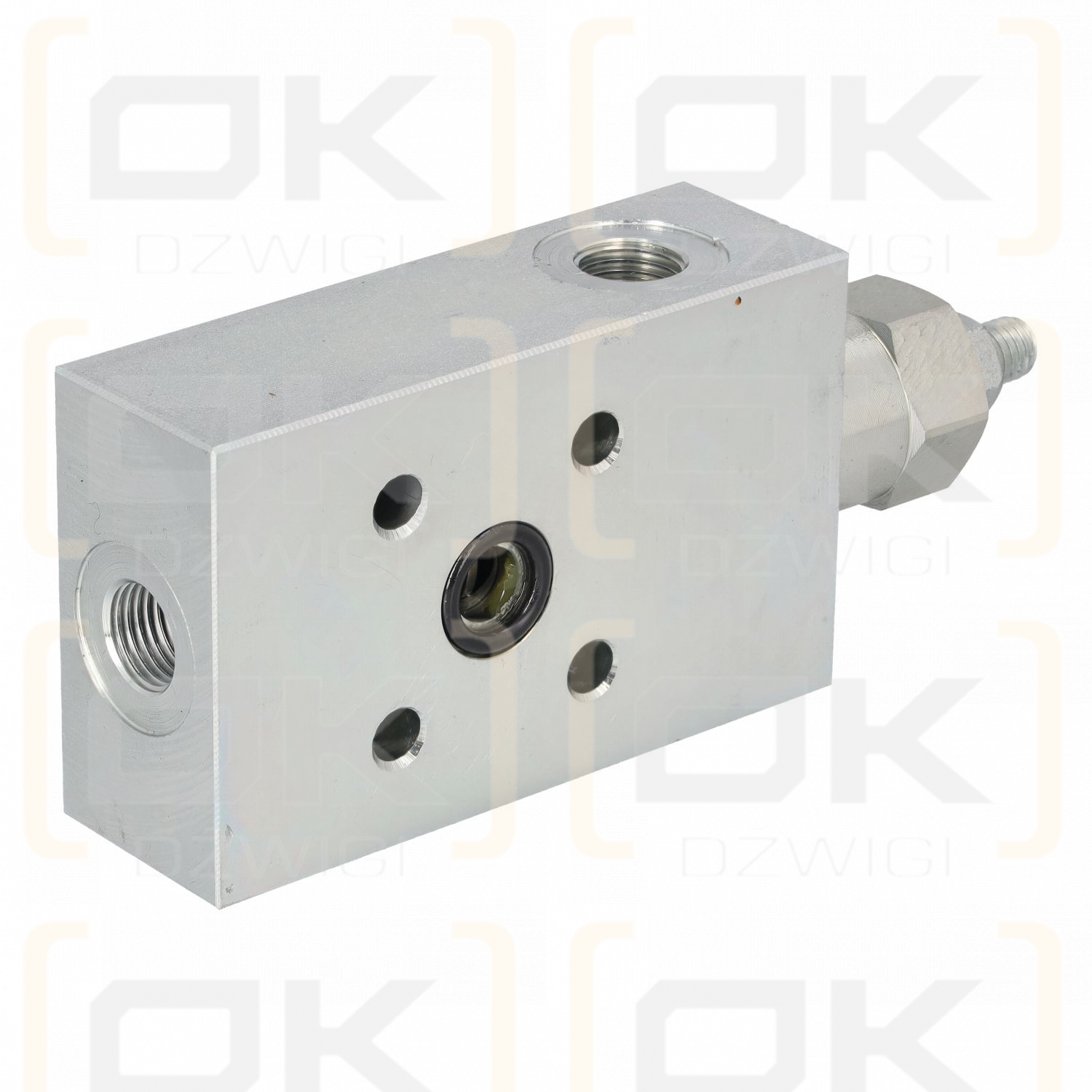

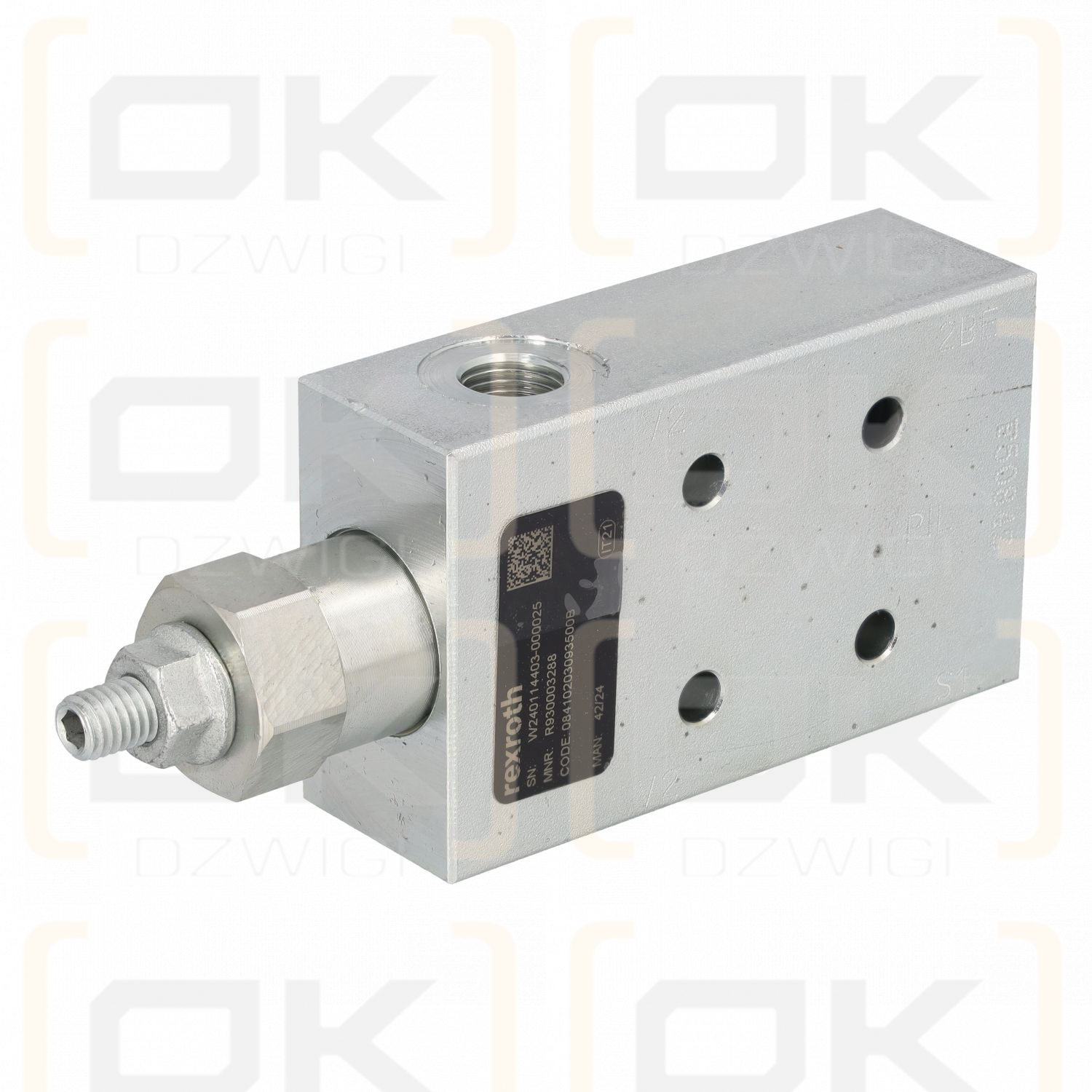

Rexroth Hydraulic Lock 08410203093500B A-VBSO-SE-30-FC1-14-1:4-35
Port size:
V2, PIL - G 1/4
C2 - Ø 9 (0.35)
Product features
- max. pressure: 350 bar
- Marking: 08410203093500B A-VBSO-SE-30-FC1-14-35-B
- Adjustable pressure range: 180-350
- Directly-indirectly controlled: Indirectly externally controlled
- max. flow: 40 l/min
- Gross weight: 1.11 kg
- Hydraulic fluid: HL,HLP
- Max flow rate: 60 l/min
- Net weight: 1.11 kg
- pilot rate: 4.2:1
- Nominal flow rate: 60 l/min
- Max. working pressure: 410 bar
- Connection type: G 1/4"
- Pre-control proportions: 4.2:1
- Number of connections: 4
- Pressure preset: With pressure pre-setting
- Pressure setting: 350 bar
- Product family: Single action
- Product family: Single action
- Product family classification: Single-acting lowering interrupt valve
- Product family type: VBSO
- Product type: VBSO-30
- Seal material: NBR
- Comparison code: 08410203093500B
- Connection type: Flange connection
- Libra: 1.11 kg
