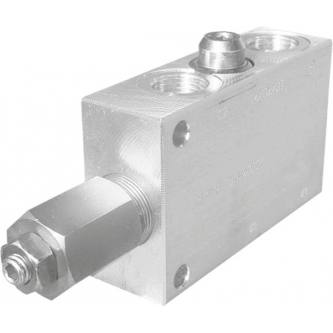

05410110043500A VBSO-SE-34-1:3-35
Category: Rexroth / OilControl
CODE: R930001664
CODE: R930001664
Availability: Currently not available
Notify me about availability
Price available on request +48 42 712 66 07
Ask about the product
Product features
- Marking: 05410110043500A-VBSO-SE-34-1:3-35-A
- Adjustable pressure range: 100-350
- Directly-indirectly controlled: Indirectly externally controlled
- Gross weight: 1.44 kg
- Hydraulic fluid: HL,HLP
- Max flow rate: 140 l/min
- Net weight: 1.44 kg
- Nominal flow rate: 140 l/min
- Max. working pressure: 210 bar
- Pre-control proportions: 3.2:1
- Number of connections: 4
- Pressure preset: With pressure pre-setting
- Pressure setting: 350 bar
- Product family: Single action
- Product family: Single action
- Product family classification: Single-acting lowering interrupt valve
- Product family type: VBSO
- Product type: VBSO
- Seal material: NBR
- Connection type: Threaded connection
- Libra: 1.44 kg
Single counterbalance, relief compensated – VBSO-SE-CC (G 1/2, G 3/4)
