KKDER8NA/HN0V
Category: Rexroth / OilControl
CODE: R901069969
CODE: R901069969
Availability: Currently not available
Notify me about availability
Price available on request +48 42 712 66 07
Ask about the product
Product features
- Valve seat: Sun T-8A
- Coil: GZ37
- Integrated coil: Separate order
- Directly-indirectly controlled: Directly controlled
- Gross weight: 252.4 g
- Hydraulic fluid: HL,HLP,HEES,HEPG
- Max flow rate: 45 l/min
- Net weight: 252.4 g
- Nominal flow rate: 45 l/min
- Normal position: Currentless closed
- Max. working pressure: 350 bar
- Number of connections: 2
- Positions: 2
- Product family: 2-way
- Product family: 2-way

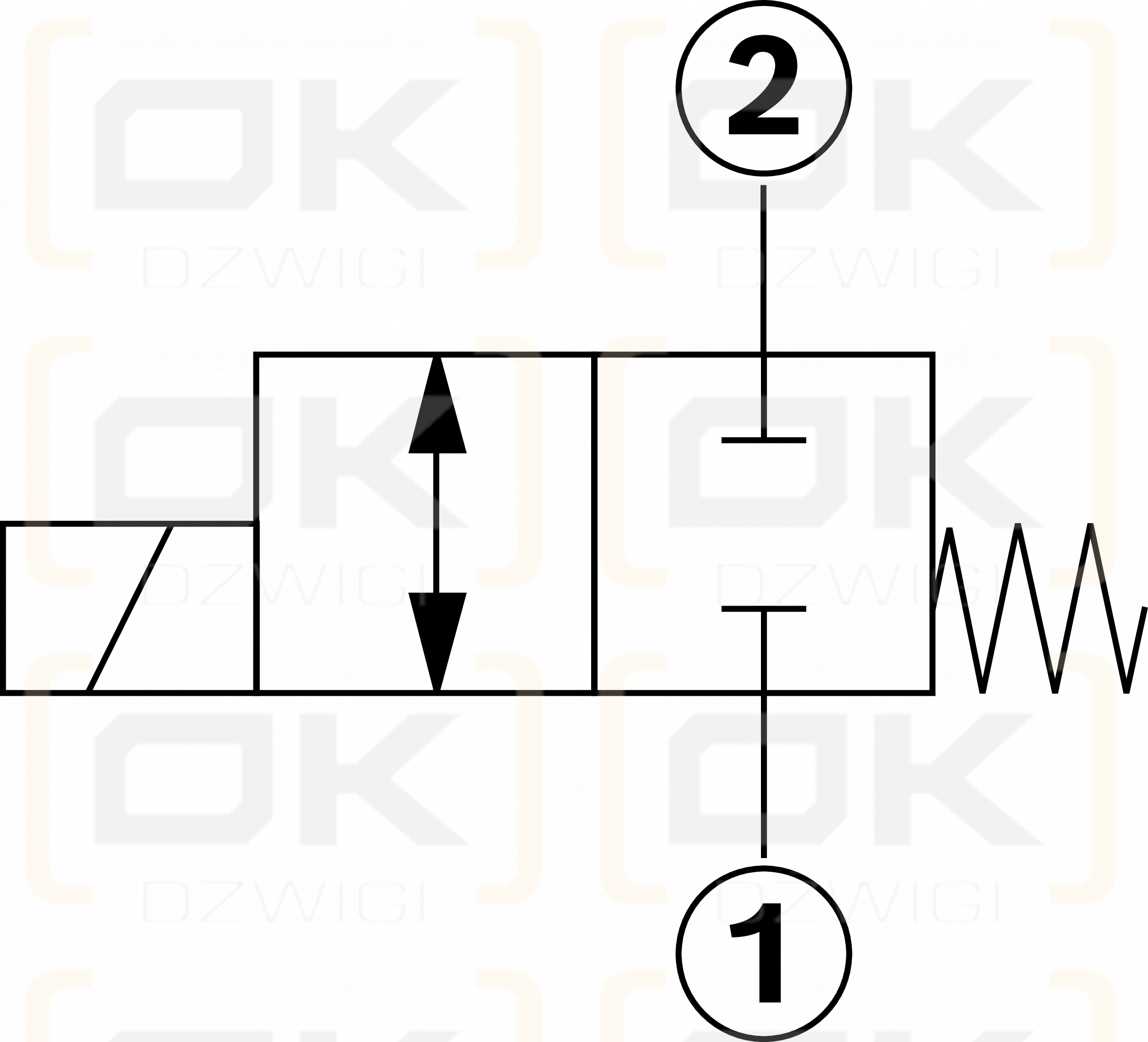

- Product family classification: 2/2-way directional control valve, direct operated, magnetic actuation
- Product family type: KKDE
- Product type: KKDE
- Seal material: FKM
- Valve cone slide: Slider type
- Connection type: Screw-in valve
- Libra: 0.26 kg
3/2-way directional spool valve, direct-operated, with solenoid actuation KKDE.1
