OD113118A000000

CODE: R930058329

CODE: R930058329

Availability: Currently not available

Notify me about availability

Price available on request +48 42 712 66 07

Ask about the product

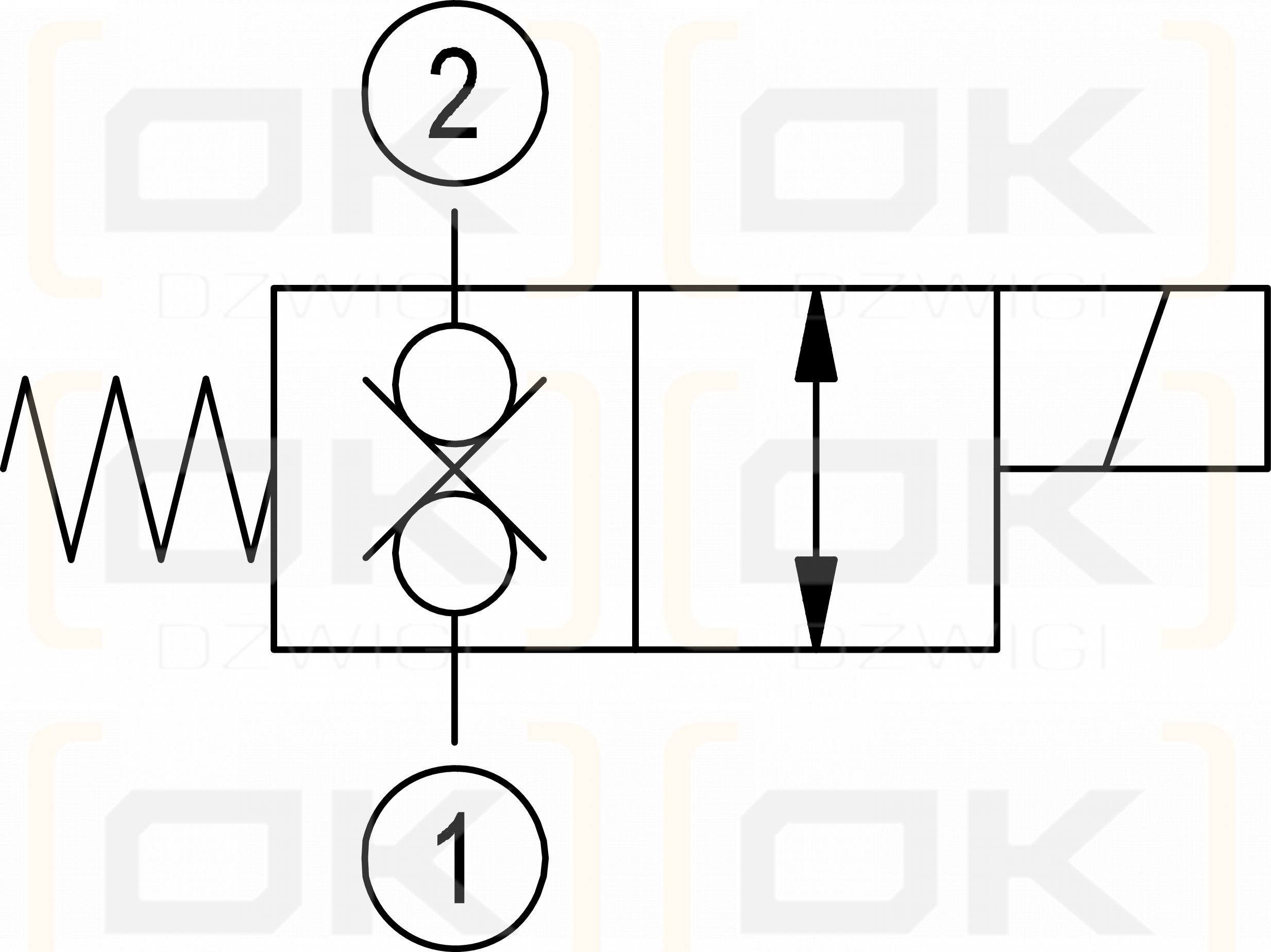

Magnetically actuated valves, direct operated seat version, 2-way, double locking

Marking: OD113118A000000-VED-016-NC-08A-A-31-0000
Valve seat: CA-08A-2N
Coil: D36
Integrated coil: Separate order
Directly-indirectly controlled: Directly controlled
Gross weight: 120 g
Hydraulic fluid: HL,HLP
Max flow rate: 15 l/min
Net weight: 120 g
Nominal flow rate: 15 l/min
Normal position: Currentless closed
Max. working pressure: 250 bar
Number of connections: 2
Positions: 2
Product family: 2-way
Product family: 2-way
Product family classification: Magnetically actuated valves, direct operated seat version, 2-way, double locking
Product family type: VED
Product type: VED
Seal material: NBR
Valve cone slide: Socket version
Connection type: Screw-in valve
Libra: 0.12 kg
