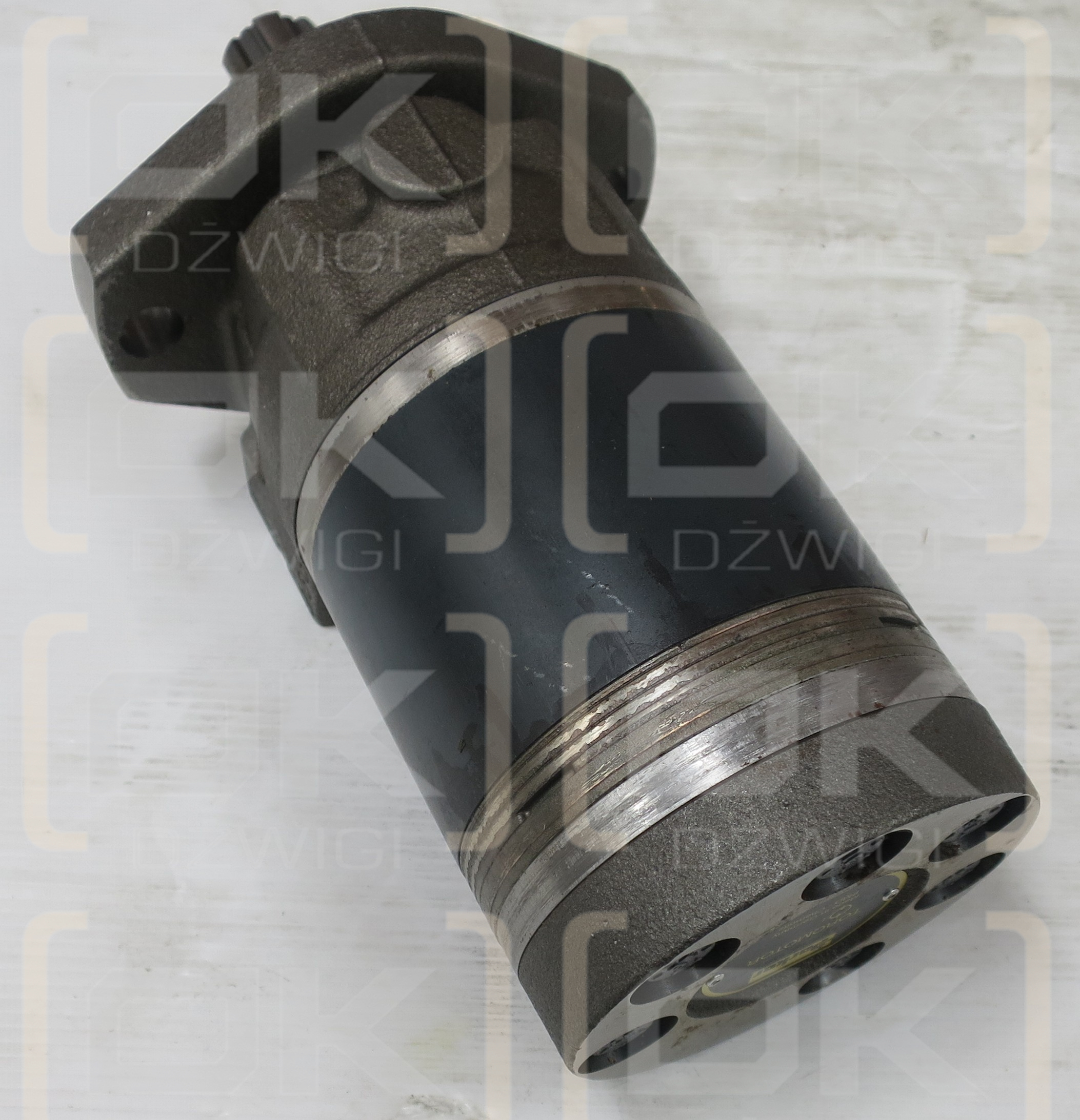

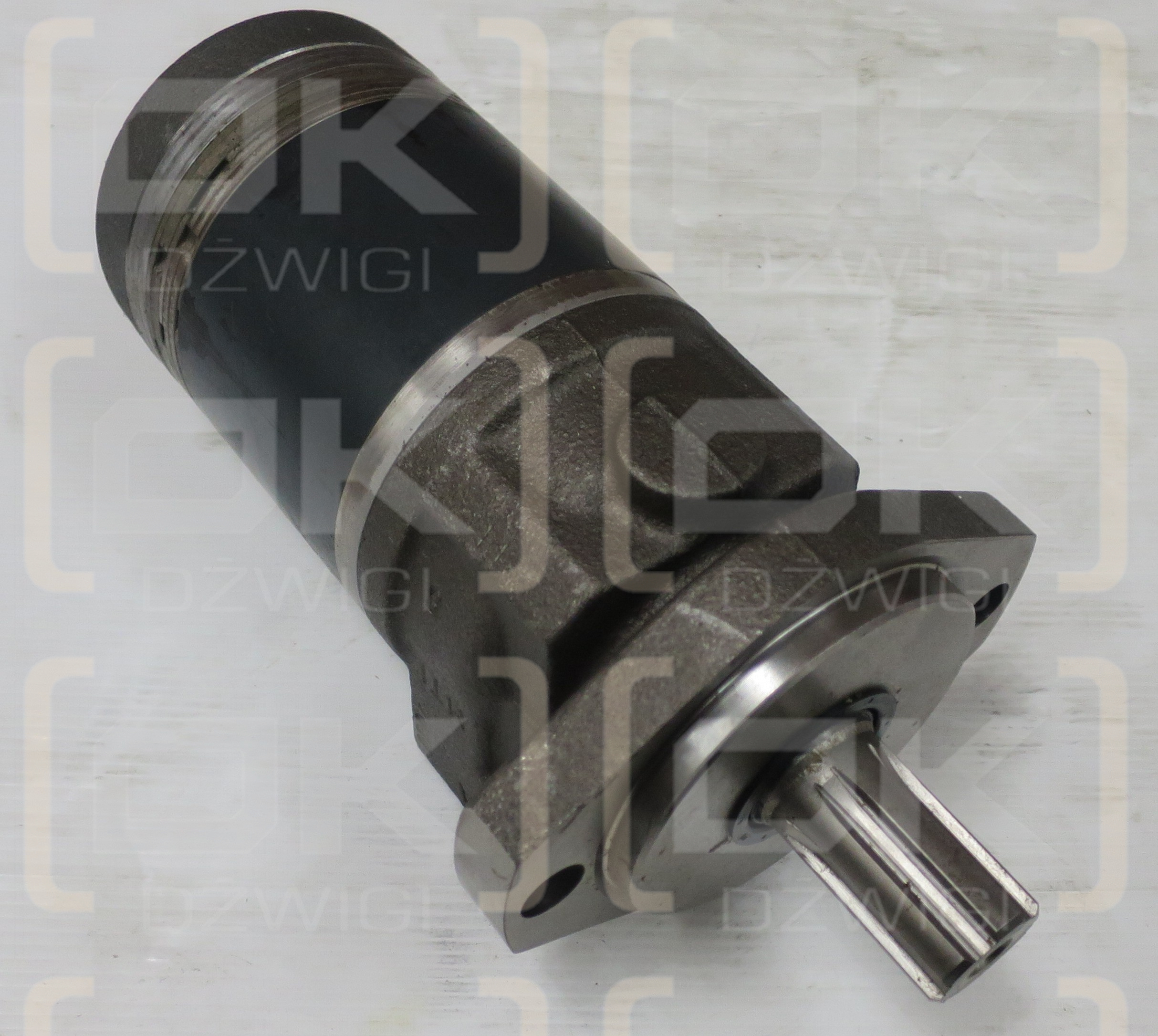

Parker TE-0330-CN-41-1-AAAB engine
Category: Gerotor engines
CODE: WH WTE0330CN411AAAB
CODE: WH WTE0330CN411AAAB
Availability: Available (quantity: 1) , shipping within 7 dni
Check deliveries
Product description
HYDRAULIC TORQMOTOR
(Replaces old no. 730-0100-110-000)
(Replaces old no. 730-0100-110-000)
Product features
- Producent: Parker
- Engine Series: TE
- Engine type: Torqmotor
- Working volume: 326 cm3/obr
- Turning direction: Dwukierunkowy [1] - Odwrócony port zasilania
- Max. working pressure (continuous): 100 bar
- Maximum flow (continuous): 60 l/min

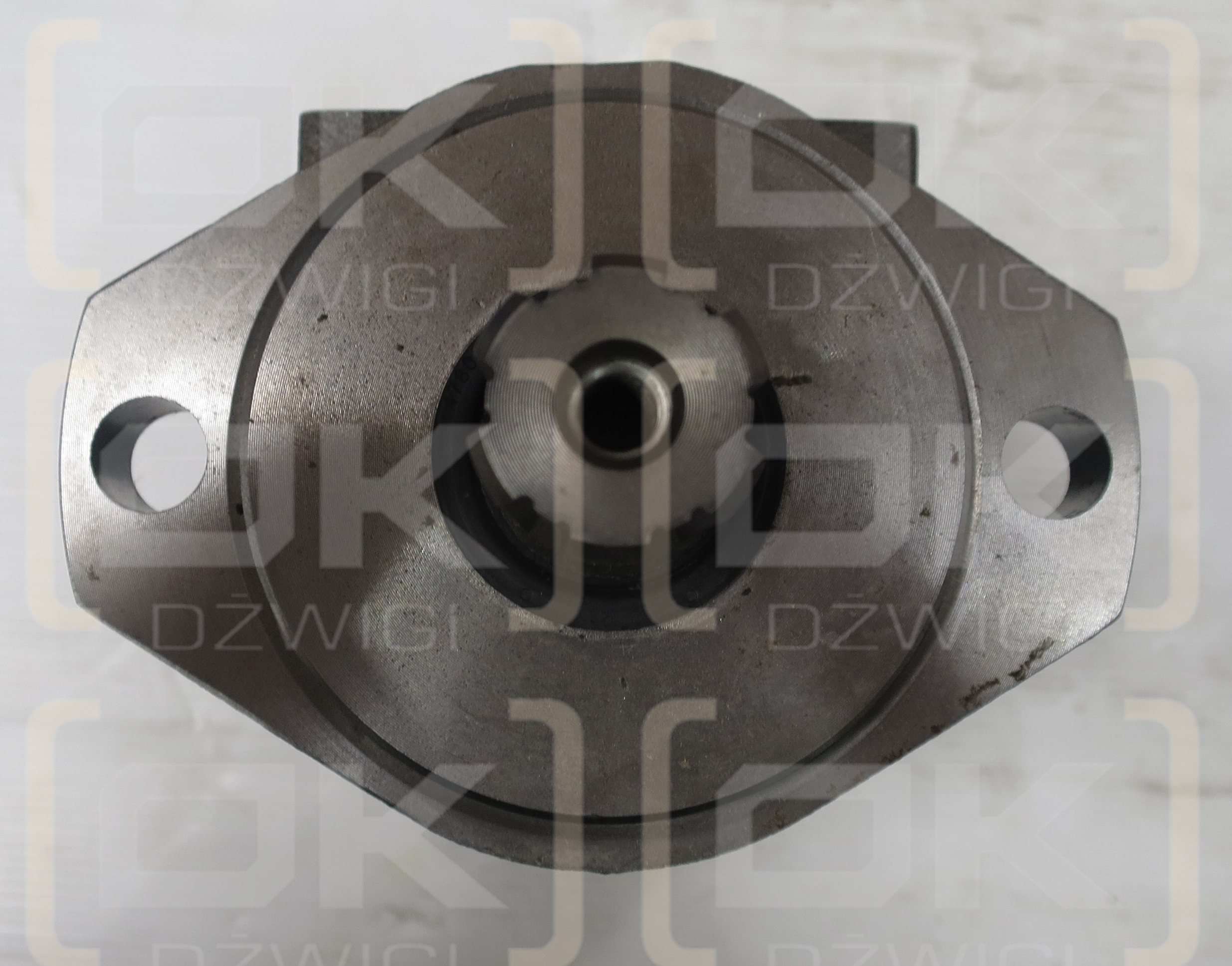

- Flange type: SAE "A", 2 śruby
- Spacing of mounting holes: 106,4 mm
- Centering diameter: 82,5 mm
- Roller type: Wielowypust SAE 6B
- Power (kW): 15
- Main ports: Pod zawór przelewowy zewnętrzny
- Colour: Niemalowany
- Comparison code: TE0330CN411AAAB, 730-0100-110-000
