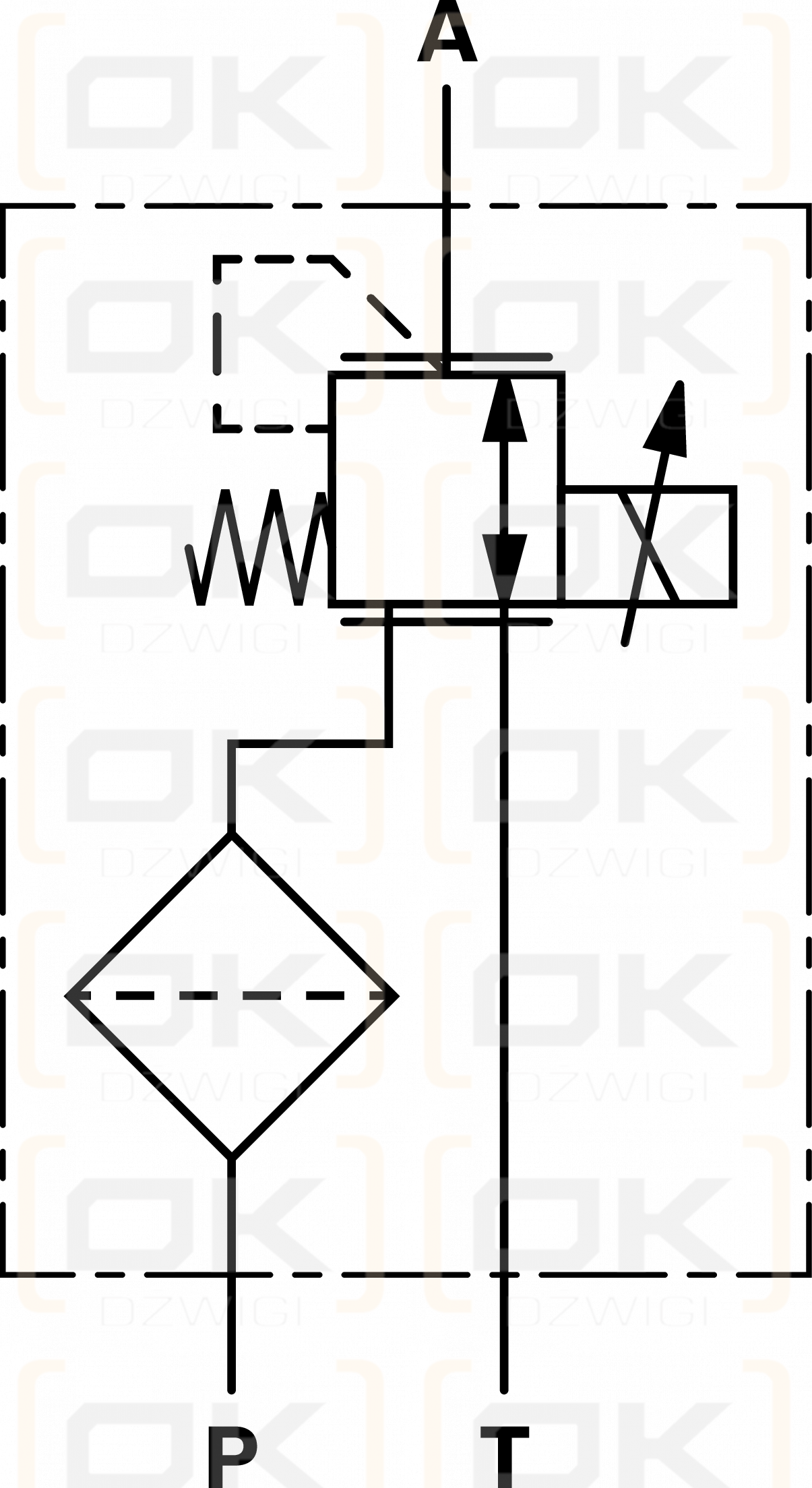

Pressure reducing valve MHDRE 02 K1X/30AG12K40V
Category: Rexroth / OilControl
CODE: R901048962
CODE: R901048962
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
Pressure reducing valve MHDRE 02 K1X/30AG12K40V
Series: 1X
Product features
- max. pressure: 30 bar
- Integrated coil: Integrated coil
- Directly-indirectly controlled: Directly controlled
- Plug: German DT04-2P
- Flow: 2,5 l/min
- Gross weight: 222.001 g
- Hydraulic fluid: HL,HLP
- Tension: 12 VDC
- Max flow rate: 2.5 l/min
- Maximum setting pressure: 30 bar
- Net weight: 222.001 g
- Connection type: Deutsch
- Nominal flow rate: 2.5 l/min
- Max. working pressure: 30 bar
- Number of connections: 3
- Product family: Reduction
- Product family: Reduction
- Product family classification: Proportional pressure reducing valve, directly operated
- Producent: Rexroth
- Product family type: MHDRE
- Product type: MHDRE
- Seal material: FKM
- Valve cone slide: Slider type
- Supply voltage: 12V DC
- Comparison code: MHDRE 02 K1X/30AG12K40V
- Connection type: Screw-in valve
- Libra: 0.23 kg
