Zestaw przewodów. szybkozłączy EURO. elementów złącznych - do hydraulicznych łączników centralnych 330 bar Waryński

Product description

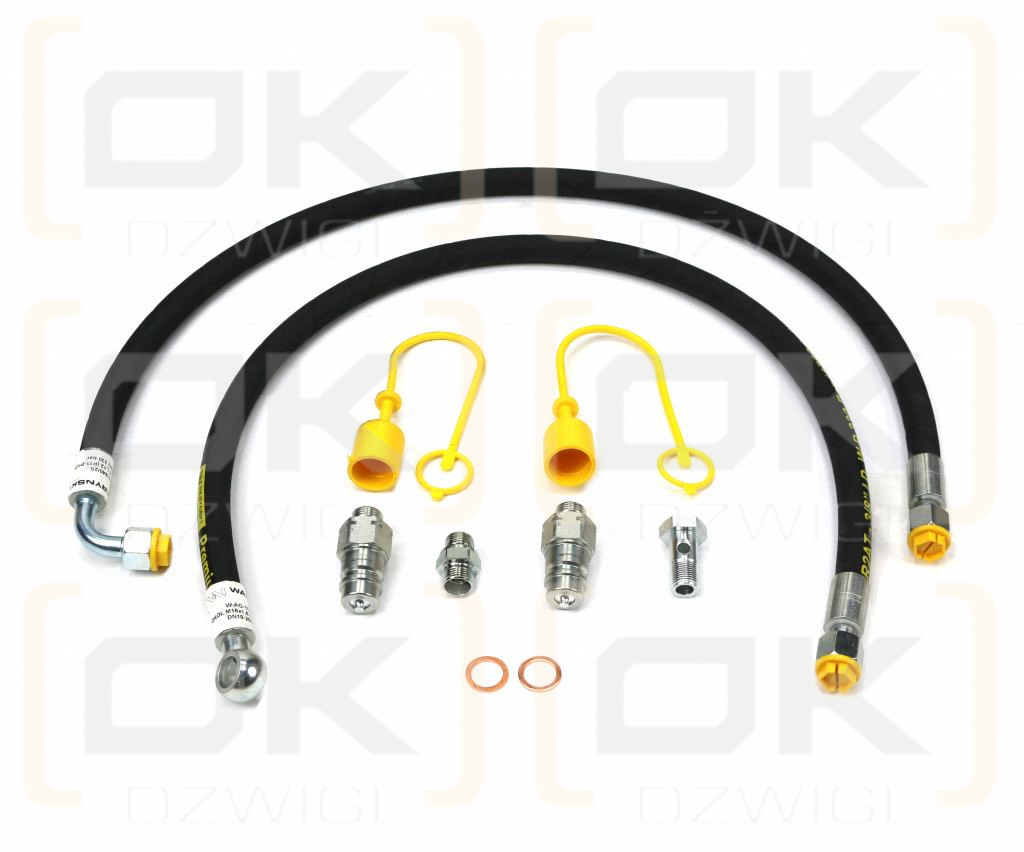

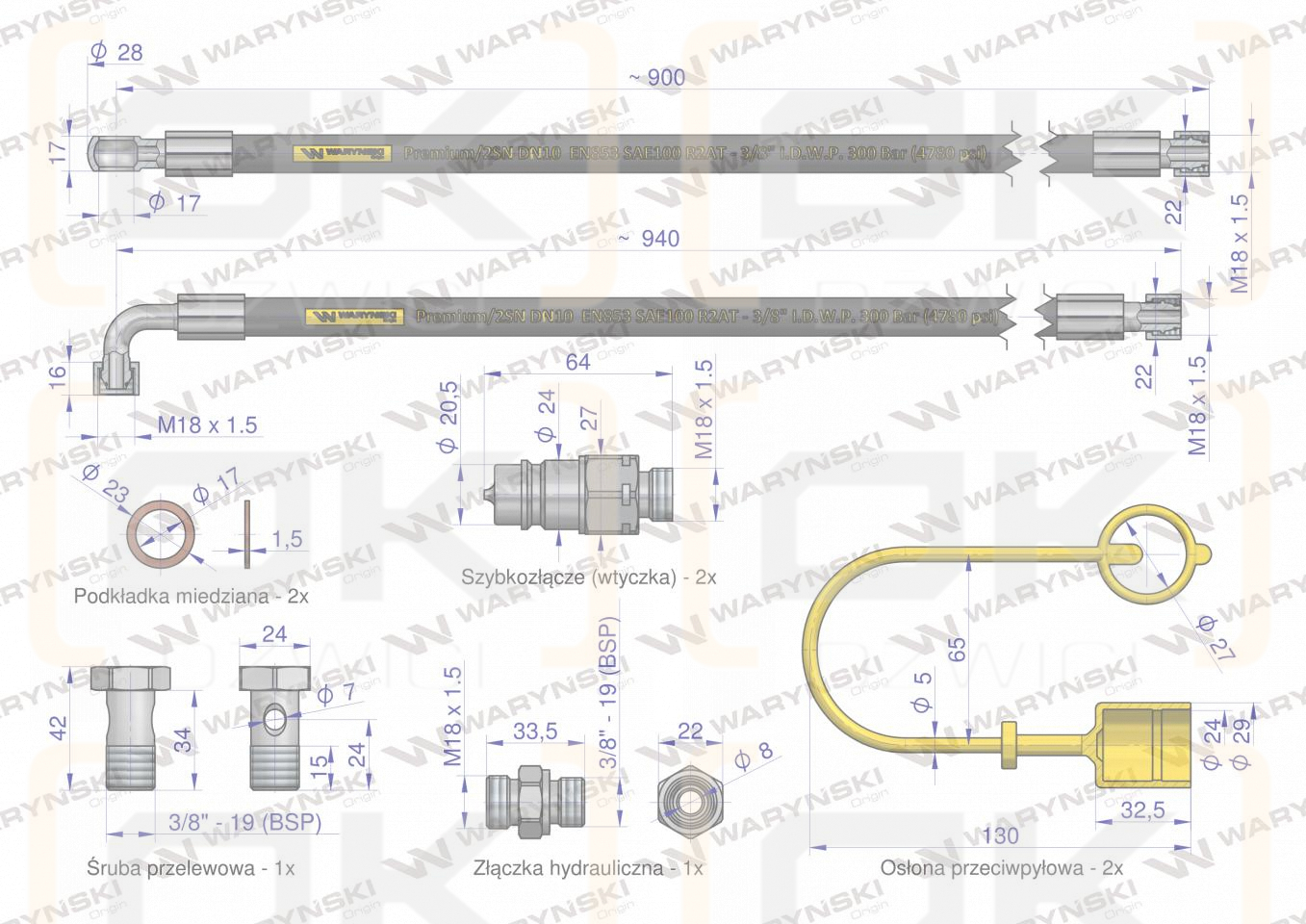

Set of hoses, EURO quick couplers, connecting elements - for hydraulic central connectors 330 bar Waryński (fits, among others, hydraulic central connectors of the W-LHKK26500700200, W-LHKK26550800250 series, W-LHHK3645845240, W-LHHK2550760205, W-LHHU25620775155, W-LHHU32675885210 series. The set includes: 1. WIAM18SZ (Hydraulic quick coupler plug M18x1.5 external thread EURO (9100818W) (ISO 7241-A) Waryński X 2pcs; 2. V-PWT125E (Cover (plug, dust cover) for EURO quick coupler PLUGS - yellow color VOIMA) x 2pcs; 3. CU-3/8 (copper washer 3/8" 17X22X1.5) x 2pcs; 4. XGE-12LR-3/8ED (XGE 12LR x 3/8"ED connector) x 1pc; 5. SO-G3/8 (overflow screw 3/8") x 1pc; 6. W-AK-10-940/2S (Hydraulic hose 330 bar M18x1.5 straight/M18x1.5 90 degrees for central connectors L-940mm DN10-2SN 33MPa Waryński x 1pc; 7. W-AO-10-900/2S (Hydraulic hose 330 bar M18x1.5 straight/eyelet 3/8" for central connectors L-900mm DN10-2SN 33MPa Waryński) x 1 pc.
