Wał przegubowo-teleskopowy 1660-2390mm 1890Nm sprzęgło cierne 2500Nm CE 2020 seria 9R Waryński
Category: Seria 9R 1890Nm
CODE: W9B1611660
CODE: W9B1611660
Availability: Available (quantity: 2)
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

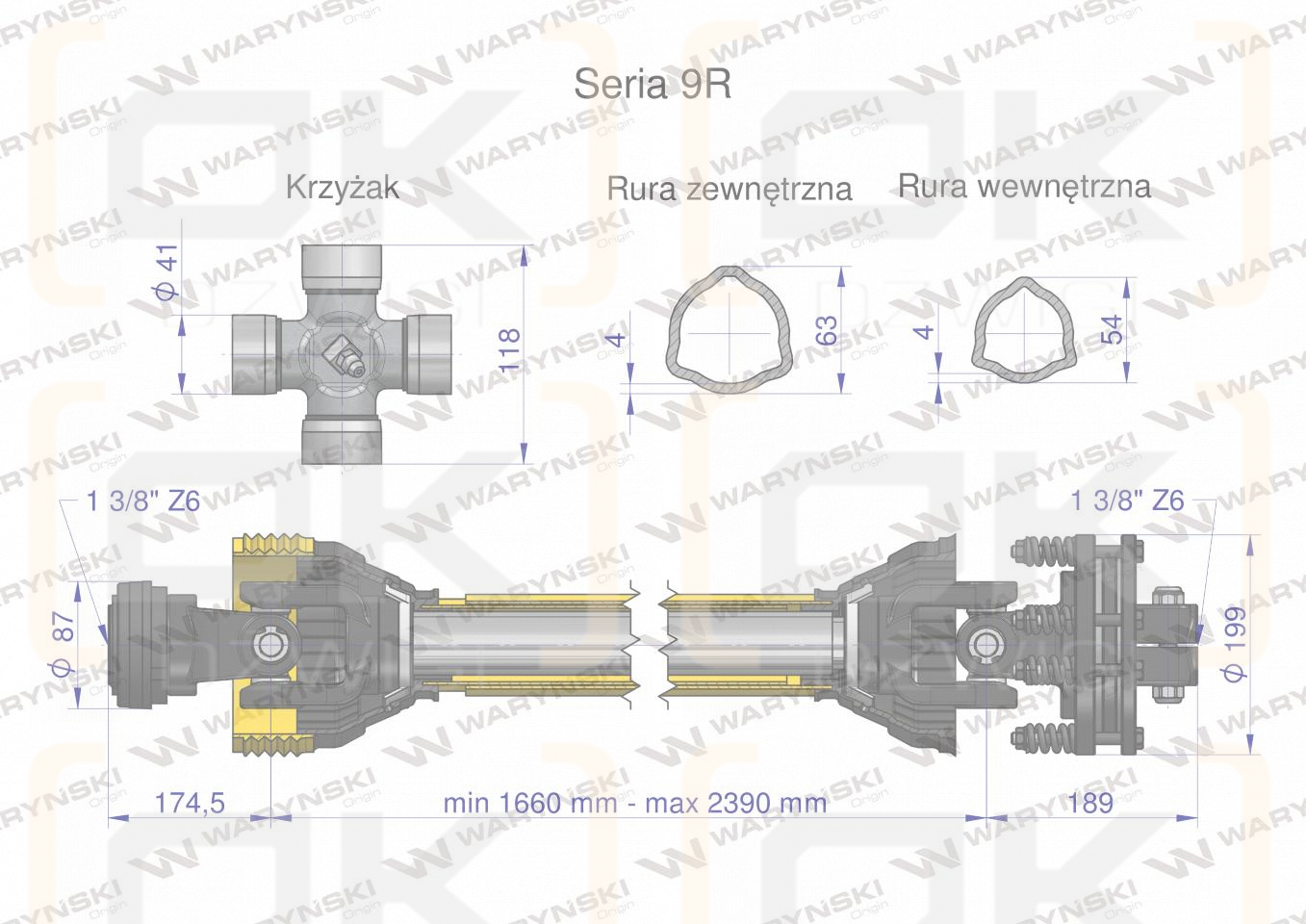

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 2390mm
- Nominal power: 106 ( 145 ) KW ( HP )
- Inner tube thickness: 54mm
- Outer pipe thickness: 63mm
- Bearing diameter: 41mm
- Height of the cross: 118mm
- Collaborates with: Outer yoke - WR227901, Crosspiece - WR219901, Outer pipe yoke - WR219906, Inner pipe yoke - WR219907, Inner pipe - WR23831055, Outer pipe - WR23821090, Housing - WR21991129, Coupling - WR213950
- Torque: 1890 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 5mm
- Outer pipe wall thickness: 4mm
- Clutch release torque: 2500 Nm
- Clutch from the Machine side: Friction clutch
- Clutch from Tractor side: Lack
