Wał przegubowo-teleskopowy 1290-1990mm 1950Nm sprzęgło cierne 2500Nm Z6 - 1 3/4 CE 2020 seria 9X Waryński
Category: Seria 9R 1890Nm
CODE: WX9B1671290
CODE: WX9B1671290
Availability: Currently not available
Notify me about availability
Check deliveries
Product features
- Producent: WARYNSKI

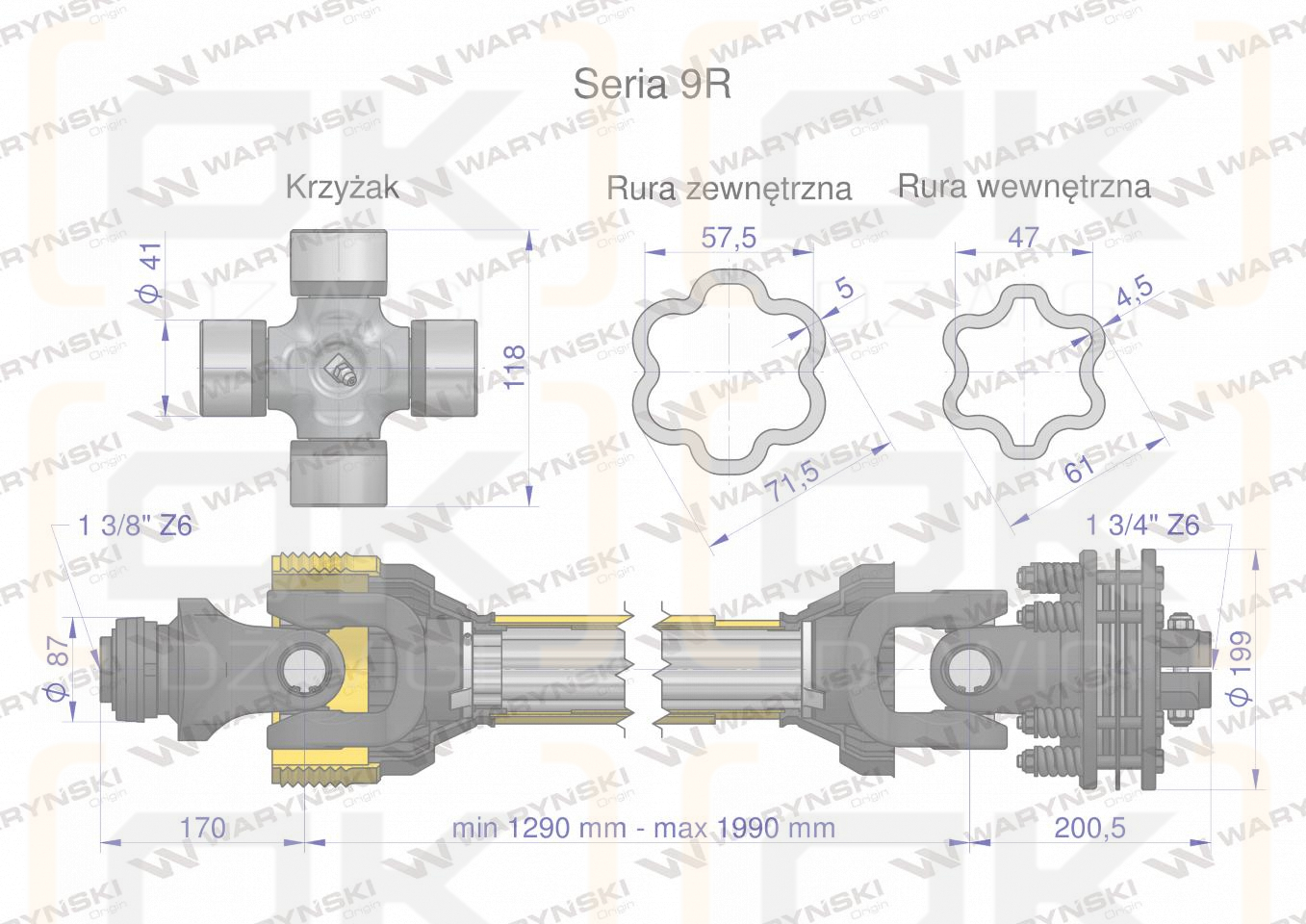

- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/4" - Z6 inch
- Telescopic connector type: Star pipe
- Maximum length: 1990mm
- Nominal power: 113 ( 151 ) KW ( HP )
- Inner tube thickness: 61mm
- Outer pipe thickness: 71.5mm
- Bearing diameter: 41mm
- Height of the cross: 118mm
- Collaborates with: Outer pipe yoke - WR227901, Crosspiece - WR219901, Outer pipe yoke - , Inner pipe yoke - , Inner pipe - , Outer pipe - , Housing - WR21991129
- Torque: 1950 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 4.5mm
- Outer pipe wall thickness: 5mm
- Clutch release torque: 2500 Nm
- Clutch from the Machine side: Friction clutch
- Clutch from Tractor side: Lack
