Shaft, articulated telescopic 1290-1990mm 1890Nm Z6 - 1 3/4 on two sides CE 2020 series 9R Waryński, Waryński
Category: Seria 9R 1890Nm
CODE: W9B5B51290
2222,20 PLN net
2733,31 PLN gross
Product available on request
Ask about the product
Any questions? Call us: +48 42 712 66 07
Product description
The shaft is manufactured according to the new PN-EN-12965_2020 standard. The Waryński R Series shafts were created to better meet the needs of our customers. The revised design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety, and are compliant with the new standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special, increased-strength bearings, and Waryński PTO shaft housings resistant to mechanical impact, UV exposure, and low temperatures.
Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/4" Z6 cal
- Attachment to the machine: 1 3/4" Z6 cal

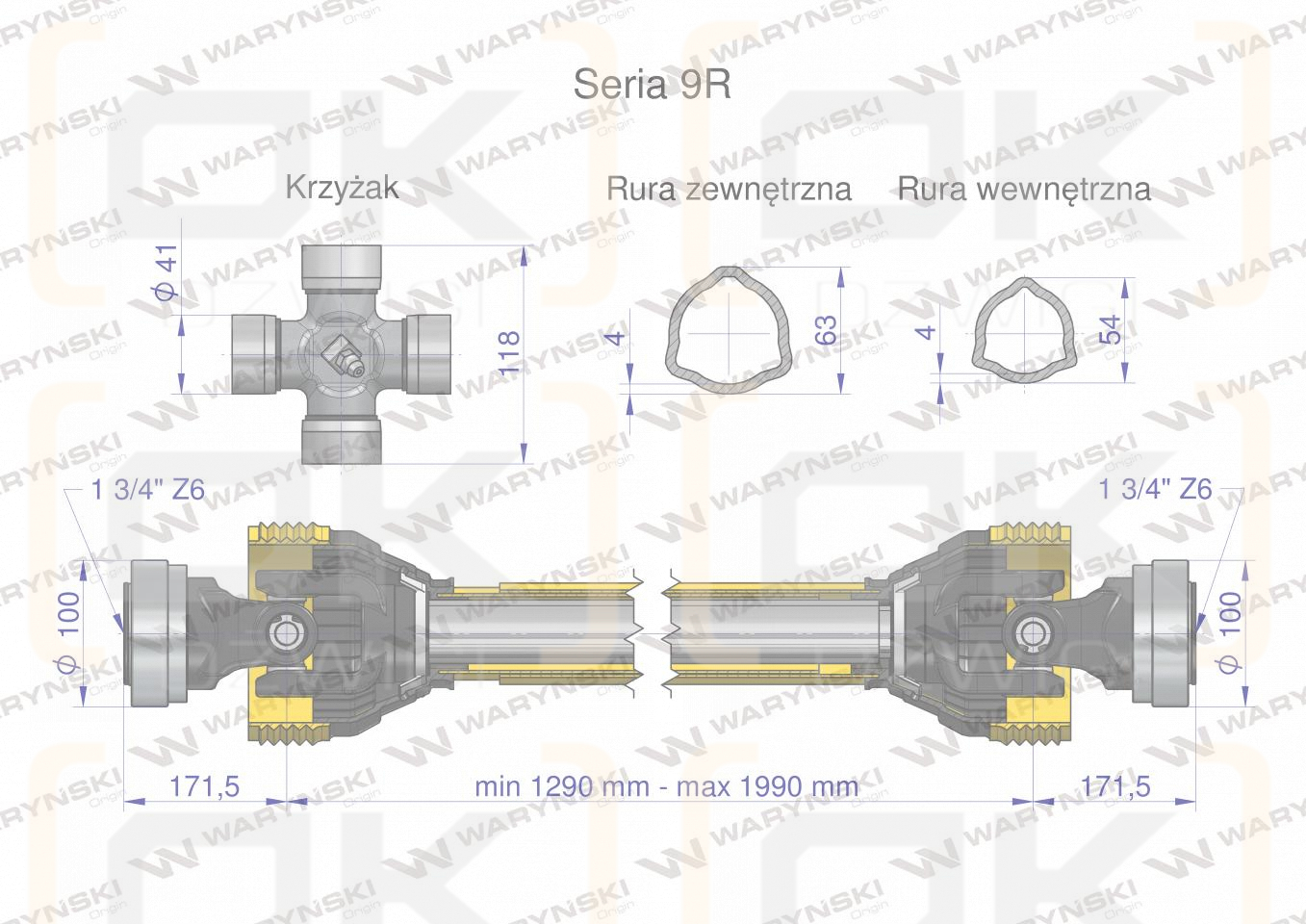

- Maximum length: 1990 mm
- Nominal power: 113 ( 151 ) KW ( KM )
- Inner tube thickness: 61 mm
- Outer pipe thickness: 71,5 mm
- Bearing diameter: 41 mm
- Height of the cross: 118 mm
- Collaborates with: Widłak zewnętrzny - WR227901, Krzyżak - WR219901, Widłak rury zew. - , Widłak rury wew. -, Rura wewnętrzna - , Rura zewnętrzna - , Obudowa - WR21991129
- Clutch release power: Brak Nm
- Torque: 1950 Nm
- Inner pipe wall thickness: 5 mm
- Outer pipe wall thickness: 4 mm
- Clutch from the Machine side: Brak
- Clutch from Tractor side: Brak
