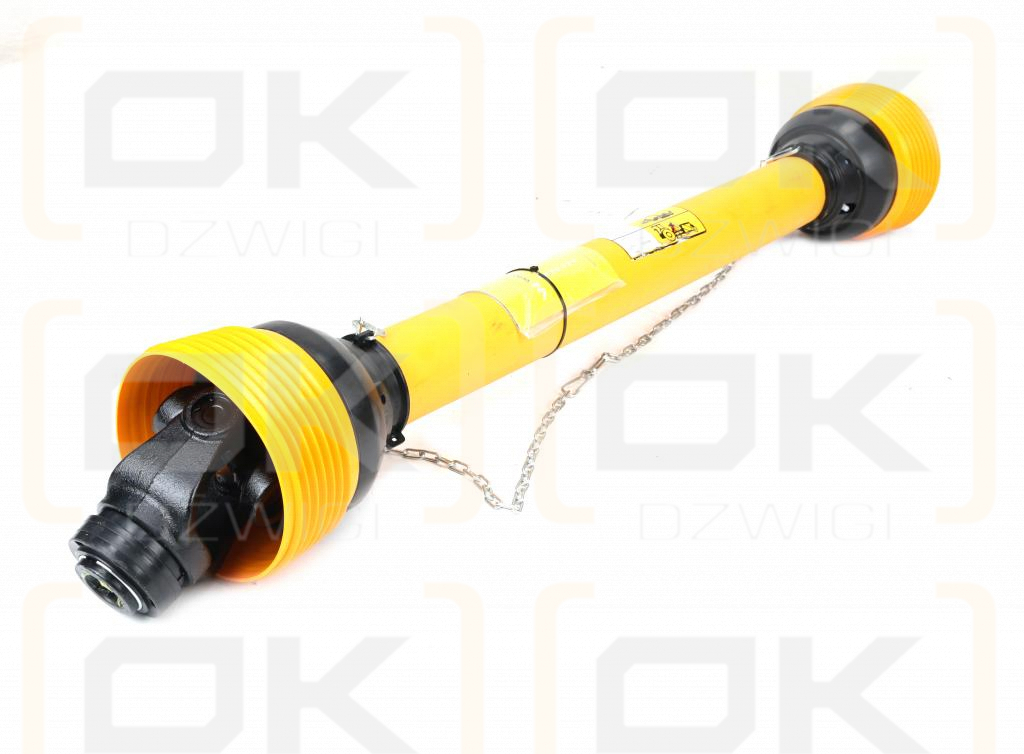

Wał przegubowo-teleskopowy 1660-2400mm 1240Nm Z6 - 1 3/4 CE 2020 seria 8R Waryński
Category: Seria 8R 1250Nm
CODE: W8B1B51660
CODE: W8B1B51660
Availability: Available (quantity: 4)
Check deliveries

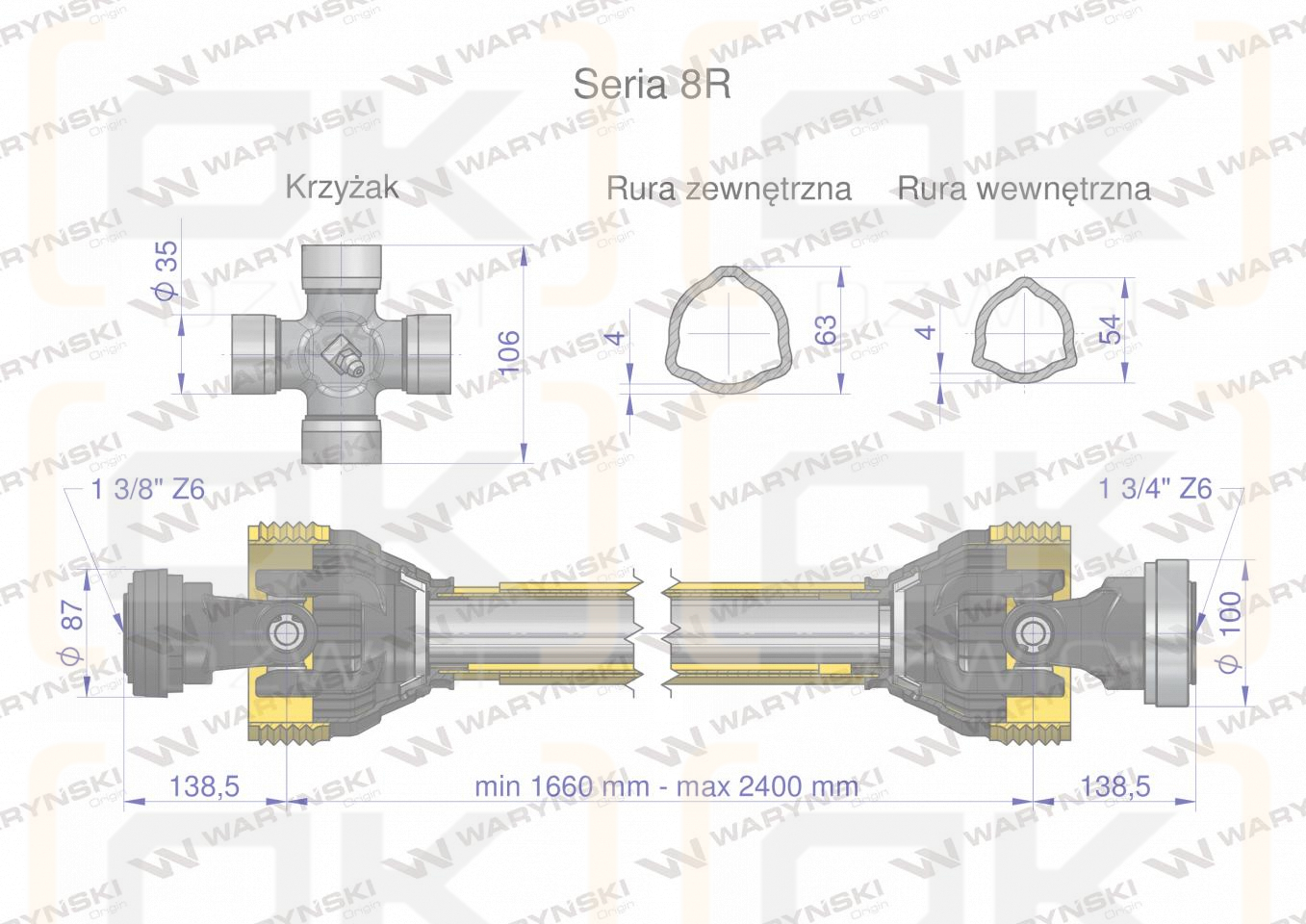

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/4" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 2400mm
- Nominal power: 70 ( 95 ) KW ( HP )
- Inner tube thickness: 54mm
- Outer pipe thickness: 63mm
- Bearing diameter: 35mm
- Height of the cross: 106.3mm
- Collaborates with: Outer tube yoke - WR227801, WR527802, Crosspiece - WR219801, Outer tube yoke - WR219806, Inner tube - WR2140800, Outer tube - WR2141800, Housing -
- Torque: 1240 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 5mm
- Outer pipe wall thickness: 4mm
- Clutch release torque: No Nm
- Clutch from the Machine side: Lack
- Clutch from Tractor side: Lack
