Wał przegubowo-teleskopowy 860-1300mm 1240Nm Z6 - 1 3/4 z dwóch stron CE 2020 seria 8R Waryński
Category: Seria 8R 1250Nm
CODE: W8B5B5860
CODE: W8B5B5860
Availability: Available (quantity: 14)
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

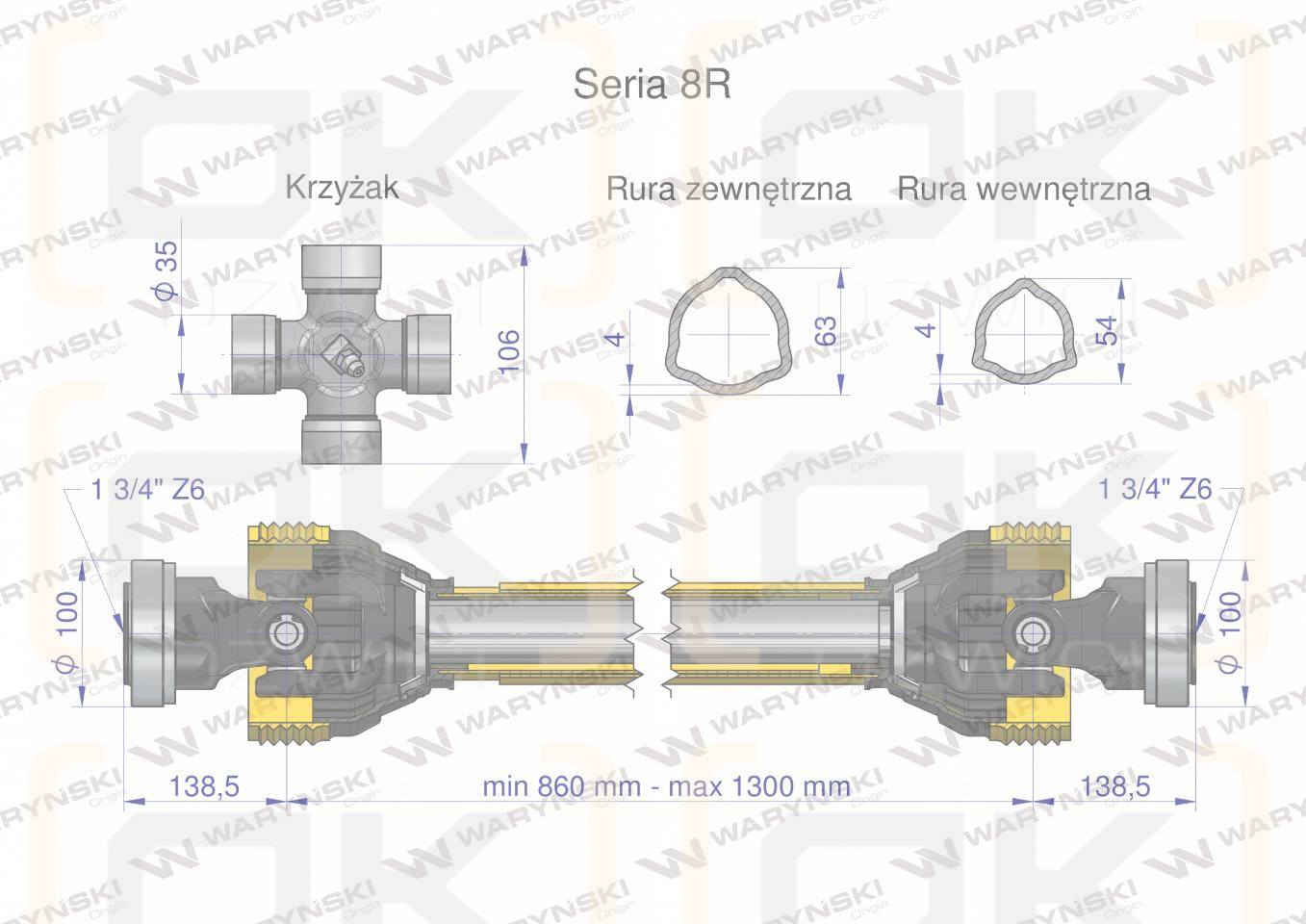

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/4" Z6 inch
- Attachment to the machine: 1 3/4" Z6 inch
- Telescopic connector type: Triangular pipe{Checkbox}
- Maximum length: 1300mm
- Nominal power: 70(95) KW (HP)
- Inner tube thickness: 54mm
- Outer pipe thickness: 63mm
- Bearing diameter: 35mm
- Height of the cross: 106.3mm
- Collaborates with: Outer tube yoke - WR527802, Crosspiece - WR219801, Outer tube yoke - WR219806, Inner tube yoke - WR219807, Inner tube - WR23831055, Outer tube - WR23821090, Housing -
- Clutch release power: No Nm
- Torque: 1240 Nm
- Working angle: Max 17°{Checkbox}
- Inner pipe wall thickness: 5mm
- Outer pipe wall thickness: 4mm
- Clutch release torque: No Nm
- Clutch from the Machine side: Lack
- Clutch from Tractor side: Lack
