Wał przegubowo-teleskopowy 1210-1880mm 830Nm szerokokątny CE 2020 seria 6R Waryński
Category: Seria 6R 830Nm
CODE: W6B1901210
CODE: W6B1901210
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.
Product features

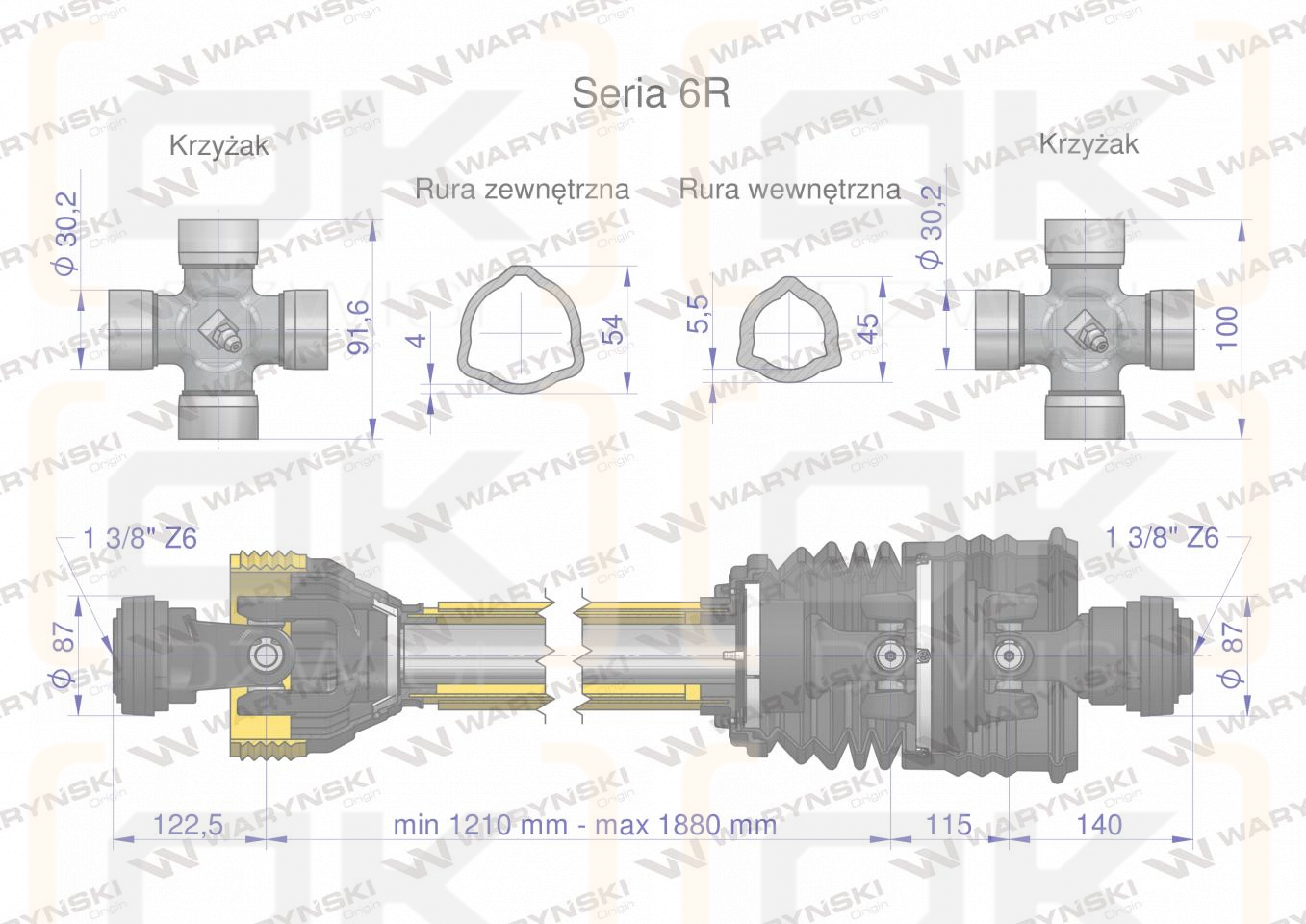

- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 2000mm
- Nominal power: 47 ( 64 ) KW ( HP )
- Clutch: Wide angle
- Inner tube thickness: 45mm
- Outer pipe thickness: 54mm
- Bearing diameter: 30.2mm
- Height of the cross: 91.4mm
- Collaborates with: Outer yoke - WR227601, Cross - WR219601, Inner pipe yoke - WR219607, Outer pipe yoke - WR219606, Inner pipe - WR23631055, WR2140600, Outer pipe - WR23621090, WR2141600, Housing - WR22961129,
- Torque: 830 Nm
- Working angle: Max 35° temporarily 80°
- Inner pipe wall thickness: 5.5mm
- Outer pipe wall thickness: 4mm
- Clutch release torque: No Nm
- Inner tube thickness:: 45mm
- Outer pipe thickness:: 54mm
- Clutch from the Machine side: Wide angle
- Clutch from Tractor side: Lack
