Wał przegubowo-teleskopowy 860-1250mm 460Nm sprzęgło cierne 900Nm CE 2020 seria 3R Waryński
Category: Seria 3R 460Nm
CODE: W352B1860
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.
Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Rura trójkątna
- Maximum length: 1250mm
- Nominal power: 26 ( 35 ) KW ( HP )
- Clutch: sprzęgło cierne

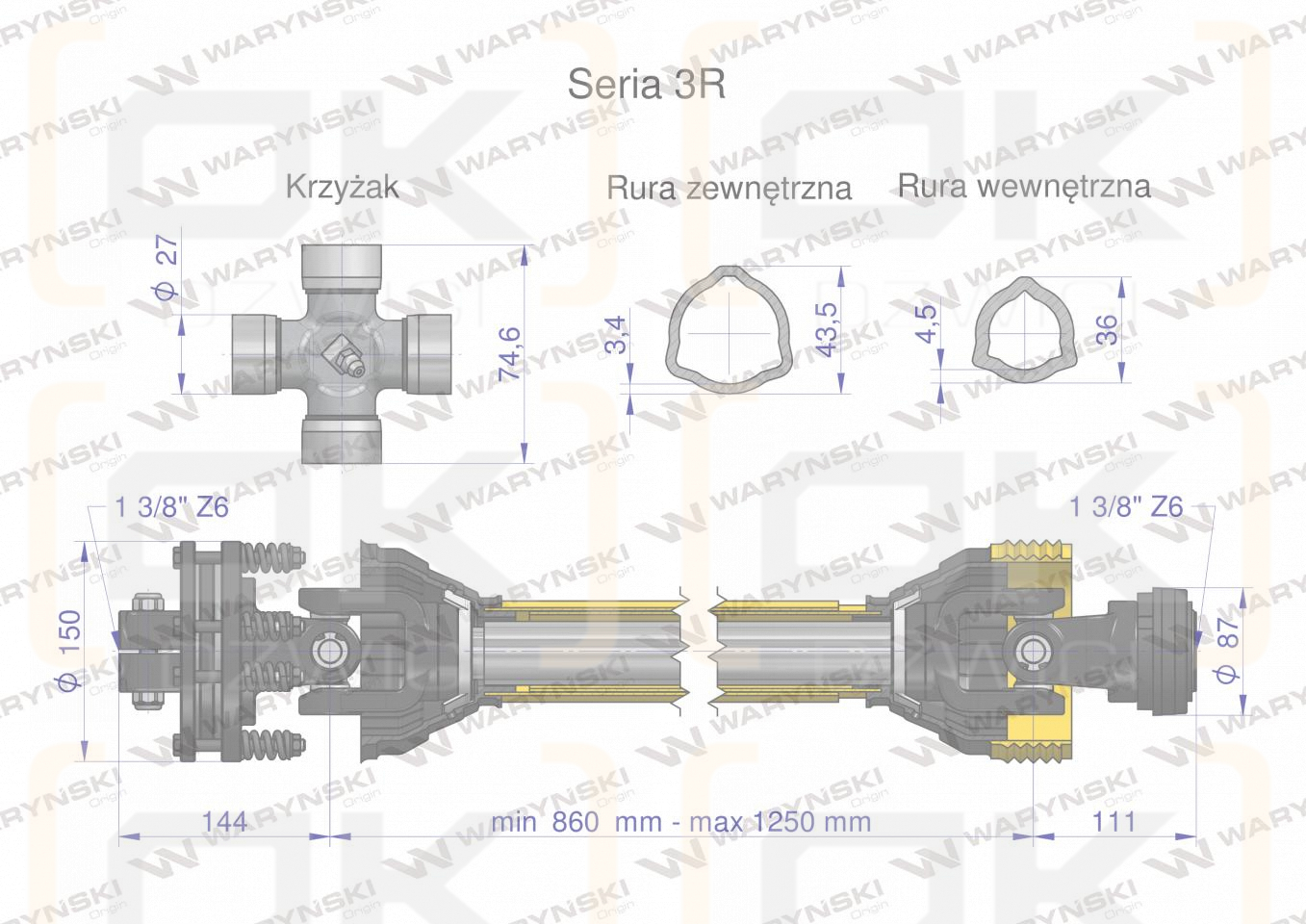

- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 27mm
- Height of the cross: 74.6mm
- Collaborates with: Widłak zewnętrzny - WR227301, Krzyżak - WR219301, Widłak rury wew. - WR219307, Widłak rury zew. - WR219306, Rura wewnętrzna - WR2323705, Rura zewnętrzna - WR2322735, Obudowa - WR21931129, Sprzęgło - WR213350
- Torque: 460 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 4.5mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: 900 Nm
- Clutch from the Machine side: Brak
- Clutch from Tractor side: Sprzęgło cierne
