Wał przegubowo-teleskopowy 1010-1560mm 460Nm 32X38 Z8 rosyjski z dwóch stron CE 2020 seria 3R WARYŃSKI
Category: Seria 3R 460Nm
CODE: W3B6B61010
CODE: W3B6B61010
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.
Product features
- Producent: WARYNSKI
- Tractor mount: 32X38 - Z8 inch
- Attachment to the machine: 32X38 - Z8 inch
- Telescopic connector type: Triangular pipe{Checkbox}
- Maximum length: 1560mm
- Nominal power: 26( 35 ) KW ( HP )

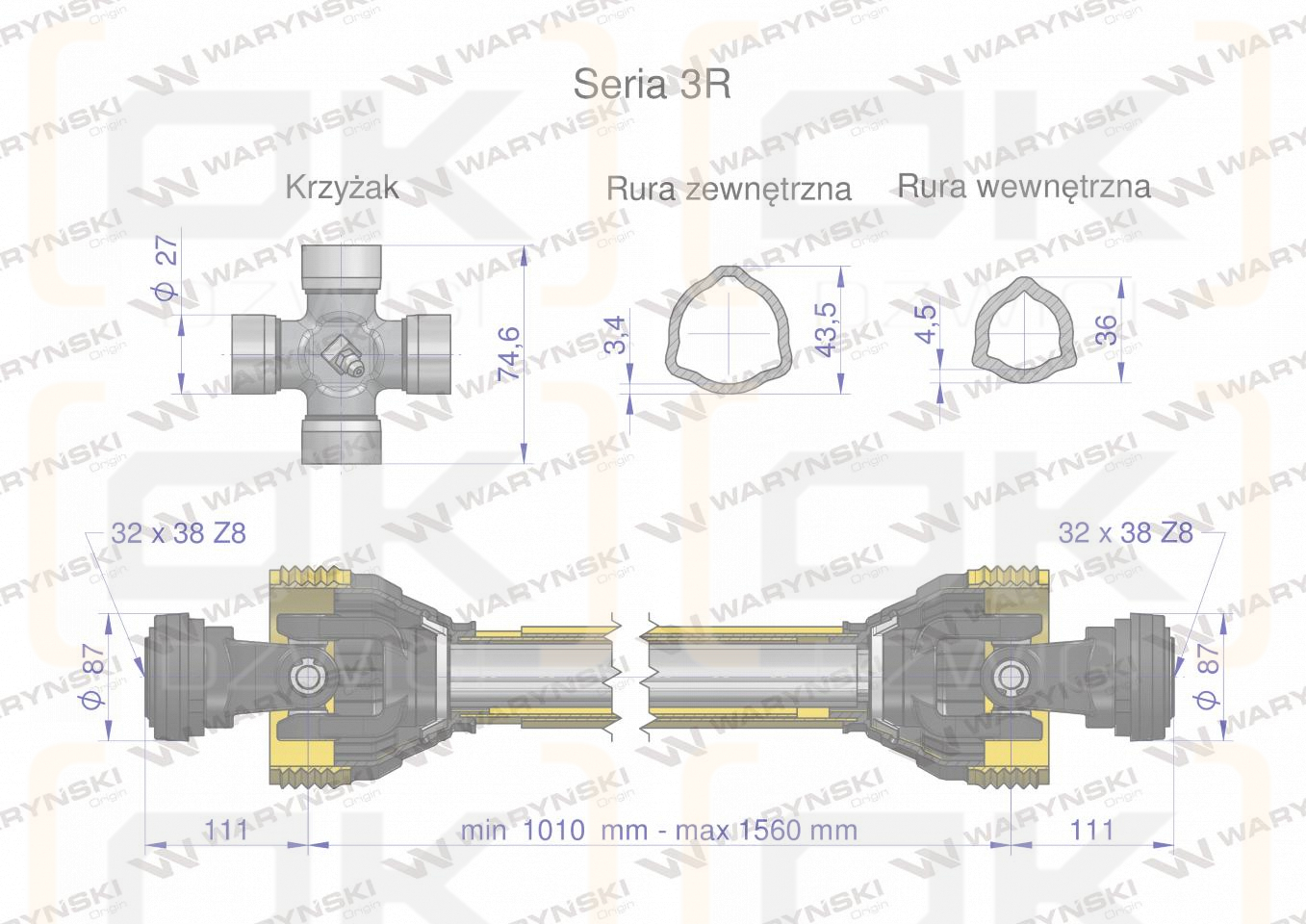

- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 27mm
- Height of the cross: 74.6mm
- Collaborates with: Outer yoke - , Crosspiece - WR219301, Inner pipe yoke - WR219307, Outer pipe yoke - WR219306, Inner pipe - WR214030, WR2323855, Outer pipe - WR214130, WR2322885, Housing - WR21931129{Checkbox}
- Clutch release power: No Nm
- Torque: 460 Nm
- Working angle: Max 17°{Checkbox}
- Inner pipe wall thickness: 4.5mm
- Outer pipe wall thickness: 3.4mm
- Clutch from the Machine side: Lack
- Clutch from Tractor side: Lack
