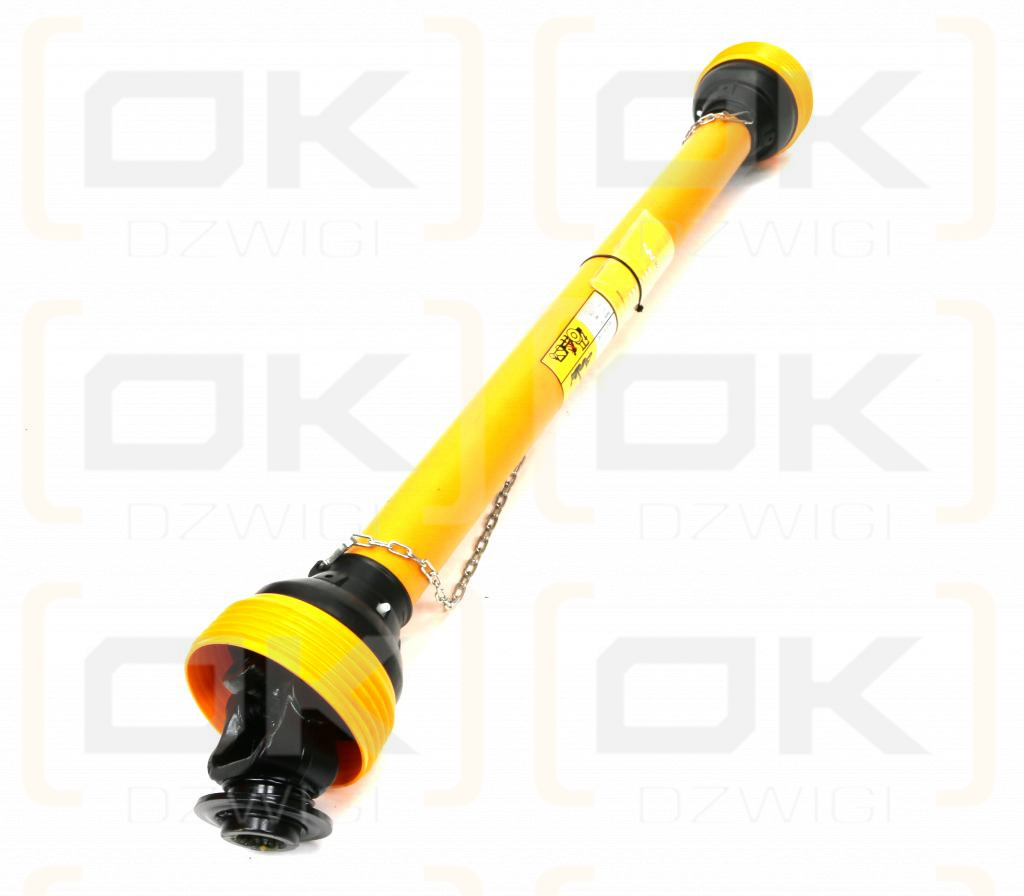

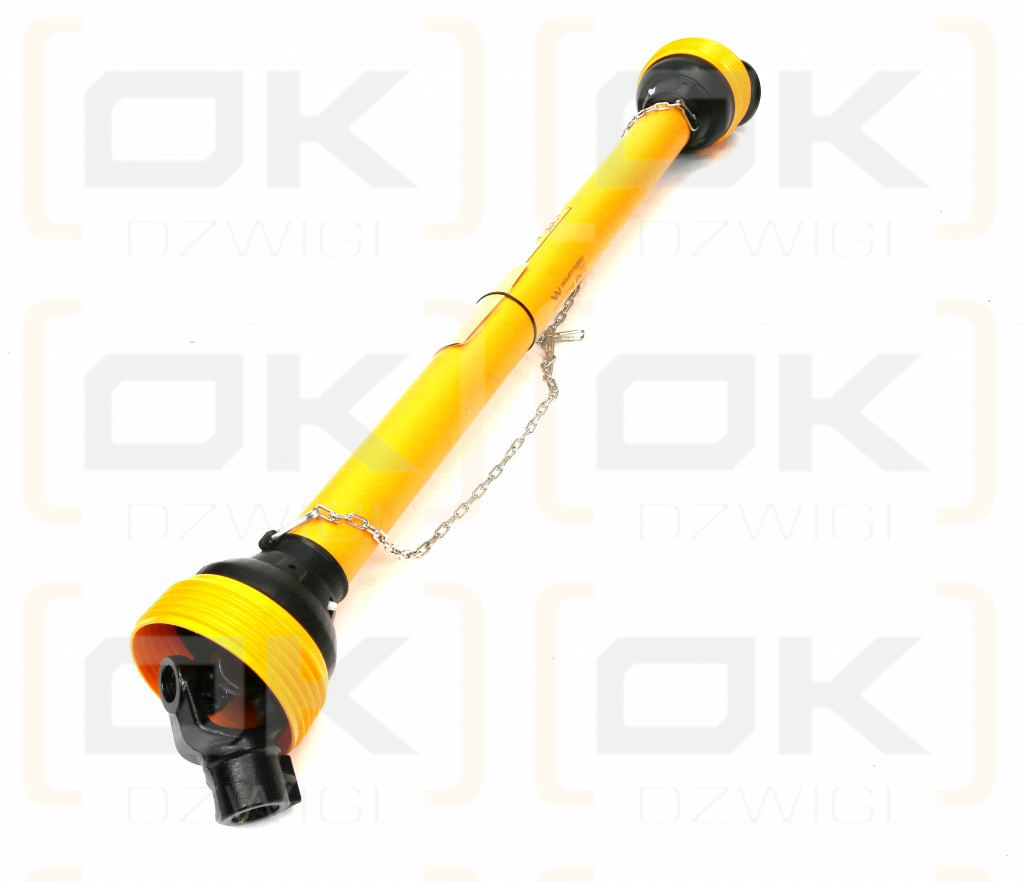

Wał przegubowo-teleskopowy 1110-1750mm 460Nm widłak Z21 od st.ciągnika CE seria 3R WARYŃSKI
Category: Seria 3R 460Nm
CODE: W322011110
CODE: W322011110
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
The new R Series of Waryński shafts was created to better meet the needs of our customers. The changed design has allowed us to increase the service life and durability of our products by over 15%. The high quality of our products is guaranteed by forged forks made of high-carbon steel, crosspieces equipped with special bearings of increased durability and housings of Waryński articulated-telescopic shafts resistant to mechanical impacts, UV effects and low temperatures. Thanks to the use of a special ring, Waryński shafts guarantee quick assembly.

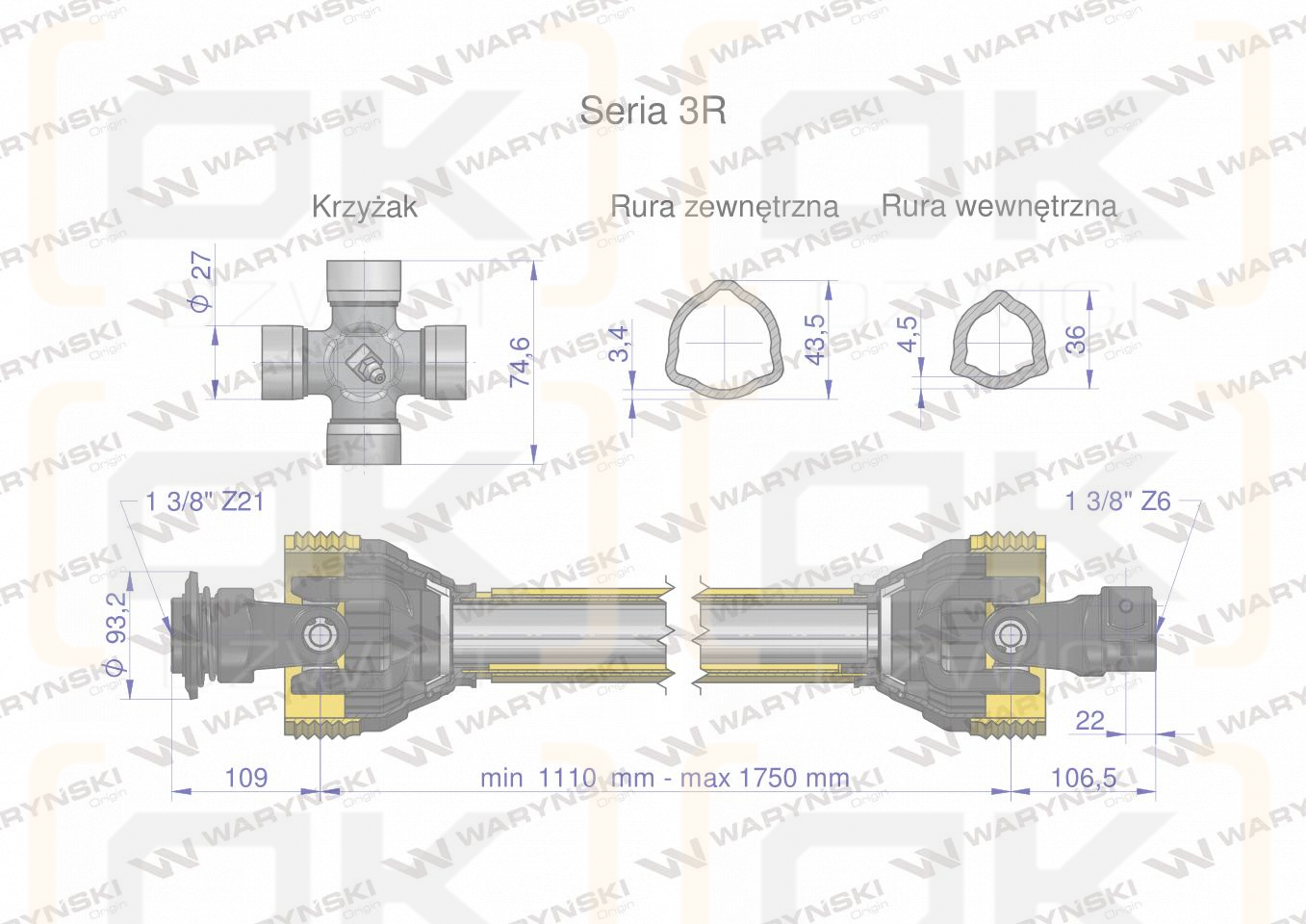

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z21 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 1750mm
- Nominal power: 26 ( 35 ) KW ( HP )
- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 27mm
- Height of the cross: 74.6mm
- Collaborates with: Outer yoke - WR227301, Crosspiece - WR219301, Inner pipe yoke - WR219307, Outer pipe yoke - WR219306, Inner pipe - WR2323955, Outer pipe - WR2322985, Housing - WR21931129
- Torque: 460 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 4.5mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: No Nm
- Clutch from the Machine side: Lack
- Clutch from Tractor side: Lack
