Wał przegubowo-teleskopowy 1010-1560mm 460Nm widłak Z21 skręcany na śrubę 50270 CE seria 3R WARYŃSKI
Category: Seria 3R 460Nm
CODE: W321121010
CODE: W321121010
Availability: Available (quantity: 2)
Check deliveries
Product features
- Producent: WARYNSKI

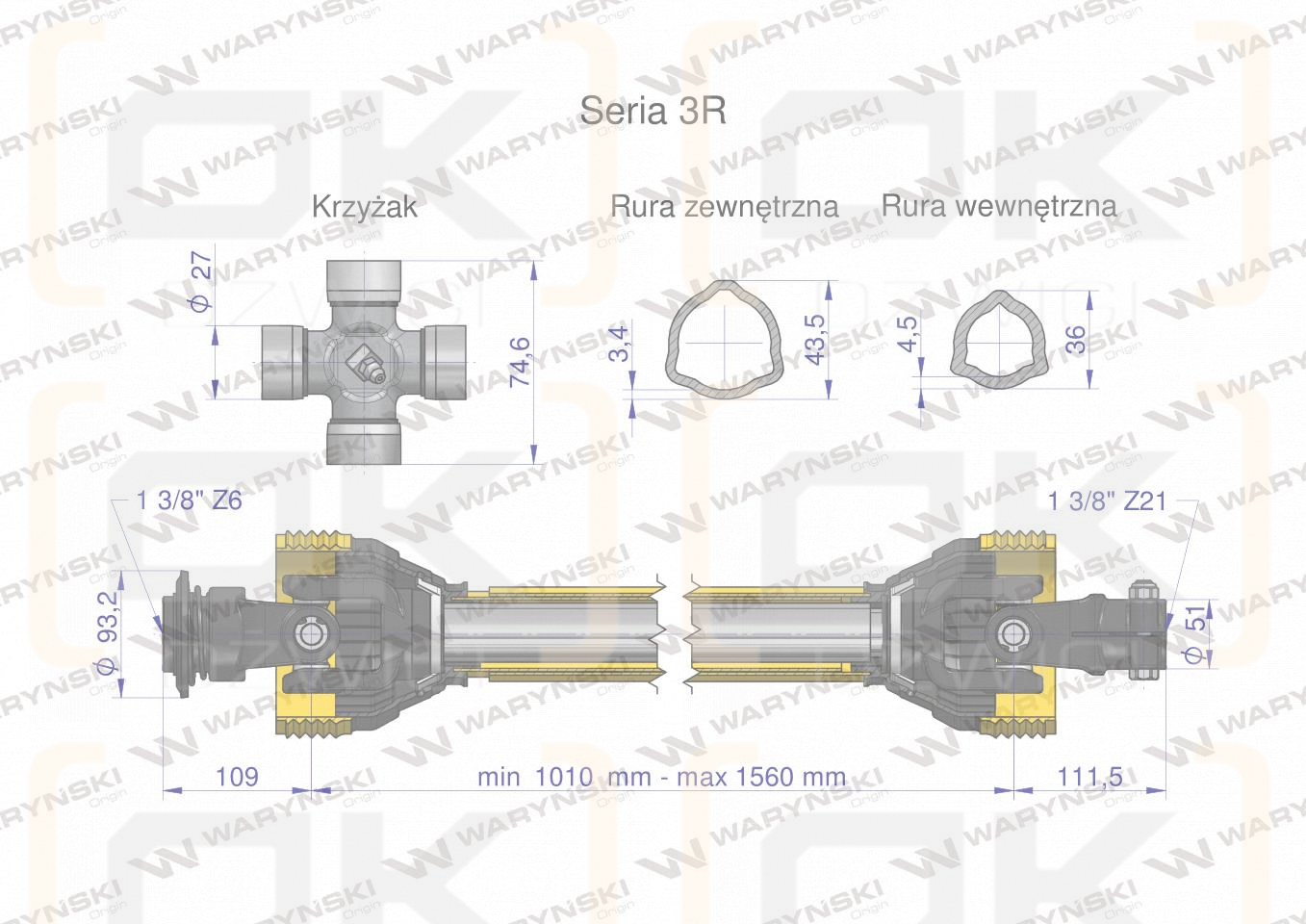

- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z21 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 1560mm
- Nominal power: 26 ( 35 ) KW ( HP )
- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 27mm
- Height of the cross: 74.6mm
- Collaborates with: Outer yoke - WR227301, Crosspiece - WR219301, Inner pipe yoke - WR219307, Outer pipe yoke - WR219306, Inner pipe - WR2323855, Outer pipe - WR2322885, Housing - WR21931129
- Torque: 460 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 4.5mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: No Nm
- Clutch from the Machine side: Lack
- Clutch from Tractor side: Lack
