Wał przegubowo-teleskopowy 510-720mm 460Nm widłak Z21 skręcany na śrubę 50210 CE seria 3R WARYŃSKI

CODE: W32112510

CODE: W32112510

Availability: Currently not available

Notify me about availability

Price available on request +48 42 712 66 07

Ask about the product

Producent: WARYNSKI

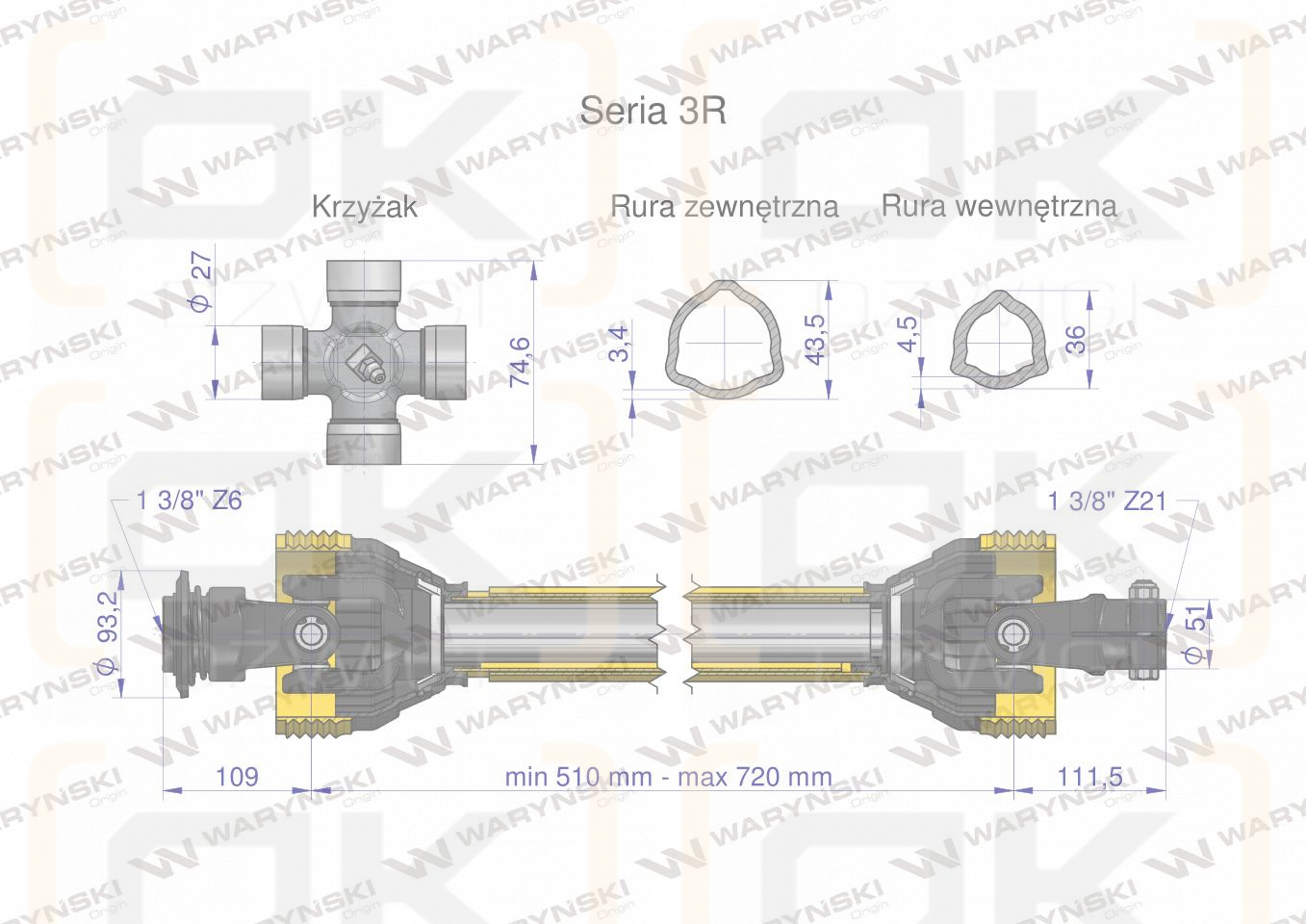

Tractor mount: 1 3/8" - Z6 inch
Attachment to the machine: 1 3/8" - Z21 inch
Telescopic connector type: Triangular pipe
Maximum length: 720mm
Nominal power: 26 ( 35 ) KW ( HP )
Inner tube thickness: 36mm
Outer pipe thickness: 43.5mm
Bearing diameter: 27mm
Height of the cross: 74.6mm
Collaborates with: Outer tube yoke - WR227301, Crosspiece - WR219301, Outer tube yoke - WR219306, Inner tube yoke - WR219307, Inner tube - WR2323355, Outer tube - WR2322385, Housing - WR22931129
Torque: 460 Nm
Working angle: Max 17°
Inner pipe wall thickness: 4.5mm
Outer pipe wall thickness: 3.4mm
Clutch release torque: No Nm
Clutch from the Machine side: Lack
Clutch from Tractor side: Lack
