Wał przegubowo-teleskopowy 1210-1900mm 460Nm sprzęgło z kołkiem szerokokątny CE seria 3R WARYŃSKI
Category: Seria 3R 460Nm
CODE: W371901210
CODE: W371901210
Availability: Available (quantity: 3)
Check deliveries
Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 1900mm
- Nominal power: 26 ( 35 ) KW ( HP )
- Clutch: clutch with pin, wide angle

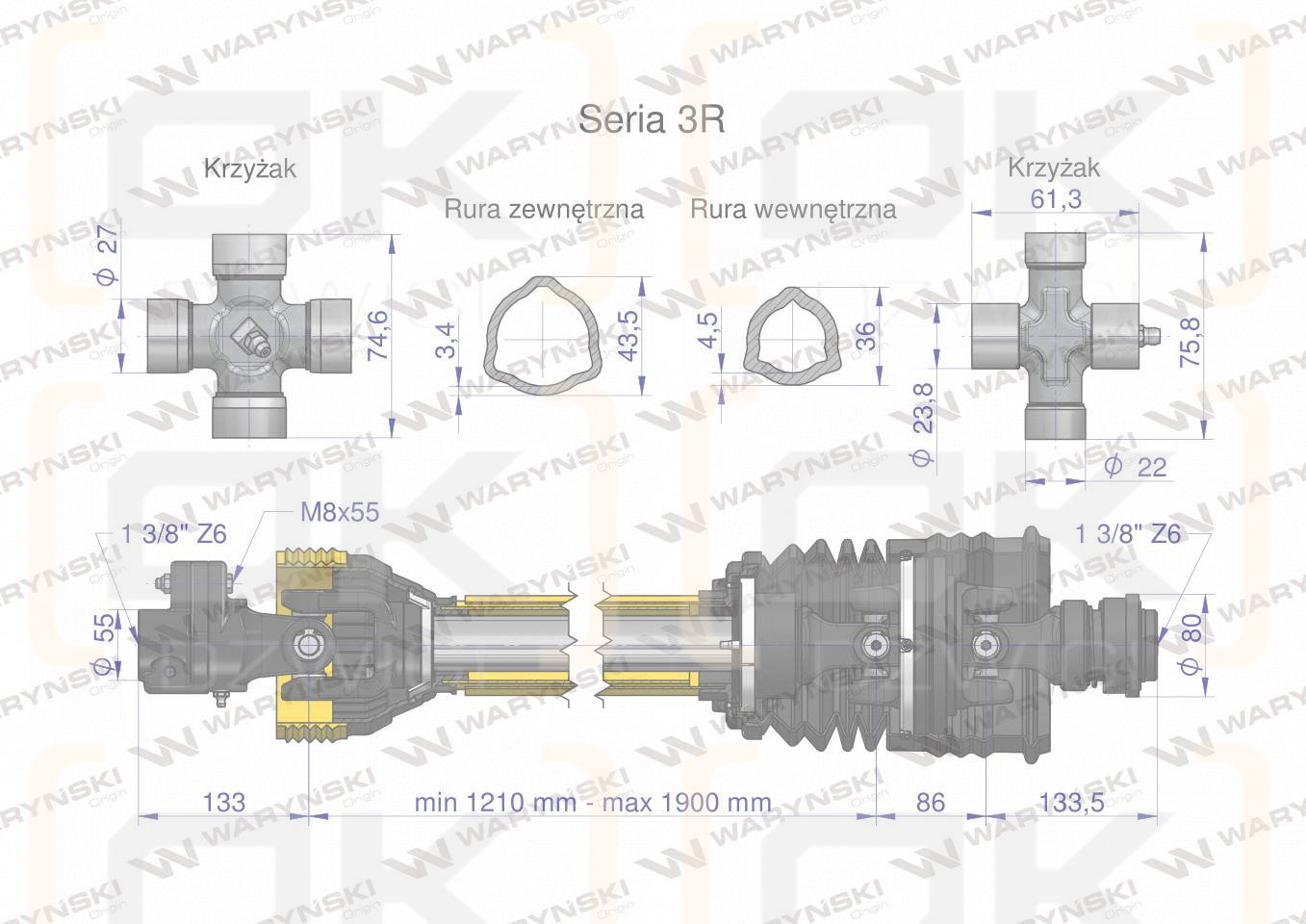

- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 27mm
- Height of the cross: 74.6mm
- Collaborates with: Outer yoke - WR227301, Crosspiece - WR219301, Outer tube yoke - WR219306, Wide-angle joint - WR212390, Inner tube - WR2323855, Outer tube - WR2322885, Housing - WR22931129
- Torque: 460 Nm
- Working angle: Max 35° temporarily 80°
- Inner pipe wall thickness: 4.5mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: 1400 Nm
- Clutch from the Machine side: Wide angle
- Clutch from Tractor side: Pin clutch
