Wał przegubowo-teleskopowy 760-1070mm 460Nm szerokokątny od st.maszyny CE 2020 seria 3R WARYŃSKI
Category: Seria 3R 460Nm
CODE: W3B190760
CODE: W3B190760
Availability: Available (quantity: 10)
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

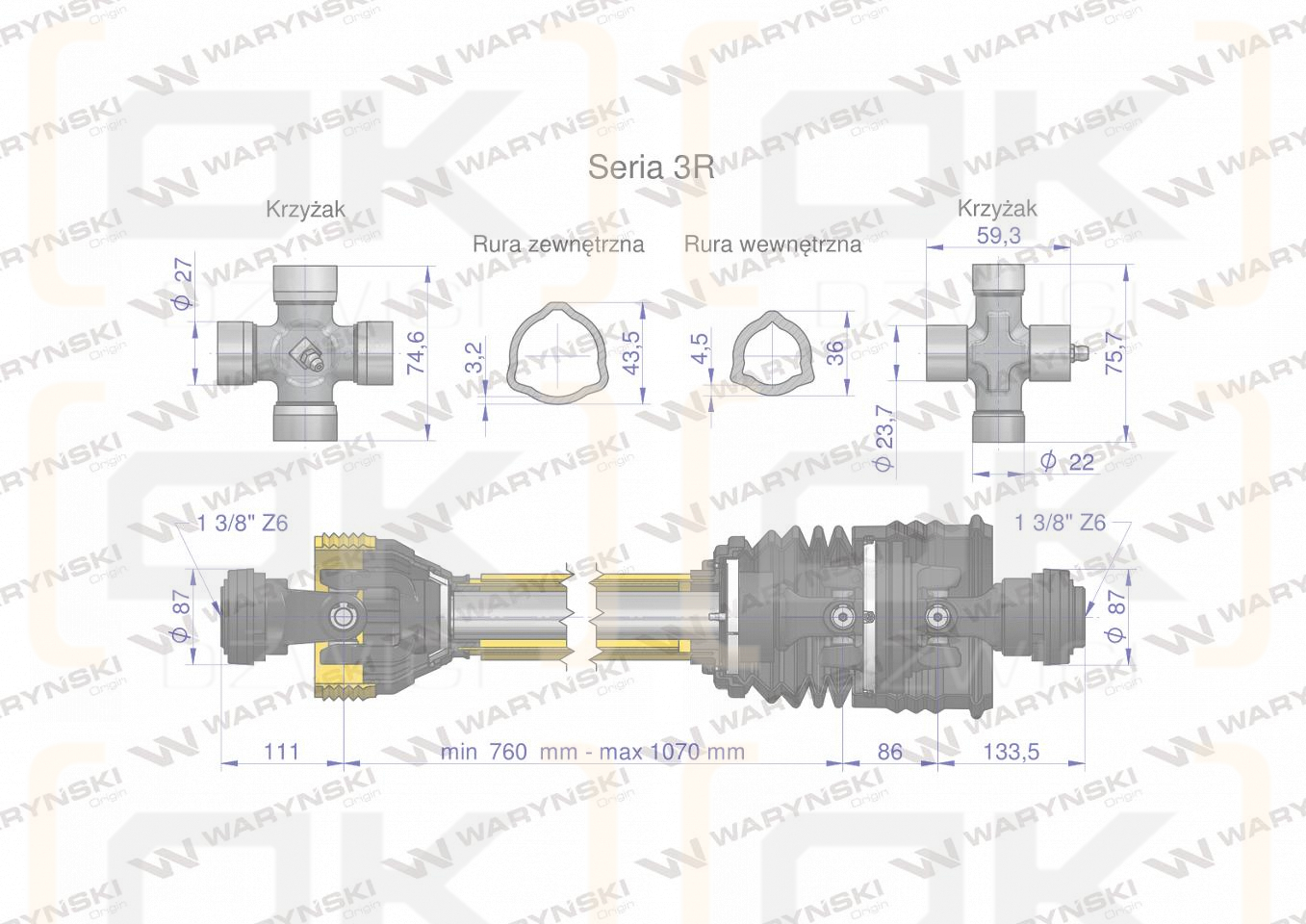

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 1070mm
- Nominal power: 26 ( 35 ) KW ( HP )
- Clutch: Wide angle
- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 27mm
- Height of the cross: 74.6mm
- Collaborates with: Outer yoke - WR227301, WR212290, Crosspiece - WR219301, Inner tube yoke - WR219307, Wide-angle joint - WR212290, Inner tube - WR2323605, Outer tube - WR2322635, Housing - WR22931129
- Clutch release power: Lack
- Torque: 460 Nm
- Working angle: Max 35° temporarily 80°
- Inner pipe wall thickness: 4.5mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: No Nm
- Inner tube thickness:: 36mm
- Outer pipe thickness:: 43.5mm
- Clutch from the Machine side: Wide angle
- Clutch from Tractor side: Lack
