Wał przegubowo-teleskopowy 1210-1900mm 210Nm widłak Z21 od maszyny CE 2020 seria 1R WARYŃSKI
Category: Seria 1R 210Nm
CODE: W1B1B21210
CODE: W1B1B21210
Availability: Available (quantity: 5)
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.
Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z21 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 2050mm
- Nominal power: 12 ( 16 ) KW ( HP )

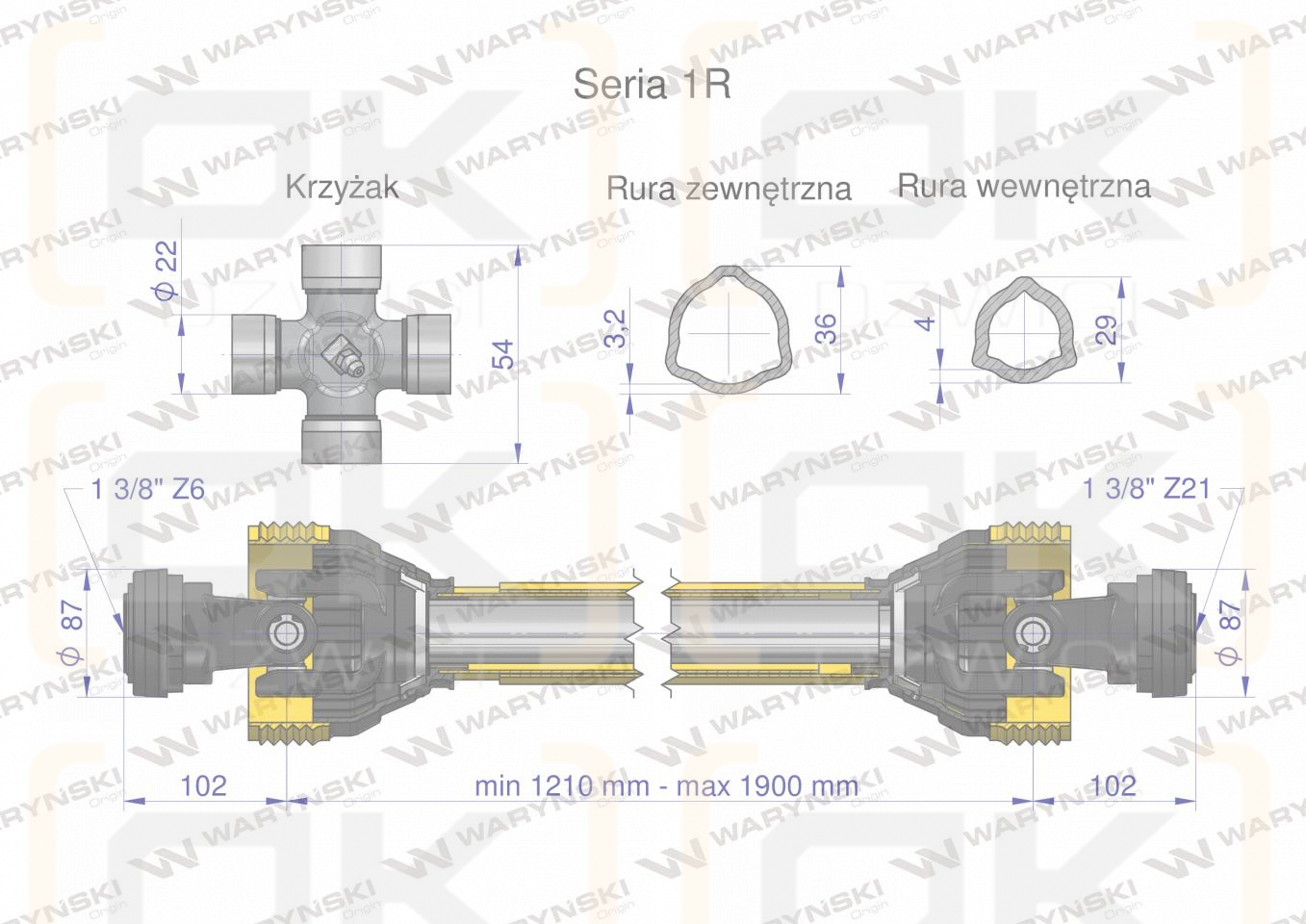

- Inner tube thickness: 29mm
- Outer pipe thickness: 36mm
- Bearing diameter: 22mm
- Height of the cross: 54mm
- Collaborates with: Outer yoke - WR227102, Crosspiece - WR219101, Inner pipe yoke - WR219107, Outer pipe yoke - WR219106, Inner pipe - WR23111090, Outer pipe - WR23211090, Housing - WR21911129
- Torque: 210 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 4mm
- Outer pipe wall thickness: 3.2mm
- Clutch release torque: No Nm
- Clutch from the Machine side: Lack
- Clutch from Tractor side: Lack
