PTO shaft 1010-1580mm 210Nm 10270 CE 2020 series 1R WARYŃSKI WA21-101
Category: Seria 1R 210Nm
CODE: W1B1B11010
CODE: W1B1B11010
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
The shaft is manufactured according to the new PN-EN-12965_2020 standard. The Waryński R Series shafts were created to better meet the needs of our customers. The revised design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety, and are compliant with the new standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special, increased-strength bearings, and Waryński PTO shaft housings resistant to mechanical impact, UV exposure, and low temperatures.

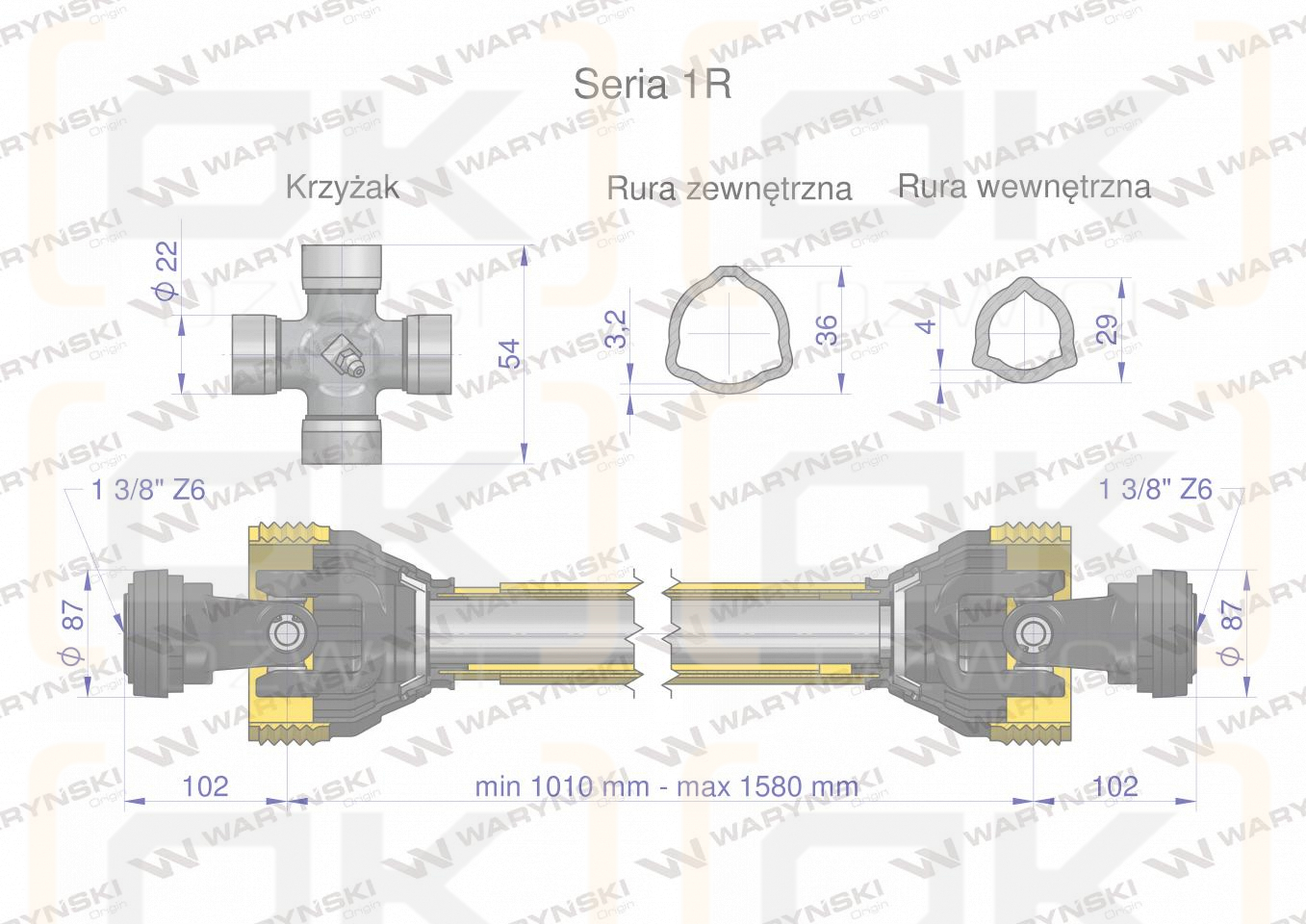

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 cal
- Attachment to the machine: 1 3/8" - Z6 cal
- Telescopic connector type: Rura trójkątna
- Maximum length: 1580 mm
- Nominal power: 12 ( 16 ) KW ( KM )
- Inner tube thickness: 29 mm
- Outer pipe thickness: 36 mm
- Bearing diameter: 22 mm
- Height of the cross: 54 mm
- Collaborates with: Widłak zewnętrzny - WR227101, Krzyżak - WR219101, Widłak rury wew. - WR219107, Widłak rury zew. - WR219106, Rura wewnętrzna - WR2311890, Rura zewnętrzna - WR2321890, Obudowa - WR21911129
- Torque: 210 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 4 mm
- Outer pipe wall thickness: 3,2 mm
- Clutch release torque: Brak Nm
- Clutch from the Machine side: Brak
- Clutch from Tractor side: Brak
