Hydraulic distributor Nordhydraulic RSQ246 ER2425A 24VDC EV5087
Category: RS
CODE: 1746-022497
CODE: 1746-022497
Availability: Available (quantity: 1)
Check deliveries
Product description
New version of the distributor 1746-020283
The product is a new version of the 1746-020283 distributor , equipped with modernized proportional solenoid valves of the latest generation.

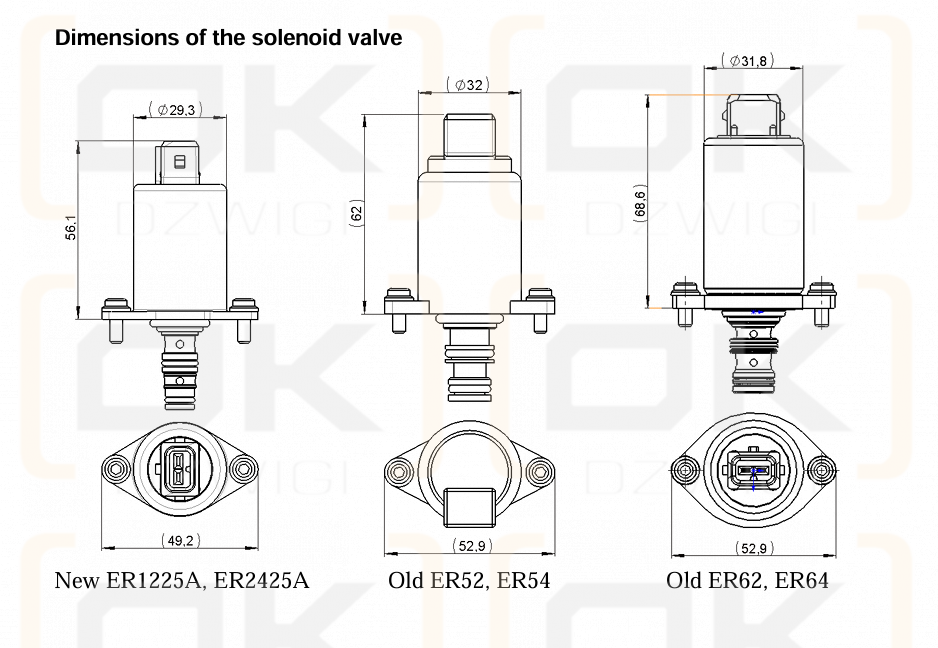

The new version uses valves:
ER2425A – instead of ER54 / ER64
Solenoid code: Hydac PDRC04T30D-03-CV-25-24PU
Lack of mechanical compatibility with older models, which should be taken into account when replacing.
New and old valves are not directly interchangeable due to the different type of connection.
In case of replacement, it is also necessary to change the working section of the distributor.
Product features
- Number of sections: 6
- Type: RSQ 240
- Producent: Nordhydraulic
- Comparison code: 1746-020283
Documents
