Formica

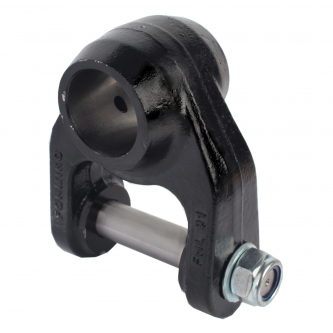

Rotator hanger 30mm, pin 25mm

FHL01-30/25

Availability: Available (quantity: 1)

Producent - Formiko

Top pin diameter (crane) - 30 mm

Lower pin diameter (rotator) - 25 mm

net: 534,26 PLN

FHR 1.000L

Formiko 1T hydraulic rotator

Formiko 10T hydraulic rotator

Top pin diameter (crane) - 25 mm

Rotator assembly - 45mm

Lower pin diameter (rotator) - 20 mm

Roller diameter - 39.5 mm

Maximum static load - 10 kN

Maximum dynamic load - 5 kN

Safe working load - 1000 kg

working pressure - 250 bar

Oil flow - 10 l/min

Connection type - G 1/4" x G 1/4"

Torque - 350 Nm

Type - FHR

Libra - 11 kg

Producent - Formiko

Description - Formiko 1T Max hydraulic rotator. static axial load: 10 kN (1,000 kg) Max. dynamic axial load: 5 kN (500 kg) Torque at 25 MPa: 350 Nm

net: 1071,43 PLN

FHR 10FD1

Formiko 10T hydraulic rotator

Top pin diameter (crane) - 35mm

Rotator assembly - 80mm

Tool assembly - Flange 173 mm; 6x17mm

Maximum static load - 100 kN

Maximum dynamic load - 50 kN

Safe working load - 10,200 kg

working pressure - 250 bar

Oil flow - 30 l/min

Connection type - G 1/2" x G 1/2"

Torque - 2800Nm

Type - FHR

Libra - 62 kg

Producent - Formiko

FHR 10FD1H

Formiko 10T hydraulic rotator

FHR 10FD2

Top pin diameter (crane) - 35mm

Rotator assembly - 80mm

Tool assembly - Flange 173 mm; 6x17mm

Maximum static load - 100 kN

Maximum dynamic load - 50 kN

Safe working load - 10,200 kg

working pressure - 250 bar

Oil flow - 30 l/min

Connection type - G 1/2" x G 1/2"

Torque - 2800Nm

Type - FHR

Libra - 62 kg

Producent - Formiko

FHR 16FD1

FHR 16FD1-203

FHR 16FD1-203H

FHR 16FD1-A8H

FHR 16FD1/A8

FHR 16FD1H

FHR 3.000L

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 900 Nm

Type - FHR

Libra - 19 kg

Producent - Formiko

Description - Formiko 3T Max hydraulic rotator. static axial load: 30 kN (3,000 kg) Max. dynamic axial load: 15 kN (1,500 kg) Torque at 25 MPa: 900 Nm

Comparison code - FHR 3L

net: 1685,71 PLN

FHR 3.000SF

Top pin diameter (crane) - 25mm

Rotator assembly - 73mm

Tool assembly - Flange 140x140 mm; 4x17mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 900 Nm

Type - FHR

Libra - 25kg

Producent - Formiko

FHR 3FF

FHR 3FL

FHR 3FL4

FHR 3LH

FHR 3SFH

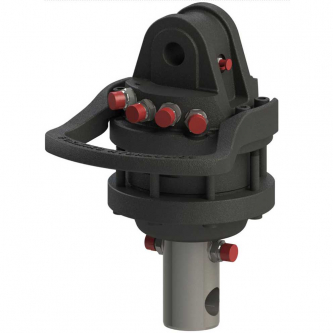

FHR 4.500L

Top pin diameter (crane) - 25 mm

Rotator assembly - 73mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 59 mm

Maximum static load - 45 kN

Maximum dynamic load - 22.5 kN

Safe working load - 4,500 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1200 Nm

Type - FHR

Libra - 24kg

Producent - Formiko

Description - Formiko hydraulic rotator 4.5T Max. static axial load: 45 kN (4500 kg) Max. dynamic axial load: 22.5 kN (2250 kg) Torque at 25 MPa: 1200 Nm

FHR 4.500L68

Top pin diameter (crane) - 25mm

Rotator assembly - 73mm

Lower pin diameter (rotator) - 30mm

Roller diameter - 68mm

Maximum static load - 55 kN

Maximum dynamic load - 32.5 kN

Safe working load - 5500 kg

working pressure - 250 bar

Oil flow - 22 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1300 Nm

Type - FHR

Libra - 28 kg

Producent - Formiko

FHR 4.500SF

Top pin diameter (crane) - 25mm

Rotator assembly - 73mm

Tool assembly - Flange 140x140 mm; 4x17mm

Maximum static load - 45 kN

Maximum dynamic load - 22.5 kN

Safe working load - 4500 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1200 Nm

Type - FHR

Libra - 29 kg

Producent - Formiko

FHR 4.500SF68

Top pin diameter (crane) - 30mm

Rotator assembly - 73mm

Tool assembly - Flange 140x140 mm; 4x17mm

Maximum static load - 45 kN

Maximum dynamic load - 22.5 kN

Safe working load - 4500 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1300 Nm

Type - FHR

Libra - 33kg

Producent - Formiko

FHR 4.5L68H

FHR 4.5LH

FHR 4.5RF

FHR 4.5RFH

FHR 4.5SFH

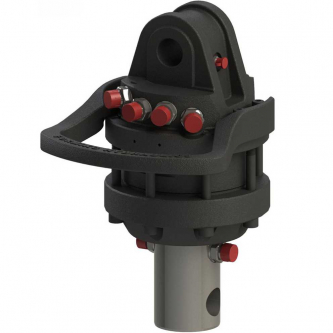

Formiko 5.5T hydraulic rotator

FHR 5.500F6

Formiko 5.5T hydraulic rotator

FHR 5.500L
