Automotive Relays

Automotive relay 12VDC LD-12P

Product code LD-12P

Availability: Available (quantity: 9)

Product features:

Tension - 12 VDC

Contact configuration - SPDT

Description - ELECTROMAGNETIC CAR RELAY, MOUNTING: ON CONNECTORS, SWITCHING CURRENT: 40 / 30A, COIL RESISTANCE: 80OHM, OPERATING TEMPERATURE: -40 ... + 85C, OUTER DIMENSIONS: 28X23X30

• net: 7,98 PLN
• • Currency: zł € $

Automotive relay 24VDC LD-24P

Product code LD-24P

Availability: Available (quantity: 1)

Product features:

Tension - 24 VDC

Contact configuration - SPDT

Description - INSTALLATION: ON THE CONNECTORS COIL VOLTAGE: 24VDC SWITCHING VOLTAGE: MAX.24VDC SWITCHING CURRENT: 40 / 30A COIL RESISTANCE: 320OHM WORKING TEMPERATURE: -40 ... + 85C OUTSIDE DIMENSIONS: 28X23X30.

• net: 7,98 PLN
• • Currency: zł € $

Automotive electromagnetic relay SPDT 12VDC; 40A; 1.8W

Product code S10-1C-C1-12VDC

Availability: Available (quantity: 3)

Product features:

Tension - 12 VDC

Contact configuration - SPDT

Description - Manufacturer: SHORI ELECTRIC Relay type: electromagnetic Max. contact current: 40A DC contact load (with resistive load): 40A / 12V DC Relay version: automotive Min. coil voltage: 9V DC Max. coil voltage: 18V DC Coil resistance: 80Ω Material contact: silver alloy Operating temperature: -30...80°C External dimensions: 28.6x28.6x25.3mm Mounting: on panel, base Coil power consumption: 1.8W Relay series: S10 Contact resistance: 100mΩ Terminals: connectors 6.3x0.8mm Mechanical life: 10000000 cycles Weight: 40g Coil current: 150mA Operate time: 10ms Release time: 10ms Electrical life: 100000 cycles Associated items: CS1-CW, RS-D03

• net: 11,00 PLN
• • Currency: zł € $

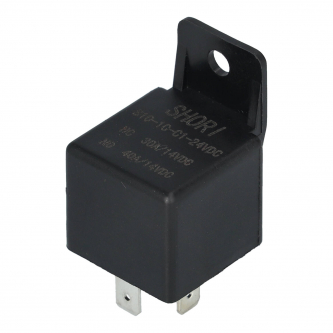

Automotive electromagnetic relay SPDT 24VDC; 40A; 1.8W

Product code S10-1C-C1-24VDC

Availability: Available (quantity: 22)

Product features:

Tension - 24 VDC

Contact configuration - SPDT

Description - Manufacturer: SHORI ELECTRIC Relay type: electromagnetic Max. contact current: 40A DC contact load (at resistive load): 40A / 12V DC Relay version: automotive Min. coil voltage: 18V DC Max. coil voltage: 36V DC Coil resistance: 320Ω Material contact: silver alloy Operating temperature: -30...80°C External dimensions: 28.6x28.6x25.3mm Mounting: on panel, base Coil power consumption: 1.8W Relay series: S10 Contact resistance: 100mΩ Terminals: connectors 6.3x0.8mm Mechanical life: 10000000 cycles Weight: 40g Coil current: 75mA Operate time: 10ms Release time: 10ms Electrical life: 100000 cycles Associated items: CS1-CW, RS-D03

• net: 12,32 PLN
• • Currency: zł € $

Universal relay 24VDC 0332204204 - test

Product code 0 332 204 204

Availability: Currently not available

Notify me about availability

Product features:

Producent - 2J

Tension - 24 VDC

Description - 5-pin universal relay/changer, current voltage 24V, rated current 20A, plastic housing, production stop 09/2017

• net: 42,00 PLN
• • Currency: zł € $

Universal relay 12VDC 0332209151

Product code 0332209151

Availability: Currently not available

Notify me about availability

Product features:

Tension - 12 VDC

Description - 5-pin universal relay, voltage 12V, rated current 30A, changeover contact, plastic housing

• net: 21,50 PLN
• • Currency: zł € $

Universal relay 24VDC

Product code 0332209211

Availability: Currently not available

Notify me about availability

Product features:

Description - Relay / multi-changer 5-pin, voltage 24V, changeover contact, plastic housing

Tension - 24 VDC

• net: 24,40 PLN
• • Currency: zł € $

Car relay socket with cable

Product code 0400592099

Availability: Currently not available

Notify me about availability

Product features:

• net: 5,50 PLN
• • Currency: zł € $

24VDC automotive relay

Product code 040060001

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

• net: 9,00 PLN
• • Currency: zł € $

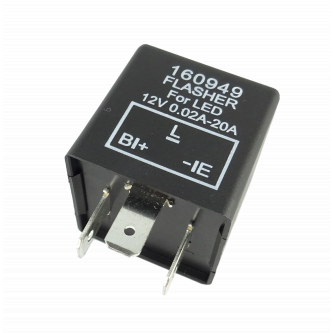

12 volt turn signal relay

Product code 160949

Availability: Currently not available

Notify me about availability

Product features:

Tension - 12 VDC

Description - Flasher 160949 12V DIN 3-pin connector Dimensions 30x30x30mm

• net: 49,42 PLN
• • Currency: zł € $

LED turn signal relay 24V 0.02A-20A

Product code 160952

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Description - Flasher 160952 24V CAR GO DIN 3-pin connector Dimensions 30x30x30mm

• net: 44,72 PLN
• • Currency: zł € $

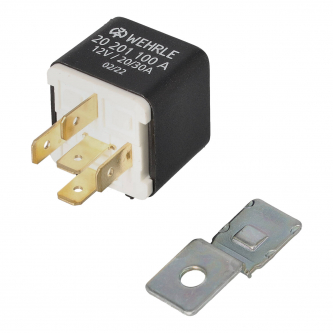

Wehrle relay 12V 20/30A

Product code 20201100A

Availability: Currently not available

Notify me about availability

Product features:

Tension - 12VDC

Description - Universal switching relay 20/30A 5-pin Used in cars, agricultural and construction machines

• net: 36,76 PLN
• • Currency: zł € $

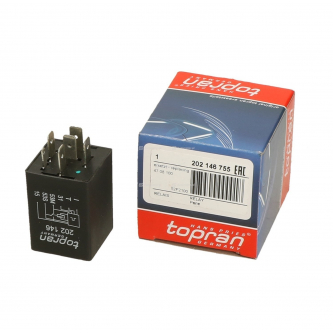

Automotive relay 12VDC 202146755

Product code 202146

Availability: Currently not available

Notify me about availability

Product features:

Tension - 12 VDC

Description - ITALAMEC 313 12V 90 069 864, Wiper Relay, also 202146755

• net: 37,36 PLN
• • Currency: zł € $

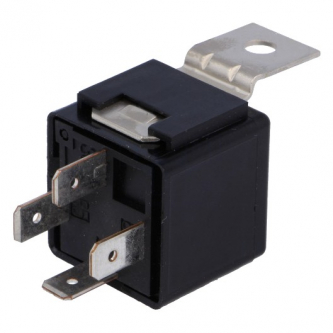

Przekaźnik V23134B1053C642 SPST-NO A0/1 Form A 24VDC

Product code 3-1393303-7

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Contact configuration - SPST / NO

Description - A0 / 1 Form A

• net: 79,28 PLN
• • Currency: zł € $

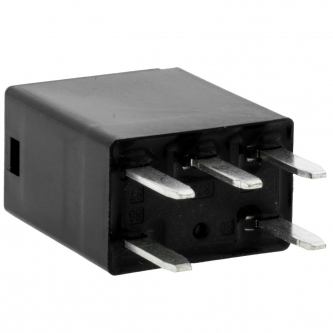

Song Chuan 301-1C-C-D1 U05 24 VDC automotive relay

Product code 301-1C-C-D1 U05 24VDC

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24VDC

Contact configuration - SPDT

• net: 39,74 PLN
• • Currency: zł € $

Automotive relay 24VDC 6.81033

Product code 6.81033

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Description - warning system relay

• net: 22,88 PLN
• • Currency: zł € $

Relay controlled by the voltage level 7NRM / 12

Product code 7NRM/12

Availability: Currently not available

Notify me about availability

Product features:

• net: 78,00 PLN
• • Currency: zł € $

Voltage level-controlled relay 7NRP / 24

Product code 7NRP/24

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Contact configuration - WELL

Description - The relay realizes the function of switching on or off depending on the voltage level at the control input.

• net: 56,92 PLN
• • Currency: zł € $

Electromagnetic relay 12VDC AM3-12P

Product code AM3-12P

Availability: Currently not available

Notify me about availability

Product features:

Tension - 12 VDC

Contact configuration - SPDT

Description - electromagnetic relay, Ucoil 12 VDC, 80 A, 1.8 W

• net: 24,76 PLN
• • Currency: zł € $

Electromagnetic relay 24VDC AM3-24P

Product code AM3-24P

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Contact configuration - SPDT

Description - electromagnetic relay, Ucoil 24 VDC, 80 A, 1.8 W

• net: 26,76 PLN
• • Currency: zł € $

Przekaźnik samochodowy 12VDC CEAM67730

Product code CEAM 67730

Availability: Currently not available

Notify me about availability

Product features:

Tension - 12 VDC

Description - Fog Lamp Automotive Relay, E 10 / 20A 677.30 6520423 CEAM RELAY 67730 LANCIA 12V FIAT 10A ALFA 20A 1/11309 / 88E 677.30 D272

FRC2C-1 DC24V automotive relay

Product code FRC2C-1-DC24

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24VDC

Contact configuration - SPDT

Description - FRC2C-1 DC24V automotive relay Coil rated voltage: 24V/DC Contact type: 1 changeover contact Component connection: 6.3 mm flat male tip Maximum switching voltage: 14V/DC Maximum switching current: 50A Minimum temperature: -40°C Maximum temperature : +85°C Dimensions: (L x W x H) 29 x 29 x 38 mm Rated voltage: 24V/DC Switching current: NC 40 A / NO 50A

• net: 20,20 PLN
• • Currency: zł € $

Przekaźnik elektromagnetyczny 12VDC FRC2C-DC12

Product code FRC2C-DC12

Availability: Currently not available

Notify me about availability

Product features:

Tension - 12 VDC

Contact configuration - SPDT

Description - Miniature automotive electromagnetic relay with SPDT contact configuration and 12V DC coil nominal voltage. Maximum switching voltage 75V DC. Maximum contact current 50A. Rated current 50A. Coil resistance 80Ω.

• net: 13,28 PLN
• • Currency: zł € $

Electromagnetic relay SPDT Ucoil: 24VDC 50A 1.8W

Product code FRC2C-DC24

Availability: Currently not available

Notify me about availability

Product features:

• net: 14,58 PLN
• • Currency: zł € $

Automotive relay 24VDC NVF4-2C-Z30A

Product code NVF4-2C-Z30A

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Contact configuration - SPDT

Description - Automotive electromagnetic relay, NVF4-2C, 1 changeover contact, 30A, with connectors and mounting bracket

• net: 6,02 PLN
• • Currency: zł € $

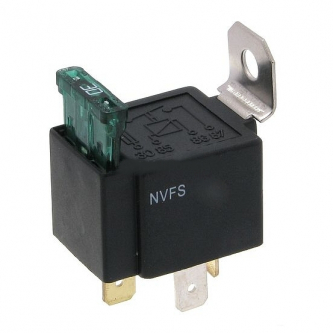

Automotive relay with 24VDC fuse NVFS-A30 / 24

Product code NVFS-A30/024

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Contact configuration - SPDT / NO

Description - automotive relay 24 VDC, 30 A

• net: 8,94 PLN
• • Currency: zł € $

Electromagnetic relay 24VDC 3-1393292-8

Product code V23074A1002A403

Availability: Currently not available

Notify me about availability

Product features:

Tension - 24 VDC

Contact configuration - SPDT

Description - Electromagnetic relay, 20A; 430Ω

• net: 31,18 PLN
• • Currency: zł € $
