Sunfab SVH-092 RDYN-1-LSP-350 hydraulic pump

Product code 91919

Availability: Available (quantity: 1) , shipping within 30 dni

Product features:

Working volume - 87.2 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 350 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description -

Sunfab SVH-092 RDYN-1-LSNR-350 hydraulic pump

The SVH series pump is a robustly constructed pump designed for direct mounting on the power take-off (PTO) of commercial vehicles.

Control type: LSNR = Load-Sensing controller with integrated pressure limitation.

Mounting screw spacing: 80x80mm, 4x fi.13

Suction connection: various diameters (not included)

Discharge connection: 1" BSPP

• net: 10275,71 PLN
• • Currency: zł € $

Sunfab SVH-112 LDYN-1-LSNR-350 hydraulic pump

Product code 91935

Availability: Available (quantity: 1)

Product features:

Working volume - 110.4 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 350 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description -

Sunfab SVH-112 LDYN-1-LSNR-350 Hydraulic Pump The SVH series pump is a robust pump designed for direct mounting to the power take-off (PTO) of commercial vehicles. Control type: LSNR = Load-Sensing controller with integrated pressure limitation. Mounting bolt pattern: 80x80mm. Suction port: various diameters (not included). Discharge port: 1" BSPP.

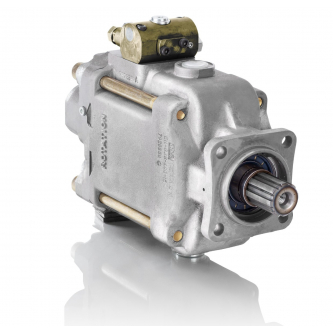

*The photos show the pump with clockwise rotation.

• net: 11651,14 PLN
• • Currency: zł € $

Sunfab SVH-062 RDYN-1-LSNR-350 hydraulic pump

Product code 92002

Availability: Available (quantity: 1)

Product features:

Working volume - 62.4 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 350 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description - Sunfab SVH-062 RDYN-1-LSNR-350 Hydraulic Pump The SVH series pump is a robustly constructed pump designed for direct mounting on the power take-off (PTO) of commercial vehicles. Control type: LSNR = Load-Sensing controller with integrated pressure limitation. Mounting bolt spacing: 80x80mm Suction port: various diameters (not included) Discharge port: 3/4" BSPP

• net: 9448,57 PLN
• • Currency: zł € $

Sunfab SVH-092 LDYN-1-LSNR-350 hydraulic pump

Product code 91918

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 87.2 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 350 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description -

Sunfab SVH-092 LDYN-1-LSNR-350 Variable Displacement Hydraulic Piston Pump. The SVH series pump is a robust pump designed for direct mounting to the power take-off (PTO) of commercial vehicles. Control type: LSNR = Load-Sensing controller with integrated pressure limitation. Mounting bolt pattern: 80x80mm, 4x Ø13. Suction port: various diameters (not included). Discharge port: 1" BSPP.

*The photos show the pump with clockwise rotation.

• net: 8698,11 PLN
• • Currency: zł € $

Sunfab SVH-112 RDYN-1-LSNR-350 hydraulic pump

Product code 91936

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 110.4 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 350 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description - Sunfab SVH-112 RDYN-1-LSNR-350 Hydraulic Pump The SVH series pump is a robustly constructed pump designed for direct mounting on the power take-off (PTO) of commercial vehicles. Control type: LSNR = Load-Sensing controller with integrated pressure limitation. Mounting bolt spacing: 80x80mm Suction port: various diameters (not included) Discharge port: 1" BSPP

• net: 9861,99 PLN
• • Currency: zł € $

Sunfab SVH-062 LDYN-1-LSNR-350 hydraulic pump

Product code 92001

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 62.4 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 350 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description -

Sunfab SVH-062 LDYN-1-LSNR-350 Hydraulic Pump The SVH series pump is a robust pump designed for direct mounting to the power take-off (PTO) of commercial vehicles. Control type: LSNR = Load-Sensing controller with integrated pressure limitation. Mounting bolt pattern: 80x80mm. Suction port: various diameters (not included). Discharge port: 3/4" BSPP.

*The photos show the pump with clockwise rotation.

• net: 8001,69 PLN
• • Currency: zł € $

Sunfab SVH-130 LDYN-1-LSNR/L-350 hydraulic pump

Product code 92156

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 130 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 400 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description -

Sunfab SVH-130 LDYN-1-LSNR/L-350 Hydraulic Pump The SVH series pump is a robust pump designed for direct mounting on the power take-off (PTO) of commercial vehicles. Control type: LSNR = Load-Sensing controller with integrated pressure limitation. /L: Power regulator (torque limitation), default option. Adjustment range: 200-700 Nm. Factory setting: 700 Nm. Mounting bolt circle: 80x80mm. Suction port: various diameters (not included). Discharge port: 1" BSPP.

*The photos show the pump with clockwise rotation.

• net: 12247,11 PLN
• • Currency: zł € $

Sunfab SVH-130 RDYN-1-LSNR/L-350 hydraulic pump

Product code 92157

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 130 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 400 bar

Flange type - ISO7653-1985

Centering diameter - 80mm

Roller type - Spline (DIN ISO 14)

Pump type - Variable displacement piston

Producent - Sunfab

Description - Sunfab SVH-130 RDYN-1-LSNR/L-350 Hydraulic Pump The SVH series pump is a robustly constructed pump designed for direct mounting on the power take-off (PTO) of commercial vehicles. Control type: LSNR = Load-Sensing controller with integrated pressure limitation. /L: Power regulator (torque limitation), default option Control range: 200-700 Nm Factory setting: 700 Nm Mounting bolt circle: 80x80mm Suction port: various diameters (not included) Discharge port: 1" BSPP

• net: 12247,11 PLN
