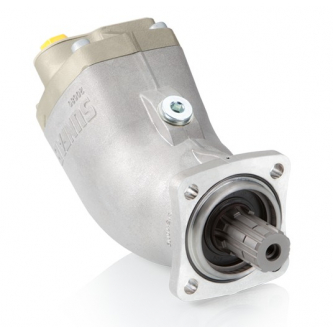

Sunfab SAP 012-108 DIN

Piston pump Sunfab SAP-012L-N-DL4-L35-S0S-000

Product code 23012

Availability: Available (quantity: 1) , shipping within 14 dni

Product features:

Producent - Sunfab

Seria pompy - SAP

Pump type - Single-flow piston type

Working volume - 12.6cc/rev

Flow - 18.9 l/min

Turning direction - Left

Max. working pressure (continuous) - 400 bars

Flange type - ISO 7653-D

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Compressing port - G 3/4"

Suction port - Ø45 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

• net: 2580,00 PLN
• • Currency: zł € $

Sunfab SAP-084R-N-DL4-L35-S0S-000 piston pump

Product code 23084R

Availability: Available (quantity: 1)

Product features:

Working volume - 83,6 cm3/obr

Turning direction - Right

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 125,4 l/min

Flange type - ISO 7653-D

Centering diameter - 80 mm

Roller type - Spline 8x32x34.9

Pump type - Single-stream piston

Spacing of mounting holes - 80x80 mm

Producent - Sunfab

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 1"

Suction port - Ø58 mm

• net: 3447,37 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-012L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23013

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 12.6cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 18.9 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2159,49 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-017L-N-DL4-L35-S0S-000

Product code 23017

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 17cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 25.5 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2114,91 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-017L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23018

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 17cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 25.5 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2224,67 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-025L-N-DL4-L35-S0S-000

Product code 23025

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 25.4cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 38.1 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2179,54 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-025L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23026

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 25.4cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 38.1 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2293,20 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-034L-N-DL4-L35-S0S-000

Product code 23034

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 34.2cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 51.3 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2244,73 PLN
• • Currency: zł € $

Pompa SAP-034R-N-DL4-L35-S0S-000

Product code 23034R

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 34,2 cm3/obr

Turning direction - Prawy

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flange type - ISO 7653-D

Centering diameter - 80 mm

Roller type - Wielowypust 8x32x34,9

Pump type - Tłoczkowa jednostrumieniowa

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Compressing port - G 3/4"

Suction port - Ø45 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

• net: 2689,03 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-034L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23035

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 34.2cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 51.3 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2361,17 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-040L-N-DL4-L35-S0S-000

Product code 23040

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 41.2cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 61.8 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2356,71 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-040L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23041

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 41.2cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 61.8 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2478,73 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-047L-N-DL4-L35-S0S-000

Product code 23047

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 47.1cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 70.6 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2450,87 PLN
• • Currency: zł € $

Sunfab SAP-047R-N-DL4-L35-S0S-000 piston pump

Product code 23047R

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 47,1 cm3/obr

Turning direction - Right

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 70,6 l/min

Flange type - ISO 7653-D

Centering diameter - 80 mm

Roller type - Spline 8x32x34.9

Pump type - Single-stream piston

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 3057,03 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-047L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23048

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 47.1cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 70.6 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2577,90 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-056L-N-DL4-L35-S0S-000

Product code 23056

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 56cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 84 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2548,37 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-056L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23057

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 56cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 84 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2680,41 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-064L-N-DL4-L35-S0S-000

Product code 23064

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 63.6cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 95.4 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Comparison code - 423955, B485-SC064

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 3146,40 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-064L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23065

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 63.6cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bar

Flow - 95.4 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 3/4"

Suction port - Ø45 mm

• net: 2787,94 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-084L-N-DL4-L35-S0S-000

Product code 23084

Availability: Currently not available

Notify me about availability

Product features:

Producent - Sunfab

Seria pompy - SAP

Pump type - Single-flow piston type

Working volume - 83.6cc/rev

Flow - 125.4 l/min

Turning direction - Left

Max. working pressure (continuous) - 400 bars

Flange type - ISO 7653-D

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Compressing port - G 1"

Suction port - Ø58 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

• net: 3618,23 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-084L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23085

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 83.6cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 125.4 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 1"

Suction port - Ø58 mm

• net: 3067,63 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-108L-N-DL4-L35-S0S-000

Product code 23108

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 108cc/rev

Turning direction - Left

Seria pompy - SAP

Max. working pressure (continuous) - 400 bars

Flow - 162 l/min

Flange type - ISO 7653-D

Centering diameter - 80mm

Roller type - Splines 8x32x34.9

Pump type - Single-flow piston type

Producent - Sunfab

Spacing of mounting holes - 80x80 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

Compressing port - G 1"

Suction port - Ø58 mm

• net: 3879,77 PLN
• • Currency: zł € $

Piston pump Sunfab SAP-108L-N-DL4-H35-S0S-000 - H35 shaft

Product code 23109

Availability: Currently not available

Notify me about availability

Product features:

Producent - Sunfab

Seria pompy - SAP

Pump type - Single-flow piston type

Working volume - 108cc/rev

Flow - 162 l/min

Turning direction - Left

Max. working pressure (continuous) - 400 bar

Flange type - ISO 7653-D

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Splines 8x32x34.9 (H35)

Compressing port - G 1"

Suction port - Ø58 mm

Description -

Sunfab SAP 012-108 DIN piston hydraulic pump

The Sunfab SAP 012-108 DIN hydraulic pump is a high-quality, constant-displacement axial piston pump designed for demanding mobile hydraulic systems. Its robust, compact design, high efficiency, and ability to operate at pressures up to 400 bar make it ideal for trucks, construction machinery, and specialized hydraulic systems.

Sunfab's SAP DIN series pumps feature a lightweight alloy housing that provides excellent corrosion resistance and efficient heat dissipation. The use of high-quality bearings, seals, and other structural components ensures durability and reliability during intensive use.

The series includes models with displacements ranging from 12.6 to 108 cm³/rev, allowing you to match the pump to the required hydraulic capacity. The pumps can be mounted directly to the PTO or to a frame bracket via an intermediate shaft.

The most important advantages:

• High performance and hydraulic efficiency.
• Maximum working pressure up to 400 bar.
• Lightweight construction made of corrosion-resistant metal.
• Smooth operation over a wide range of speeds.
• Good heat dissipation from the pump body.
• High durability and reliability during intensive work.
• Possibility to select the direction of rotation: left (L) or right (R).
• Various drive shaft variants available, including H35 upon request.

Design and connections:

• Direction of rotation: left (L) or right (R). In the appropriate version, it is possible to change the direction by rotating the rear pump cover 180°, according to the manufacturer's procedure.
• Suction connection: Ø45 mm diameter spigot for SAP 012–064 models and Ø58 mm for SAP 084–108 models.
• Discharge connection: G3/4" for SAP 012–064 models and G1" for SAP 084–108 models.
• Suction port mounting: included.
• Suction port: not included.
• Mounting flange: DIN 4-hole, ISO 7653-D.
• Drive shaft: splined DIN 5462 / ISO 14, available in L35 and H35 variants.

• net: 3455,40 PLN
• • Currency: zł € $
