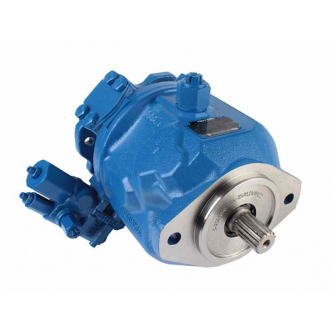

Rexroth A10VSO100 DFLR/31R-VPA12N00 piston pump
Product code R902460463
Availability: Available (quantity: 1) , shipping within 60 dni
Product features:
Producent - Rexroth
Working volume - 100 cm3/rev
Marking - A A10VSO100 DFLR/31R-VPA12N00
Receiving company (external) - NO
Turning direction - on the right (looking at the shaft end)
Electromagnet plugs - Without
Max. working pressure (continuous) - 280 bar
Control - DFLR
pump model - A10VSO
Adjustment and setting device - Power regulator, DRS
Flow - 200 l/min
Flange type - ISO 3019-2, 2 bolts
Direction of rotation - R
Centering diameter - 125 mm
Driving power - 22 kW
Roller type - Cylindrical ø40 mm
Drive torque - 145 Nm
Gross weight - 49.5 kg
Seal material - FKM (standard)
Internal leak pipe - NO
Description - The A10VSO is a variable displacement pump, designed as an axial piston drive with swashplates, for open-loop hydrostatic drives. Pump flow is proportional to the drive speed and displacement. Adjusting the swashplate allows for infinitely variable flow adjustment.
Max displacement volume - 100 cm³
Setting the maximum displacement volume - Variabel
Max flow - 145 l/min
Min. displacement volume - 0 cm³
Setting the minimum displacement volume - Variabel
Min. flow - 0 l/min
Mounting flange - ISO 3019-2 (metric), 2 holes
Net weight - 49.5 kg
Operation - ABOUT
Paint coat/primer coat - without
Paint coat/topcoat - without
Pressure difference FR - 14 bar
Product family - A10VSO
Rotational rate/speed - 1450 rpm
Type series - Type series 3, index 1
Shaft end - ISO keyway
Size - 100
Nominal size (displacement volume) - 100 cm³
Inspection certificate - Without
Language abbreviation for inspection certificate - Without
Through drive - Without through drive
Type - A10V
Startup method - Variable displacement pump, open circuit
Version_1 - Standard
Version_2 - Standard
Libra - 49.5 kg
Working connections - B collar b meter, S collar b meter.
Action - O
Steering - DFLR
Type - A10V
Size - 100
Direction of rotation - R
