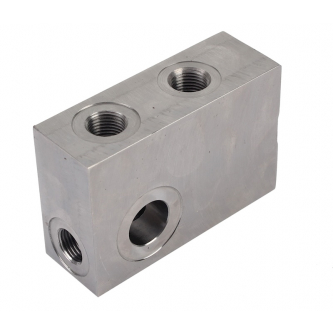

VCB06CN3B brake valve body for Bumar P184H

Product code VCB06/1

Availability: Available (quantity: 2)

Product features:

Description - VCB06CN3B brake valve body for Bumar P184H Body dimensions: 100x66x35mm

Comparison code - VCB06CN3B

• net: 1057,14 PLN
• • Currency: zł € $

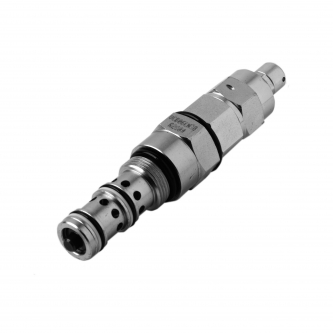

Brake valve VCB06CN3B for Bumar P184H

Product code VCB06CN3B00

Availability: Available (quantity: 4)

Product features:

Description - Comatrol VCB06/CN-3-B-00 M22x1,5 brake valve Application: Bumar P184H Max. pressure: 350 bar Max. flow: 60 l/min Pilot ratio: 4.1:1 Recess: NCS 06/3

Comparison code - 820153729

• net: 568,57 PLN
• • Currency: zł € $

Valve body VCB06 / S2-00.01 Bumar PMT-25D (arm actuator)

Product code 125-0023

Availability: Currently not available

Notify me about availability

Product features:

Description - Valve body VCB06 / S2-00.01 Bumar PMT-25D (arm actuator) Dimensions: 100x66x35mm

• net: 828,57 PLN
• • Currency: zł € $

Bumar PMR140 flange bearing

Product code 9E-1Z20-0384-0631

Availability: Currently not available

Notify me about availability

Product features:

Producent - Bumar

Description - Technical data Weight: 57 kg Total height: 90 mm Type of holes in the inner ring fi 14.5 Type of holes in the outer ring M16 Number of holes in the inner ring 16 pcs. Number of holes in the outer ring 8 pcs. Tooth module: 3 mm Number of teeth: 176 pcs. Height of the outer ring 75 mm Height of the inner ring 75 mm Inner diameter: 295 mm Outer diameter: 531.3 mm

• net: 6357,14 PLN
• • Currency: zł € $

Bumar PMT0144 slewing bearing

Product code 9E-1Z25-0384-0631

Availability: Currently not available

Notify me about availability

Product features:

Producent - Bumar

Description - Technical data Weight: 50 kg Total height: 85 mm Type of holes in the inner ring fi13 Type of holes in the outer ring M16 Number of holes in the inner ring 19 pcs. Number of holes in the outer ring 16 pcs. Tooth module: 5 mm Number of teeth: 93 pcs. Height of the outer ring 75 mm Height of the inner ring 70 mm Inner diameter: 300 mm Outer diameter: 475 mm

• net: 8857,14 PLN
• • Currency: zł € $

BUMAR

Product code 9E-1Z30-0668-0331-1

Availability: Currently not available

Notify me about availability

Product features:

Description - Weight / kg / 232 Overall height. / mm / 120 Kind of holes in inner ring 22 Type of holes in outer ring M20 Number of holes in inner ring / szt / 16 Number of holes in the outer ring / pcs / 12. Module tooth / mm / 8. Number of teeth / pcs / 16

• net: 12142,86 PLN
• • Currency: zł € $

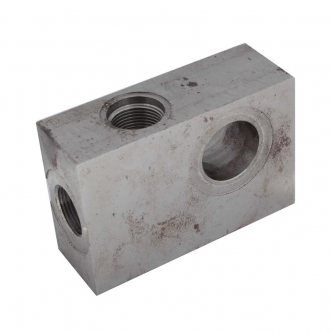

VCB06 brake valve body for Bumar PMO-212, M27 screw

Product code VCB06/5

Availability: Currently not available

Notify me about availability

Product features:

Description - Brake valve body VCB06 for Bumar PMO-212 screw M27

• net: 782,86 PLN
• • Currency: zł € $

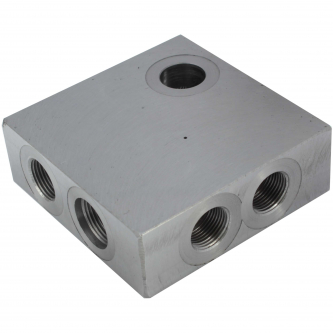

VCB06 brake valve body for Bumar PMT-25D

Product code VCB06/S-3

Availability: Currently not available

Notify me about availability

Product features:

Description - VCB06 brake valve body for PMT-25D VCB060003 valve screw included

• net: 827,14 PLN
• • Currency: zł € $

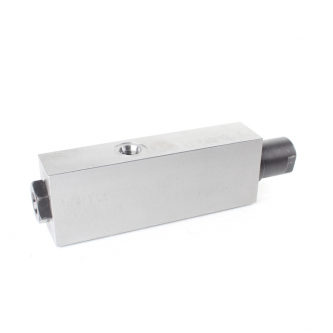

Hydraulic valve type ZBS10-160 for Bumar Koszalin P183 P184

Product code ZBS10-160

Availability: Currently not available

Notify me about availability

Product features:

Description - Lock discontinued. CBSEPFB02 can be used as a replacement without emergency lowering function.

• net: 1714,29 PLN
• • Currency: zł € $

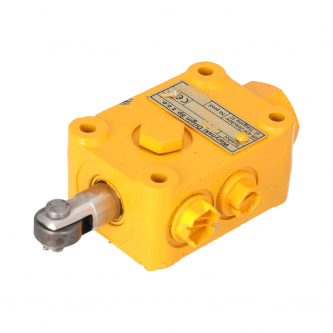

Hydraulic limit valve Bumar ZSSV05X1 (Z-051)

Product code ZSSV05X1

Availability: Currently not available

Notify me about availability

Product features:

Description - ZSSV05X1 (Z-051) hydraulic valve Threads: inlet / outlet: M14x1.5; overflow / return: M10x1 Capacity: 25 l / min Type: end valve Pressure: 170 bar Principle of operation: 3/2, normally closed, spring return

• net: 940,00 PLN
• • Currency: zł € $
