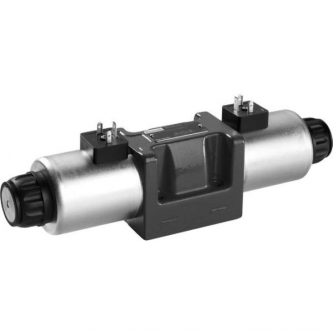

Directional slide distributor Rexroth 4WE10U5X/EG24N9K4/M
Category: Rexroth
CODE: R901278778
CODE: R901278778
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
Industrial hydraulic valve in a high performance range. Reliable switching of the oil flow direction according to hydraulic symbol
Product features
- Type: 4-WE-10
- Connection diagram: ISO 4401-05-04-0-05
- max. pressure: 350 bar
- ECLASS_13_Classification: 51-44-01-02
- Flow: 160 l/min
- Electric connection description: Connector, 3-pole (2 + PE) according to EN 175301-803
- Producent: Rexroth
- Plug: Connector, 3-pole (2 + PE)
- Gross weight: 5.5 kg
- Hydraulic fluid: HL,HLP,HLPD,HVLP,HVLPD,HFC
- Max flow rate: 144 l/min
- Net weight: 5.5 kg
- Max. working pressure: 350 bar
- Product family: WE10../E
- Seals: NBR
- Nominal size: 10
- Slider graphic symbol: Symbol U
- Supply voltage: 24 VDC
- Connection type: Subplate mounting
- Number of connections: 4
- Valve position number: 3
- Libra: 5.5 kg
boschrexroth-typ WE.pdf
