Rexroth 3DREP6C-2X/16EG24N9K4/M proportional slide distributor
Category: Rexroth
CODE: R900956100
CODE: R900956100
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
Industrial hydraulic valve for high power range. Reliable pressure reduction based on a setpoint signal.
Product features
- Connection diagram: ISO 4401-03-02-0-05
- ECLASS_13_Classification: 51-45-02-02
- Electric connection description: 3-pole device plug (2 + PE) according to EN 175301-803
- Producent: Rexroth
- Plug: 3-pole device plug (2 + PE)
- Gross weight: 2.02 kg
- Hydraulic fluid: HL,HLP,HLPD,HVLP,HVLPD,HFC
- Max flow rate: 15 l/min
- Net weight: 2.02 kg
- Max. working pressure: 100 bar
- Product family: 3DREP€
- Seals: NBR
- Nominal size: 6

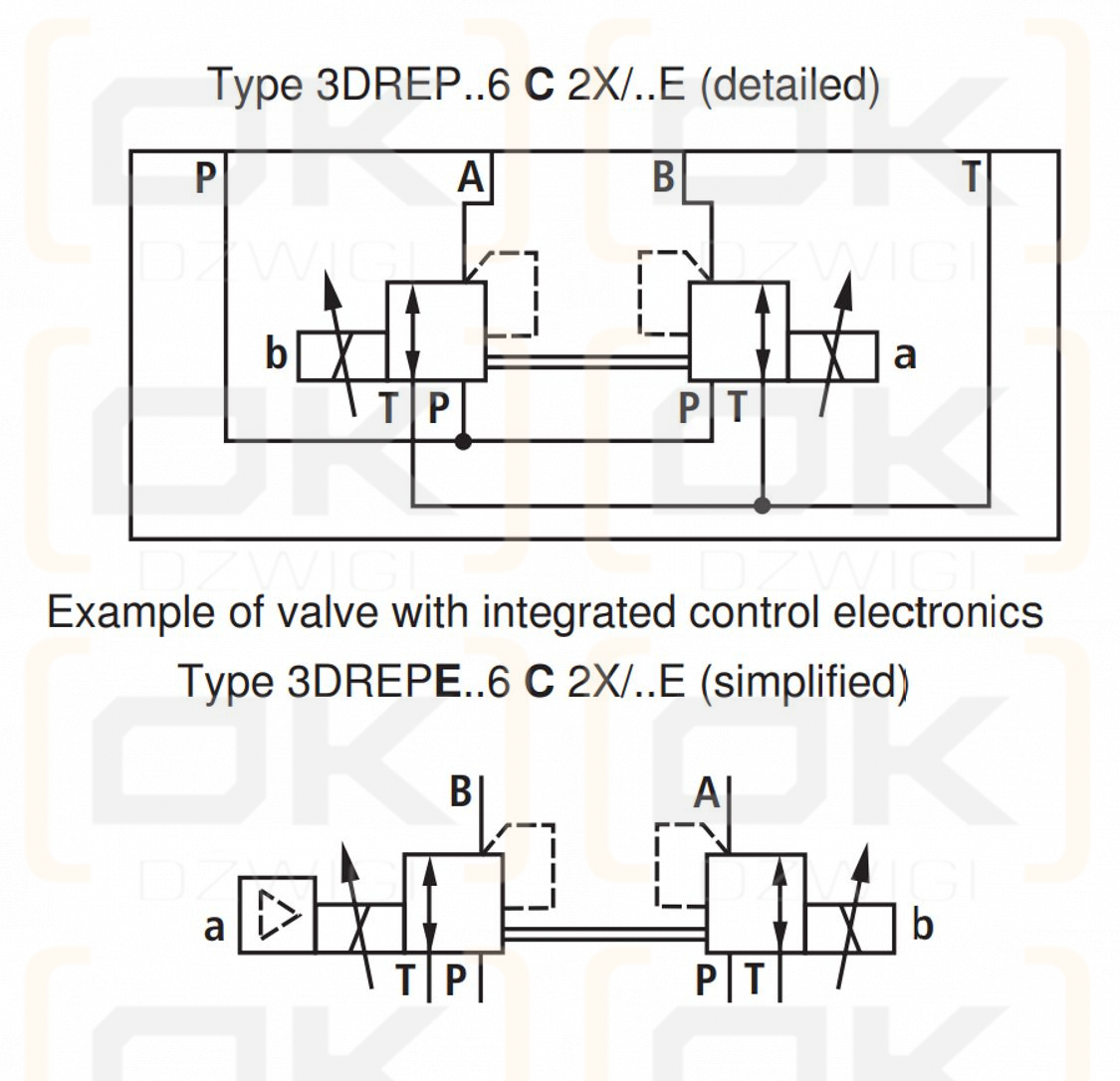

- Slider graphic symbol: P → A, P → B / A → T, B → T
- Supply voltage: 24 VDC
- Connection type: Mounting on a board
- Number of connections: 4
- Valve position number: 3
- Libra: 2.02 kg
PROPRTIONAL_PRESSURE_REDUCING_3DREP_and_3DREPE_RE29184.pdf
