Rexroth 2-way solenoid valve; YEAH; 12.7mm; 3/4 16UNF; D36; OD153218C000000

Name: Rexroth 2-way solenoid valve; YEAH; 12.7mm; 3/4 16UNF; D36; OD153218C000000
Price: 517.96 PLN
Availability: InStock

Category: Rexroth

CODE: R930065002

Rexroth 2-way solenoid valve; YEAH; 12.7mm; 3/4 16UNF; D36; OD153218C000000

CODE: R930065002

Availability: Available (quantity: 9)

Check deliveries

Currency: zł € $

net: 517,96 PLN

gross: 637,09 PLN

Ask about the product

Product description

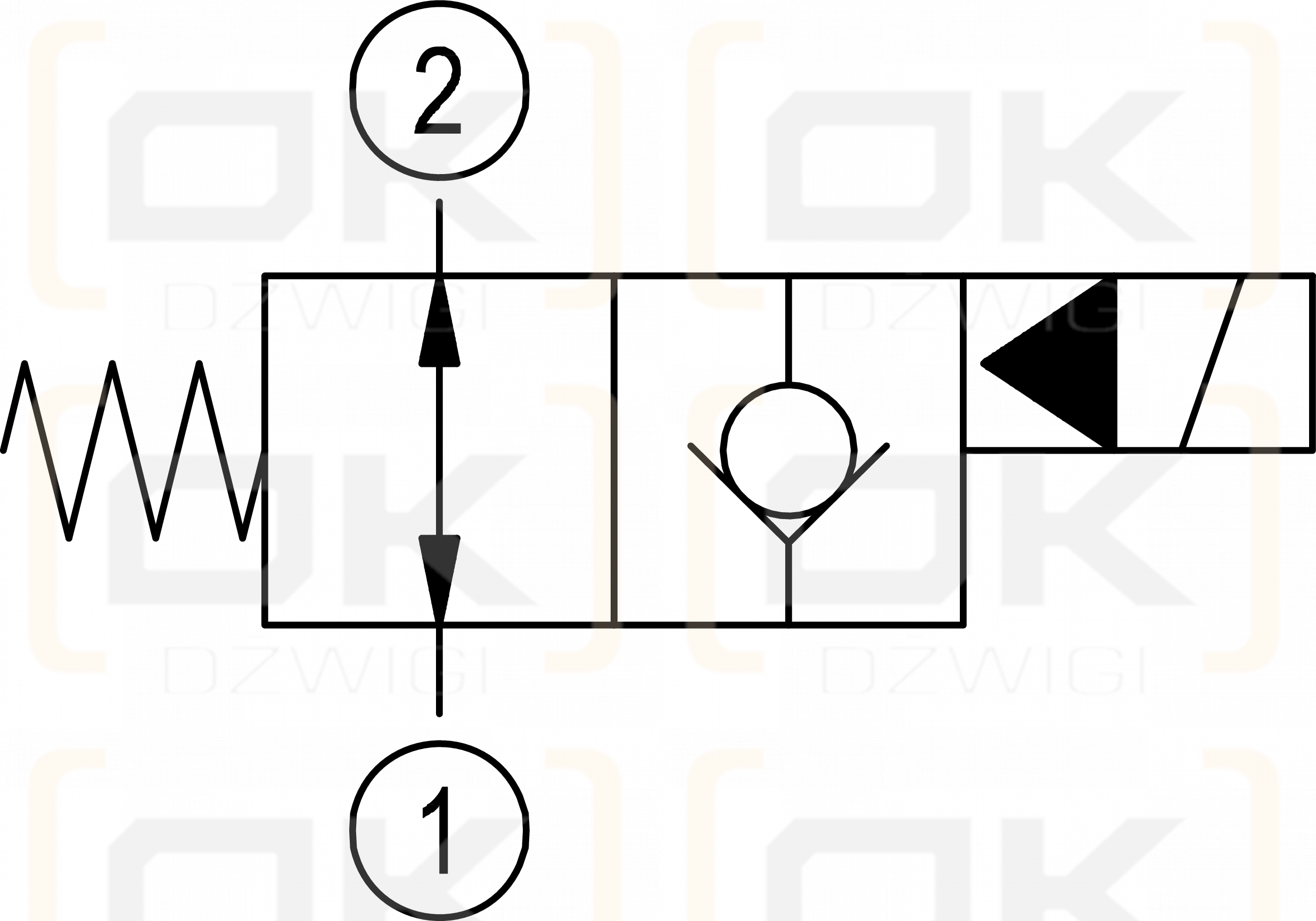

Rexroth 2-way solenoid valve, normally open, manually operated Type: two-way Nose: 12.7mm G3/4 16UNF-2A Coil type: D36, DC, 20W Equivalent OD1532181CS000 R901091174 The D36 coil must be ordered separately for the valve. The old coil will not be compatible with the new valve.

Product features

Type: YEAH
Valve seat: CA-08A-2N
max. pressure: 350 bar
Coil: D36
max. flow: 40 l/min
Integrated coil: Separate order
connection: 3/4-16
Directly-indirectly controlled: Indirectly controlled
Recess: CA-08A-2N
Gross weight: 150 g
coil type: D36
Hydraulic fluid: HL,HLP
Producent: Rexroth
Auxiliary manual start: Pressure/Turn-Actuated Auxiliary Manual Actuation
Max flow rate: 40 l/min
Comparison code: OD153218C000000, VEI-016-NO-08A-C-32-0000, EDI926
Net weight: 150 g
Nominal flow rate: 40 l/min
Normal position: Currentless open
Max. working pressure: 350 bar
Number of connections: 2
Positions: 2
Product family: VEI-16-08A-NA
Product family: 2-way
Product family classification: Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type: VEI
Product type: VEI
Seal material: NBR
Valve cone slide: Socket version
Connection type: Screw-in valve
Libra: 0.15 kg
