Rexroth NA1207F valve body
Product code OFJ15006DI0101
Availability: Available (quantity: 9)
Product features:
Producent - Rexroth
Description -
Rexroth NA1207F valve body
Body - G3/8"
Dimensions: 50x50x30mm
Comparison code - NA1207F
Rexroth
Availability: Available (quantity: 9)
Producent - Rexroth
Comparison code - NA1207F
net: 142,86 PLN
Rexroth 4WE6D6X/EG24N9K4 directional control valve EQUIVALENT 443143/3* 4WE 6 D53/AG24NZ4
Product code R900561274
Availability: Available (quantity: 1) , shipping within 10 dni
Product features:
Description - Industrial hydraulic valve for high power range. Reliable oil flow reversal according to hydraulic symbol.
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-44-01-02
Electric connection description - 3-pole device plug (2 + PE) according to EN 175301-803
Plug - 3-pole device plug (2 + PE)
Gross weight - 1.46 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HFC
Max flow rate - 70 l/min
Net weight - 1.46 kg
Max. working pressure - 350 bar
Product family - WE6../E
Seals - NBR
Nominal size - 6
Slider graphic symbol - Symbol D
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 2
Libra - 1.46 kg
Rexroth 4WE6D6X/EG24N9K4 directional control valve EQUIVALENT 443143/3* 4WE 6 D53/AG24NZ4
Availability: Available (quantity: 1) , shipping within 10 dni
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-44-01-02
Electric connection description - 3-pole device plug (2 + PE) according to EN 175301-803
Plug - 3-pole device plug (2 + PE)
Gross weight - 1.46 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HFC
Max flow rate - 70 l/min
Net weight - 1.46 kg
Max. working pressure - 350 bar
Product family - WE6../E
Seals - NBR
Nominal size - 6
Slider graphic symbol - Symbol D
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 2
Libra - 1.46 kg
net: 1434,56 PLN

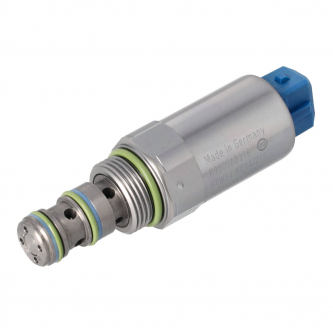

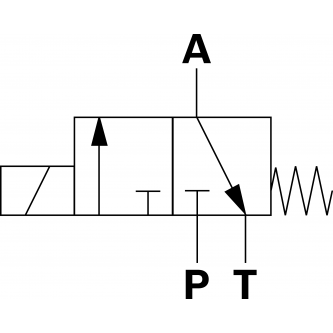

Rexroth FTWE 4 KC1X / 210AG24C4V solenoid valve
Product code R900568316
Availability: Available (quantity: 3)
Product features:
Description - Directional spool valves, direct operated, with solenoid actuation
Cavity - M22x1.5
Coil integrated - Integrated coil
Direct-Pilot - Direct acting
Gross weight - 182 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow - 7 l/min
Net weight - 182 g
Nominal flow - 7 l/min
Operating pressure, max. - 210 bar
Ports number - 3
Positions - 2
Product family - FTWE 4K
Product family - 3 ways
Product family classification - Directional spool valves, direct operated, with solenoid actuation
Product family type - FTWE
Product type - FTWE
Sealing material - FKM
Spool Poppet - Spool type
Supply voltage - 24V DC
Type of connection - Screw-in cartridge valve
Libra - 0.19 kg
Rexroth FTWE 4 KC1X / 210AG24C4V solenoid valve
Availability: Available (quantity: 3)
Cavity - M22x1.5
Coil integrated - Integrated coil
Direct-Pilot - Direct acting
Gross weight - 182 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow - 7 l/min
Net weight - 182 g
Nominal flow - 7 l/min
Operating pressure, max. - 210 bar
Ports number - 3
Positions - 2
Product family - FTWE 4K
Product family - 3 ways
Product family classification - Directional spool valves, direct operated, with solenoid actuation
Product family type - FTWE
Product type - FTWE
Sealing material - FKM
Spool Poppet - Spool type
Supply voltage - 24V DC
Type of connection - Screw-in cartridge valve
Libra - 0.19 kg
net: 758,74 PLN

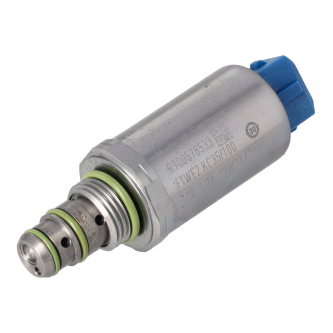

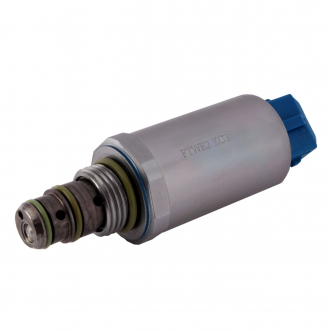

Rexroth FTWE 2 KC3X/100AG24C4V solenoid valve - replaced product R901557402
Product code R900578535
Availability: Available (quantity: 1) , shipping within 7 dni
Product features:
Description - Directly operated directional control valves with magnetic actuation
Tension - 24 VDC
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 0.16 kg
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 0.16 kg
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.16 kg
Rexroth FTWE 2 KC3X/100AG24C4V solenoid valve - replaced product R901557402
Availability: Available (quantity: 1) , shipping within 7 dni
Tension - 24 VDC
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 0.16 kg
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 0.16 kg
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.16 kg
net: 525,97 PLN

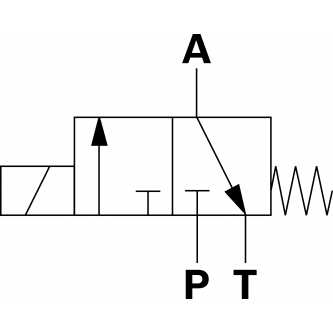

Rexroth FTWE 2 KC3X/350AG24C4V-10 solenoid valve
Product code R900763242
Availability: Available (quantity: 1) , shipping within 60 dni
Product features:
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 186.401 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 186.401 g
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.19 kg
Rexroth FTWE 2 KC3X/350AG24C4V-10 solenoid valve
Availability: Available (quantity: 1) , shipping within 60 dni
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 186.401 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 186.401 g
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.19 kg
net: 887,14 PLN

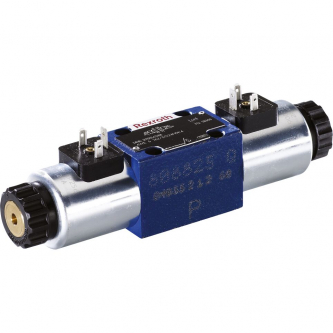

DIRECTIONAL SLIDE VALVE 4WE6D6X/EG96N9K4 (ex. 4WE6D53/AW110-50NZ4)
Product code R900904957
Availability: Available (quantity: 1) , shipping within 14 dni
Product features:
Description - Industrial hydraulic valve for high power range. Reliable oil flow reversal according to hydraulic symbol.
Conformity - UKCA,CE
Compliance Description - UKCA – Low Voltage Directive SI2016/1091,CE – Low Voltage Directive 2014/35/EU
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-44-01-02
Electric connection description - 3-pole device plug (2 + PE) according to EN 175301-803
Plug - 3-pole device plug (2 + PE)
Gross weight - 1.45 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HFC
Max flow rate - 70 l/min
Net weight - 1.45 kg
Max. working pressure - 350 bar
Product family - WE6../E
Seals - NBR
Nominal size - 6
Slider graphic symbol - Symbol D
Supply voltage - 96 VDC
Number of connections - 4
Valve position number - 2
Libra - 1.45 kg
DIRECTIONAL SLIDE VALVE 4WE6D6X/EG96N9K4 (ex. 4WE6D53/AW110-50NZ4)
Availability: Available (quantity: 1) , shipping within 14 dni
Conformity - UKCA,CE
Compliance Description - UKCA – Low Voltage Directive SI2016/1091,CE – Low Voltage Directive 2014/35/EU
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-44-01-02
Electric connection description - 3-pole device plug (2 + PE) according to EN 175301-803
Plug - 3-pole device plug (2 + PE)
Gross weight - 1.45 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HFC
Max flow rate - 70 l/min
Net weight - 1.45 kg
Max. working pressure - 350 bar
Product family - WE6../E
Seals - NBR
Nominal size - 6
Slider graphic symbol - Symbol D
Supply voltage - 96 VDC
Number of connections - 4
Valve position number - 2
Libra - 1.45 kg
net: 1470,00 PLN

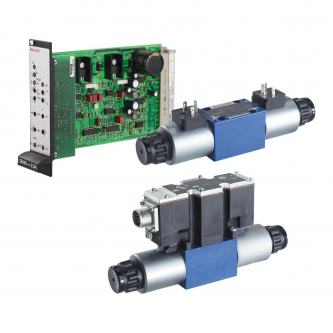

REDUCING VALVE 3DREPE6C-2X/25EG24N9K31/A1V (ex. R900930264)
Product code R900925484
Availability: Available (quantity: 1) , shipping within 10 dni
Product features:
Description - Industrial hydraulic valve for high power range. Reliable pressure reduction based on a setpoint signal.
Conformity - UKCA,CE
Compliance Description - UKCA – Electromagnetic Compatibility (EMC) SI2016/1091,CE – Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Connection diagram - ISO 4401-03-02-0-05
Communication - Analog, setpoint ±10 V
ECLASS_13_Classification - 51-45-02-02
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 2.24 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 15 l/min
Net weight - 2.24 kg
Max. working pressure - 100 bar
Product family - 3DREP€
Seals - FKM
Nominal size - 6
Slider graphic symbol - P → A, P → B / A → T, B → T
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 3
Libra - 2.24 kg
REDUCING VALVE 3DREPE6C-2X/25EG24N9K31/A1V (ex. R900930264)
Availability: Available (quantity: 1) , shipping within 10 dni
Conformity - UKCA,CE
Compliance Description - UKCA – Electromagnetic Compatibility (EMC) SI2016/1091,CE – Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Connection diagram - ISO 4401-03-02-0-05
Communication - Analog, setpoint ±10 V
ECLASS_13_Classification - 51-45-02-02
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 2.24 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 15 l/min
Net weight - 2.24 kg
Max. working pressure - 100 bar
Product family - 3DREP€
Seals - FKM
Nominal size - 6
Slider graphic symbol - P → A, P → B / A → T, B → T
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 3
Libra - 2.24 kg
net: 12770,29 PLN

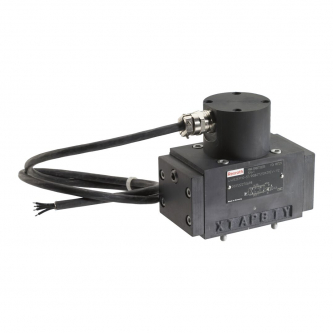

REXROTH SERVO VALVE 4WS2EM10-5X/30B11ET315K31EV
Product code R900949285
Availability: Available (quantity: 1) , shipping within 60 dni
Product features:
Description - Industrial hydraulic valve for high power range. Reliable and fast adjustment of oil flow direction according to hydraulic symbol. High accuracy thanks to internal spool position retraction.
Connection diagram - ISO 4401-05-05-0-05
ECLASS_13_Classification - 51-45-01-02
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 3.6 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Net weight - 3.6 kg
Nominal flow rate - 30 l/min
Max. working pressure - 315 bar
Product family - 4WS(E)2E10
Seals - FKM
Nominal size - 10
Slider graphic symbol - Symbol V
Supply voltage - ±15 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 3
Libra - 3.6 kg
REXROTH SERVO VALVE 4WS2EM10-5X/30B11ET315K31EV
Availability: Available (quantity: 1) , shipping within 60 dni
Connection diagram - ISO 4401-05-05-0-05
ECLASS_13_Classification - 51-45-01-02
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 3.6 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Net weight - 3.6 kg
Nominal flow rate - 30 l/min
Max. working pressure - 315 bar
Product family - 4WS(E)2E10
Seals - FKM
Nominal size - 10
Slider graphic symbol - Symbol V
Supply voltage - ±15 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 3
Libra - 3.6 kg
net: 19405,44 PLN
.jpg?width=120&height=120)
Pressure reducing valve FTDRE 2 K39 / 18-018
Product code R901061189
Availability: Available (quantity: 1) , shipping within 100 dni
Product features:
Description - Pressure reducing valve FTDRE 2 K39 / 18-018 24V DC 0.8A with AMP Junior-Timer connector FTDRE 2 K39 / 18AG24C4V-018 Max. control pressure 18 bar Max. operating pressure 100 bar Max. flow 2 l / min
Pressure reducing valve FTDRE 2 K39 / 18-018
Availability: Available (quantity: 1) , shipping within 100 dni
net: 724,25 PLN
Rexroth 3/2 solenoid valve; 14.28mm; 3/4 16UNF; S8-356; OD133051300000
Product code R901098192
Availability: Available (quantity: 1) , shipping within 7 dni
Product features:
max. pressure - 210 bar
max. flow - 10 l/min
connection - 3/4-16
Recess - CA-08A-3N
coil type - S8-356
Producent - Rexroth
Description - Rexroth 3-way, 2-position solenoid valve Nose: 14.28mm / 15.87mm
Comparison code - OD133051300000
Rexroth 3/2 solenoid valve; 14.28mm; 3/4 16UNF; S8-356; OD133051300000
Availability: Available (quantity: 1) , shipping within 7 dni
max. pressure - 210 bar
max. flow - 10 l/min
connection - 3/4-16
Recess - CA-08A-3N
coil type - S8-356
Producent - Rexroth
Comparison code - OD133051300000
net: 394,14 PLN

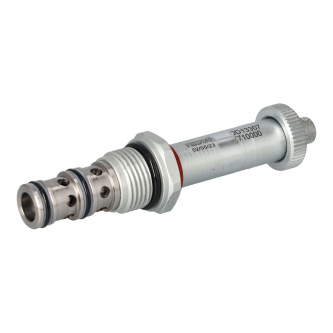

Rexroth 3/2 solenoid valve; 15.87mm; 7/8 14UNF; S7; OD133077710000
Product code R901126898
Availability: Available (quantity: 3)
Product features:
max. pressure - 280 bars
Valve seat - CA-10A-3N
max. flow - 20L/min
Coil - S7
connection - 7/8-14
Integrated coil - Separate order
Recess - CA-10A-3N
Directly-indirectly controlled - Directly controlled
coil type - S7
Gross weight - 189 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Description - Rexroth 3-way, 2-position solenoid valve with manual override Nose: 15.87mm / 17.45mm Application: Ammann roller handbrake
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 20 l/min
Comparison code - OD133077710000, VED7I3209.77K30.71NCL625DEX1
Net weight - 189 g
Nominal flow rate - 20 l/min
Max. working pressure - 280 bar
Number of connections - 3
Positions - 2
Product family - VED-10A-32
Product family - 3-way
Product family classification - Magnetically actuated slide valves, direct operated, 3 way/2 position
Product family type - VED
Product type - VED
Seal material - NBR
Valve cone slide - Slider type
Connection type - Screw-in valve
Libra - 0.19 kg
Rexroth 3/2 solenoid valve; 15.87mm; 7/8 14UNF; S7; OD133077710000
Availability: Available (quantity: 3)
max. pressure - 280 bars
Valve seat - CA-10A-3N
max. flow - 20L/min
Coil - S7
connection - 7/8-14
Integrated coil - Separate order
Recess - CA-10A-3N
Directly-indirectly controlled - Directly controlled
coil type - S7
Gross weight - 189 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 20 l/min
Comparison code - OD133077710000, VED7I3209.77K30.71NCL625DEX1
Net weight - 189 g
Nominal flow rate - 20 l/min
Max. working pressure - 280 bar
Number of connections - 3
Positions - 2
Product family - VED-10A-32
Product family - 3-way
Product family classification - Magnetically actuated slide valves, direct operated, 3 way/2 position
Product family type - VED
Product type - VED
Seal material - NBR
Valve cone slide - Slider type
Connection type - Screw-in valve
Libra - 0.19 kg
net: 654,87 PLN
Rexroth 1" OC1009076 solenoid valve body
Product code R901132883
Availability: Available (quantity: 1)
Product features:
connection - G 1"
Valve seat - 021-E
Recess - 021-E
Gross weight - 1.752 kg
Producent - Rexroth
Hydraulic fluid - HL,HLP
Net weight - 1.752 kg
Comparison code - OC1009076
Product family - Body
Product family classification - Hole in housing 021-E
Product family type - Housings
Product type - Valve seat 021-E
Connection type - Threaded connection
Libra - 1.76 kg
Rexroth 1" OC1009076 solenoid valve body
Availability: Available (quantity: 1)
connection - G 1"
Valve seat - 021-E
Recess - 021-E
Gross weight - 1.752 kg
Producent - Rexroth
Hydraulic fluid - HL,HLP
Net weight - 1.752 kg
Comparison code - OC1009076
Product family - Body
Product family classification - Hole in housing 021-E
Product family type - Housings
Product type - Valve seat 021-E
Connection type - Threaded connection
Libra - 1.76 kg
net: 283,41 PLN
Pressure reducing valve FTDRE 2 K3X / 24AG12N0K40V-8
Product code R901395842
Availability: Available (quantity: 1)
Product features:
Description - Ciśnieniowy zawór redukcyjny FTDRE 2 K3X/24AG12N0K40V-8
Zastosowanie: Zamiatarka UNIMOG UX 100
MANNESMANN REXROTH
FT DRE 2 K30 / 26AG12C4V-01....
I = 1,8 A R = 2,4 QHN
IDENT NR: 569710 ........ . 96
FTDRE2 K36/24-8
12V 2.2A 18W05
net: 270,76 PLN
Pressure reducing valve FTDRE 2 K4X/18AG24C4V-8 (ex.R900701407)
Product code R901545987
Availability: Available (quantity: 1)
Product features:
max. pressure - 30bar
Flow - 2 l/min
Tension - 24 VDC
connection - M18x1.5
Producent - Rexroth
Description - Pressure Reducing Valve FTDRE 2 K4X/18AG24C4V-8 4X Series Replacement for R900701407 FTDRE 2 K3X/18AG24C4V-8
Comparison code - R900701407, FTDRE 2 K3X/18AG24C4V-8, FTDRE 2 K4X/18AG24C4V-8
Pressure reducing valve FTDRE 2 K4X/18AG24C4V-8 (ex.R900701407)
Availability: Available (quantity: 1)
max. pressure - 30bar
Flow - 2 l/min
Tension - 24 VDC
connection - M18x1.5
Producent - Rexroth
Comparison code - R900701407, FTDRE 2 K3X/18AG24C4V-8, FTDRE 2 K4X/18AG24C4V-8
net: 427,89 PLN
Pressure reducing valve FTDRE 2 K4X/18AG24C4V-018
Product code R901546054
Availability: Available (quantity: 4)
Product features:
Tension - 24 VDC
max. pressure - 18 bar
Producent - Rexroth
Description -
Pressure reducing valve FTDRE 2 K4X/18AG24C4V-018 24V DC 0.8A with AMP Junior-Timer connector.
Equivalent to R901061189
Comparison code - R901061189
Pressure reducing valve FTDRE 2 K4X/18AG24C4V-018
Availability: Available (quantity: 4)
Tension - 24 VDC
max. pressure - 18 bar
Producent - Rexroth
Comparison code - R901061189
net: 434,91 PLN
Pressure reducing valve FTDRE 2 K4X/18AG24C14V-8 (ex.R901083779)
Product code R901546060
Availability: Available (quantity: 1)
Product features:
Tension - 24 VDC
max. pressure - 100 bar
connection - M18x1,5
Producent - Rexroth
Comparison code - FTDRE 2 K4X/18AG24C14V-8, R901083779
Pressure reducing valve FTDRE 2 K4X/18AG24C14V-8 (ex.R901083779)
Availability: Available (quantity: 1)
Tension - 24 VDC
max. pressure - 100 bar
connection - M18x1,5
Producent - Rexroth
Comparison code - FTDRE 2 K4X/18AG24C14V-8, R901083779
net: 637,30 PLN
Pressure reducing valve FTDRE 4 K4X/30AG24K4003V-8 (ex. R900780106)
Product code R901546588
Availability: Available (quantity: 1) , shipping within 60 dni
Product features:
Pressure reducing valve FTDRE 4 K4X/30AG24K4003V-8 (ex. R900780106)
Availability: Available (quantity: 1) , shipping within 60 dni
net: 1162,08 PLN
Rexroth FTWE 2 KC4X/100AG24C4V solenoid valve
Product code R901557402
Availability: Available (quantity: 10)
Product features:
Tension - 24 VDC
max. flow - 2 l/min
Producent - Rexroth
Description - Rexroth FTWE 2 KC4X/100AG24C4V solenoid valve 24V 0.6A 24W40 FTWE 2 KC42/100
Comparison code - FTWE 2 KC4X/100AG24C4V, R900578535
Rexroth FTWE 2 KC4X/100AG24C4V solenoid valve
Availability: Available (quantity: 10)
Tension - 24 VDC
max. flow - 2 l/min
Producent - Rexroth
Comparison code - FTWE 2 KC4X/100AG24C4V, R900578535
net: 488,36 PLN
Solenoid valve FTWE 2 KC4X/150AG24C4V-3 (ex. R900917759)
Product code R901562620
Availability: Available (quantity: 1) , shipping within 60 dni
Product features:
Solenoid valve FTWE 2 KC4X/150AG24C4V-3 (ex. R900917759)
Availability: Available (quantity: 1) , shipping within 60 dni
net: 646,15 PLN

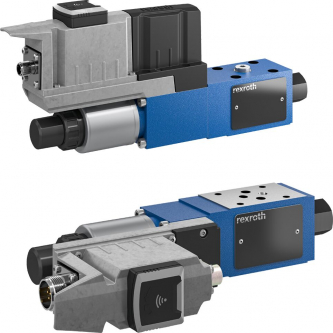

DRAIN VALVE Z3DRE6VP1-2X/100G24K4V
Product code R901585741
Availability: Available (quantity: 1) , shipping within 60 dni
Product features:
Description - Industrial hydraulic valve for high power range. Reliable pressure reduction based on a setpoint signal.
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-45-02-02
Electric connection description - 3-pole device plug (2 + PE) according to EN 175301-803
Plug - 3-pole device plug (2 + PE)
Gross weight - 2.575 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 60 l/min
Net weight - 2.575 kg
Max. working pressure - 350 bar
Product family - (Z)3DRE(E)(A)
Seals - FKM
Nominal size - 6
Slider graphic symbol - P2 → P1
Supply voltage - 24 VDC
Connection type - Intermediate plate
Number of connections - 4
Valve position number - 3
Libra - 2.58 kg
DRAIN VALVE Z3DRE6VP1-2X/100G24K4V
Availability: Available (quantity: 1) , shipping within 60 dni
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-45-02-02
Electric connection description - 3-pole device plug (2 + PE) according to EN 175301-803
Plug - 3-pole device plug (2 + PE)
Gross weight - 2.575 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 60 l/min
Net weight - 2.575 kg
Max. working pressure - 350 bar
Product family - (Z)3DRE(E)(A)
Seals - FKM
Nominal size - 6
Slider graphic symbol - P2 → P1
Supply voltage - 24 VDC
Connection type - Intermediate plate
Number of connections - 4
Valve position number - 3
Libra - 2.58 kg
net: 8992,60 PLN
ELECTROME. PROPORTION. ATEX M.DOK L02-24V
Product code R902228927
Availability: Available (quantity: 1) , shipping within 60 dni
Product features:
ELECTROME. PROPORTION. ATEX M.DOK L02-24V
Availability: Available (quantity: 1) , shipping within 60 dni
net: 7326,36 PLN
Proportional solenoid valve Rexroth GHPY037N54L08-001-12V
Product code R902601998
Availability: Available (quantity: 1) , shipping within 10 dni
Product features:
Tension - 12 VDC
Producent - Rexroth
Description - Proportional solenoid valve Rexroth GHPY037N54L08-001-12V 22W31 12V MSM stem 926168-S Locking nut 472881 PA6 GS30
Comparison code - GHPY037N54L08-001-12V
Proportional solenoid valve Rexroth GHPY037N54L08-001-12V
Availability: Available (quantity: 1) , shipping within 10 dni
Tension - 12 VDC
Producent - Rexroth
Comparison code - GHPY037N54L08-001-12V
net: 761,69 PLN
Rexroth GRCY037N54G15-001-12V proportional solenoid valve
Product code R902602646
Availability: Available (quantity: 1)
Product features:
Tension - 12 VDC
Producent - Rexroth
Description - Proportional solenoid valve Rexroth GRCY037N54G15-001-12V - Thread M14X1.5 Coil pin: MSM 926299-P Coil fi19 H50 20W 12V
Comparison code - GRCY037N54G15-001, GRCY037N54G15-001-12V
Rexroth GRCY037N54G15-001-12V proportional solenoid valve
Availability: Available (quantity: 1)
Tension - 12 VDC
Producent - Rexroth
Comparison code - GRCY037N54G15-001, GRCY037N54G15-001-12V
net: 642,86 PLN
Solenoid valve with coil 12VDC 16W fi19 h=50mm d37mm
Product code R902602669
Availability: Available (quantity: 8)
Product features:
Tension - 12 VDC
Producent - Rexroth
Description - Solenoid valve with coil 12VDC 16W fi19 h=50mm d37mm Coil pin: MSM 926168-S Fits: R902053644
Comparison code - 602064, 42T-17-H0P86, 5130131, ZM 2915101
Solenoid valve with coil 12VDC 16W fi19 h=50mm d37mm
Availability: Available (quantity: 8)
Tension - 12 VDC
Producent - Rexroth
Comparison code - 602064, 42T-17-H0P86, 5130131, ZM 2915101
net: 333,27 PLN
Solenoid valve GHPY037N54L15-001-12V
Product code R902602690
Availability: Available (quantity: 1) , shipping within 10 dni
Product features:
Tension - 12 VDC
Producent - Rexroth
Description - GHPY037N54F15-001-12V
Solenoid valve GHPY037N54L15-001-12V
Availability: Available (quantity: 1) , shipping within 10 dni
Tension - 12 VDC
Producent - Rexroth
net: 465,91 PLN
Rexroth 12V proportional solenoid valve GRCY037N54L15-001-12V
Product code R902603433
Availability: Available (quantity: 2)
Product features:
Tension - 12 VDC
Producent - Rexroth
Description - Proportional valve 12V - Thread M14X1.5 Coil fi19 H50 22W 12V R902603433 GRCY037N54L15-001-12V Coil pin:i MSM 926166-P
Rexroth 12V proportional solenoid valve GRCY037N54L15-001-12V
Availability: Available (quantity: 2)
Tension - 12 VDC
Producent - Rexroth
net: 482,71 PLN

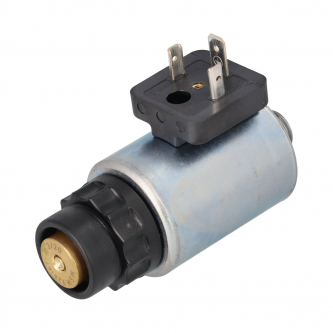

Solenoid valve, prop. 24V GRCY037N54L14-002-24V
Product code R902603440
Availability: Available (quantity: 1) , shipping within 10 dni
Product features:
Tension - 24 VDC
Producent - Rexroth
Description - Proportional solenoid valve GRCY037N54L14-002-24V Coil 20W 24V Coil pin MSM 926169-P
Solenoid valve, prop. 24V GRCY037N54L14-002-24V
Availability: Available (quantity: 1) , shipping within 10 dni
Tension - 24 VDC
Producent - Rexroth
net: 1002,96 PLN
Rexroth CASE proportional solenoid valve, 535A0245
Product code R902603442
Availability: Available (quantity: 1)
Product features:
Tension - 12 VDC
Producent - Rexroth
Description - proportional solenoid, CASE coil, Manitou
Comparison code - 535A0245, GRCY037N54L17-001-12V
Rexroth CASE proportional solenoid valve, 535A0245
Availability: Available (quantity: 1)
Tension - 12 VDC
Producent - Rexroth
Comparison code - 535A0245, GRCY037N54L17-001-12V
net: 528,57 PLN

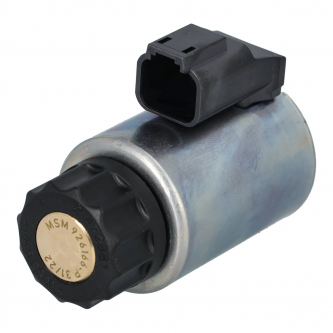

Rexroth GRCY037N54L17-002-24V proportional solenoid valve
Product code R902603443
Availability: Available (quantity: 2)
Product features:
Producent - Rexroth
Description - Proportional solenoid GRCY037N54L17-002-24V Coil pin: MSM 926166-P
Tension - 24 VDC
Rexroth GRCY037N54L17-002-24V proportional solenoid valve
Availability: Available (quantity: 2)
Producent - Rexroth
Tension - 24 VDC
net: 715,50 PLN
Rexroth 40/28/45 Pressure Shut-Off Valve
Product code R909433093
Availability: Available (quantity: 1) , shipping within 10 dni
Product features:
Rexroth 40/28/45 Pressure Shut-Off Valve
Availability: Available (quantity: 1) , shipping within 10 dni
net: 2692,12 PLN
ELECTROME. PROPORTION. 24V M. SCHRAUBEN
Product code R909441692
Availability: Available (quantity: 1) , shipping within 7 dni
Product features:
ELECTROME. PROPORTION. 24V M. SCHRAUBEN
Availability: Available (quantity: 1) , shipping within 7 dni
net: 995,48 PLN
Solenoid switch G35E009200-12V
Product code R913018866
Availability: Available (quantity: 1)
Product features:
Tension - 12 VDC
Producent - Rexroth
Description -
Electromagnetic switch G35E009200-12V
Substitute:
BOSCH REXROTH R909428265, R909157739 (electromagnetic switch GM243-035/100-12V)
Hydac GM243-035/100-12V, GM243035100 12V
Hydronorma GU35-4-A, 12V, GU35-4-A 218
Fanina ESB8.6PMS, 12V, ESB8.6PMS
Comparison code - R909157739, R909428265, GM243-035/100-12V, GM243035100 12V, GU35-4-A, 12V, GU35-4-A 218, ESB8.6PMS, ESB8,6PMS, G35E009200-12V
Solenoid switch G35E009200-12V
Availability: Available (quantity: 1)
Tension - 12 VDC
Producent - Rexroth
Comparison code - R909157739, R909428265, GM243-035/100-12V, GM243035100 12V, GU35-4-A, 12V, GU35-4-A 218, ESB8.6PMS, ESB8,6PMS, G35E009200-12V
net: 547,63 PLN
ELECTROM. PROPORT. GRCY037N54J37-001-12V R902650811 CATERPILLAR 450-0850
Product code R913041862
Availability: Available (quantity: 1) , shipping within 7 dni
Product features:
ELECTROM. PROPORT. GRCY037N54J37-001-12V R902650811 CATERPILLAR 450-0850
Availability: Available (quantity: 1) , shipping within 7 dni
net: 937,09 PLN

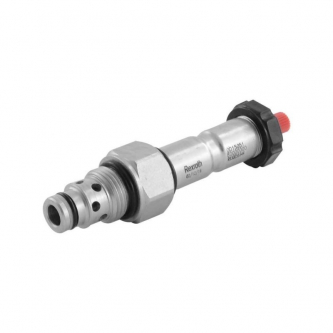

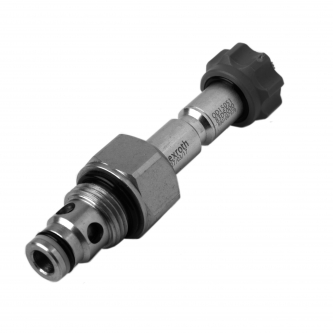

Rexroth 2-way solenoid valve; NC; 12.7mm; 3/4 16UNF; D36; OD150518D000000
Product code R930058344
Availability: Available (quantity: 1) , shipping within 100 dni
Product features:
Type - NC
max. pressure - 350 bars
Valve seat - CA-08A-2N
max. flow - 40 l/min
Coil - D36
connection - 3/4-16
Integrated coil - Separate order
Recess - CA-08A-2N
Directly-indirectly controlled - Indirectly controlled
coil type - D36
Gross weight - 150 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Description - Magnetically actuated 2-way socket distributors, indirectly controlled
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 40 l/min
Comparison code - OD150518D000000
Net weight - 150 g
Nominal flow rate - 40 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08A-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.15 kg
Rexroth 2-way solenoid valve; NC; 12.7mm; 3/4 16UNF; D36; OD150518D000000
Availability: Available (quantity: 1) , shipping within 100 dni
Type - NC
max. pressure - 350 bars
Valve seat - CA-08A-2N
max. flow - 40 l/min
Coil - D36
connection - 3/4-16
Integrated coil - Separate order
Recess - CA-08A-2N
Directly-indirectly controlled - Indirectly controlled
coil type - D36
Gross weight - 150 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 40 l/min
Comparison code - OD150518D000000
Net weight - 150 g
Nominal flow rate - 40 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08A-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.15 kg
net: 294,98 PLN

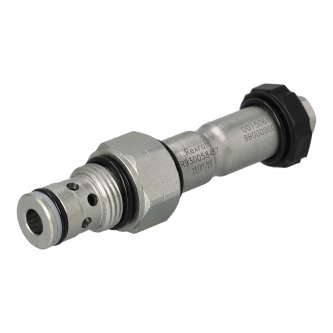

Rexroth 2-way solenoid valve; YEAH; 15.87mm; 3/4 16UNF; D36; OD150619B000000
Product code R930058437
Availability: Available (quantity: 5)
Product features:
Type - YEAH
Valve seat - 019-E
max. pressure - 350 bars
Coil - D36
max. flow - 40 l/min
Integrated coil - Separate order
connection - 3/4-16
Directly-indirectly controlled - Indirectly controlled
Recess - 019-E
Gross weight - 154 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure-activated auxiliary manual actuation
Description - Rexroth 2-way, normally open solenoid valve Nose: 15.87mm Type: bidirectional G3/4 16UNF-2A Coil type: D36, DC, 20W
Max flow rate - 40 l/min
Comparison code - OD150619B000000
Net weight - 154 g
Nominal flow rate - 40 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08S-NA
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.16 kg
Rexroth 2-way solenoid valve; YEAH; 15.87mm; 3/4 16UNF; D36; OD150619B000000
Availability: Available (quantity: 5)
Type - YEAH
Valve seat - 019-E
max. pressure - 350 bars
Coil - D36
max. flow - 40 l/min
Integrated coil - Separate order
connection - 3/4-16
Directly-indirectly controlled - Indirectly controlled
Recess - 019-E
Gross weight - 154 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure-activated auxiliary manual actuation
Max flow rate - 40 l/min
Comparison code - OD150619B000000
Net weight - 154 g
Nominal flow rate - 40 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08S-NA
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.16 kg
net: 424,63 PLN
Rexroth 2-way solenoid valve; NC; 15.87mm; 3/4 16UNF; D36; OD150519DP00000
Product code R930058531
Availability: Available (quantity: 7)
Product features:
Type - NC
Valve seat - 019-E
max. pressure - 350 bars
Coil - D36
max. flow - 40 l/min
Integrated coil - Separate order
connection - 3/4-16
Directly-indirectly controlled - Indirectly controlled
Recess - 019-E
Gross weight - 180 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Description - Rexroth 2-way, normally closed solenoid valve Nose: 15.87mm Type: bidirectional G3/4 16UNF-2A Coil type: D36, DC, 20W
Max flow rate - 40 l/min
Comparison code - OD150519DP00000
Net weight - 180 g
Nominal flow rate - 40 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08S-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.18 kg
Rexroth 2-way solenoid valve; NC; 15.87mm; 3/4 16UNF; D36; OD150519DP00000
Availability: Available (quantity: 7)
Type - NC
Valve seat - 019-E
max. pressure - 350 bars
Coil - D36
max. flow - 40 l/min
Integrated coil - Separate order
connection - 3/4-16
Directly-indirectly controlled - Indirectly controlled
Recess - 019-E
Gross weight - 180 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 40 l/min
Comparison code - OD150519DP00000
Net weight - 180 g
Nominal flow rate - 40 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08S-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.18 kg
net: 304,82 PLN

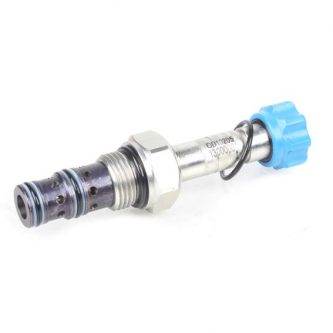

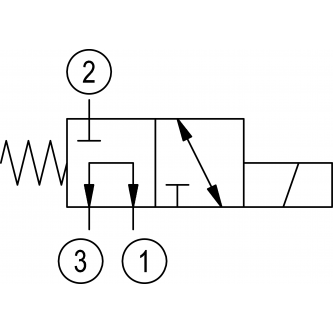

Rexroth 3/2 solenoid valve; 14.28mm; 3/4 16UNF; S8-356; (ex.R901126892)
Product code R930058703
Availability: Available (quantity: 1) , shipping within 7 dni
Product features:
Description - Magnetically actuated, direct operated, 3-way/2-position spool valves
Valve seat - CA-08A-3N
Coil - D36
Integrated coil - Separate order
Directly-indirectly controlled - Directly controlled
Gross weight - 141 g
Hydraulic fluid - HL,HLP
Max flow rate - 20 l/min
Net weight - 141 g
Nominal flow rate - 20 l/min
Max. working pressure - 280 bar
Number of connections - 3
Positions - 2
Product family - VED-16-08A-32
Product family - 3-way
Product family classification - Magnetically actuated slide valves, direct operated, 3 way/2 position
Product family type - VED
Product type - VED
Seal material - NBR
Valve cone slide - Slider type
Connection type - Screw-in valve
Libra - 0.15 kg
Rexroth 3/2 solenoid valve; 14.28mm; 3/4 16UNF; S8-356; (ex.R901126892)
Availability: Available (quantity: 1) , shipping within 7 dni
Valve seat - CA-08A-3N
Coil - D36
Integrated coil - Separate order
Directly-indirectly controlled - Directly controlled
Gross weight - 141 g
Hydraulic fluid - HL,HLP
Max flow rate - 20 l/min
Net weight - 141 g
Nominal flow rate - 20 l/min
Max. working pressure - 280 bar
Number of connections - 3
Positions - 2
Product family - VED-16-08A-32
Product family - 3-way
Product family classification - Magnetically actuated slide valves, direct operated, 3 way/2 position
Product family type - VED
Product type - VED
Seal material - NBR
Valve cone slide - Slider type
Connection type - Screw-in valve
Libra - 0.15 kg

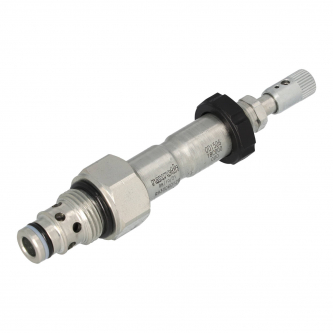

Rexroth 2-way solenoid valve; YEAH; 12.7mm; 3/4 16UNF; D36; OD150618C000000; EDI926, EV2349
Product code R930060128
Availability: Available (quantity: 1)
Product features:
Valve seat - CA-08A-2N
Type - YEAH
Coil - D36
max. pressure - 350 bar
Integrated coil - Separate order
max. flow - 40 l / min
Directly-indirectly controlled - Indirectly controlled
Recess - CA-08A-2N
Gross weight - 160 g
coil type - D36
Hydraulic fluid - HL,HLP
connection - 3/4-16
Auxiliary manual start - Pressure/Turn-Actuated Auxiliary Manual Actuation
Producent - Rexroth
Max flow rate - 40 l/min
Net weight - 160 g
Description -
Rexroth 2-way solenoid valve, normally open EDI926 RS210
Type: bidirectional
Nose: 12.7mm
G3/4 16UNF-2A
Coil Type: D36, DC, 20W
Comparison code - EV2349, OD150618C000000, VEI-016-NO-08A-C-06-0000
Nominal flow rate - 40 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08A-NA
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.16 kg
Rexroth 2-way solenoid valve; YEAH; 12.7mm; 3/4 16UNF; D36; OD150618C000000; EDI926, EV2349
Availability: Available (quantity: 1)
Valve seat - CA-08A-2N
Type - YEAH
Coil - D36
max. pressure - 350 bar
Integrated coil - Separate order
max. flow - 40 l / min
Directly-indirectly controlled - Indirectly controlled
Recess - CA-08A-2N
Gross weight - 160 g
coil type - D36
Hydraulic fluid - HL,HLP
connection - 3/4-16
Auxiliary manual start - Pressure/Turn-Actuated Auxiliary Manual Actuation
Producent - Rexroth
Max flow rate - 40 l/min
Net weight - 160 g
Comparison code - EV2349, OD150618C000000, VEI-016-NO-08A-C-06-0000
Nominal flow rate - 40 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08A-NA
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.16 kg
net: 409,86 PLN
Rexroth 2-way solenoid valve; NC; 15.87mm; 7/8 14UNF; D36; OD150536A000000
Product code R930063002
Availability: Available (quantity: 1)
Product features:
Type - NC
max. pressure - 350 bar
Valve seat - CA-10A-2N
max. flow - 70 l/min
Coil - D36
connection - 7/8-14
Integrated coil - Separate order
Recess - CA-10A-2N
Directly-indirectly controlled - Indirectly controlled
coil type - D36
Gross weight - 187 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Description - Magnetically actuated 2-way socket distributors, indirectly controlled
Max flow rate - 70 l/min
Comparison code - OD150536A000000
Net weight - 187 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-10A-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.19 kg
Rexroth 2-way solenoid valve; NC; 15.87mm; 7/8 14UNF; D36; OD150536A000000
Availability: Available (quantity: 1)
Type - NC
max. pressure - 350 bar
Valve seat - CA-10A-2N
max. flow - 70 l/min
Coil - D36
connection - 7/8-14
Integrated coil - Separate order
Recess - CA-10A-2N
Directly-indirectly controlled - Indirectly controlled
coil type - D36
Gross weight - 187 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Max flow rate - 70 l/min
Comparison code - OD150536A000000
Net weight - 187 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-10A-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.19 kg
net: 481,30 PLN
Rexroth NO solenoid valve, 23.50mm, G 3/4, D36 coil OD151217A000000
Product code R930063907
Availability: Available (quantity: 1)
Product features:
Type - YEAH
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 240 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 70 l/min
Net weight - 240 g
Description - Rexroth 2-way solenoid valve, normally open, Nose: 23.50mm type: one-way return
Comparison code - OD151217A000000
Nominal flow rate - 70 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NA_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.24 kg
Rexroth NO solenoid valve, 23.50mm, G 3/4, D36 coil OD151217A000000
Availability: Available (quantity: 1)
Type - YEAH
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 240 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 70 l/min
Net weight - 240 g
Comparison code - OD151217A000000
Nominal flow rate - 70 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NA_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.24 kg
net: 709,11 PLN
Rexroth 2-way solenoid valve; NC; 23.5mm; G 3/4; D36; OD150517D000000
Product code R930064099
Availability: Available (quantity: 8)
Product features:
Type - NC
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 255 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Description - Rexroth 2-way, normally closed solenoid valve Nose: 23.50mm Coil type: D36, DC, 20W
Max flow rate - 70 l/min
Comparison code - OD150517D000000
Net weight - 255 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NC_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.26 kg
Rexroth 2-way solenoid valve; NC; 23.5mm; G 3/4; D36; OD150517D000000
Availability: Available (quantity: 8)
Type - NC
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 255 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 70 l/min
Comparison code - OD150517D000000
Net weight - 255 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NC_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.26 kg
net: 403,89 PLN
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150521A000000
Product code R930064472
Availability: Available (quantity: 1) , shipping within 100 dni
Product features:
Type - NC
Valve seat - 021-E
max. pressure - 350 bars
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 290 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Net weight - 290 g
Description - Rexroth 2-way, normally closed solenoid valve Nose: 30mm Type: bidirectional G 1" Coil type: D36, DC, 20W
Comparison code - OD150521A000000
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.29 kg
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150521A000000
Availability: Available (quantity: 1) , shipping within 100 dni
Type - NC
Valve seat - 021-E
max. pressure - 350 bars
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 290 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Net weight - 290 g
Comparison code - OD150521A000000
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.29 kg
net: 418,07 PLN
Rexroth 2-way solenoid valve; YEAH; 12.7mm; 3/4 16UNF; D36; OD153218C000000
Product code R930065002
Availability: Available (quantity: 9)
Product features:
Type - YEAH
Valve seat - CA-08A-2N
max. pressure - 350 bar
Coil - D36
max. flow - 40 l/min
Integrated coil - Separate order
connection - 3/4-16
Directly-indirectly controlled - Indirectly controlled
Recess - CA-08A-2N
Gross weight - 150 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure/Turn-Actuated Auxiliary Manual Actuation
Description - Rexroth 2-way solenoid valve, normally open, manually operated Type: two-way Nose: 12.7mm G3/4 16UNF-2A Coil type: D36, DC, 20W Equivalent OD1532181CS000 R901091174 The D36 coil must be ordered separately for the valve. The old coil will not be compatible with the new valve.
Max flow rate - 40 l/min
Comparison code - OD153218C000000, VEI-016-NO-08A-C-32-0000, EDI926
Net weight - 150 g
Nominal flow rate - 40 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08A-NA
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.15 kg
Rexroth 2-way solenoid valve; YEAH; 12.7mm; 3/4 16UNF; D36; OD153218C000000
Availability: Available (quantity: 9)
Type - YEAH
Valve seat - CA-08A-2N
max. pressure - 350 bar
Coil - D36
max. flow - 40 l/min
Integrated coil - Separate order
connection - 3/4-16
Directly-indirectly controlled - Indirectly controlled
Recess - CA-08A-2N
Gross weight - 150 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure/Turn-Actuated Auxiliary Manual Actuation
Max flow rate - 40 l/min
Comparison code - OD153218C000000, VEI-016-NO-08A-C-32-0000, EDI926
Net weight - 150 g
Nominal flow rate - 40 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-08A-NA
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.15 kg
net: 517,96 PLN
Rexroth NO solenoid valve, 23.50mm, G 3/4, D36 coil OD150217C000000
Product code R930065471
Availability: Available (quantity: 9)
Product features:
Type - YEAH
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 267 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure/Turn-Actuated Auxiliary Manual Actuation
Description - Rexroth 2-way solenoid valve, normally open, Nose: 23.50mm type: unidirectional
Max flow rate - 70 l/min
Comparison code - OD150217C000000
Net weight - 267 g
Nominal flow rate - 70 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NA_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.27 kg
Rexroth NO solenoid valve, 23.50mm, G 3/4, D36 coil OD150217C000000
Availability: Available (quantity: 9)
Type - YEAH
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 267 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure/Turn-Actuated Auxiliary Manual Actuation
Max flow rate - 70 l/min
Comparison code - OD150217C000000
Net weight - 267 g
Nominal flow rate - 70 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NA_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.27 kg
net: 466,19 PLN
Rexroth 2-way solenoid valve; NC; 23.5mm; G 3/4; D36; OD150117D000000
Product code R930065472
Availability: Available (quantity: 5)
Product features:
Type - NC
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 218 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Description - Rexroth 2-way, normally closed solenoid valve Knob style manual control Nose: 23.50mm Coil type: D36, DC, 20W
Max flow rate - 70 l/min
Comparison code - OD150117D000000
Net weight - 218 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NC_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.22 kg
Rexroth 2-way solenoid valve; NC; 23.5mm; G 3/4; D36; OD150117D000000
Availability: Available (quantity: 5)
Type - NC
Valve seat - 017-E
max. pressure - 350 bar
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 218 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 70 l/min
Comparison code - OD150117D000000
Net weight - 218 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NC_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.22 kg
net: 331,03 PLN
Rexroth 2-way solenoid valve; NC; 15.87mm; 7/8 14UNF; D36; OD153136A000000 (ex. OD1531363AS000)
Product code R930065511
Availability: Available (quantity: 1) , shipping within 7 dni
Product features:
Type - NC
max. pressure - 350 bar
Valve seat - CA-10A-2N
max. flow - 70 l/min
Coil - D36
connection - 7/8-14
Integrated coil - Separate order
Recess - CA-10A-2N
Directly-indirectly controlled - Indirectly controlled
coil type - D36
Gross weight - 218 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Description - Magnetically actuated 2-way socket distributors, indirectly controlled
Max flow rate - 70 l/min
Comparison code - OD153136A000000
Net weight - 218 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-10A-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.22 kg
Rexroth 2-way solenoid valve; NC; 15.87mm; 7/8 14UNF; D36; OD153136A000000 (ex. OD1531363AS000)
Availability: Available (quantity: 1) , shipping within 7 dni
Type - NC
max. pressure - 350 bar
Valve seat - CA-10A-2N
max. flow - 70 l/min
Coil - D36
connection - 7/8-14
Integrated coil - Separate order
Recess - CA-10A-2N
Directly-indirectly controlled - Indirectly controlled
coil type - D36
Gross weight - 218 g
Producent - Rexroth
Hydraulic fluid - HL,HLP
Max flow rate - 70 l/min
Comparison code - OD153136A000000
Net weight - 218 g
Nominal flow rate - 70 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-10A-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.22 kg
net: 484,29 PLN
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150521A800000
Product code R930065846
Availability: Available (quantity: 1) , shipping within 100 dni
Product features:
Type - NC
Valve seat - 021-E
max. pressure - 350 bar
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 290 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Net weight - 290 g
Description - Rexroth 2-way, normally closed solenoid valve Nose: 30mm Type: bidirectional G 1" Coil type: D36, DC, 20W
Comparison code - OD150521A800000
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.29 kg
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150521A800000
Availability: Available (quantity: 1) , shipping within 100 dni
Type - NC
Valve seat - 021-E
max. pressure - 350 bar
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 290 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Net weight - 290 g
Comparison code - OD150521A800000
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.29 kg
net: 440,48 PLN
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150521D000000
Product code R930066968
Availability: Available (quantity: 1) , shipping within 100 dni
Product features:
Type - NC
Valve seat - 021-E
max. pressure - 350 bar
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 355 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Description - Rexroth 2-way, normally closed solenoid valve Nose: 30mm Type: bidirectional G 1" Coil type: D36, DC, 20W
Max flow rate - 150 l/min
Comparison code - OD150521D000000
Net weight - 355 g
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.36 kg
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150521D000000
Availability: Available (quantity: 1) , shipping within 100 dni
Type - NC
Valve seat - 021-E
max. pressure - 350 bar
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 355 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Auxiliary manual activation via knob
Max flow rate - 150 l/min
Comparison code - OD150521D000000
Net weight - 355 g
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.36 kg
net: 516,92 PLN
Rexroth NO solenoid valve, 23.50mm, G 3/4, D36 coil OD153217B000000
Product code R930067161
Availability: Available (quantity: 1)
Product features:
Type - YEAH
Valve seat - 017-E
max. pressure - 350 bars
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 210 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure-activated auxiliary manual actuation
Description - Rexroth 2-way solenoid valve, normally open, Nose: 23.50mm type: bidirectional
Max flow rate - 70 l/min
Comparison code - OD153217B000000
Net weight - 210 g
Nominal flow rate - 70 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NA_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.21 kg
Rexroth NO solenoid valve, 23.50mm, G 3/4, D36 coil OD153217B000000
Availability: Available (quantity: 1)
Type - YEAH
Valve seat - 017-E
max. pressure - 350 bars
Coil - D36
max. flow - 70 l/min
Integrated coil - Separate order
connection - G 3/4"
Directly-indirectly controlled - Indirectly controlled
Recess - 017-E
Gross weight - 210 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Auxiliary manual start - Pressure-activated auxiliary manual actuation
Max flow rate - 70 l/min
Comparison code - OD153217B000000
Net weight - 210 g
Nominal flow rate - 70 l/min
Normal position - Currentless open
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-NA_017
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless open
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.21 kg
net: 718,73 PLN
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD153121A000000
Product code R930068523
Availability: Available (quantity: 8)
Product features:
Type - NC
Valve seat - 021-E
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 395 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Description - Rexroth 2-way, normally closed solenoid valve Nose: 30mm Type: bidirectional G 1" Coil type: D36, DC, 20W
Net weight - 395 g
Comparison code - OD153121A000000, VEI-16-021-NC
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.4 kg
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD153121A000000
Availability: Available (quantity: 8)
Type - NC
Valve seat - 021-E
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 395 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Net weight - 395 g
Comparison code - OD153121A000000, VEI-16-021-NC
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.4 kg
net: 653,29 PLN
Solenoid Rexroth NO, 17.45mm, EV2824A,
Product code R930069701
Availability: Available (quantity: 3)
Product features:
Type - YEAH
Producent - Rexroth
Description - New Type Solenoid Valve, equivalent to EV2824A Difference in stem diameter: EV2824: Old Type for coil diameter 12.7mm EV2824A: New Type for coil diameter 16mm AVAILABLE IN EPSILON / PALFINGER CRANES MOUNTED AT THE HIGH PRESSURE FILTER (NO) Nose: 17.45MM BODY CODE : HG140
Comparison code - OD150676CP00000, EV2824A
Solenoid Rexroth NO, 17.45mm, EV2824A,
Availability: Available (quantity: 3)
Type - YEAH
Producent - Rexroth
Comparison code - OD150676CP00000, EV2824A
net: 540,47 PLN
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150321A000000
Product code R930070069
Availability: Available (quantity: 1) , shipping within 7 dni
Product features:
Type - NC
Valve seat - 021-E
max. pressure - 350 bar
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 290 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Net weight - 290 g
Description - Rexroth 2-way, normally closed solenoid valve Nose: 30mm Type: directional G 1" Coil type: D36, DC, 20W
Comparison code - OD150321A000000
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.29 kg
Rexroth 2-way solenoid valve; NC; 30mm; G 1"; D36; OD150321A000000
Availability: Available (quantity: 1) , shipping within 7 dni
Type - NC
Valve seat - 021-E
max. pressure - 350 bar
Coil - D36
max. flow - 150 l/min
Integrated coil - Separate order
connection - G 1"
Directly-indirectly controlled - Indirectly controlled
Recess - 021-E
Gross weight - 290 g
coil type - D36
Hydraulic fluid - HL,HLP
Producent - Rexroth
Max flow rate - 150 l/min
Net weight - 290 g
Comparison code - OD150321A000000
Nominal flow rate - 150 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Positions - 2
Product family - VEI-16-021-NC
Product family - 2-way
Product family classification - Magnetically actuated 2-way socket distributors, indirectly controlled, currentless closed
Product family type - VEI
Product type - VEI
Seal material - NBR
Valve cone slide - Socket version
Connection type - Screw-in valve
Libra - 0.29 kg
Rexroth, Fassi ZVA0005 solenoid valve
Product code R934000654
Availability: Available (quantity: 1)
Product features:
Producent - Rexroth
Description - Solenoid valve Bosch Rexroth OD143358440000-VED8I4306.58K33.44NCD215
Comparison code - ZVA0005, OD143358440000, VED8I4306.58K33.44NCD215
Rexroth, Fassi ZVA0005 solenoid valve
Availability: Available (quantity: 1)
Producent - Rexroth
Comparison code - ZVA0005, OD143358440000, VED8I4306.58K33.44NCD215
net: 441,11 PLN
Solenoid valve with Rexroth R917010068 12V coil
Product code 1527010433
Availability: Currently not available
Notify me about availability
Product features:
Description - Rexroth solenoid valve with coil R917010068 For agricultural tractors of the following brands: case cnh, new holland, steyr, renault, claas, massey ferguson, mf, mf, landini, valtra, valmet, fendt.
Tension - 12 VDC
Comparison code - R917010068, F199860100020, 3900390M91, 1527010433, 127345, 137 001 417, 3900390M91, 3903550M91, 47129414, 5190768, 87635977, 2561527010433, 0831006042, 5188024
Solenoid valve with Rexroth R917010068 12V coil
Availability: Currently not available
Notify me about availability
Tension - 12 VDC
Comparison code - R917010068, F199860100020, 3900390M91, 1527010433, 127345, 137 001 417, 3900390M91, 3903550M91, 47129414, 5190768, 87635977, 2561527010433, 0831006042, 5188024
net: 625,00 PLN
COLLETTORE A-38CA-08A-2N
Product code OC1009004
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-14CA-08A-2N
Product code OC1009009
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-34C017
Product code OC1009012
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE A-12C017
Product code OC1009015
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE A-34C021
Product code OC1009017
Availability: Currently not available
Notify me about availability
Product features:
Valve body Rexroth 021-E 1G AL R900068903
Product code OC1009019
Availability: Currently not available
Notify me about availability
Product features:
connection - G 1"
Recess - 021-E
Producent - Rexroth
Comparison code - R900068903, 021-E 1G AL
Valve body Rexroth 021-E 1G AL R900068903
Availability: Currently not available
Notify me about availability
connection - G 1"
Recess - 021-E
Producent - Rexroth
Comparison code - R900068903, 021-E 1G AL
net: 416,83 PLN
COLLETTORE A-114C004
Product code OC1009041
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE A-14CA-08A-3N
Product code OC1009042
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-38CA-08A-4N
Product code OC1009046
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-14CA-08A-4N
Product code OC1009047
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-38CA-08A-3N
Product code OC1009048
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-38C019
Product code OC1009054
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-114C004
Product code OC1009056
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-38CA-08A-2N
Product code OC1009066
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-14CA-08A-2N
Product code OC1009067
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-34C017
Product code OC1009073
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-12C017
Product code OC1009074
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-34C021
Product code OC1009075
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-100C021
Product code OC1009076
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-38C019
Product code OC1009101
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE A-38CA-10A-3N
Product code OC1009115
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-14CA-10A-3N
Product code OC1009116
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-14CA-10A-4N
Product code OC1009117
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-38CA-10A-4N
Product code OC1009118
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-100C004
Product code OC1009122
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-38CA-08A-3N
Product code OC1009153
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-G3/8-CA-08A-3C
Product code OC1009184
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-STAND-SERIE-08C-3- &
Product code OC1009185
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE A-STAND-SERIE-08C-3- &
Availability: Currently not available
Notify me about availability
COLLETTORE S-STAND-SERIE-08C-3- &
Product code OC1009186
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-STAND-SERIE-08C-3- &
Availability: Currently not available
Notify me about availability
COLLETTORE S-SERIE-10C-3-G12
Product code OC1009188
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-12A-3N-G1/2
Product code OC1009206
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-12A-3N-G3/4
Product code OC1009207
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-10A-2N-G1 / 2
Product code OC1009209
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-10A-2N-G1/2
Product code OC1009210
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-10A-2N-G3/4
Product code OC1009211
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-10A-2N-G3/4
Product code OC1009212
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-12A-2N-G3 / 4
Product code OC1009213
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-12A-2N-G3/4
Product code OC1009214
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-12A-2N-G1
Product code OC1009215
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-12A-2N-G1
Product code OC1009216
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-2N-G3 / 4
Product code OC1009218
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-16A-2N-G1
Product code OC1009219
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-2N-G1
Product code OC1009220
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-14CA-08A-3N
Product code OC1009225
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-14CA-10A-3N
Product code OC1009226
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-38CA-10A-3N
Product code OC1009227
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-16A-3N-G3/4
Product code OC1009228
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-3N-G3 / 4
Product code OC1009229
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-3N-G1
Product code OC1009231
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-14CA-08A-4N
Product code OC1009236
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-14C078
Product code OC1009238
Availability: Currently not available
Notify me about availability
Product features:
COLLETTORE S-38CA-10A-4N
Product code OC1009239
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-12A-4N-G3 / 4
Product code OC1009240
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-4N-G3/4
Product code OC1009245
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-4N-G1
Product code OC1009247
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-10A-4N-G3 / 8
Product code OC1009252
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-10A-4N-G3/8
Product code OC1009253
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-4N-G3/4
Product code OC1009257
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-4N-G1
Product code OC1009259
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-08A-3C-G3/8
Product code OC1009261
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-10A-3C-G3/8
Product code OC1009265
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-10A-3C-G1/2
Product code OC1009266
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-10A-3C-G1/2
Product code OC1009267
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-12A-3C-G1 / 2
Product code OC1009268
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-12A-3C-G1/2
Product code OC1009269
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-12A-3C-G3/4
Product code OC1009271
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-16A-3C-G1
Product code OC1009272
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-16A-3C-G1
Product code OC1009273
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-20A-3C-G1-1/4
Product code OC1009277
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-20A-3C-G1
Product code OC1009279
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-12A-2N-G1 / 2
Product code OC1009280
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-10A-3N-G1 / 2
Product code OC1009284
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE A-CA-10A-2N-G3 / 8
Product code OC1009294
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
COLLETTORE S-CA-10A-2N-G3 / 8
Product code OC1009295
Availability: Currently not available
Notify me about availability
Product features:
Availability: Currently not available
Notify me about availability
Plastic cover for the Rexroth D36 solenoid valve
Product code OC1702113
Availability: Currently not available
Notify me about availability
Product features:
coil type - D36
Producent - Rexroth
Description - Plastic cover for the Rexroth D36 solenoid valve
Plastic cover for the Rexroth D36 solenoid valve
Availability: Currently not available
Notify me about availability
coil type - D36
Producent - Rexroth
net: 15,11 PLN
ELECTROME. PROPORTION. GRFY035F20E67-24V
Product code R900020931
Availability: Currently not available
Notify me about availability
Product features:
ELECTROME. PROPORTION. GRFY035F20E67-24V
Availability: Currently not available
Notify me about availability
net: 994,14 PLN
Rexroth FTWE 4 KC1X / 210AG12C4V solenoid valve
Product code R900568315
Availability: Currently not available
Notify me about availability
Product features:
Description - Directly operated directional control valves with magnetic actuation
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 182 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 7 l/min
Net weight - 182 g
Nominal flow rate - 7 l/min
Max. working pressure - 210 bar
Number of connections - 3
Positions - 2
Product family - FTWE 4K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.19 kg
Rexroth FTWE 4 KC1X / 210AG12C4V solenoid valve
Availability: Currently not available
Notify me about availability
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 182 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 7 l/min
Net weight - 182 g
Nominal flow rate - 7 l/min
Max. working pressure - 210 bar
Number of connections - 3
Positions - 2
Product family - FTWE 4K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.19 kg
Rexroth FTWE 2 KC3X / 100AG12C4V solenoid valve
Product code R900578533
Availability: Currently not available
Notify me about availability
Product features:
Description - Directly operated directional control valves with magnetic actuation
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 158.401 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 158.401 g
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.16 kg
Rexroth FTWE 2 KC3X / 100AG12C4V solenoid valve
Availability: Currently not available
Notify me about availability
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 158.401 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 158.401 g
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.16 kg
net: 522,57 PLN
Pressure reducing valve FTDRE 2 K3X/18AG24C4V-8 withdrawn
Product code R900701407
Availability: Currently not available
Notify me about availability
Product features:
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 163 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Auxiliary manual start - With auxiliary manual start
Max flow rate - 2 l/min
Description - Proportional pressure reducing valves
Maximum setting pressure - 18 bar
Net weight - 163 g
Nominal flow rate - 2 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE2K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.17 kg
Pressure reducing valve FTDRE 2 K3X/18AG24C4V-8 withdrawn
Availability: Currently not available
Notify me about availability
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 163 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Auxiliary manual start - With auxiliary manual start
Max flow rate - 2 l/min
Maximum setting pressure - 18 bar
Net weight - 163 g
Nominal flow rate - 2 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE2K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.17 kg
net: 466,10 PLN
Pressure reducing valve FTDRE 2 K3X / 18AG12C4V-8
Product code R900726604
Availability: Currently not available
Notify me about availability
Product features:
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 161.201 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Maximum setting pressure - 18 bar
Net weight - 161.201 g
Nominal flow rate - 2 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE2K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Description - Proportional pressure reducing valves
Seal material - FKM
Comparison code - R901545990
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.17 kg
Pressure reducing valve FTDRE 2 K3X / 18AG12C4V-8
Availability: Currently not available
Notify me about availability
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 161.201 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Maximum setting pressure - 18 bar
Net weight - 161.201 g
Nominal flow rate - 2 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE2K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Seal material - FKM
Comparison code - R901545990
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.17 kg
net: 373,14 PLN
Pressure reducing valve FTDRE 4 K17 / 30-8
Product code R900727801
Availability: Currently not available
Notify me about availability
Product features:
Description - Proportional pressure reducing valves
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 188.001 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Manual override - With auxiliary manual start
Max flow rate - 5 l/min
Maximum control pressure - 30 bar
Net weight - 188.001 g
Nominal flow rate - 5 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE4K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.19 kg
Pressure reducing valve FTDRE 4 K17 / 30-8
Availability: Currently not available
Notify me about availability
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 188.001 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Manual override - With auxiliary manual start
Max flow rate - 5 l/min
Maximum control pressure - 30 bar
Net weight - 188.001 g
Nominal flow rate - 5 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE4K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.19 kg
net: 710,53 PLN
Ciśnieniowy zawór redukcyjny FTDRE 2 K3X/24AG24K4003V-8
Product code R900767594
Availability: Currently not available
Notify me about availability
Product features:
Description - Pressure reducing valve FTDRE 2 K Max. pressure 24 bar Voltage 24 VDC Deutsch connector
Ciśnieniowy zawór redukcyjny FTDRE 2 K3X/24AG24K4003V-8
Availability: Currently not available
Notify me about availability
net: 675,43 PLN
Rexroth FTWE 4 KC1X / 210AG24K40V solenoid valve
Product code R900772014
Availability: Currently not available
Notify me about availability
Product features:
Description - Directly operated directional control valves with magnetic actuation
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Plug - German DT04-2P
Gross weight - 184.7 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 7 l/min
Net weight - 184.7 g
Nominal flow rate - 7 l/min
Max. working pressure - 210 bar
Number of connections - 3
Positions - 2
Product family - FTWE 4K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.19 kg
Rexroth FTWE 4 KC1X / 210AG24K40V solenoid valve
Availability: Currently not available
Notify me about availability
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Plug - German DT04-2P
Gross weight - 184.7 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 7 l/min
Net weight - 184.7 g
Nominal flow rate - 7 l/min
Max. working pressure - 210 bar
Number of connections - 3
Positions - 2
Product family - FTWE 4K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.19 kg
FTWE 2 KC3X / 150AG24C4V-3 solenoid valve
Product code R900917759
Availability: Currently not available
Notify me about availability
Product features:
Description - ELECTRO-CABLE FTWE 2 KC33 / 100 AG12C4V VOLTAGE: 24 VDC 14.4W MAX. PRESSURE 150 BAR MAX. FLOW 2 L / MIN. Connection: AMP
Tension - 24 VDC
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 157.801 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 157.801 g
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.16 kg
FTWE 2 KC3X / 150AG24C4V-3 solenoid valve
Availability: Currently not available
Notify me about availability
Tension - 24 VDC
Valve seat - M18x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 157.801 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 2 l/min
Net weight - 157.801 g
Nominal flow rate - 2 l/min
Max. working pressure - 100 bar
Number of connections - 3
Positions - 2
Product family - FTWE 2K
Product family - 3-way
Product family classification - Directly operated directional control valves with magnetic actuation
Product family type - FTWE
Product type - FTWE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 24V DC
Connection type - Screw-in valve
Libra - 0.16 kg
net: 558,06 PLN
PRESSURE REDUCING VALVE 3DREPE6C-2X/45EG24N9K31/A1V
Product code R900963713
Availability: Currently not available
Notify me about availability
Product features:
Description - Industrial hydraulic valve for high power range. Reliable pressure reduction based on a setpoint signal.
Conformity - UKCA,CE
Compliance Description - UKCA – Electromagnetic Compatibility (EMC) SI2016/1091,CE – Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-45-02-02
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 2.25 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 15 l/min
Net weight - 2.25 kg
Max. working pressure - 100 bar
Product family - 3DREP€
Seals - FKM
Nominal size - 6
Slider graphic symbol - P → A, P → B / A → T, B → T
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 3
Libra - 2.25 kg
PRESSURE REDUCING VALVE 3DREPE6C-2X/45EG24N9K31/A1V
Availability: Currently not available
Notify me about availability
Conformity - UKCA,CE
Compliance Description - UKCA – Electromagnetic Compatibility (EMC) SI2016/1091,CE – Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Connection diagram - ISO 4401-03-02-0-05
ECLASS_13_Classification - 51-45-02-02
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 2.25 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 15 l/min
Net weight - 2.25 kg
Max. working pressure - 100 bar
Product family - 3DREP€
Seals - FKM
Nominal size - 6
Slider graphic symbol - P → A, P → B / A → T, B → T
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 4
Valve position number - 3
Libra - 2.25 kg
net: 12472,24 PLN
PROPORCJONALNY CIŚNIENIOWY ZAWÓR DBETE-6X/50G24K31A1V (ex. R900528808)
Product code R901029966
Availability: Currently not available
Notify me about availability
Product features:
Description - Industrial hydraulic valve for high power range. Reliable pressure limitation based on a setpoint signal.
Conformity - UKCA,CE
Compliance Description - UKCA – Electromagnetic Compatibility (EMC) SI2016/1091,CE – Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Connection diagram - ISO 4401-03-02-0-05
Communication - Analog, setpoint 0…10 V
ECLASS_13_Classification - 51-45-02-01
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 1.6 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 2 l/min
Net weight - 1.6 kg
Max. working pressure - 420 bar
Product family - DBET(E)
Seals - FKM
Nominal size - 6
Slider graphic symbol - P → T
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 2
Valve position number - 2
Libra - 1.6 kg
PROPORCJONALNY CIŚNIENIOWY ZAWÓR DBETE-6X/50G24K31A1V (ex. R900528808)
Availability: Currently not available
Notify me about availability
Conformity - UKCA,CE
Compliance Description - UKCA – Electromagnetic Compatibility (EMC) SI2016/1091,CE – Electromagnetic Compatibility (EMC) Directive 2014/30/EU
Connection diagram - ISO 4401-03-02-0-05
Communication - Analog, setpoint 0…10 V
ECLASS_13_Classification - 51-45-02-01
Electric connection description - 7-pin device plug (6 + PE) according to EN 175201-804
Plug - 7-pin device plug (6 + PE)
Gross weight - 1.6 kg
Hydraulic fluid - HL,HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
Max flow rate - 2 l/min
Net weight - 1.6 kg
Max. working pressure - 420 bar
Product family - DBET(E)
Seals - FKM
Nominal size - 6
Slider graphic symbol - P → T
Supply voltage - 24 VDC
Connection type - Mounting on a board
Number of connections - 2
Valve position number - 2
Libra - 1.6 kg
net: 10712,02 PLN
Proportional pressure relief KBVSP3BA / LCG12C4-220V
Product code R901036386
Availability: Currently not available
Notify me about availability
Product features:
Description - Proportional pressure relief valve, pilot operated, descending characteristic
Valve seat - R/ISO 7789-33-01-0-98
Coil - GP37
Integrated coil - Integrated coil
Directly-indirectly controlled - Indirectly controlled
Gross weight - 701.7 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 200 l/min
Net weight - 701.7 g
Nominal flow rate - 200 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Product family - KBVS.3B
Product family - Relief
Product family classification - Proportional pressure relief valve, pilot operated, descending characteristic
Product family type - KBVS
Product type - KBVS
Seal material - FKM
Valve cone slide - Socket version
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.71 kg
Proportional pressure relief KBVSP3BA / LCG12C4-220V
Availability: Currently not available
Notify me about availability
Valve seat - R/ISO 7789-33-01-0-98
Coil - GP37
Integrated coil - Integrated coil
Directly-indirectly controlled - Indirectly controlled
Gross weight - 701.7 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Max flow rate - 200 l/min
Net weight - 701.7 g
Nominal flow rate - 200 l/min
Normal position - Currentless closed
Max. working pressure - 350 bar
Number of connections - 2
Product family - KBVS.3B
Product family - Relief
Product family classification - Proportional pressure relief valve, pilot operated, descending characteristic
Product family type - KBVS
Product type - KBVS
Seal material - FKM
Valve cone slide - Socket version
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.71 kg
net: 2261,72 PLN
Pressure reducing valve FTDRE 4 K1X / 30AG12C4V-8
Product code R901060306
Availability: Currently not available
Notify me about availability
Product features:
Description - Proportional pressure reducing valves
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 187.3 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Auxiliary manual start - With auxiliary manual start
Max flow rate - 5 l/min
Maximum setting pressure - 30 bar
Net weight - 187.3 g
Nominal flow rate - 5 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE4K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.19 kg
Pressure reducing valve FTDRE 4 K1X / 30AG12C4V-8
Availability: Currently not available
Notify me about availability
Valve seat - M22x1.5
Integrated coil - Integrated coil
Directly-indirectly controlled - Directly controlled
Gross weight - 187.3 g
Hydraulic fluid - HL,HLP,HEES,HEPG
Auxiliary manual start - With auxiliary manual start
Max flow rate - 5 l/min
Maximum setting pressure - 30 bar
Net weight - 187.3 g
Nominal flow rate - 5 l/min
Normal position - Currentless closed
Max. working pressure - 100 bar
Number of connections - 3
Product family - FTDRE4K
Product family - Pressure reduction and containment
Product family classification - Proportional pressure reducing valve, direct operated, rising characteristic
Product family type - FTDRE
Product type - FTDRE
Seal material - FKM
Valve cone slide - Slider type
Supply voltage - 12V DC
Connection type - Screw-in valve
Libra - 0.19 kg
net: 766,76 PLN
Rexroth 2-way solenoid valve; NC; 12.7mm; 3/4 16UNF; S8-356; OD1531183AS000
Product code R901082015
Availability: Currently not available
Notify me about availability
Product features:
Type - NC
max. pressure - 350 bar
max. flow - 40 l/min
connection - 3/4-16
Recess - CA-08A-2N
coil type - S8-356
Producent - Rexroth
Description - Rexroth 2-way, normally closed solenoid valve Nose: 12.7mm Type: bidirectional G3/4 16UNF-2A Coil type: S8-356, DC, 20W
Comparison code - OD1531183AS000
Rexroth 2-way solenoid valve; NC; 12.7mm; 3/4 16UNF; S8-356; OD1531183AS000
Availability: Currently not available
Notify me about availability
Type - NC
max. pressure - 350 bar
max. flow - 40 l/min
connection - 3/4-16
Recess - CA-08A-2N
coil type - S8-356
Producent - Rexroth
Comparison code - OD1531183AS000
Rexroth 2-way solenoid valve; NC; 12.7mm; 3/4 16UNF; S8-356; OD1505183AS000
Product code R901083058
Availability: Currently not available
Notify me about availability
Product features:
Type - NC
max. pressure - 350 bar
max. flow - 40 l/min
connection - 3/4-16
Recess - CA-08A-2N
coil type - S8-356
Producent - Rexroth
Description - Rexroth 2-way, normally closed solenoid valve Nose: 12.7mm Type: bidirectional G3/4 16UNF-2A Coil type: S8-356, DC, 20W
Comparison code - OD1505183AS000
Rexroth 2-way solenoid valve; NC; 12.7mm; 3/4 16UNF; S8-356; OD1505183AS000
Availability: Currently not available
Notify me about availability
Type - NC
max. pressure - 350 bar
max. flow - 40 l/min
connection - 3/4-16
Recess - CA-08A-2N
coil type - S8-356
Producent - Rexroth
Comparison code - OD1505183AS000
net: 422,52 PLN
