Rexroth 2-way solenoid valve; YEAH; 22.20mm; 1-1/16 12UNF; D36; OD153289B000000; Multilift
Category: Rexroth
CODE: R930071122
CODE: R930071122
Availability: Currently not available
Notify me about availability
Check deliveries
Product description

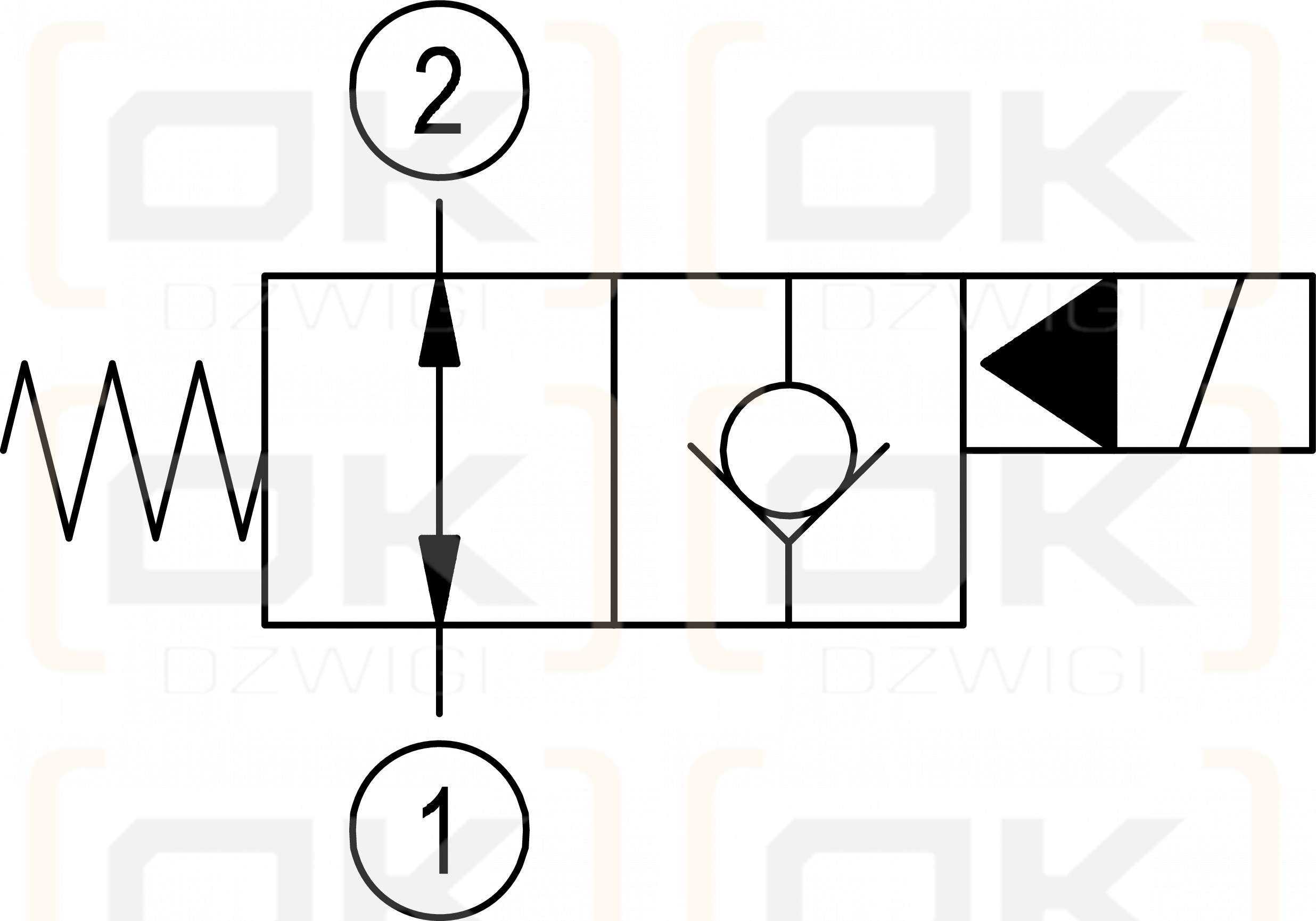

Magnetically actuated 2-way socket distributors, indirectly controlled
Product features
- Type: YEAH
- max. pressure: 350 bar
- Valve seat: CA-12A-2N
- max. flow: 150 l/min
- Coil: D36
- connection: 1 1/16-12
- Integrated coil: Separate order
- Recess: CA-12A-2N
- Directly-indirectly controlled: Indirectly controlled
- coil type: D36
- Gross weight: 290 g
- Producent: Rexroth
- Hydraulic fluid: HL,HLP
- Auxiliary manual start: Pressure-activated auxiliary manual actuation
- Max flow rate: 150 l/min
- Comparison code: OD153289B000000
- Net weight: 290 g
- Nominal flow rate: 150 l/min
- Normal position: Currentless open
- Max. working pressure: 350 bar
- Number of connections: 2
- Positions: 2
- Product family: VEI-16-NA
- Product family: 2-way
- Product family classification: Magnetically actuated 2-way socket distributors, indirectly controlled
- Product family type: VEI
- Product type: VEI
- Seal material: NBR
- Valve cone slide: Socket version
- Connection type: Screw-in valve
- Libra: 0.29 kg
Documents
OD15X89YZ00_D36_R930063151 (1).pdfRelated products
