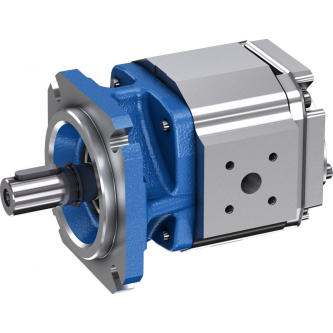

Bosch Rexroth PGF3-3X/032RE07VE4 gear pump
Category: Rexroth
CODE: R900932112
CODE: R900932112
Availability: Available (quantity: 1) , shipping within 10 dni
Check deliveries
Product description
Suitable for variable-speed drives, low noise and low pulsation, high efficiency thanks to gap compensation, suitable for two million load cycles at maximum pressure
Product features
- Direction of rotation: Clockwise rotation
- Displacement type: fixed
- ECLASS_13_Classification: 51-41-04-02
- Gross weight: 5.145 kg
- Hydraulic fluid: HLP,HLPD,HVLP,HVLPD,HETG,HEES,HEPG,HFDU,HFDR
- Max flow rate: 97.5 l/min
- Mounting: 4-hole mounting flange 100B4SW according to ISO 3019-2
- Net weight: 5.145 kg
- Max. working pressure for special fluids: 210 bar
- Max. working pressure: 210 bar
- Product family: PGF
- Seals: FKM
- End of the shaft: Cylindrical Ø 25 mm with fitting key, ISO 3019-2
- Nominal size: 32
- Through drive: with
- Libra: 5.15 kg
R900932112
