Wał przegubowo-teleskopowy 860-1200mm 270Nm sprzęgło zapadkowe CE 2020 seria 2R WARYŃSKI
Category: Seria 2R 270Nm
CODE: W2B138860
CODE: W2B138860
Availability: Available (quantity: 6)
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

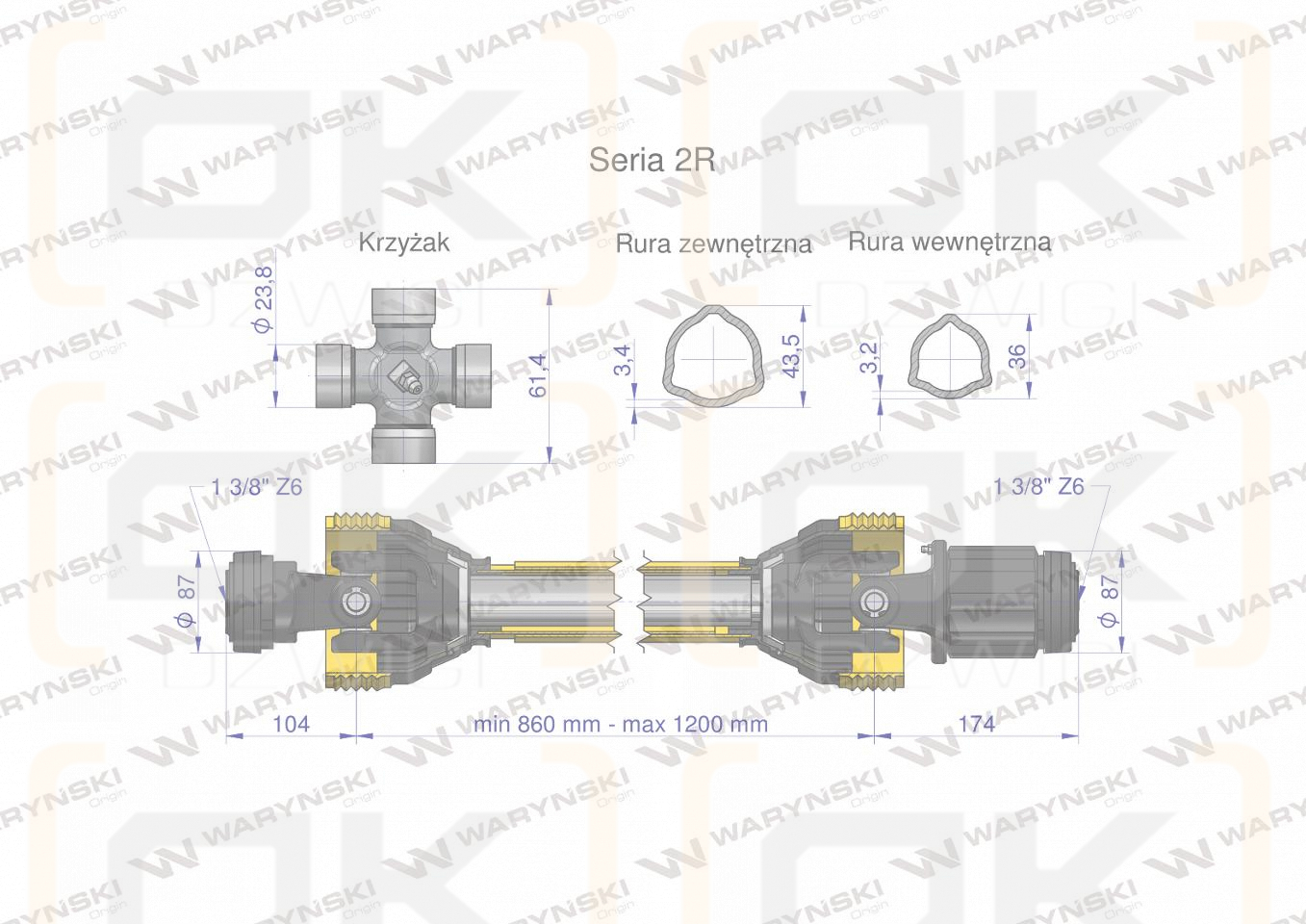

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 1200mm
- Nominal power: 15 ( 21 ) KW ( HP )
- Clutch: Ratchet Clutch
- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 23.8mm
- Height of the cross: 61.3mm
- Collaborates with: Outer yoke - WR227201, Crosspiece - WR219201, Inner pipe yoke - WR219207, Outer pipe yoke - WR219206, Inner pipe - WR2321740, Outer pipe - WR2322735, Housing - WR21921129
- Torque: 270 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 3.2mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: 500 Nm
- Clutch from the Machine side: Ratchet clutch
- Clutch from Tractor side: Lack
