Seria 2R 270Nm

Wał przegubowo-teleskopowy 510-720mm 270Nm szerokokątny z dwóch stron CE seria 2R WARYŃSKI

Product code W29090510

Availability: Available (quantity: 3)

Product features:

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 720mm

Nominal power - 15 ( 21 ) KW ( HP )

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321640, Rura zewnętrzna - WR2322635, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 35° chwilowo 80°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Szerokokątny

Clutch from Tractor side - Szerokokątny

• net: 1899,00 PLN
• • Currency: zł € $

PTO shaft 1010-1580mm 270Nm Z21 fork bolted 40270 CE 2020 series 2R WARYŃSKI

Product code W2B1121010

Availability: Available (quantity: 16)

Product features:

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 cal

Attachment to the machine - 1 3/8" - Z21 cal

Telescopic connector type - Rura trójkątna

Maximum length - 1580 mm

Nominal power - 15 ( 21 ) KW ( KM )

Inner tube thickness - 36 mm

Outer pipe thickness - 43,5 mm

Bearing diameter - 23,8 mm

Height of the cross - 61,3 mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321890, Rura zewnętrzna - WR2322885, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3,2 mm

Outer pipe wall thickness - 3,4 mm

Clutch release torque - Brak Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 379,99 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1010-1560mm 270Nm sprzęgło zapadkowe CE 2020 seria 2R WARYŃSKI

Product code W2B1381010

Availability: Available (quantity: 2)

Product features:

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1560mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Sprzęgło Zapadkowe

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321890, Rura zewnętrzna - WR2322885, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - 500 Nm

Clutch from the Machine side - Sprzęgło zapadkowe

Clutch from Tractor side - Brak

• net: 659,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 860-1200mm 270Nm sprzęgło zapadkowe CE 2020 seria 2R WARYŃSKI

Product code W2B138860

Availability: Available (quantity: 6)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1200mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Sprzęgło Zapadkowe

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321740, Rura zewnętrzna - WR2322735, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - 500 Nm

Clutch from the Machine side - Sprzęgło zapadkowe

Clutch from Tractor side - Brak

• net: 639,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1210-1900mm 270Nm sprzęgło cierne 300Nm CE 2020 seria 2R WARYŃSKI

Product code W2B1501210

Availability: Available (quantity: 1)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1900mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Sprzęgło cierne

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR23211090, Rura zewnętrzna - WR23221085, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - 300 Nm

Clutch from the Machine side - Sprzęgło cierne

Clutch from Tractor side - Brak

• net: 529,99 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1110-1750mm 270Nm sprzęgło z kołkiem 900Nm CE 2020 seria 2R WARYŃSKI

Product code W2B1711110

Availability: Available (quantity: 2)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1750mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Sprzęgło z kołkiem

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321990, Rura zewnętrzna - WR2322985, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - 900 Nm

Clutch from the Machine side - Sprzęgło z kołkiem

Clutch from Tractor side - Brak

• net: 479,99 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 760-1070mm 270Nm sprzęgło z kołkiem 900Nm CE 2020 seria 2R WARYŃSKI

Product code W2B171760

Availability: Available (quantity: 6)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1070mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Sprzęgło z kołkiem

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321640, Rura zewnętrzna - WR2322635, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - 900 Nm

Clutch from the Machine side - Sprzęgło z kołkiem

Clutch from Tractor side - Brak

• net: 439,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1010-1580mm 270Nm szerokokątny CE 2020 seria 2R WARYŃSKI

Product code W2B1901010

Availability: Available (quantity: 1)

Product features:

Description - Wał wykonany według nowej Normy PN-EN-12965_2020. Wały Serii R Waryński powstały, aby jeszcze lepiej zaspokoić potrzeby naszych klientów. Zmieniona konstrukcja pozwoliła zwiększyć żywotnośc i wytrzymałość naszych produktów o ponad 15%. Dzięki zastosowaniu specjalistycznego systemu blokującego wały Waryński gwarantują szybki montaż, oraz bezpieczeństwo i są zgodne z nowo obowiązującą Normą.
Wysoką jakość naszych produktów gwarantują widłaki, wykonane ze stali wysokowęglowej, krzyżaki wyposażone w specjalne łożyska o podwyższonej wytrzymałości oraz obudowy wałów przegubowo-teleskopowych Waryński odporne na uderzenia mechaniczne, działanie UV oraz niskie temperatury.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 cal

Attachment to the machine - 1 3/8" - Z6 cal

Telescopic connector type - Rura trójkątna

Maximum length - 1580 mm

Nominal power - 15 ( 21 ) KW ( KM )

Inner tube thickness - 36 mm

Outer pipe thickness - 43,5 mm

Bearing diameter - 23,8 mm

Height of the cross - 61,3 mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321890, Rura zewnętrzna - WR2322885, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 35° chwilowo 80°

Inner pipe wall thickness - 3,2 mm

Outer pipe wall thickness - 3,4 mm

Clutch release torque - Brak Nm

Clutch from the Machine side - Szerokokątny

Clutch from Tractor side - Brak

• net: 1009,98 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 510-720mm 270Nm szerokokątny CE 2020 seria 2R WARYŃSKI

Product code W2B190510

Availability: Available (quantity: 2)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" Z6 inch

Attachment to the machine - 1 3/8" Z6 inch

Telescopic connector type - Rura trójkątna{Checkbox}

Maximum length - 1900 mm

Nominal power - 15(21) kW (HP)

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR23211090, Rura zewnętrzna - WR23221090, Obudowa - WR21921129

Clutch release power - Brak Nm

Torque - 270 Nm

Working angle - Max 35° chwilowo 80°{Checkbox}

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch from the Machine side - Brak

Clutch from Tractor side - Szerokokątny

• net: 937,49 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 760-1070mm 270Nm szerokokątny CE 2020 seria 2R WARYŃSKI

Product code W2B190760

Availability: Available (quantity: 2)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1070mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - szerokokątny

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321640, Rura zewnętrzna - WR2322635, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 35° chwilowo 80°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Szerokokątny

Clutch from Tractor side - Brak

• net: 1099,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1010-1580mm 270Nm 40270 CE 2020 seria 2R WARYŃSKI WA25-101

Product code W2B1B11010

Availability: Available (quantity: 14)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1580mm

Nominal power - 15 ( 21 ) KW ( HP )

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321890, Rura zewnętrzna - WR2322885, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 379,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1110-1750mm 270Nm 40270 CE 2020 seria 2R WARYŃSKI WA25-111

Product code W2B1B11110

Availability: Available (quantity: 4)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1750mm

Nominal power - 15 ( 21 ) KW ( HP )

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321990, Rura zewnętrzna - WR2322985, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 379,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1210-1900mm 270Nm 40280 CE 2020 seria 2R WARYŃSKI WA25-121

Product code W2B1B11210

Availability: Available (quantity: 3)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1900mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR23211090, Rura zewnętrzna - WR23221085, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 410,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 460-660mm 270Nm 40200 CE 2020 seria 2R WARYŃSKI WA25-46

Product code W2B1B1460

Availability: Available (quantity: 11)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 660mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321340, Rura zewnętrzna - WR2322355, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 290,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 510-720mm 270Nm 40210 CE 2020 seria 2R WARYŃSKI WA25-51

Product code W2B1B1510

Availability: Available (quantity: 46)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 720mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321640, Rura zewnętrzna - WR2322635, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 262,49 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 560-830mm 270Nm 40220 CE 2020 seria 2R WARYŃSKI WA25-61

Product code W2B1B1560

Availability: Available (quantity: 13)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 830mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321440, Rura zewnętrzna - WR2322435, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 335,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 760-1070mm 270Nm 40240 CE 2020 seria 2R WARYŃSKI WA25-71

Product code W2B1B1760

Availability: Available (quantity: 18)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1070mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321640, Rura zewnętrzna - WR2322635, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 305,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 860-1200mm 270Nm 40250 CE 2020 seria 2R WARYŃSKI WA25-81

Product code W2B1B1860

Availability: Available (quantity: 37)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1200mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321740, Rura zewnętrzna - WR2322735, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 335,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 910-1400mm 270Nm 40260 CE 2020 seria 2R WARYŃSKI WA25-91

Product code W2B1B1910

Availability: Available (quantity: 4)

Product features:

Description - The shaft is manufactured according to the new PN-EN-12965_2020 standard. The Waryński R Series shafts were created to better meet the needs of our customers. The revised design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety, and are compliant with the new standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special, increased-strength bearings, and Waryński PTO shaft housings resistant to mechanical impact, UV exposure, and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8\" - Z6 cal

Attachment to the machine - 1 3/8\" - Z6 cal

Telescopic connector type - Rura trójkątna

Maximum length - 1400mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321790, Rura zewnętrzna - WR2322785, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 340,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1210-1900mm 270Nm widłak Z21 od maszyny CE 2020 seria 2R WARYŃSKI

Product code W2B1B21210

Availability: Available (quantity: 2)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z21 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1900mm

Nominal power - 15 ( 21 ) KW ( HP )

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, WR227202 Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR23211090, Rura zewnętrzna - WR23221085, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 449,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1210-1900mm 270Nm widłak Z21 od ciągnika CE 2020 seria 2R WARYŃSKI

Product code W2B2B11210

Availability: Available (quantity: 3)

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z21 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1900mm

Nominal power - 15 ( 21 ) KW ( HP )

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, WR227202 Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR23211090, Rura zewnętrzna - WR23221085, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 449,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 510-700mm 270Nm 32X38 Z8 rosyjski 40210 CE 2020 seria 2R WARYŃSKI

Product code W2B6B1510

Availability: Available (quantity: 4)

Product features:

Description - The shaft is manufactured according to the new PN-EN-12965_2020 standard. The Waryński R Series shafts were created to better meet the needs of our customers. The revised design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety, and are compliant with the new standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special, increased-strength bearings, and Waryński PTO shaft housings resistant to mechanical impact, UV exposure, and low temperatures.

Producent - WARYNSKI

Tractor mount - 32x38 - Z8 inch

Attachment to the machine - 1 3/8\" - Z6 cal

Telescopic connector type - Rura trójkątna

Maximum length - 700mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury zew. - WR219206, Widłak rury wew. - WR219207, Rura wewnętrzna - WR2321390, Rura zewnętrzna - WR2322385, Obudowa - WR22921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 279,00 PLN
• • Currency: zł € $

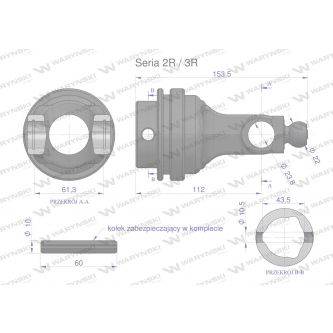

Widłak z pierścieniem 1 3/8 Z6- 23.8X61.3 Seria 2R CE2020 Waryński W21920505B W21920507B WR217201

Product code WR227201

Availability: Available (quantity: 3)

Product features:

Producent - WARYNSKI

• net: 109,00 PLN
• • Currency: zł € $

PTO shaft 1210-1900mm 270Nm wide angle CE 2020 series 2R WARYŃSKI

Product code W2B1901210

Availability: Currently not available

Notify me about availability

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 cal

Attachment to the machine - 1 3/8" - Z6 cal

Telescopic connector type - Rura trójkątna

Maximum length - 1900 mm

Nominal power - 15 ( 21 ) KW ( KM )

Inner tube thickness - 36 mm

Outer pipe thickness - 43,5 mm

Bearing diameter - 23,8 mm

Height of the cross - 61,3 mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR23211090, Rura zewnętrzna - WR23221085, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 35° chwilowo 80°

Inner pipe wall thickness - 3,2 mm

Outer pipe wall thickness - 3,4 mm

Clutch release torque - Brak Nm

Clutch from the Machine side - Szerokokątny

Clutch from Tractor side - Brak

• net: 1072,48 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 660-1000mm 270Nm 40230 CE 2020 seria 2R WARYŃSKI WA25-61

Product code W2B1B1660

Availability: Currently not available

Notify me about availability

Product features:

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

Producent - WARYNSKI

Tractor mount - 1 3/8" - Z6 inch

Attachment to the machine - 1 3/8" - Z6 inch

Telescopic connector type - Rura trójkątna

Maximum length - 1000mm

Nominal power - 15 ( 21 ) KW ( HP )

Clutch - Brak

Inner tube thickness - 36mm

Outer pipe thickness - 43.5mm

Bearing diameter - 23.8mm

Height of the cross - 61.3mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321540, Rura zewnętrzna - WR2322535, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3.2mm

Outer pipe wall thickness - 3.4mm

Clutch release torque - No Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 339,00 PLN
• • Currency: zł € $

Wał przegubowo-teleskopowy 1010-1580mm 270Nm 32X38 Z8 rosyjski 40270 CE 2020 seria 2R WARYŃSKI

Product code W2B6B11010

Availability: Currently not available

Notify me about availability

Product features:

Producent - WARYNSKI

Tractor mount - 32x38 - Z8 cal

Attachment to the machine - 1 3/8" - Z6 cal

Telescopic connector type - Rura trójkątna

Maximum length - 1580 mm

Nominal power - 15 ( 21 ) KW ( KM )

Inner tube thickness - 36 mm

Outer pipe thickness - 43,5 mm

Bearing diameter - 23,8 mm

Height of the cross - 61,3 mm

Collaborates with - Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321890, Rura zewnętrzna - WR2322885, Obudowa - WR21921129

Torque - 270 Nm

Working angle - Max 17°

Inner pipe wall thickness - 3,2 mm

Outer pipe wall thickness - 3,4 mm

Clutch release torque - Brak Nm

Clutch from the Machine side - Brak

Clutch from Tractor side - Brak

• net: 362,49 PLN
• • Currency: zł € $

Inner yoke, wide-angle shaft joint, Series 2R. 3R for pipe 43.5 - cup 23.8, Waryński

Product code WR21229001

Availability: Currently not available

Notify me about availability

Product features:

Producent - WARYNSKI

• net: 280,00 PLN
• • Currency: zł € $
