Wał przegubowo-teleskopowy 760-1070mm 270Nm szerokokątny CE 2020 seria 2R WARYŃSKI
Category: Seria 2R 270Nm
CODE: W2B190760
CODE: W2B190760
Availability: Available (quantity: 2)
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.

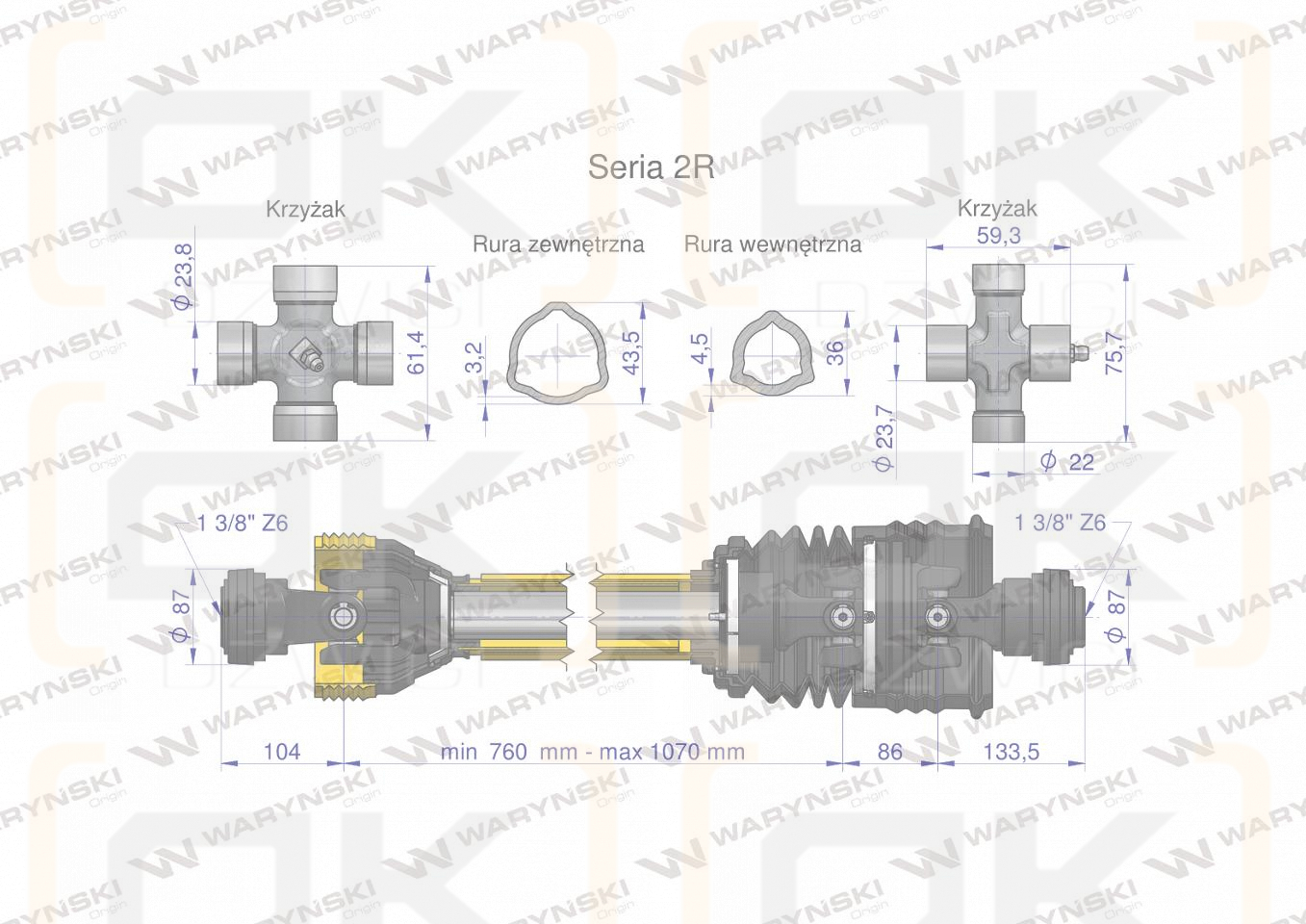

Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Triangular pipe
- Maximum length: 1070mm
- Nominal power: 15 ( 21 ) KW ( HP )
- Clutch: wide angle
- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 23.8mm
- Height of the cross: 61.3mm
- Collaborates with: Outer tube yoke - WR227201, Crosspiece - WR219201, Inner tube yoke - WR219207, Outer tube yoke - WR219206, Inner tube - WR2321640, Outer tube - WR2322635, Housing - WR21921129
- Torque: 270 Nm
- Working angle: Max 35° temporarily 80°
- Inner pipe wall thickness: 3.2mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: No Nm
- Clutch from the Machine side: Wide angle
- Clutch from Tractor side: Lack
