PTO shaft 1210-1900mm 270Nm wide angle CE 2020 series 2R WARYŃSKI
Category: Seria 2R 270Nm
CODE: W2B1901210
CODE: W2B1901210
Availability: Currently not available
Notify me about availability
Check deliveries
Product description
Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.
Product features
- Producent: WARYNSKI
- Tractor mount: 1 3/8" - Z6 cal
- Attachment to the machine: 1 3/8" - Z6 cal
- Telescopic connector type: Rura trójkątna
- Maximum length: 1900 mm
- Nominal power: 15 ( 21 ) KW ( KM )

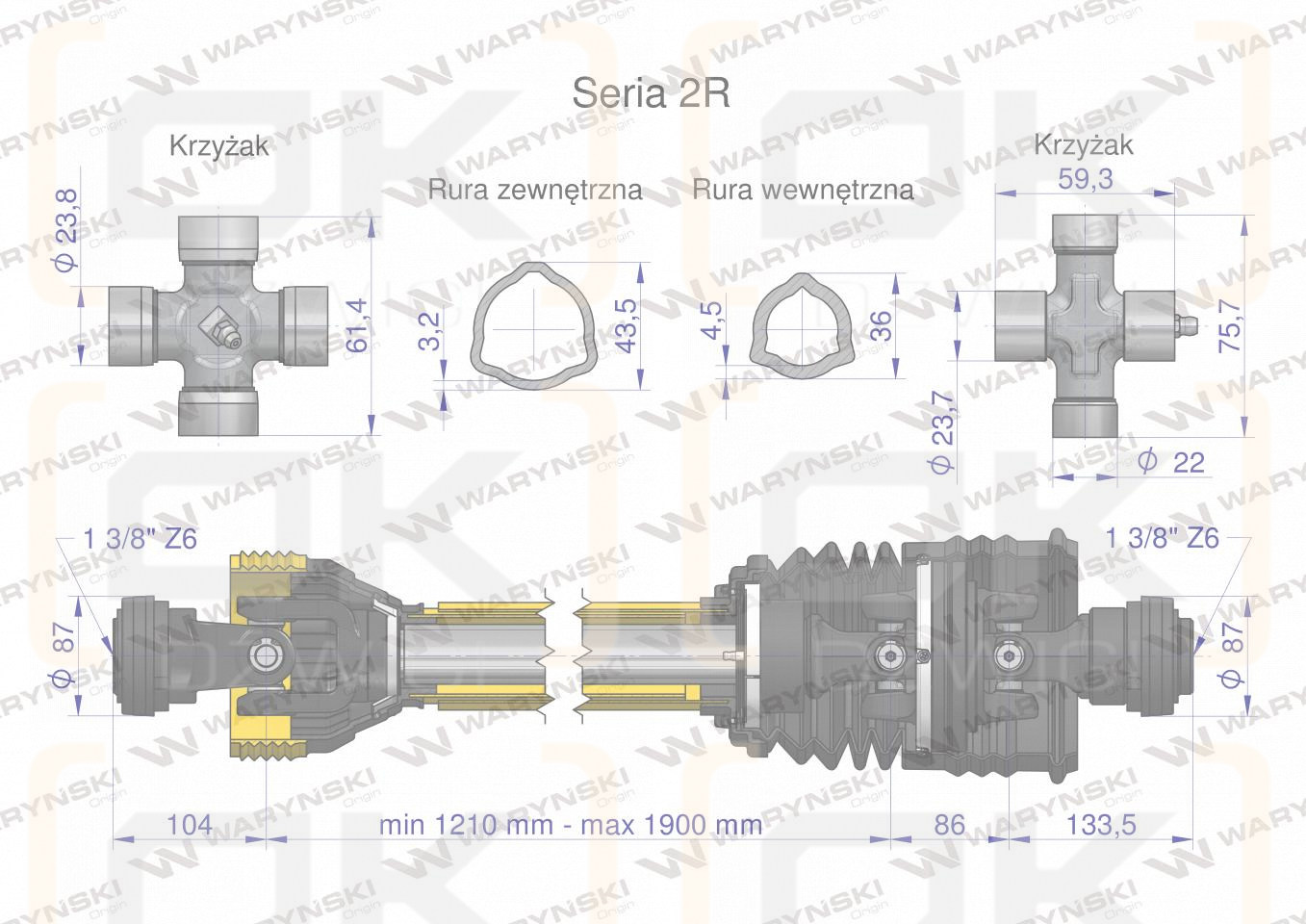

- Inner tube thickness: 36 mm
- Outer pipe thickness: 43,5 mm
- Bearing diameter: 23,8 mm
- Height of the cross: 61,3 mm
- Collaborates with: Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR23211090, Rura zewnętrzna - WR23221085, Obudowa - WR21921129
- Torque: 270 Nm
- Working angle: Max 35° chwilowo 80°
- Inner pipe wall thickness: 3,2 mm
- Outer pipe wall thickness: 3,4 mm
- Clutch release torque: Brak Nm
- Clutch from the Machine side: Szerokokątny
- Clutch from Tractor side: Brak
