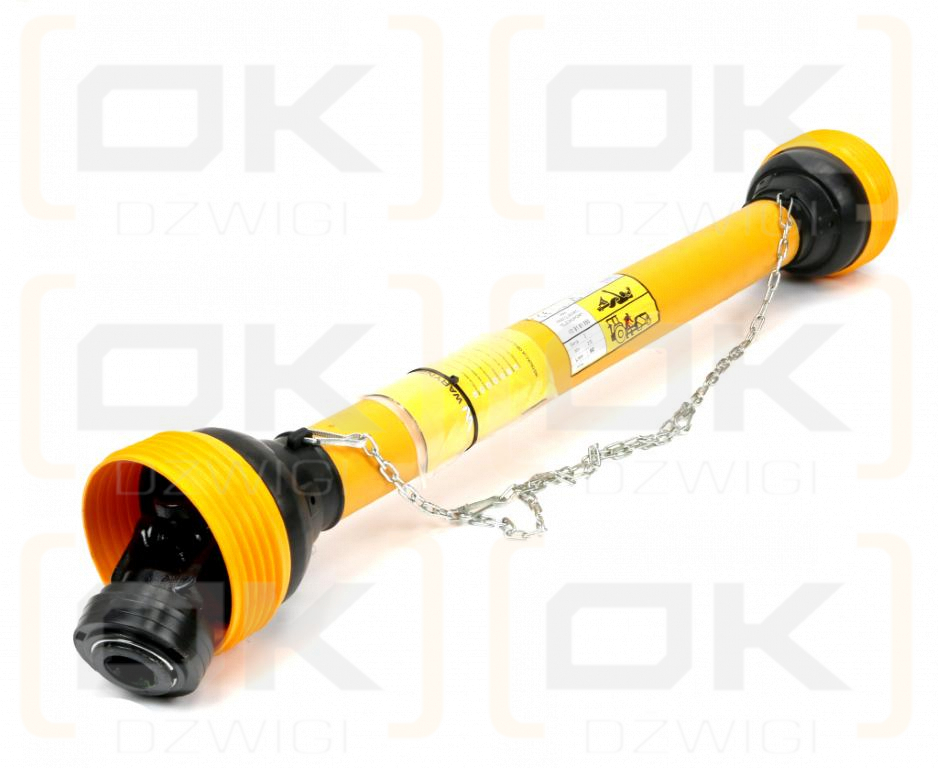

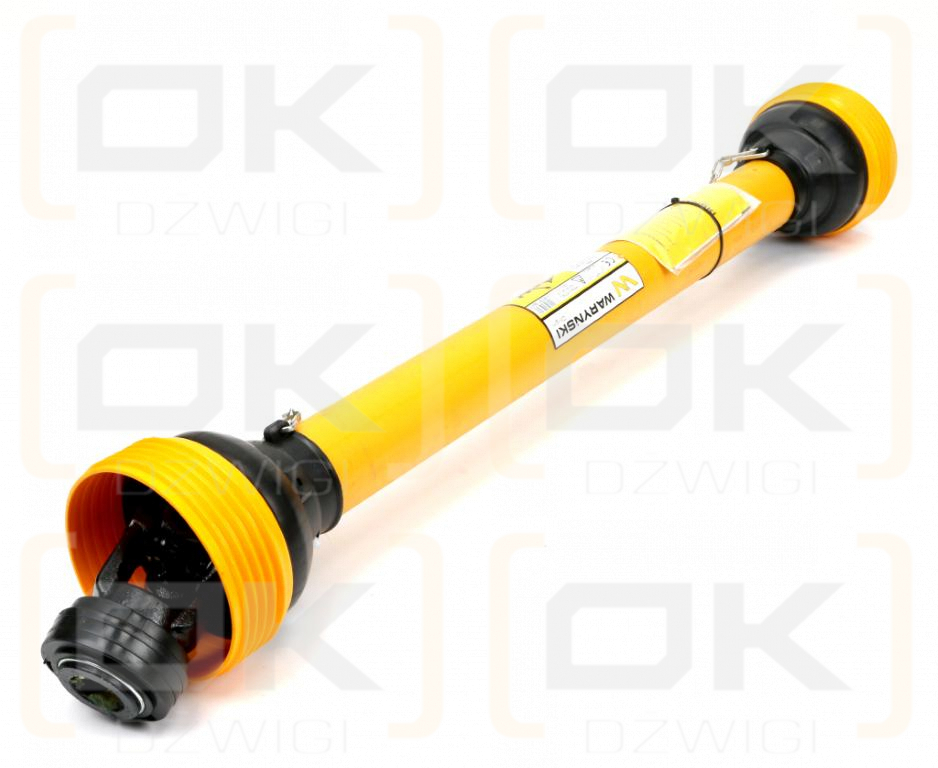

Wał przegubowo-teleskopowy 1010-1580mm 270Nm 32X38 Z8 rosyjski 40270 CE 2020 seria 2R WARYŃSKI
Category: Seria 2R 270Nm
CODE: W2B6B11010
CODE: W2B6B11010
Availability: Available (quantity: 2)
Check deliveries

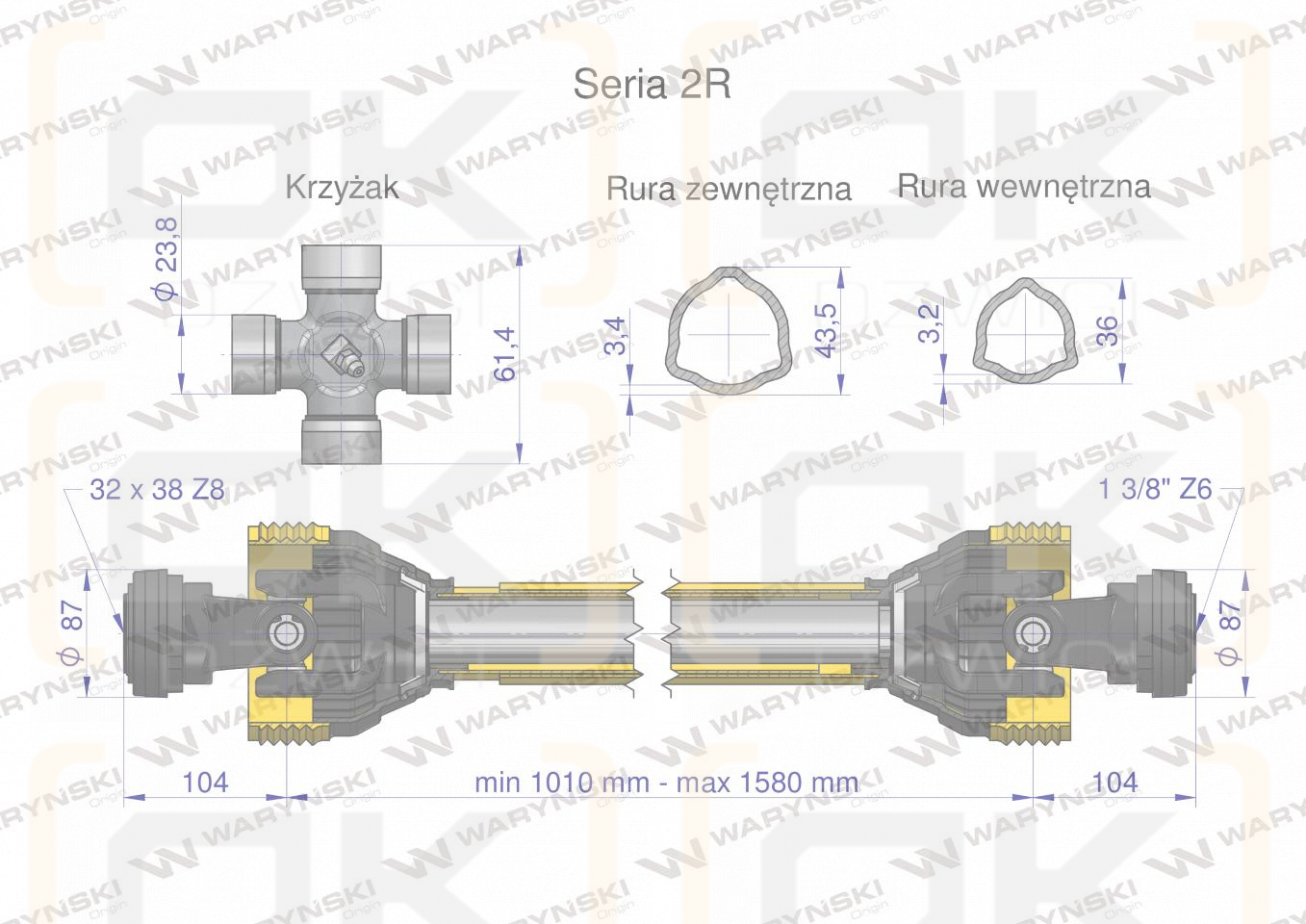

Product features
- Producent: WARYNSKI
- Tractor mount: 32x38 - Z8 cal
- Attachment to the machine: 1 3/8" - Z6 cal
- Telescopic connector type: Rura trójkątna
- Maximum length: 1580 mm
- Nominal power: 15 ( 21 ) KW ( KM )
- Inner tube thickness: 36 mm
- Outer pipe thickness: 43,5 mm
- Bearing diameter: 23,8 mm
- Height of the cross: 61,3 mm
- Collaborates with: Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321890, Rura zewnętrzna - WR2322885, Obudowa - WR21921129
- Torque: 270 Nm
- Working angle: Max 17°
- Inner pipe wall thickness: 3,2 mm
- Outer pipe wall thickness: 3,4 mm
- Clutch release torque: Brak Nm
- Clutch from the Machine side: Brak
- Clutch from Tractor side: Brak
