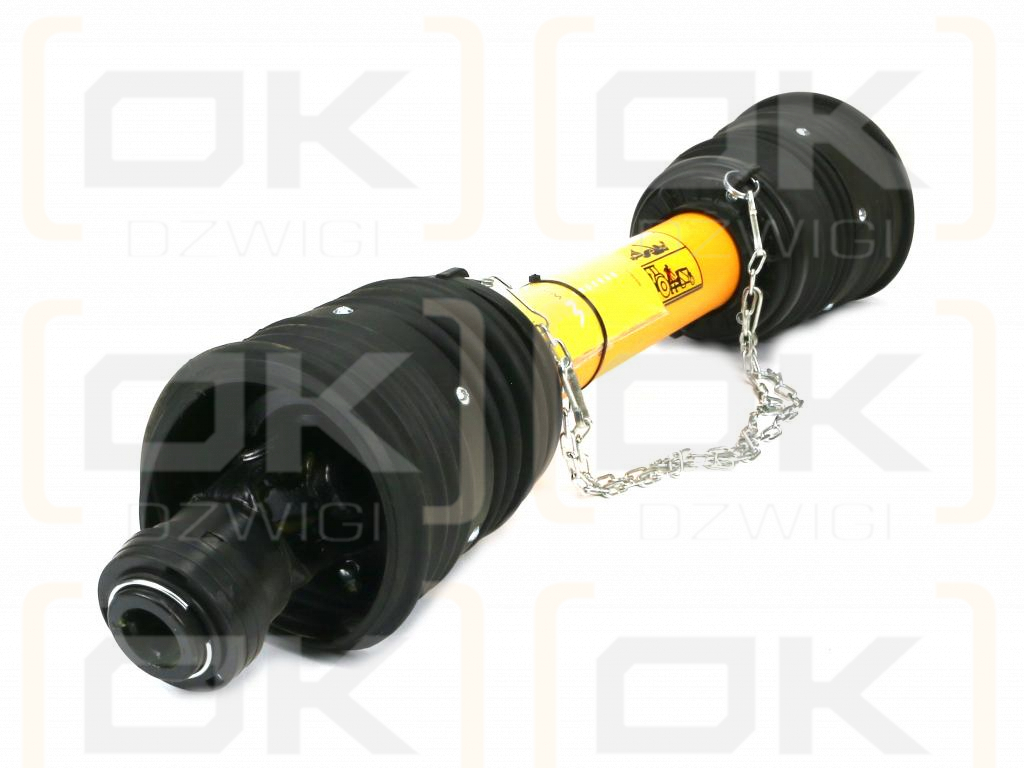

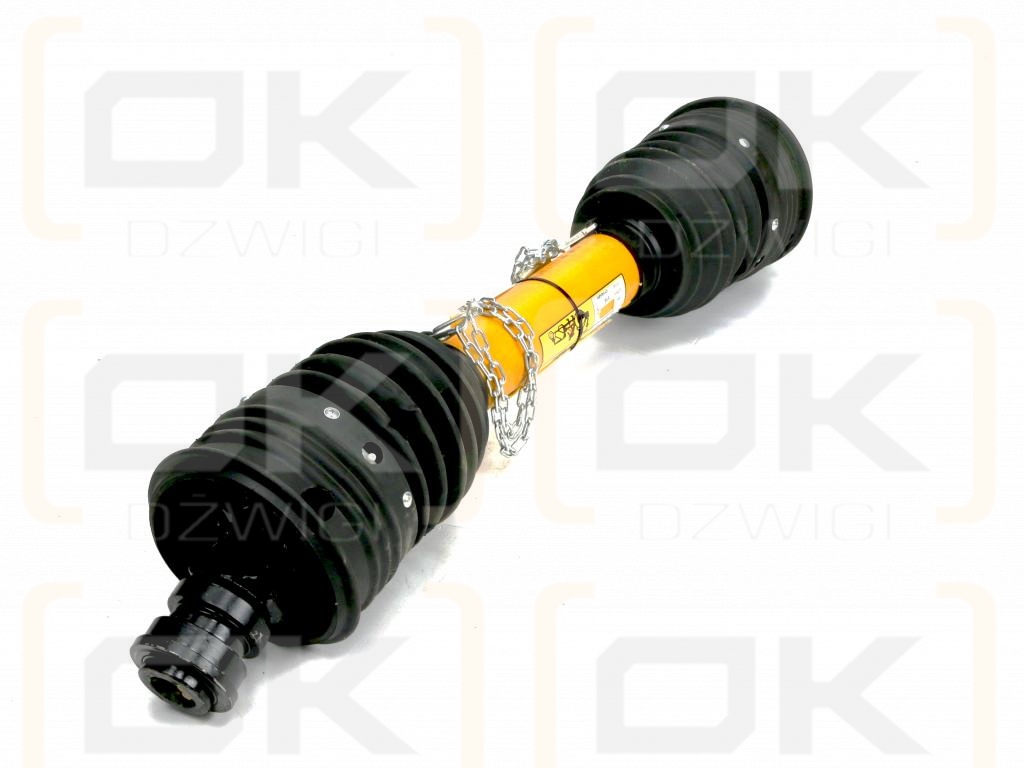

Wał przegubowo-teleskopowy 510-720mm 270Nm szerokokątny z dwóch stron CE seria 2R WARYŃSKI
Category: Seria 2R 270Nm
CODE: W29090510
CODE: W29090510
Availability: Available (quantity: 3)
Check deliveries
Product features
- Producent: WARYNSKI

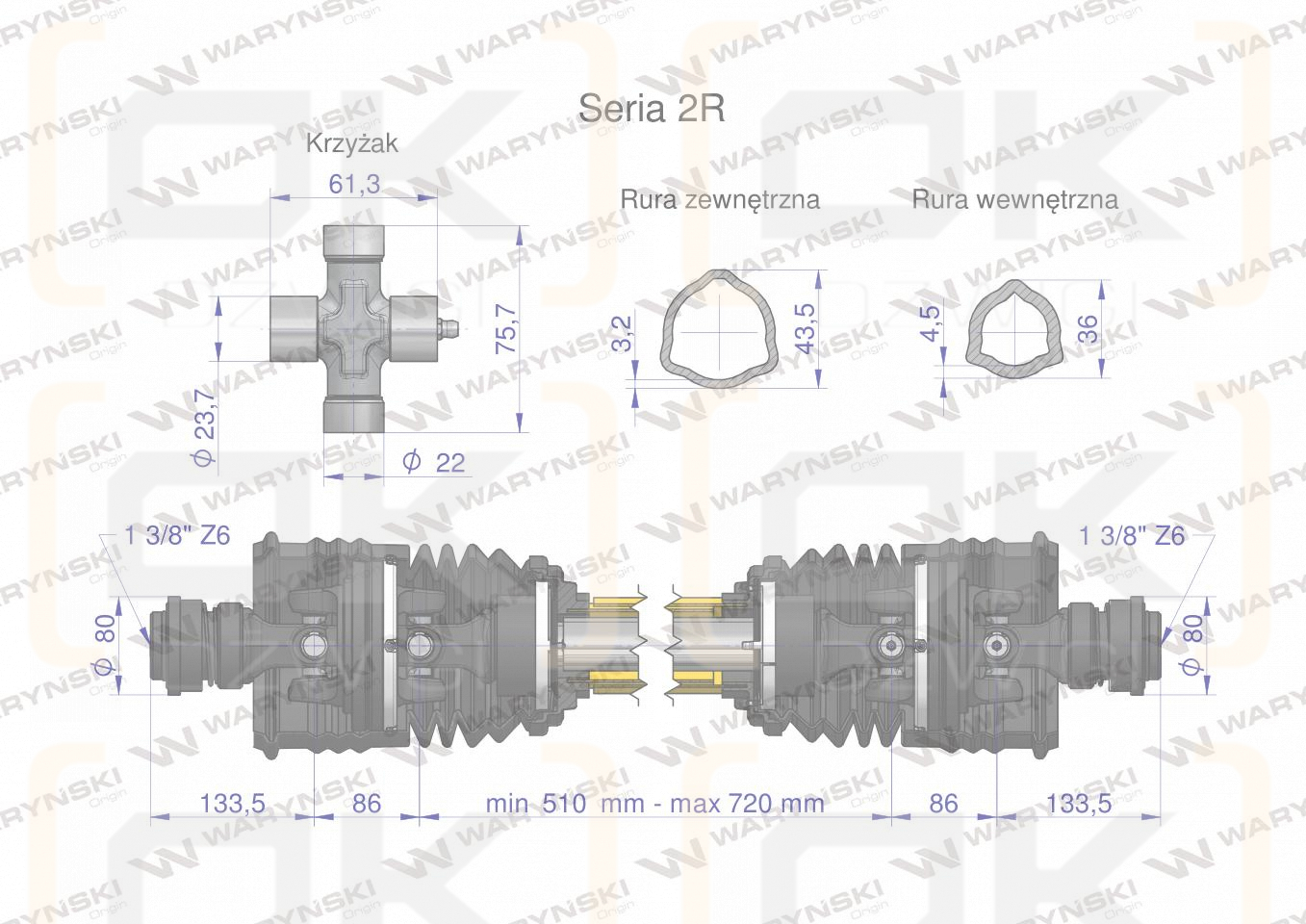

- Tractor mount: 1 3/8" - Z6 inch
- Attachment to the machine: 1 3/8" - Z6 inch
- Telescopic connector type: Rura trójkątna
- Maximum length: 720mm
- Nominal power: 15 ( 21 ) KW ( HP )
- Inner tube thickness: 36mm
- Outer pipe thickness: 43.5mm
- Bearing diameter: 23.8mm
- Height of the cross: 61.3mm
- Collaborates with: Widłak zewnętrzny - WR227201, Krzyżak - WR219201, Widłak rury wew. - WR219207, Widłak rury zew. - WR219206, Rura wewnętrzna - WR2321640, Rura zewnętrzna - WR2322635, Obudowa - WR21921129
- Torque: 270 Nm
- Working angle: Max 35° chwilowo 80°
- Inner pipe wall thickness: 3.2mm
- Outer pipe wall thickness: 3.4mm
- Clutch release torque: No Nm
- Clutch from the Machine side: Szerokokątny
- Clutch from Tractor side: Szerokokątny
