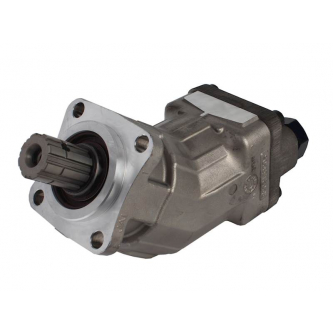

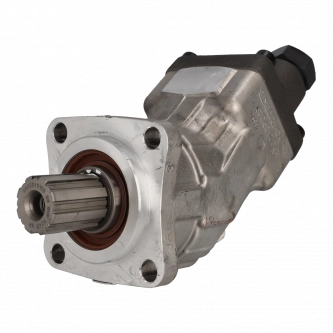

Piston pump Rexroth A17FO080
Category: A17FO series
CODE: R902162396
CODE: R902162396
Availability: Available (quantity: 1) , shipping within 60 dni
Check deliveries
Product description
The A17FO is a fixed-displacement pump with a conical piston drive, an axial piston design with a swashplate, for open-loop hydrostatic drives. The pump is specifically designed for use in commercial vehicles, such as dump trucks and skip loaders, truck cranes, tankers, and municipal vehicles. Pump flow is proportional to the drive speed and displacement.
Schemat
Product features
- Working volume: 80 cm3 / rev
- Turning direction: on the left
- Additional functions: bez
- Max. working pressure (continuous): 350 bar
- Receiving company (external): Standard without reception
- Flow: 173 l/min
- Flange type: ISO 7653-1985
- Direction of rotation: L
- Centering diameter: 80mm
- Gross weight: 14 kg
- Max flow: 171 l/min
- Roller type: Spline (DIN ISO 14)
- Pump type: Single-stream piston type
- Working pressure max.: 350 bar
- Producent: Rexroth
- Max rotational speed: 2130 rpm
- Mounting flange: ISO 7653-1985
- Comparison code: EP 345, EP345, R902009933, 2009933
- Net weight: 14 kg
- Operation: ABOUT
- Paint coat/primer coat: without
- Paint coat/topcoat: without
- Connection A: DIN ISO 228 – G 1 open
- Connection and mounting thread: Metric
- Connection plate for service lines: Threaded connections A and S on the back
- R connection: DIN 3852 M10x1 closed
- Product family: A17FO
- Seal material: FKM (kauczuk fluorowy) 2 WDR
- Type series: 10
- Shaft end: Pinion shaft similar to DIN ISO 14
- Size: 80
- Nominal size (displacement volume): 80 cm³
- Suction port: without
- Suction connection S: DIN ISO 228 – G 1 1/4 open
- Inspection certificate: without
- Language abbreviation for inspection certificate: Without
- Type: A17F
- Startup method: Pump, open circuit
- Libra: 14 kg
- Action: O
- Type: A17F
- Size: 80
- Direction of rotation: L
