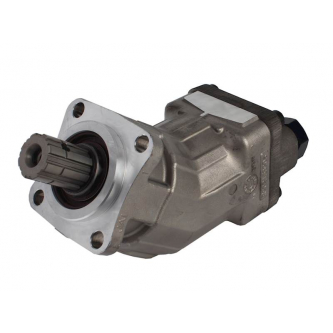

Piston pump Rexroth A17FO023 Putzmeister 279523004
Product code R902162388
Availability: Available (quantity: 8)
Product features:
Working volume - 23 cm3 / rev
Turning direction - on the left
Additional functions - bez
Marking - A17FO023/10NLWK0E81-0
Max. working pressure (continuous) - 350 bar
Receiving company (external) - Standard without reception
Flow - 70 l/min
Flange type - ISO 7653-1985
Direction of rotation - L
Centering diameter - 80mm
Gross weight - 6.814 kg
Roller type - Spline (DIN ISO 14)
Max flow - 67 l/min
Working pressure max. - 350 bar
Producent - Rexroth
Max rotational speed - 2920 rpm
Description - The A17FO is a fixed-displacement pump with a conical piston drive, an axial piston design with a swashplate, for open-loop hydrostatic drives. The pump is specifically designed for use in commercial vehicles, such as dump trucks and skip loaders, truck cranes, tankers, and municipal vehicles. Pump flow is proportional to the drive speed and displacement.
Mounting flange - ISO 7653-1985
Comparison code - 5188712, 2009929, 211.12.65.36, EP 340, EP340
Net weight - 6.814 kg
Operation - ABOUT
Paint coat/primer coat - without
Paint coat/topcoat - without
Connection A - DIN ISO 228 – G 1/2 open
Connection and mounting thread - Metric
Connection plate for service lines - Threaded connections A and S on the back
R connection - DIN 3852 M10x1 closed
Product family - A17FO
Seal material - FKM (kauczuk fluorowy) 2 WDR
Type series - 10
Shaft end - Pinion shaft similar to DIN ISO 14
Size - 23
Nominal size (displacement volume) - 23 cm³
Suction port - without
Suction connection S - DIN ISO 228 – G 3/4 open
Inspection certificate - without
Language abbreviation for inspection certificate - Without
Type - A17F
Startup method - Pump, open circuit
Libra - 6.82 kg
Action - O
Direction of rotation - L
Type - A17F
Size - 23
