Rotators

Baltrotors GR16S-2 hydraulic rotator

Product code GR16S-2

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Rotator assembly - 100,5 mm

Tool assembly - 173 mm flange; 6x17 mm

Maximum static load - 160 kN

Maximum dynamic load - 80 kN

Safe working load - 16,000 kg

working pressure - 250 bar

Oil flow - 40 l/min

Connection type - G 1/2" x G 1/2"

Torque - 3400 Nm

Type - GR

Libra - 75kg

Producent - Baltrotors

Description - Baltrotors GR16S-2 hydraulic rotator with double bearing (Modification of the GR16S rotator with hose inlets on 2 sides of the top plate) Max. axial static load: +160 kN / -90 kN Max. axial dynamic load: +80 kN / -45 kN Flange: round 210 mm, hole spacing 173 mm; 6x17mm

• net: 5645,00 PLN
• • Currency: zł € $

Baltrotors GR16S203 hydraulic rotator

Product code GR16S203

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Rotator assembly - 100.5mm

Tool assembly - 203 mm flange; 6x21 mm

Maximum static load - 160 kN

Maximum dynamic load - 80 kN

Safe working load - 16,000 kg

working pressure - 250 bar

Oil flow - 40 l/min

Connection type - G 1/2" x G 1/2" + G 3/4"

Torque - 3400 Nm

Type - GR

Libra - 83 kg

Producent - Baltrotors

Description - Baltrotors GR16S203 hydraulic rotator Max. axial static load: + 160 / -90kN Max. axial dynamic load: + 80 / -45kN GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing, for axial and lateral load GR-..X = Arched hose cover

Baltrotors GR16SC hydraulic rotator

Product code GR16SC

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Rotator assembly - 100,5 mm

Tool assembly - 173 mm flange; 6x17 mm

Maximum static load - 160 kN

Maximum dynamic load - 80 kN

Safe working load - 16,000 kg

working pressure - 250 bar

Oil flow - 40 l/min

Connection type - 3/4-16 UNF-2B x 3/4-16 UNF-2B

Torque - 3400 Nm

Type - GR

Libra - 72.5 kg

Producent - Baltrotors

Description - Baltrotors GR16SC hydraulic rotator Max. axial static load: + 160 / -90kN Max. axial dynamic load: + 80 / -45kN GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing, for axial and lateral load GR-..X = Arched hose cover

Baltrotors GR16SCX hydraulic rotator

Product code GR16SCX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Rotator assembly - 100.5mm

Tool assembly - 173 mm flange; 6x17 mm

Maximum static load - 160 kN

Maximum dynamic load - 80 kN

Safe working load - 16,000 kg

working pressure - 250 bar

Oil flow - 40 l/min

Connection type - 3/4-16 UNF-2B x 3/4-16 UNF-2B

Torque - 3400 Nm

Type - GR

Libra - 78 kg

Producent - Baltrotors

Description - Baltrotors GR16SCX hydraulic rotator Max. axial static load: + 160 / -90kN Max. axial dynamic load: + 80 / -45kN GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing, for axial and lateral load GR-..X = Arched hose cover

Baltrotors GR16SX hydraulic rotator

Product code GR16SX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Rotator assembly - 100.5mm

Tool assembly - 173 mm flange; 6x17 mm

Maximum static load - 160 kN

Maximum dynamic load - 80 kN

Safe working load - 16,000 kg

working pressure - 250 bar

Oil flow - 40 l/min

Connection type - G 1/2" x G 1/2"

Torque - 3400 Nm

Type - GR

Libra - 78 kg

Producent - Baltrotors

Description - Baltrotors GR16SX hydraulic rotator with double bearing and additional hose cover Max. axial static load: +160 kN / -90 kN Max. axial dynamic load: +80 kN / -45 kN Flange: round 210 mm, hole spacing 173 mm; 6x17mm

• net: 5964,29 PLN
• • Currency: zł € $

Baltrotors GR16US hydraulic rotator

Product code GR16US

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 52.2 mm

Rotator assembly - 136.5mm

Tool assembly - 173 mm flange; 6x17 mm

Maximum static load - 160 kN

Maximum dynamic load - 80 kN

Safe working load - 16,000 kg

working pressure - 250 bar

Oil flow - 40 l/min

Connection type - G 1/2 "x 3 / 4-16UNF

Torque - 3400 Nm

Type - GR

Libra - 80 kg

Producent - Baltrotors

Description - Baltrotors GR16US hydraulic rotator with double bearing Max. axial static load: +160 kN / -100 kN Max. axial dynamic load: +80 kN / -50 kN Flange: round 210 mm, hole spacing 173 mm; 6x17mm

Baltrotors GR30-01 hydraulic rotator

Product code GR30-01

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 15 kg

Producent - Baltrotors

Description - Baltrotors GR30-01 hydraulic rotator (Modification of the GR30 rotator - hose cover is mounted with 4 screws) GR = Grapple Rotator for axial load only GR-DB = Grapple Double Bearing Rotator (with double bearings), for axial and lateral load GR-. .X = Arched hose cover

Baltrotors GR30A hydraulic rotator

Product code GR30A

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 17 kg

Producent - Baltrotors

Description - Baltrotors GR30A hydraulic rotator (Modification of the GR30 rotator with a "square"-shaped upper connection. The hole for the upper connection pin is directed perpendicular to the hose cover). GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing, for axial and lateral load GR-..X = Arched hose cover

Baltrotors GR30B hydraulic rotator

Product code GR30B

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 73mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 18 kg

Producent - Baltrotors

Description - Baltrotors GR30B hydraulic rotator (Modification of GR30 rotator with 73 mm wide top connection) GR = Grapple rotator for axial load only GR-DB = Grapple Rotator Double Bearing, for axial and lateral load GR-..X = Arched hose cover

Baltrotors GR30BX hydraulic rotator

Product code GR30BX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 73mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 19 kg

Producent - Baltrotors

Description - Baltrotors GR30BX hydraulic rotator (Modification of GR30 rotator with 73 mm wide top connection and additional hose cover) GR = Grapple Rotator for axial load only GR-DB = Grapple Double Bearing Rotator (with double bearings), for axial and lateral load GR- ..X = Arched hose cover

Hydraulic rotator Baltrotors 3t; shaft 49.5mm; 25mm pin (130mm flange; 10xM10)

Product code GR30FA

Availability: Currently not available

Notify me about availability

Product features:

Rotator assembly - Flange 130 mm; 10xM10

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8" + G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 20 kg

Producent - Baltrotors

Description - Baltrotors GR30FA hydraulic rotator (Modification of the GR30 rotator with a flat top surface for a rigid connection and 2 additional channels for additional tool function)

• net: 2714,29 PLN
• • Currency: zł € $

Baltrotors GR30FF hydraulic rotator

Product code GR30FF

Availability: Currently not available

Notify me about availability

Product features:

Rotator assembly - Flange 132 mm; 6xM12

Tool assembly - Flange 100x100 mm; 4xM16

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Libra - 20 kg

Producent - Baltrotors

Description - Baltrotors GR30FA hydraulic rotator (Modification of the GR30 rotator with flat top and bottom surfaces for a rigid connection)

Baltrotors 3t hydraulic rotator with 140x140mm, 4x17mm flange

Product code GR30PF

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Tool assembly - Flange 140x140 mm; 4x17 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 20 kg

Producent - Baltrotors

Description - Baltrotors GR30PF hydraulic rotator (Modification of GR30 rotator with square 140 mm flange bottom connection)

• net: 1642,86 PLN
• • Currency: zł € $

Baltrotors GR30PFR hydraulic rotator

Product code GR30PFR

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Tool assembly - 173 mm (60 °) flange; 4x17 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 19 kg

Producent - Baltrotors

Description - Baltrotors GR30PFR hydraulic rotator (Modification of GR30 rotator with rectangular 173 mm flange bottom connection)

Baltrotors GR30PFRX hydraulic rotator

Product code GR30PFRX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Tool assembly - 173 mm (60 °) flange; 4x17 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 20 kg

Producent - Baltrotors

Description - Baltrotors GR30PFRX hydraulic rotator (Modification of the GR30 rotator with rectangular 173 mm flange bottom connection and additional hose cover)

Baltrotors GR30PFX hydraulic rotator

Product code GR30PFX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Tool assembly - Flange 140x140 mm; 4x17 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 21 kg

Producent - Baltrotors

Description - Baltrotors GR30PFX hydraulic rotator (Modification of the GR30 rotator with square 140 mm flange bottom connection and additional hose cover)

Baltrotors GR30Q hydraulic rotator

Product code GR30Q

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 17 kg

Producent - Baltrotors

Description - Baltrotors GR30Q hydraulic rotator (Modification of the GR30 rotator with a "square" top connection. The hole for the top connection pins is oriented parallel to the hose cover)

Baltrotors GR30QX hydraulic rotator

Product code GR30QX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 60mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Maximum static load - 30 kN

Maximum dynamic load - 15 kN

Safe working load - 3000 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1000 Nm

Type - GR

Libra - 18 kg

Producent - Baltrotors

Description - Baltrotors GR30QX hydraulic rotator (Modification of the GR30 rotator with a "square"-shaped upper connection. The hole for the upper connection pins is directed parallel to the hose cover. The rotator is additionally equipped with an extremely durable, curved hose cover)

Baltrotors GR30X hydraulic rotator

Product code GR30X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 25 mm

Roller diameter - 49.5 mm

Safe working load - 3000 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR30x hydraulic rotator GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 30 kN Max. axial dynamic load: 15 kN Torque at 25 MPa: 1000 nm Recommended oil flow: 20 l / min Rotator weight: 16 kg

Baltrotors GR46-01 hydraulic rotator

Product code GR46-01

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 59 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Hydraulic rotator Baltrotors GR46-01 (Modification of the rotator GR46 - the hose cover is mounted with 4 bolts) Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Rotator weight: 25 kg

Baltrotors GR46-02 hydraulic rotator

Product code GR46-02

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 59 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Hydraulic rotator Baltrotors GR46-02 (Modification of the rotator GR46 with increased oil flow) Max. static axial load: 45 kN Max. dynamic axial load: 25 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Rotator weight: 23 kg

Baltrotors GR46-02X hydraulic rotator

Product code GR46-02X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 59 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR46-02X hydraulic rotator (Modification of the GR46-02 rotator, equipped with an extremely durable arched hose cover) Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Rotator weight: 24 kg

Baltrotors GR46 / 68M hydraulic rotator

Product code GR46/68M

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 68/56 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR46 / 68M hydraulic rotator GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1200 nm Recommended oil flow: 22 l / min Rotator weight: 29 kg

Baltrotors GR46 / 68MX hydraulic rotator

Product code GR46/68MX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 68/56 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR46 / 68MX hydraulic rotator GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 45 kN Max. dynamic axial load: 25 kN Torque at 25 MPa: 1200 nm Recommended oil flow: 22 l / min Rotator weight: 31 kg

Baltrotors GR46 / 69M hydraulic rotator

Product code GR46/69M

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 69 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR46 / 69M GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 45 kN Max. dynamic axial load: 25 kN Torque at 25 MPa: 1200 nm Recommended oil flow: 22 l / min Rotator weight: 29 kg

• net: 2018,29 PLN
• • Currency: zł € $

Baltrotors GR46 / 69MX hydraulic rotator

Product code GR46/69MX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 69 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR46 / 69MX GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1200 nm Recommended oil flow: 22 l / min Rotator weight: 31 kg

Hydraulic rotator Baltrotors 4t; with 173mm (60 °) flange, 4x17mm

Product code GR463

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Tool assembly - 173 mm (60 °) flange; 4x17 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR463 GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 45 kN Max. dynamic axial load: 25 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Rotator weight: 27 kg

• net: 2285,71 PLN
• • Currency: zł € $

Baltrotors GR463X hydraulic rotator

Product code GR463X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Tool assembly - 173 mm (60 °) flange; 4x17 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR463X GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Rotator weight: 28 kg

Baltrotors GR465-01 hydraulic rotator

Product code GR465-01

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Tool assembly - Flange 140x140 mm; 4x17 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR465-01 (Modification of the rotator GR465 - the hose guard is mounted with 4 bolts) GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR-. .X = Arched hose protector Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Rotator weight: 30 kg

Baltrotors GR465-02X hydraulic rotator

Product code GR465-02X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Tool assembly - Flange 140x140 mm; 4x17 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR465-02x hydraulic rotator (Modification of the rotator GR465X with increased oil flow) GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with axial and lateral loads GR - .. X = Curved guard hoses Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Rotator weight: 30 kg

Baltrotors GR465-03 hydraulic rotator

Product code GR465-03

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Tool assembly - Flange 140x140 mm; 4x17 mm

Safe working load - 3000 kg

Connection type - G 3/8 "x G 1/2"

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR465-03 (Modification of the rotator GR465, equipped with an additional drainage channel) GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose cover Max. static axial load: 30 kN Max. dynamic axial load: 15 kN Torque at 25 MPa: 1100 nm Recommended oil flow: 20 l / min Mounting: cam B = 73 mm, hole 25 mm Mounting (ground side): flange 140 mm; 4xø17 Connections: Rotator G 3/8 ", Gripper G 1/2", drainage channel G 3/8 "Rotator weight: 29 kg

Baltrotors GR465 / 68MX hydraulic rotator

Product code GR465/68MX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 30 mm

Rotator assembly - 73mm

Tool assembly - Flange 140x140 mm; 4x17 mm

Maximum static load - 45 kN

Maximum dynamic load - 25 kN

Safe working load - 4,500 kg

working pressure - 250 bar

Oil flow - 22 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1200 Nm

Type - GR

Libra - 37kg

Producent - Baltrotors

Description - Baltrotors GR465/68MX hydraulic rotator (Modification of the GR465/68M rotator, equipped with an extremely durable curved hose cover) GR = Grapple Rotator for axial load only GR-DB = Grapple Double Bearing Rotator (with double bearings), for axial and lateral load GR- ..X = Arched hose cover

Baltrotors GR465X hydraulic rotator

Product code GR465X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 73mm

Tool assembly - Flange 140x140 mm; 4x17 mm

Maximum static load - 45 kN

Maximum dynamic load - 25 kN

Safe working load - 4,500 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1100 Nm

Type - GR

Libra - 30kg

Producent - Baltrotors

Description - Baltrotors GR465x hydraulic rotator (Modification of the GR465 rotator, equipped with an extremely durable curved hose cover) GR = Grapple Rotator for axial load only GR-DB = Grapple Double Bearing Rotator (with double bearings), for axial and lateral load GR-..X = Arched hose cover

Baltrotors GR46X hydraulic rotator

Product code GR46X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 25 mm

Rotator assembly - 73mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 59 mm

Maximum static load - 45 kN

Maximum dynamic load - 25 kN

Safe working load - 4,500 kg

working pressure - 250 bar

Oil flow - 20 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1100 Nm

Type - GR

Libra - 24kg

Producent - Baltrotors

Description - Baltrotors GR46X hydraulic rotator (Modification of the GR46 rotator, equipped with an extremely durable curved hose cover)

Baltrotors GR55-01 hydraulic rotator

Product code GR55-01

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 30 mm

Rotator assembly - 73mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 69 mm

Maximum static load - 55 kN

Maximum dynamic load - 25 kN

Safe working load - 5,500 kg

working pressure - 250 bar

Oil flow - 22 l/min

Connection type - G 3/8 "x G 1/2"

Torque - 1300 Nm

Type - GR

Libra - 29 kg

Producent - Baltrotors

Description - Baltrotors GR55-01 hydraulic rotator

Baltrotors GR55FF hydraulic rotator

Product code GR55FF

Availability: Currently not available

Notify me about availability

Product features:

Rotator assembly - Flange 144 mm; 10xM12

Tool assembly - Flange 140x140 mm; 4x17 mm

Maximum static load - 45 kN

Maximum dynamic load - 25 kN

Safe working load - 4,500 kg

working pressure - 250 bar

Oil flow - 22 l/min

Connection type - G 3/8" x G 3/8"

Torque - 1300 Nm

Type - GR

Libra - 35kg

Producent - Baltrotors

Description - Baltrotors GR55FF Hydraulic Rotator Pin Locator 2x13mm Max. axial static load: +45 kN / -34 kN Max. axial dynamic load: +25 kN / -17 kN

Baltrotors GR55MF hydraulic rotator

Product code GR55MF

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 30 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 5,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR55MF hydraulic rotator (Rotator modification GR46 / 68M with bottom flange connection 173mm) GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose cover Max. static axial load: 55 kN Max. dynamic axial load: 25 kN Torque at 25 MPa: 1300 nm Recommended oil flow: 22 l / min Rotator weight: 36 kg

• net: 2509,92 PLN
• • Currency: zł € $

Baltrotors GR55MFX hydraulic rotator

Product code GR55MFX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 30 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 5,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR55MFX hydraulic rotator (Modification of the rotator GR55MF, fitted with an extra strong arched hose guard) GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose cover Max. static axial load: 55 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1300 nm Recommended oil flow: 22 l / min Rotator weight: 37 kg

Baltrotors GR55MX hydraulic rotator

Product code GR55MX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 30 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 69 mm

Safe working load - 5,500 kg

Connection type - G 3/8 "

Producent - Baltrotors

Description - Baltrotors GR55MX hydraulic rotator (Modification of the rotator GR55M, equipped with an extra-strong curved hose guard) Max. static axial load: 55 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1300 nm Recommended oil flow: 22 l / min Rotator weight: 31 kg

Baltrotors GR60 hydraulic rotator

Product code GR60

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 68 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors GR60 hydraulic rotator GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 37 kg

Baltrotors GR60 / 69DB hydraulic rotator

Product code GR60/69DB

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 69 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR60 / 69DB GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 60 kN / -50 kN Max. axial dynamic load: 30 kN / -25 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 38 kg

Baltrotors GR60 / 69DBX hydraulic rotator

Product code GR60/69DBX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 69 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR60 / 69DBX GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 60 kN / -50 kN Max. axial dynamic load: 30 kN / -25 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 39 kg

Baltrotors GR60 / 69X hydraulic rotator

Product code GR60/69X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 69 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR60 / 69x GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 39 kg

Baltrotors GR60 / 78 hydraulic rotator

Product code GR60/78

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 35 mm

Roller diameter - 78 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR60 / 78DB GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: +60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1600 nm Recommended oil flow: 25 l / min Rotator weight: 38 kg

Baltrotors GR60 / 78DB hydraulic rotator

Product code GR60/78DB

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 35 mm

Roller diameter - 78 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR60 / 78DB GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: +60 kN / -50 kN Max. axial dynamic load: 30 kN / -25 kN Torque at 25 MPa: 1600 nm Recommended oil flow: 25 l / min Rotator weight: 38 kg

Baltrotors GR60 / 78DBX hydraulic rotator

Product code GR60/78DBX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 35 mm

Roller diameter - 78 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR60 / 78DBX GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: +60 kN / -50 kN Max. axial dynamic load: 30 kN / -25 kN Torque at 25 MPa: 1600 nm Recommended oil flow: 25 l / min Rotator weight: 39 kg

Baltrotors GR60 / 78X hydraulic rotator

Product code GR60/78X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 35 mm

Roller diameter - 78 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR60 / 78X GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: +60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1600 nm Recommended oil flow: 25 l / min Rotator weight: 38 kg

Baltrotors GR603 hydraulic rotator

Product code GR603

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR603 GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 45 kg

Baltrotors GR603-2 hydraulic rotator

Product code GR603-2

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors GR603-2 hydraulic rotator (Modification of rotator GR603 with hose inlets on 2 sides of top plate) GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR- .. X = Arched hose cover Max. static axial load: 60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 47 kg

Baltrotors GR603-2DB hydraulic rotator

Product code GR603-2DB

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors GR603-2DB hydraulic rotator (Modification of rotator GR603DB with hose inlets on 2 sides of top plate) GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR- .. X = Arched hose cover Max. axial static load: +60 kN / -50 kN Max. axial dynamic load: +30 kN / -25kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 47 kg

Baltrotors GR603DBX hydraulic rotator

Product code GR603DBX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors GR603DBX hydraulic rotator GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. axial static load: +60 kN / -50 kN Max. axial dynamic load: +30 kN / -25kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 46 kg

Baltrotors GR603X hydraulic rotator

Product code GR603X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors GR603X GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 46 kg

Baltrotors GR60DB hydraulic rotator

Product code GR60DB

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 68 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors 60DB hydraulic rotator GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Hose bend guard Max. axial static load: + 60 / -50kN Max. axial dynamic load: + 30 / -25kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 38 kg

Baltrotors GR60DBX hydraulic rotator

Product code GR60DBX

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 68 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors 60DBX hydraulic rotator GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. axial static load: + 60 / -50kN Max. axial dynamic load: + 30 / -25kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 39 kg

Baltrotors GR60X hydraulic rotator

Product code GR60X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Lower pin diameter (rotator) - 30 mm

Roller diameter - 68 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Hydraulic Rotator Baltrotors 60X GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Curved hose guard Max. static axial load: 60 kN Max. dynamic axial load: 30 kN Torque at 25 MPa: 1800 nm Recommended oil flow: 25 l / min Rotator weight: 39 kg

Baltrotors GR623 hydraulic rotator

Product code GR623

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors GR623 hydraulic rotator with double bearing Max. static axial load: +60 kN / -50 kN Max. axial dynamic load: +30 kN / -25 kN Torque at 25 MPa: 2400 nm Recommended oil flow: 28 l / min Rotator weight: 45 kg

Baltrotors GR623-2 hydraulic rotator

Product code GR623-2

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors GR623-2 hydraulic rotator (Modification of the GR623 rotator with hose inlets on 2 sides of the top plate) Max. static axial load: +60 kN / -50 kN Max. axial dynamic load: +30 kN / -25 kN Torque at 25 MPa: 2400 nm Recommended oil flow: 28 l / min Rotator weight: 47 kg

Baltrotors GR623X hydraulic rotator

Product code GR623X

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 6000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors GR623X hydraulic rotator (Modification of the rotator GR623, fitted with an extra-strong curved hose guard) Max. static axial load: +60 kN / -50 kN Max. axial dynamic load: +30 kN / -25 kN Torque at 25 MPa: 2400 nm Recommended oil flow: 28 l / min Rotator weight: 46 kg

Seal kit GR30 GR30-QAB-PF

Product code GR930AFD

Availability: Currently not available

Notify me about availability

Product features:

Description - Seal kit GR30 GR30-QAB-PF

• net: 162,69 PLN
• • Currency: zł € $

Rotator seal kit GR46 / 68M

Product code GR9466AFD

Availability: Currently not available

Notify me about availability

Product features:

• net: 131,49 PLN
• • Currency: zł € $

Baltrotors GR60DB GR6069G hose cover

Product code GR96003

Availability: Currently not available

Notify me about availability

Product features:

• net: 104,00 PLN
• • Currency: zł € $

Baltrotors GR465 bottom link

Product code GR9MTR46012LA

Availability: Currently not available

Notify me about availability

Product features:

• net: 967,94 PLN
• • Currency: zł € $

Rotator 10 tons (Gusella)

Product code GRI 10

Availability: Currently not available

Notify me about availability

Product features:

• net: 12954,42 PLN
• • Currency: zł € $

Rotator 15 tons (Gusella)

Product code GRI 15

Availability: Currently not available

Notify me about availability

Product features:

• net: 22148,66 PLN
• • Currency: zł € $

Baltrotors GRS10 hydraulic rotator

Product code GRS10

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Rotator assembly - 80.5mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 10,000 kg

Connection type - G 1/2 "x G 3/4"

Producent - Baltrotors

Description - Baltrotors GRS10 hydraulic rotator with additional channels GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose guard GRS = Saw rotator (additional connections) Max. axial static load: + 100 / -80 kN Max. axial dynamic load: + 50 / -40 kN Torque at 25 MPa: 2500 nm Recommended oil flow: 25 l / min Additional connections: G 3/4 "Rotator weight: 64 kg

Baltrotors GRS10-01 hydraulic rotator

Product code GRS10-01

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Rotator assembly - 80.5mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 10,000 kg

Connection type - G 1/2 "x G 3/4" x G 3/8 "

Producent - Baltrotors

Description - Baltrotors GRS10-01 hydraulic rotator with additional channels and drainage channel. GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose guard GRS = Saw rotator (additional connections) Max. axial static load: + 100 / -80 kN Max. axial dynamic load: + 50 / -40 kN Torque at 25 MPa: 2500 nm Recommended oil flow: 25 l / min Additional connections: G 3/4 "Drain channel: G 3/8" Rotator weight: 63 kg

Baltrotors GRS12S hydraulic rotator

Product code GRS12S

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Rotator assembly - 100.5mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 12,000 kg

Connection type - G 1/2 "x G 3/4"

Producent - Baltrotors

Description - Baltrotors GRS12S hydraulic rotator with additional channels GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose guard GRS = Saw rotator (additional connections) Max. static axial load: + 120 / -90 kN Max. axial dynamic load: + 60 / -45 kN Torque at 25 MPa: 2900 nm Recommended oil flow: 35 l / min Rotator weight: 78 kg

Baltrotors GRS16S-01 hydraulic rotator

Product code GRS16S-01

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 16,000 kg

Connection type - G 1/2 "x G 3/4"

Producent - Baltrotors

Description - Baltrotors GRS16-01 hydraulic rotator with additional channels and drainage channel. GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose guard GRS = Saw rotator (additional connections) Max. axial static load: + 160 / -90kN Max. axial dynamic load: + 80 / -45kN Torque at 25 MPa: 3400 nm Recommended oil flow: 40 l / min Additional connections: G 3/4 "Drain channel: G 3/8" Rotator weight: 79 kg

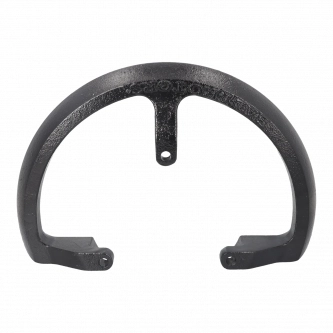

Baltrotors GRS12S hose cover

Product code GRS16S.03

Availability: Currently not available

Notify me about availability

Product features:

Producent - Baltrotors

Description -

Hose cover for Baltrotors GRS12S rotator

Comparison code - 170156

• net: 470,96 PLN
• • Currency: zł € $

Baltrotors GRS16S203 hydraulic rotator

Product code GRS16S203

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Tool assembly - 203 mm flange; 6x21 mm

Safe working load - 16,000 kg

Connection type - G 1/2 "x G 3/4"

Producent - Baltrotors

Description - Baltrotors GRS16S203 hydraulic rotator with additional channels GR = Rotator Grapple for axial load only GR-DB = Rotator Grapple Double Bearing (with double bearings), for axial and lateral load GR - .. X = Arched hose guard GRS = Saw rotator (additional connections) Max. axial static load: + 160 / -90kN Max. axial dynamic load: + 80 / -45kN Torque at 25 MPa: 3400 nm Recommended oil flow: 40 l / min Additional connections: G 3/4 "Rotator weight: 83 kg

Safety hook for the rotator 5.4T

Product code Hak bezpieczny pod rotator 5T

Availability: Currently not available

Notify me about availability

Product features:

5T rotator hook

Product code Hak pod rotator

Availability: Currently not available

Notify me about availability

Product features:

Hook for the rotator 3000 kg

Product code Hak pod rotator 3000 kg

Availability: Currently not available

Notify me about availability

Product features:

3T rotator hook

Product code Hak pod rotator 3T

Availability: Currently not available

Notify me about availability

Product features:

Rotator hook 5.4 T

Product code Hak pod rotator 5T

Availability: Currently not available

Notify me about availability

Product features:

Hook for Rotator Formiko FHR 4500 L 59mm / 30mm

Product code HOOK-FHR4500

Availability: Currently not available

Notify me about availability

Product features:

Lower pin diameter (rotator) - 30mm

Roller diameter - 59mm

Rotator assembly - ROTATOR SHANK FI 59 MM FIXING ON FI 30 mm

Description - Hook for Rotator Formiko FHR 4500 L ROTATOR PIN FI 59 MM MOUNTING ON FI 30 mm

• net: 885,71 PLN
• • Currency: zł € $

Hook for rotator Indexator GV4 63mm 30mm

Product code HOOK-GV4

Availability: Currently not available

Notify me about availability

Product features:

Lower pin diameter (rotator) - 30mm

Roller diameter - 63mm

Rotator assembly - ROTATOR SHANK FI 63 MM FIXING ON FI 30 mm

Description - Hook for rotator Indexator GV4 ROTATOR PIN FI 63 MM MOUNTING ON FI 30 mm

Baltrotors HR10SM hydraulic rotator

Product code HR10SM

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Tool assembly - 173 mm flange; 6xM16

Safe working load - 10,000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors HR10SM hydraulic rotator with double bearing specially designed for Harvester heads. Max. axial static load: + 100 / -90 kN Max. axial dynamic load: + 50 / -45 kN Torque at 25 MPa: 2400 nm Recommended oil flow: 30 l / min Rotator weight: 64 kg

Hydraulic rotator Baltrotors HR12-01

Product code HR12-01

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 56 mm

Tool assembly - 173 mm flange; 6xM16

Safe working load - 12,000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors HR12-01 hydraulic rotator with double bearing specially designed for Harvester heads. Max. static axial load: + 120 / -100 kN Max. axial dynamic load: + 60 / -50 kN Torque at 25 MPa: 2900 nm Recommended oil flow: 35 l / min Rotator weight: 74 kg

Baltrotors HR12SM hydraulic rotator

Product code HR12SM

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Tool assembly - 173 mm flange; 6xM16

Safe working load - 12,000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors HR12SM hydraulic rotator with double bearing specially designed for Harvester heads. Max. static axial load: + 120 / -100 kN Max. axial dynamic load: + 60 / -50 kN Torque at 25 MPa: 2900 nm Recommended oil flow: 35 l / min Rotator weight: 69 kg

Hydraulic rotator Baltrotors HR16-02

Product code HR16-02

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 56 mm

Tool assembly - 173 mm flange; 6xM16

Safe working load - 16,000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors HR16-02 hydraulic rotator with double bearing specially designed for Harvester heads. Max. static axial load: + 160 / -100 kN Max. axial dynamic load: + 80 / -50 kN Torque at 25 MPa: 3500 nm Recommended oil flow: 40 l / min Rotator weight: 76 kg

Hydraulic rotator Baltrotors HR16-03

Product code HR16-03

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 45 mm

Tool assembly - 173 mm flange; 6xM16

Safe working load - 16,000 kg

Connection type - G 1/2 "

Producent - Baltrotors

Description - Baltrotors HR16-03 hydraulic rotator with double bearing specially designed for Harvester heads. Max. static axial load: + 160 / -100 kN Max. axial dynamic load: + 80 / -50 kN Torque at 25 MPa: 3500 nm Recommended oil flow: 40 l / min Rotator weight: 71 kg

Hydraulic rotator Baltrotors HR4-03

Product code HR4-03

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "x G 1/2"

Producent - Baltrotors

Description - Baltrotors HR4-03 hydraulic rotator specially designed for Harvester heads. Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1300 nm Recommended oil flow: 22 l / min Rotator weight: 35 kg

Hydraulic rotator Baltrotors HR4-03LS

Product code HR4-03LS

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35 mm

Tool assembly - 173 mm flange; 6x17 mm

Safe working load - 4,500 kg

Connection type - G 3/8 "x G 1/2"

Producent - Baltrotors

Description - Baltrotors HR4-03LS hydraulic rotator specially designed for Harvester heads. Special feature: no limiters Max. static axial load: 45 kN Max. axial dynamic load: 25 kN Torque at 25 MPa: 1300 nm Recommended oil flow: 22 l / min Rotator weight: 35 kg

Kinshofer Rotator - Used

Product code KM Rotator

Availability: Currently not available

Notify me about availability

Product features:

Kinshofer rotator

Product code KM03S

Availability: Currently not available

Notify me about availability

Product features:

• net: 5792,61 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM04F

Availability: Currently not available

Notify me about availability

Product features:

• net: 7545,06 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM04F140-30-4

Availability: Currently not available

Notify me about availability

Product features:

Kinshofer rotator

Product code KM04F140-30V

Availability: Currently not available

Notify me about availability

Product features:

Kinshofer rotator

Product code KM04S

Availability: Currently not available

Notify me about availability

Product features:

• net: 7051,04 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM04S59-30

Availability: Currently not available

Notify me about availability

Product features:

• net: 7051,04 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM04S63-30

Availability: Currently not available

Notify me about availability

Product features:

• net: 7051,04 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM04S68-30

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 30mm

Rotator assembly - 84mm

Lower pin diameter (rotator) - 30mm

Roller diameter - 68mm

Safe working load - 4500 kg

working pressure - 320 bar

Connection type - M18x1.5

Torque - 850 Nm

Libra - 26kg

Producent - Kinshofer

Description - Kinshofer KM 04 S68-30 rotator

• net: 5000,00 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM04S68-30US

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 30mm

Rotator assembly - 84mm

Lower pin diameter (rotator) - 30mm

Roller diameter - 68mm

Safe working load - 4500 kg

working pressure - 320 bar

Connection type - M18x1.5

Torque - 1000Nm

Libra - 28 kg

Producent - Kinshofer

Description - Rotator Kinshofer KM 04 S68-30US The rotator head is made of steel

• net: 5529,14 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM04S69-30

Availability: Currently not available

Notify me about availability

Product features:

• net: 7051,04 PLN
• • Currency: zł € $

Rotator Kinshofer PZR601GF

Product code KM06F140-40

Availability: Currently not available

Notify me about availability

Product features:

• net: 6808,47 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM06F173-35

Availability: Currently not available

Notify me about availability

Product features:

• net: 8159,20 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM06F173-35-4

Availability: Currently not available

Notify me about availability

Product features:

Kinshofer rotator

Product code KM06S69-40

Availability: Currently not available

Notify me about availability

Product features:

• net: 7892,41 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM10F173-35/1

Availability: Currently not available

Notify me about availability

Product features:

• net: 10004,47 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM10F173-35/2

Availability: Currently not available

Notify me about availability

Product features:

• net: 10004,47 PLN
• • Currency: zł € $

Kinshofer rotator

Product code KM10F173-35/2-4

Availability: Currently not available

Notify me about availability

Product features:

Kinshofer rotator

Product code KM10F173-45

Availability: Currently not available

Notify me about availability

Product features:

Kinshofer rotator

Product code KM10F173-52

Availability: Currently not available

Notify me about availability

Product features:

Short connecting hoses between the rotator and the attachment

Product code KM20301

Availability: Currently not available

Notify me about availability

Product features:

• net: 331,76 PLN
• • Currency: zł € $

Long connecting hoses between the rotator and the crane

Product code KM20303

Availability: Currently not available

Notify me about availability

Product features:

• net: 818,33 PLN
• • Currency: zł € $

Loose half of the hydraulic quick coupler for mounting on coupling hoses

Product code KM20401

Availability: Currently not available

Notify me about availability

Product features:

Description - LOOSE HALF OF HYDRAULIC QUICK COUPLING FOR INSTALLATION ON CONNECTING HOSES (Ø 10 MM, 2 PIECES)

• net: 619,27 PLN
• • Currency: zł € $

Fixed half hydraulic quick coupler for mounting on the rotator

Product code KM20402

Availability: Currently not available

Notify me about availability

Product features:

Description - FIXED HALF QUICK COUPLING FOR INSTALLATION ON ROTATOR ø10mm

• net: 464,46 PLN
• • Currency: zł € $

Quick-change mounting kit

Product code KM20403

Availability: Currently not available

Notify me about availability

Product features:

• net: 1459,71 PLN
• • Currency: zł € $

Hose protection Kinshofer KM 206

Product code KM206

Availability: Currently not available

Notify me about availability

Product features:

• net: 486,57 PLN
• • Currency: zł € $

Suspension element with pins for the rotator Kinshofer KM 03

Product code KM46003KM03S

Availability: Currently not available

Notify me about availability

Product features:

• net: 928,91 PLN
• • Currency: zł € $

Suspension element with pins for the rotator Kinshofer KM 04

Product code KM46003KM04S

Availability: Currently not available

Notify me about availability

Product features:

• net: 1194,31 PLN
• • Currency: zł € $

Kinshofer KM 04 d68 rotator hook

Product code KM46004KM04S

Availability: Currently not available

Notify me about availability

Product features:

Lower pin diameter (rotator) - 30 mm

Safe working load - 8000 kg

Roller diameter - 68 mm

Libra - 12 kg

Dimension - 16-8mm

Producent - Kinshofer

Description - Sztywno-skrętny, wahliwy hak ładunkowy dla rotatora Kinshofer KM 04 z przyłączem czopowym pod trzpień rotatora fi 68mm

Comparison code - 532014183, KM460-04 KM04/06S-68mm NRH

• net: 1940,00 PLN
• • Currency: zł € $

Hook for the rotator Kinshofer KM 06

Product code KM46004KM06S

Availability: Currently not available

Notify me about availability

Product features:

Libra - 15kg

Producent - Kinshofer

Description - Rigid-rotating, swinging load hook for KINSHOFER KM 06 rotator with shaft connection *Illustrative photo 532014183-06: for rotator shaft 68mm 532020503-06: for rotator shaft 69mm

Comparison code - KM 460 04 (KM 06 S)

• net: 2690,50 PLN
• • Currency: zł € $

Hanger for the rotator Kinshofer KM 501

Product code KM50110000

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 1466,86 PLN
• • Currency: zł € $

Hanger for the rotator Kinshofer KM 501

Product code KM5013000

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 733,43 PLN
• • Currency: zł € $

Hanger for the rotator Kinshofer KM 501

Product code KM5016000

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 1000,13 PLN
• • Currency: zł € $

Kinshofer rotator base

Product code KM502

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

Description - The spacing of the mounting screws is 140x140mm

Pin diameter - 35 mm

Roller diameter - 78 mm

• net: 814,09 PLN
• • Currency: zł € $

Base for the Kinshofer KM 502 rotator

Product code KM5023000

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 579,01 PLN
• • Currency: zł € $

Base for the Kinshofer KM 502 rotator

Product code KM5024500

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 728,76 PLN
• • Currency: zł € $

Base for the Kinshofer KM 502 rotator

Product code KM5026000

Availability: Currently not available

Notify me about availability

Product features:

Upper part for installation on the rotator incl. 2 loose halves

Product code KM50501

Availability: Currently not available

Notify me about availability

Product features:

• net: 1680,89 PLN
• • Currency: zł € $

Upper HD section for mounting on a Kinshofer rotator

Product code KM50501HD

Availability: Currently not available

Notify me about availability

Product features:

• net: 3162,73 PLN
• • Currency: zł € $

Lower part for mounting on attached device (534015740)

Product code KM50502

Availability: Currently not available

Notify me about availability

Product features:

Comparison code - N00077, 534015740

• net: 2677,14 PLN
• • Currency: zł € $

HD lower part for mounting on a mounted device

Product code KM50502HD

Availability: Currently not available

Notify me about availability

Product features:

• net: 3582,94 PLN
• • Currency: zł € $

Rigid-torsion suspension member with a hook

Product code KM50503

Availability: Currently not available

Notify me about availability

Product features:

• net: 1902,06 PLN
• • Currency: zł € $

Rigid-torsion suspension member with a hook

Product code KM50503HD

Availability: Currently not available

Notify me about availability

Product features:

• net: 3582,94 PLN
• • Currency: zł € $

Complete including hydraulic quick couplings for the Kinshofer rotator

Product code KM505HD

Availability: Currently not available

Notify me about availability

Product features:

• net: 6723,56 PLN
• • Currency: zł € $

Kinshofer 511 rotator hanger with brake

Product code KM51110000

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 2631,91 PLN
• • Currency: zł € $

Kinshofer 511 rotator hanger with brake

Product code KM5114500

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 1769,36 PLN
• • Currency: zł € $

Kinshofer 511 rotator hanger with brake

Product code KM5116000

Availability: Currently not available

Notify me about availability

Product features:

Producent - Kinshofer

• net: 1769,36 PLN
• • Currency: zł € $

Formiko 6T hydraulic rotator

Product code LTR 6.000L68

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35mm

Rotator assembly - 80mm

Lower pin diameter (rotator) - 30mm

Roller diameter - 68/64mm

Maximum static load - 60 kN

Maximum dynamic load - 30 kN

Safe working load - 6000 kg

working pressure - 250 bar

Oil flow - 25 l/min

Connection type - G 1/2" x G 1/2"

Torque - 1850 Nm

Type - LTR

Libra - 42 kg

Producent - Formiko

Formiko 6T hydraulic rotator

Product code LTR 6.000L69

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35mm

Rotator assembly - 80mm

Lower pin diameter (rotator) - 30mm

Roller diameter - 68/64mm

Maximum static load - 60 kN

Maximum dynamic load - 30 kN

Safe working load - 6000 kg

working pressure - 250 bar

Oil flow - 25 l/min

Connection type - G 1/2" x G 1/2"

Torque - 1850 Nm

Type - LTR

Libra - 42 kg

Producent - Formiko

Formiko 6T hydraulic rotator

Product code LTR 6.000L78

Availability: Currently not available

Notify me about availability

Product features:

Top pin diameter (crane) - 35mm

Rotator assembly - 80mm

Lower pin diameter (rotator) - 35mm

Roller diameter - 78/64mm

Maximum static load - 60 kN

Maximum dynamic load - 30 kN

Safe working load - 6000 kg

working pressure - 250 bar

Oil flow - 25 l/min

Connection type - G 1/2" x G 1/2"

Torque - 1850 Nm

Type - LTR

Libra - 43 kg

Producent - Formiko

Baltrotors GR463-01 Disc Spring

Product code M2302-00000

Availability: Currently not available

Notify me about availability

Product features:

Baltrotors GR463-01 rotator wedge

Product code MTR45.014-01

Availability: Currently not available

Notify me about availability

Product features:

Baltrotors GR463-01 Rotator Locking Screw

Product code MTR45.015-01

Availability: Currently not available

Notify me about availability

Product features:

Flange GR465 MTR46.012

Product code MTR46.012

Availability: Currently not available

Notify me about availability

Product features:

• net: 642,86 PLN
• • Currency: zł € $

Flange GR465 MTR46012LA

Product code MTR46012LA

Availability: Currently not available

Notify me about availability

Product features:

• net: 957,14 PLN
• • Currency: zł € $

with double pendulum brake *

Product code N00267

Availability: Currently not available

Notify me about availability

Product features:

with pendulum brake *

Product code N00597

Availability: Currently not available

Notify me about availability

Product features:

with pendulum brake *

Product code N00629

Availability: Currently not available

Notify me about availability

Product features:

Seal for rotator KM04 F (EX TD 965)

Product code N255050361

Availability: Currently not available

Notify me about availability

Product features:

• net: 963,23 PLN
• • Currency: zł € $

Intermercato hook for rotator 8000 kg d30

Product code ORH80-59

Availability: Currently not available

Notify me about availability

Product features:

Lower pin diameter (rotator) - 30mm

Safe working load - 8000 kg

Roller diameter - 59.3mm

Libra - 9 kg

Producent - Intermercato

Description - HOOK FOR ROTATOR PIN FI 59.3 mm FITTING ON FI 30 mm HOOK FITS ROTATORS INCLUDING: FORMIKO, BALTROTORS, FINN-ROTOR, INDEXATOR, KINSHOFER
