ISO SHORT

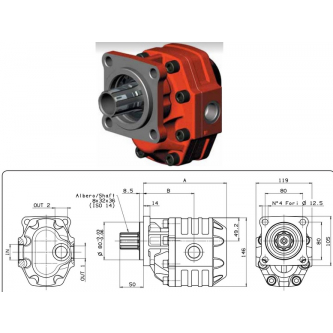

Gear pump Binotto NPH-17 ISO SHORT R

Product code 10503000172

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 17,04 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-030-00172

Gear pump Binotto NPH-17 ISO SHORT L

Product code 10503000181

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 17,04 cm3/obr

Turning direction - Left

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-030-00181

Gear pump Binotto NPH-22 ISO SHORT R

Product code 10503000225

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 22,15 cm3/obr

Turning direction - Right

Seria pompy - NPH ISO SHORT

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Pump type - Toothed

Producent - OMFB Binotto

Spacing of mounting holes - 80x80 mm

Comparison code - 105-030-00225

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Gear pump Binotto NPH-22 ISO SHORT L

Product code 10503000234

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 22,15 cm3/obr

Turning direction - Left

Seria pompy - NPH ISO SHORT

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Pump type - Toothed

Producent - OMFB Binotto

Spacing of mounting holes - 80x80 mm

Comparison code - 105-030-00234

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Gear pump Binotto NPH-27 ISO SHORT R

Product code 10503000270

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 26,18 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 3/4"

Comparison code - 105-030-00270

Gear pump Binotto NPH-27 ISO SHORT L

Product code 10503000289

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 26,18 cm3/obr

Turning direction - Left

Seria pompy - NPH ISO SHORT

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Pump type - Toothed

Producent - OMFB Binotto

Spacing of mounting holes - 80x80 mm

Comparison code - 105-030-00289

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 3/4"

Gear pump Binotto NPH-34 ISO SHORT R

Product code 10503000341

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 33,88 cm3/obr

Turning direction - Right

Seria pompy - NPH ISO SHORT

Max. working pressure (continuous) - 280 bar

Flange type - ISO

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Pump type - Toothed

Producent - OMFB Binotto

Spacing of mounting holes - 80x80 mm

Comparison code - 105-030-00341

Typ portu - BSP Gwinty

Gear pump Binotto NPH-34 ISO SHORT L

Product code 10503000350

Availability: Currently not available

Notify me about availability

Product features:

Working volume - 33,88 cm3/obr

Turning direction - Left

Seria pompy - NPH ISO SHORT

Max. working pressure (continuous) - 280 bar

Flange type - ISO

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Pump type - Toothed

Producent - OMFB Binotto

Spacing of mounting holes - 80x80 mm

Comparison code - 105-030-00350

Typ portu - BSP Gwinty

Gear pump Binotto NPH-43 ISO SHORT R

Product code 10503000430

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 43,12 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 270 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-030-00430

Gear pump Binotto NPH-43 ISO SHORT L

Product code 10503000449

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Turning direction - Left

Max. working pressure (continuous) - 270 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-030-00449

Gear pump Binotto NPH-51 ISO SHORT R

Product code 10503000510

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 50,82 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 240 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-030-00510

Gear pump Binotto NPH-51 ISO SHORT L

Product code 10503000529

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 50,82 cm3/obr

Turning direction - Left

Max. working pressure (continuous) - 240 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-030-00529

Gear pump Binotto NPH-61 ISO SHORT R

Product code 10503000618

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 60,06 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 220 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-030-00618

Gear pump Binotto NPH-61 ISO SHORT L

Product code 10503000627

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 60,06 cm3/obr

Turning direction - Left

Max. working pressure (continuous) - 220 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-030-00627

Gear pump Binotto NPH-73 ISO SHORT R

Product code 10503000734

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 72,88 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 200 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-030-00734

Gear pump Binotto NPH-73 ISO SHORT L

Product code 10503000743

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 72,88 cm3/obr

Turning direction - Left

Max. working pressure (continuous) - 200 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-030-00743

Binotto NPH-82 ISO SHORT R gear pump

Product code 10503000823

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Toothed

Working volume - 81,08 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 190 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1 1/4"

Comparison code - 105-030-00823

Pompa zębata Binotto NPH-82 ISO SHORT L

Product code 10503000832

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO SHORT

Pump type - Zębata

Working volume - 81,08 cm3/obr

Turning direction - Lewy

Max. working pressure (continuous) - 190 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Wielowypust 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1 1/4"

Comparison code - 105-030-00832
