NPH

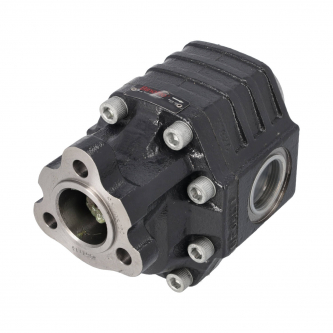

Gear pump Binotto NPH-34 UNI R

Product code 10501100344

Availability: Available (quantity: 1)

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 33.88 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 280 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-00344

• net: 1642,86 PLN
• • Currency: zł € $

Gear pump Binotto NPH-17 UNI R

Product code 10501100175

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 17.04 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-00175

• net: 1225,00 PLN
• • Currency: zł € $

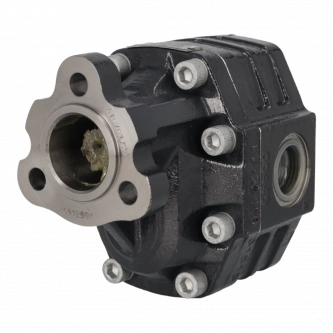

Gear pump Binotto NPH-17 UNI L

Product code 10501100184

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 17.04 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 290 bar

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-00184

• net: 1642,86 PLN
• • Currency: zł € $

Gear pump Binotto NPH-22 UNI R

Product code 10501100228

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 22.15 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-00228

Gear pump Binotto NPH-22 UNI L

Product code 10501100237

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 22.15 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 290 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-00237

• net: 1475,00 PLN
• • Currency: zł € $

Gear pump Binotto NPH-27 UNI R

Product code 10501100273

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 26.18 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 3/4"

Comparison code - 105-011-00273

• net: 1312,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-27 UNI L

Product code 10501100282

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 26.18 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 290 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 3/4"

Comparison code - 105-011-00282

• net: 1225,00 PLN
• • Currency: zł € $

Gear pump Binotto NPH-34 UNI L

Product code 10501100353

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 33.88 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 280 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-00353

• net: 1487,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-43 UNI R

Product code 10501100433

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 43.12 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 270 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-00433

• net: 1437,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-43 UNI L

Product code 10501100442

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 43.12 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 270 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-00442

• net: 1225,00 PLN
• • Currency: zł € $

Gear pump Binotto NPH-51 UNI R

Product code 10501100513

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 50.82 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 240 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-00513

• net: 1437,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-51 UNI L

Product code 10501100522

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 50.82 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 240 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-00513

Gear pump Binotto NPH-61 UNI R

Product code 10501100611

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 60.06 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 220 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-00611

• net: 1475,00 PLN
• • Currency: zł € $

Gear pump Binotto NPH-61 UNI L

Product code 10501100620

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 60.06 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 220 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-00620

• net: 1475,00 PLN
• • Currency: zł € $

Gear pump Binotto NPH-73 UNI R

Product code 10501100737

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 72.88 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 200 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-00737

Gear pump Binotto NPH-73 UNI L

Product code 10501100746

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 72.88 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 200 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-00746

Gear pump Binotto NPH-82 UNI R

Product code 10501100826

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 81.08 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 190 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1 1/4"

Comparison code - 105-011-00826

• net: 1642,86 PLN
• • Currency: zł € $

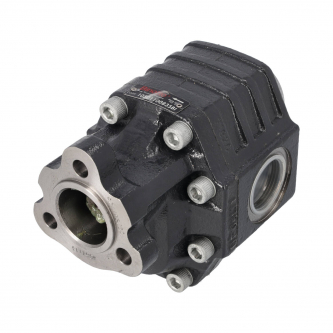

Gear pump Binotto NPH-82 UNI L

Product code 10501100835

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 81.08 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 190 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1 1/4"

Comparison code - 105-011-00835

• net: 1642,86 PLN
• • Currency: zł € $

Binotto NPH-90 UNI R gear pump

Product code 10501100906

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 90,43 cm3/obr

Turning direction - Right

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Binotto NPH-90 UNI L gear pump

Product code 10501100915

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 90,43 cm3/obr

Turning direction - Left

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Gear pump Binotto NPH-100 UNI R

Product code 10501101003

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 98.18 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 180 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-01003

Gear pump Binotto NPH-100 UNI L

Product code 10501101012

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 98.18 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 180 bar

Flange type - UNI

Centering diameter - 52 mm

Roller type - Spline 6x21x25

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-01012

Gear pump Binotto NPH-125 UNI R

Product code 10501101254

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 122.72 cm3 / rev

Turning direction - Right

Max. working pressure (continuous) - 160 bar

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-01254

Gear pump Binotto NPH-125 UNI L

Product code 10501101263

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH UNI

Pump type - Toothed

Working volume - 122.72 cm3 / rev

Turning direction - Left

Max. working pressure (continuous) - 160 bar

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-01263

Gear pump Binotto NPH-17 ISO R

Product code 10501110173

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 17.04 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-10173

• net: 1312,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-17 ISO L

Product code 10501110182

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 17.04 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-10182

• net: 1437,50 PLN
• • Currency: zł € $

Binotto NPH-22 ISO R gear pump

Product code 10501110226

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 22.15 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-10226

• net: 1312,50 PLN
• • Currency: zł € $

Binotto NPH-22 ISO L gear pump

Product code 10501110235

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 22.15 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 1/2"

Comparison code - 105-011-10235

• net: 1312,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-27 ISO R

Product code 10501110271

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 26.18 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 3/4"

Comparison code - 105-011-10271

• net: 1821,43 PLN
• • Currency: zł € $

Gear pump Binotto NPH-27 ISO L

Product code 10501110280

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 26.18 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 290 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1/2"

Suction port - G 3/4"

Comparison code - 105-011-10280

Gear pump Binotto NPH-34 ISO R

Product code 10501110342

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 33.88 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 280 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-10342

• net: 1437,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-34 ISO L

Product code 10501110351

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 33.88 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 280 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-10351

• net: 1312,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-43 ISO R

Product code 10501110431

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 43.12 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 270 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-10431

• net: 1562,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-43 ISO L

Product code 10501110441

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 43.12 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 270 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 3/4"

Comparison code - 105-011-10441

• net: 1437,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-51 ISO R

Product code 10501110511

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 50.82 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 240 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-10511

• net: 1437,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-51 ISO L

Product code 10501110520

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 50.82 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 240 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-10520

• net: 1437,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-61 ISO R

Product code 10501110619

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 60.06 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 220 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-10619

• net: 1821,43 PLN
• • Currency: zł € $

Gear pump Binotto NPH-61 ISO L

Product code 10501110628

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 60.06 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 220 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-10628

• net: 1462,50 PLN
• • Currency: zł € $

Gear pump Binotto NPH-73 ISO R

Product code 10501110735

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 72.88 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 205 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1"

Comparison code - 105-011-10735

Gear pump Binotto NPH-73 ISO L

Product code 10501110744

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 72.88 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 205 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Comparison code - 105-011-10744

Gear pump Binotto NPH-82 ISO R

Product code 10501110824

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 81.08 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 205 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1 1/4"

Comparison code - 105-011-10824

Gear pump Binotto NPH-82 ISO L

Product code 10501110833

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 81.08 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 205 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 3/4"

Suction port - G 1 1/4"

Comparison code - 105-011-10833

Binotto NPH-90 ISO R gear pump

Product code 10501110904

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 90,43 cm3/obr

Turning direction - Right

Max. working pressure (continuous) - 180 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Binotto NPH-90 ISO L gear pump

Product code 10501110913

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 90,43 cm3/obr

Turning direction - Left

Max. working pressure (continuous) - 180 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80 mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Gear pump Binotto NPH-100 ISO R

Product code 10501111001

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 98.18 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 180 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-11001

Gear pump Binotto NPH-100 ISO L

Product code 10501111010

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 98.18 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 180 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-11010

Gear pump Binotto NPH-125 ISO R

Product code 10501111252

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 122.72 cm3/rev

Turning direction - Right

Max. working pressure (continuous) - 160 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-11252

Gear pump Binotto NPH-125 ISO L

Product code 10501111261

Availability: Currently not available

Notify me about availability

Product features:

Producent - OMFB Binotto

Seria pompy - NPH ISO

Pump type - Toothed

Working volume - 122.72 cm3/rev

Turning direction - Left

Max. working pressure (continuous) - 160 bar

Flange type - ISO

Spacing of mounting holes - 80x80 mm

Centering diameter - 80mm

Roller type - Spline 8x32x36

Typ portu - BSP Gwinty

Compressing port - G 1"

Suction port - G 1 1/4"

Description -

Connection ports:

• IN: G 1 1/4"
• OUT1: G 1"
• OUT2: G 3/4"

Comparison code - 105-011-11261
