Miniature relays

34.51.7.024.001

Relay: Electromagnetic; SPDT; Coils: 24VDC; 6A/250VAC

Availability: Available (quantity: 7492)

Producent - FINDER

Type of relay - electromagnetic

Contact configuration - SPDT

Rated coil voltage - 24V DC

Contact current max. - 6A

AC contacts rating @R - 6A / 250V AC

DC contacts rating @R - 6A / 30V DC

Switched voltage - max. 220V DC

Switched voltage - max. 250V AC

Relay variant - interface

Relay series - 34.51

Mounting - PCB

Mounting - socket

Coil resistance - 3.35kΩ

Coil voltage min. - 16.8V DC

Coil voltage max. - 36V DC

Body dimensions - 28x5x15mm

Coil power consumption - 170mW

Mechanical durability - 1000000 cycles

Contact material - AgNi

Terminal pitch - 5mm

Related items - PI6W-1P, PI6W-1P-24VDC

Working temperature - -40...85°C

Comparison code - 2613696

net: 22,06 PLN

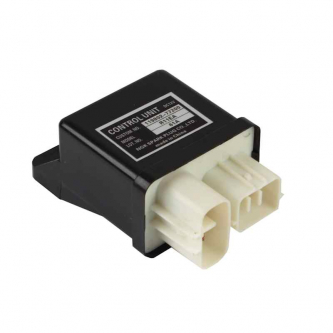

119802-77200

Relay YANMAR 119802-77200 4TNV98 4TNV88

Availability: Currently not available

Notify me about availability

Producent - Yanmar

Tension - 12 VDC

Comparison code - R11EA, YM129930-77970, XCZ105, HC0108, HC0119

net: 650,40 PLN

34.51.7.012.001

Miniature electromagnetic relay 12VDC 34.51.7.012.001

Availability: Currently not available

Notify me about availability

Producent - FINDER

Relay type - elektromagnetyczny

Contact configuration - SPDT

Tension - 12 VDC

Rated coil voltage - 12V DC

Contact current max. - 6A

AC contacts rating @R - 6A / 250V AC

DC contacts rating @R - 6A / 30V DC

Manufacturer series - 34.51

Switched voltage - max. 220V DC, max. 250V AC

Relay version - interfejsowy

Installation - PCB, podstawka

Coil resistance - 840Ω

Coil voltage min. - 8,4V DC

Coil voltage max. - 18V DC

Body dimensions - 28x5x15mm

Coil power consumption - 170mW

Mechanical durability - 1000000 cykli

Contact material - AgNi

Pinout raster - 5mm

Working temperature - -40...85°C

net: 19,90 PLN

40.61.7.024.2020

Miniature electromagnetic relay 1P 16A 24V DC, RTII degree of protection

Availability: Currently not available

Notify me about availability

Producent - FINDER

Type of relay - elektromagnetyczny

Contact configuration - SPDT

Tension - 24 VDC

Rated coil voltage - 24V DC

Contact current max. - 30A

AC contacts rating @R - 16A / 250V AC

DC contacts rating @R - 16A / 30V DC

Manufacturer series - 40.61

Switched voltage - max. 220V DC, max. 400V AC

Relay variant - miniaturowy

Mounting - PCB, podstawka

Coil resistance - 1,15kΩ

Body dimensions - 29x12,4x25mm

Coil power consumption - 0,5W

Contact material - AgCdO

Terminal pitch - 5mm

Working temperature - -40...85°C

net: 33,34 PLN

D2N12-960

Przekaźnik miniaturowy elektromagnetyczny 12VDC D2N12-960

Availability: Currently not available

Notify me about availability

Producent - TE Connectivity

Type of relay - elektromagnetyczny

Contact configuration - DPDT

Tension - 12 VDC

Rated coil voltage - 12V DC

Contact current max. - 3A

AC contacts rating @R - 0,5A / 125V AC

DC contacts rating @R - 1A / 30V DC

Manufacturer series - D2N

Switched voltage - max. 220V DC, max. 250V AC

Relay variant - miniaturowy

Mounting - PCB

Coil resistance - 960Ω

Coil voltage min. - 9,6V DC

Coil voltage max. - 31,2V DC

Operate time - 10ms

Body dimensions - 20,3x10,1x11,43mm

Release time - 10ms

Coil power consumption - 150mW

Mechanical durability - 150000000 cykli

Contact resistance - 100mΩ

Terminal pitch - 5mm

Working temperature - -25...70°C

Comparison code - 8-1393792-8

net: 13,10 PLN

D2N24-2880

Przekaźnik miniaturowy elektromagnetyczny 24VDC D2N24-2880

Availability: Currently not available

Notify me about availability

Producent - TE Connectivity

Type of relay - elektromagnetyczny

Contact configuration - DPDT

Tension - 24 VDC

Rated coil voltage - 24V DC

Contact current max. - 3A

AC contacts rating @R - 0,5A / 125V AC

DC contacts rating @R - 1A / 30V DC

Manufacturer series - D2N

Switched voltage - max. 220V DC, max. 250V AC

Relay variant - miniaturowy

Mounting - PCB

Coil resistance - 2,88kΩ

Coil voltage min. - 16,8V DC

Coil voltage max. - 54,1V DC

Operate time - 10ms

Body dimensions - 20,3x10,1x11,43mm

Release time - 10ms

Coil power consumption - 200mW

Mechanical durability - 150000000 cykli

Contact resistance - 100mΩ

Terminal pitch - 5mm

Working temperature - -25...70°C

Comparison code - 9-1393792-9

net: 11,90 PLN

HF41F-024-ZS

Relay 24VDC 6A HF41F-024-ZS, 1 contact

Availability: Currently not available

Notify me about availability

Producent - HONGFA RELAY

Type of relay - elektromagnetyczny

Tension - 24 VDC

Rated coil voltage - 24V DC

Contact current max. - 6A

AC contacts rating @R - 6A / 250V AC

DC contacts rating @R - 6A / 30V DC

Manufacturer series - HF41F

Switched voltage - max. 125V DC, max. 400V AC

Relay variant - miniaturowy

Mounting - PCB

Coil resistance - 3,39kΩ

Coil voltage min. - 18V DC

Coil voltage max. - 36V DC

Operate time - 8ms

Body dimensions - 28x5x15mm

Release time - 4ms

Coil power consumption - 170mW

Contact resistance - 100mΩ

Contact material - AgNi

Terminal pitch - 5,04mm

Working temperature - -40...85°C

net: 35,00 PLN

RM84-2012-35-1009

Miniature electromagnetic relay 2P 9VDC IP67

Availability: Currently not available

Notify me about availability

Producent - RELPOL

Type of relay - elektromagnetyczny

Contact configuration - DPDT

Rated coil voltage - 9V DC

Contact current max. - 8A

AC contacts rating @R - 8A / 250V AC

DC contacts rating @R - 8A / 24V DC

Manufacturer series - RM84

Switched voltage - max. 250V DC, max. 440V AC

Relay variant - miniaturowy

Mounting - PCB

Coil resistance - 200Ω

Coil voltage min. - 6,3V DC

Coil voltage max. - 22,9V DC

Operate time - 7ms

Body dimensions - 29x12,7x15,7mm

Release time - 3ms

Coil power consumption - 480mW

IP rating - IP67

Mechanical durability - 30000000 cykli

Contact resistance - 100mΩ

Contact material - AgNi

Terminal pitch - 5mm

Related items - GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80

Height - 15,7mm

Number of pins - 8

Body colour - biały

Working temperature - -40...85°C

Comparison code - 600334

net: 26,18 PLN

RM85-2011-35-1012

Miniature electromagnetic relay 12VDC RELPOL 16A / 250VAC

Availability: Currently not available

Notify me about availability

Producent - RELPOL

Type of relay - elektromagnetyczny

Contact configuration - SPDT

Tension - 12 VDC

Rated coil voltage - 12V DC

Contact current max. - 16A

AC contacts rating @R - 16A / 250V AC

DC contacts rating @R - 16A / 24V DC

Manufacturer series - RM85

Switched voltage - max. 250V DC, max. 440V AC

Relay variant - miniaturowy

Mounting - PCB

Coil resistance - 360Ω

Coil voltage min. - 8,4V DC

Coil voltage max. - 30,6V DC

Operate time - 8ms

Body dimensions - 29x12,7x15,7mm

Release time - 3ms

Coil power consumption - 480mW

IP rating - IP67

Contact resistance - 100mΩ

Contact material - AgNi

Terminal pitch - 5mm

Related items - GD50, GZ80, GZM80, GZM80-BK, GZT80, PW80

Body colour - biały

Working temperature - -40...85°C

Comparison code - 600020

net: 14,40 PLN

RSM822-6112-85-S009

Subminiature electromagnetic relay 2P 9VDC IP64

Availability: Currently not available

Notify me about availability

Producent - RELPOL

Type of relay - elektromagnetyczny

Contact configuration - DPDT

Rated coil voltage - 9V DC

Contact current max. - 2A

AC contacts rating @R - 1A / 120V AC

DC contacts rating @R - 2A / 24V DC

Manufacturer series - RSM822

Switched voltage - max. 120V AC

Relay variant - miniaturowy

Mounting - PCB

Coil resistance - 405Ω

Coil voltage min. - 6,75V DC

Coil voltage max. - 13,5V DC

Operate time - 8ms

Body dimensions - 21x10,1x12,1mm

Release time - 4ms

Coil power consumption - 200mW

IP rating - IP67

Contact resistance - 100mΩ

Contact material - AgPd

Working temperature - -30...80°C

net: 17,16 PLN

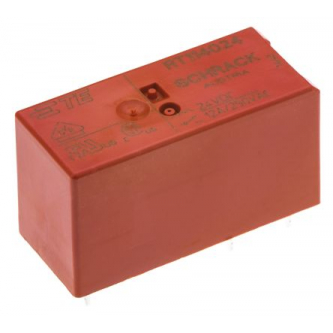

RT114024

Electromagnetic relay; 24VDC; 1-1393239-3

Availability: Currently not available

Notify me about availability

Producent - TE Connectivity

Type of relay - elektromagnetyczny

Contact configuration - SPDT

Rated coil voltage - 24V DC

Contact current max. - 12A

AC contacts rating @R - 12A / 250V AC

DC contacts rating @R - 12A / 24V DC

Manufacturer series - RT1

Switched voltage - max. 300V DC, max. 400V AC

Relay variant - miniaturowy

Mounting - THT

Coil resistance - 1,44kΩ

Coil voltage min. - 16,8V DC

Body dimensions - 29x15,7x12,7mm

Coil power consumption - 400mW

IP rating - IP40

Mechanical durability - 30000000 cykli

Contact material - AgNi

Terminal pitch - 3,5mm

Height - 15,7mm

Number of pins - 5

Working temperature - -40...70°C

Comparison code - 1-1393239-3

net: 26,58 PLN

RT424024

Electromagnetic relay; 24VDC 6-1393243-8

Availability: Currently not available

Notify me about availability

Producent - TE Connectivity

Type of relay - elektromagnetyczny

Contact configuration - DPDT

Rated coil voltage - 24V DC

Contact current max. - 8A

AC contacts rating @R - 8A / 250V AC

DC contacts rating @R - 8A / 30V DC

Manufacturer series - RT2

Switched voltage - max. 300V DC, max. 400V AC

Relay variant - miniaturowy, monostabilny

Mounting - PCB

Coil resistance - 1,44kΩ

Coil voltage min. - 16,8V DC

Operate time - 8ms

Body dimensions - 29x12,7x15,7mm

Release time - 6ms

Coil power consumption - 400mW

IP rating - IP40

Contact material - AgNi 90/10

Terminal pitch - 5mm

Related items - RT17017, RT17040, RT78726

Height - 15,7mm

Number of pins - 8

Working temperature - -40...85°C

net: 13,24 PLN

SF2D-DC24V

Miniature electromagnetic relay 24VDC SF2D-24V

Availability: Currently not available

Notify me about availability

Producent - PANASONIC

Type of relay - elektromagnetyczny

Contact configuration - SPST-NOx2 + SPST-NCx2

Tension - 24 VDC

Rated coil voltage - 24V DC

Contact current max. - 6A

Manufacturer series - SF2D

Switched voltage - max. 30V DC, max. 250V AC

Relay variant - bezpieczeństwa

Coil resistance - 1152Ω

Body dimensions - 53,3x25x16mm

Coil power consumption - 0,5W

Mechanical durability - 1000000 cykli

Contact material - AgSnO2

Working temperature - -40...70°C

net: 127,36 PLN

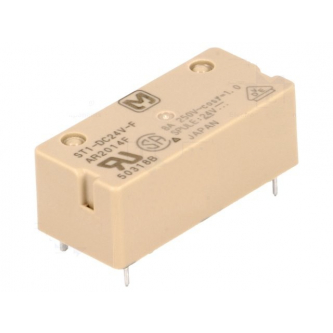

ST1-24V

Miniature electromagnetic relay 24VDC ST1-DC24V-F

Availability: Currently not available

Notify me about availability

Producent - PANASONIC

Type of relay - elektromagnetyczny

Contact configuration - SPST-NO + SPST-NC

Tension - 24 VDC

Rated coil voltage - 24V DC

Contact current max. - 8A

Manufacturer series - ST

Switched voltage - max. 250V DC, max. 380V AC

Relay variant - miniaturowy

Coil resistance - 2,4kΩ

Body dimensions - 31x14x11mm

Contact material - AgSnO2/Au

Miniature relays

Product code 34.51.7.024.001

Product code 41.31.9.024.0010

Product code 41.52.9.024.0010

Product code 600336

Product code G2RL-1-E-24DC

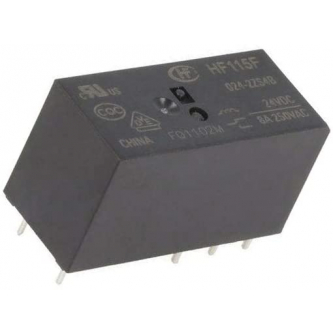

Product code HF115F/024-2ZS4B

Product code PCH-105L2MH

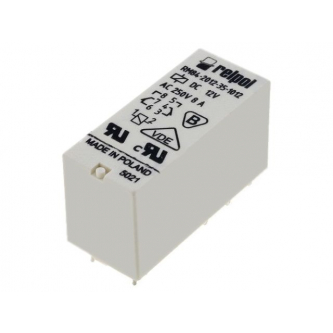

Product code RM84-2012-35-1012

Product code 040073056020

Product code 119802-77200

Product code 34.51.7.012.001

Product code 40.61.7.024.2020

Product code D2N12-960

Product code D2N24-2880

Product code HF41F-024-ZS

Product code RM84-2012-35-1009

Product code RM85-2011-35-1012

Product code RSM822-6112-85-S009

Product code RT114024

Product code RT424024

Product code SF2D-DC24V

Product code ST1-24V

INFORMATION

MY ACCOUNT

CONTACT DATA

ADVANTAGES

Payments

COURIER AND DELIVERY
