Product code W6B172860
Availability: Currently not available
Notify me about availability
Product features:

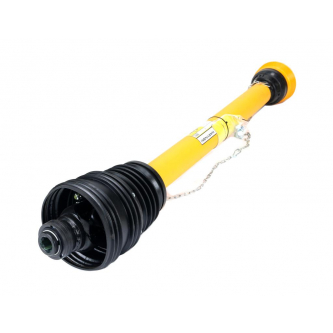

Description - Shaft made according to the new PN-EN-12965_2020 Standard. Waryński R Series Shafts were created to better meet the needs of our customers. The changed design has increased the service life and durability of our products by over 15%. Thanks to the use of a specialized locking system, Waryński shafts guarantee quick assembly and safety and are compliant with the new Standard. The high quality of our products is guaranteed by forks made of high-carbon steel, crosspieces equipped with special bearings of increased strength and Waryński articulated-telescopic shaft housings resistant to mechanical impacts, UV and low temperatures.
Producent - WARYNSKI
Tractor mount - 1 3/8" - Z6 inch
Attachment to the machine - 1 3/8" - Z21 inch
Telescopic connector type - Triangular pipe
Maximum length - 1250mm
Nominal power - 47 ( 64 ) KW ( HP )
Clutch - clutch with pin
Inner tube thickness - 45mm
Outer pipe thickness - 54mm
Bearing diameter - 30.2mm
Height of the cross - 91.4mm
Collaborates with - Outer yoke -WR227601, WR227602, Crosspiece - WR219601, Inner pipe yoke - WR219607, Outer pipe yoke - WR219606, Inner pipe - WR2363705, WR2140600 Outer pipe - WR2362735, WR2141600, Housing - WR22961129,
Torque - 830 Nm
Working angle - Max 17°
Inner pipe wall thickness - 5.5mm
Outer pipe wall thickness - 4mm
Clutch release torque - 2500 Nm
Inner tube thickness: - 45mm
Outer pipe thickness: - 54mm
Clutch release torque - 2500 Nm
Clutch from the Machine side - Pin clutch
Clutch from Tractor side - Lack
