Orbital engines

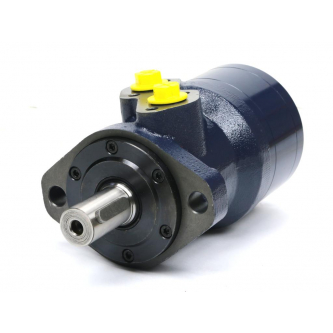

Danfoss OMR 315 F hydraulic motor

Product code 151-6467

Availability: Available (quantity: 1) , shipping within 60 dni

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Working volume - 315.7 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 70 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

Danfoss OMR 315 F hydraulic motor

Shaft size: 25 mm ; M8 x 1.25 tap A8 x 7 x 32 mm (DIN 6885)

Suction/discharge port: G1/2"

Leak port: G 1/4"

Brake: G 1/4"

• net: 3977,04 PLN
• • Currency: zł € $

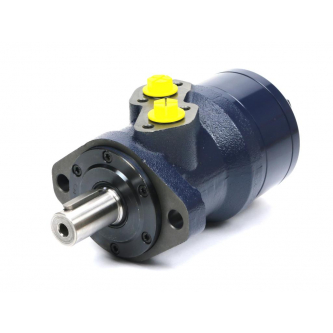

BMR 315H orbital motor with brake, 315cc/rev

Product code 2023603

Availability: Available (quantity: 1) , shipping within 5 dni

Product features:

Producent - FZ Hydraulics

Engine Series - BMR

Working volume - 315 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 70 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

BMR 315H orbital motor with brake replacement for Danfoss OMR 315 F

Flange mounted with 2 screws (A2)

Brake

Comparison code - 151-6467

• net: 2171,43 PLN
• • Currency: zł € $

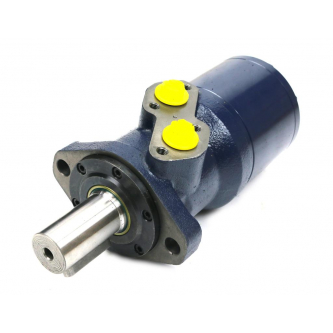

Hydraulic motor BMRY-100 (100.5 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-100

Availability: Available (quantity: 12)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 100.5 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 175 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, 11186674, MR 100, MR100, ALSG2 100, BM2SA100AAA, 1.37.11.100, BG EC25 100, 11186725

• net: 254,29 PLN
• • Currency: zł € $

Hydraulic motor BMRY-125 (126.3 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-125

Availability: Available (quantity: 20)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 126.3 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 175 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, 11186655, 1510713, MR 125, MR125, MR 125CD, MR125CD, 1.37.11.125, ALSG2L125O2C2501, BM2SA125AAA, BG EC25 130

• net: 254,29 PLN
• • Currency: zł € $

Hydraulic motor BMRY-160 (160.8 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-160

Availability: Available (quantity: 21)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 160.8 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 175 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, 11186658, MR160, MR 160, OMR160, OMR 160, TMR.160.1.A.1, 1.37.11.160.1, 1.37.11.160, BG EC25 160, 11186705

• net: 260,00 PLN
• • Currency: zł € $

Hydraulic motor BMRY-200 (200.9 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-200

Availability: Available (quantity: 18)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 200.9 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 175 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, 11186665, MR200, MR 200, KPC-01200B, 1.37.11.200, 1.37.11.200.1, BG EC25 200, 11186708, 11186711

• net: 260,00 PLN
• • Currency: zł € $

Hydraulic motor BMRY-250 (252.6 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-250

Availability: Available (quantity: 16)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 252.6 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, BG EC25 250, 11186667, MR250CD, MR250 CD, MR250, MR 250, 1.37.11.250

• net: 265,71 PLN
• • Currency: zł € $

Hydraulic motor BMRY-315 (321.5 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-315

Availability: Available (quantity: 19)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 321.5 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 120 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, BG EC25 315, 11186652, MR 315 CD, MR 315, MR315CD, MR315, 1.37.11.315, 11186712

• net: 275,71 PLN
• • Currency: zł € $

Hydraulic motor BMRY-400 (401.9 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-400

Availability: Available (quantity: 20)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 401,9 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 100 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, BG EC25 400, MR 400 CD, MR 400, MR400CD, MR400, 1.37.11.400, 11186714

• net: 281,43 PLN
• • Currency: zł € $

Hydraulic motor BMRY-50 (51.7 cm3/rev) A2 flange 25mm cylinder shaft

Product code BMRY-50

Availability: Available (quantity: 21)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 51.7 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 175 bar

Maximum flow (continuous) - 40 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, 1510710, 1510410, 11185537, ALSG2L50O2C2501, OMR501510710, MR50, MR 50, 1.37.11.050, HMR 50, HMR50, BM2SA50AA, BM2 50, BG EC25 050, 11185771

• net: 248,57 PLN
• • Currency: zł € $

Hydraulic motor BMRY-80 (80.5 cm3/rev) A2 flange cyl. shaft 25mm

Product code BMRY-80

Availability: Available (quantity: 22)

Product features:

Producent - Zihyd

Engine Series - BMRY

Working volume - 80.5 cm3 / rev

Turning direction - Two-way

Max. working pressure (continuous) - 175 bar

Maximum flow (continuous) - 60 l/min

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Compressing port - G 1/2"

Suction port - G 1/2"

Description -

The BMRY hydraulic motor is a reliable gerotor-type orbital motor, ideal for agricultural, industrial, and municipal machinery. It features a compact design, simple installation, and high wear resistance. Available in various displacements (from 50 to 400 cm³), with a choice of shaft, flange, and connections.

BMRY engines are fully compatible with models from brands such as:
Danfoss OMR , M+S BMR , SMR , White WD , Eaton Char-Lynn H , BMP , OMP , SMP , EMP .

BMRY is an excellent replacement, providing high quality at an attractive price. Choose a proven solution for your machine!

Applications: hydraulic brushes, conveyors, spreaders, drilling rigs, winches, construction machinery and many more.

Please verify the engine dimensions corresponding to the given working volume.

*P41 shaft = P1

Comparison code - P1AⅡY10/T10, P41AIIY10/T10, 11186671, 1510711, HMR 80, HMR80, BM2 80, BM2SA80AAA, BG EC25 080, 11186721

• net: 248,57 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMM 20 cm3/obr (100 bar / max.140 bar) Waryński

Product code WMM-20

Availability: Available (quantity: 34)

Product features:

Description - Orbital hydraulic motor WMM 20 cm³/rev (100 bar / max.140 bar / max.momentary 200 bar) Waryński. WMM series motors (side connection) have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMM series motors belong to a series of small orbital motors.

Producent - WARYNSKI

Roller diameter - Ø16 mm

Max. working pressure - 14 MPa (140 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/8" BSP" inch

Drain connection thread - 1/8" BSP" inch

Max.Nominal pressure - 10 MPa (100 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 1005 rpm

Max. Nominal torque - 25 Nm

Max Torque - 35 Nm

Max. Working Fluid Flow - 20 l/min

Max. output power - 2.4kW

• net: 373,74 PLN
• • Currency: zł € $

WMM orbital hydraulic motor 20 cm3/rev (100 bar / max.140 bar) rear connections Waryński

Product code WMM-20T

Availability: Available (quantity: 1)

Product features:

Description - WMM 20 cm3/rev orbital hydraulic motor (100 bar / max. 140 bar) with rear connections by Waryński. WMM series motors (rear connections) feature a lightweight, compact design and high torque. They can be connected in parallel or series. For longer service life, optimal operating conditions of 1/3 to 2/3 of the maximum parameters are recommended. WMM series motors are part of a series of small orbital motors.

Producent - WARYNSKI

• net: 374,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMM 32 cm3/obr (100 bar / max.140 bar) Waryński

Product code WMM-32

Availability: Available (quantity: 15)

Product features:

Description - Orbital hydraulic motor WMM 32 cm³/rev (100 bar / max.140 bar / max.momentary 160 bar) Waryński. WMM series motors (side connection) have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMM series motors belong to a series of small orbital motors.

Producent - WARYNSKI

Roller diameter - Ø16 mm

Max. working pressure - 14 MPa (140 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/8" BSP" inch

Drain connection thread - 1/8" BSP" inch

Max.Nominal pressure - 10 MPa (100 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 630 rpm

Max. Nominal torque - 40Nm

Max Torque - 57 Nm

Max. Working Fluid Flow - 20 l/min

Max. output power - 2.4kW

• net: 374,99 PLN
• • Currency: zł € $

WMM orbital hydraulic motor 32 cm3/rev (100 bar / max.140 bar) rear connections Waryński

Product code WMM-32T

Availability: Available (quantity: 3)

Product features:

Description - WMM 32 cm3/rev orbital hydraulic motor (100 bar / max. 140 bar) with rear connections by Waryński. WMM series motors (rear connections) feature a lightweight, compact design and high torque. They can be connected in parallel or series. For longer service life, optimal operating conditions of 1/3 to 2/3 of the maximum parameters are recommended. WMM series motors are part of a series of small orbital motors.

Producent - WARYNSKI

• net: 374,99 PLN
• • Currency: zł € $

WMM orbital hydraulic motor 40 cm3/rev (90 bar / max.140 bar) Waryński

Product code WMM-40

Availability: Available (quantity: 3)

Product features:

Description - WMM 40 cm3/rev (90 bar / max. 140 bar) Waryński orbital hydraulic motor. WMM series motors (side connection) feature a lightweight, compact design and high torque. They can be connected in parallel or series. For longer service life, optimal operating conditions of 1/3 to 2/3 of the maximum parameters are recommended. WMM series motors belong to a series of small orbital motors.

Producent - WARYNSKI

• net: 374,99 PLN
• • Currency: zł € $

WMM orbital hydraulic motor 40 cm3/rev (90 bar / max.140 bar) rear connections Waryński

Product code WMM-40T

Availability: Available (quantity: 2)

Product features:

Description - WMM 40 cm3/rev orbital hydraulic motor (90 bar / max. 140 bar) with rear connections by Waryński. WMM series motors (rear connections) feature a lightweight, compact design and high torque. They can be connected in parallel or series. For longer service life, optimal operating conditions of 1/3 to 2/3 of the maximum parameters are recommended. WMM series motors are part of a series of small orbital motors.

Producent - WARYNSKI

• net: 374,99 PLN
• • Currency: zł € $

Mounting flange with a set of screws for the WMM Waryński series engine

Product code WMM-KO-S

Availability: Available (quantity: 23)

Product features:

Description - Mounting flange with screw kit for WMM Waryński series engines. Fits WMM-20, WMM-20T, WMM-32, WMM-32T, WMM-40, and WMM-40T engines. The kit includes the following components: mounting flange (1 pc), M6 mounting screws (3 pcs).

Producent - WARYNSKI

• net: 31,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMP 25 cm?/obr (100 bar / max.175 bar) Waryński

Product code WMP-25

Availability: Available (quantity: 9)

Product features:

Description - Orbital hydraulic motor WMP 25 cm³/rev (100 bar / max.175 bar - 10 MPa/100 bar - note: maximum continuous engine operating pressure) Waryński. WMP series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Connection threads - 1/2" BSP cal

Drain connection thread - 1/4" BSP cal

Max.Nominal pressure - 10.0/100 Mpa/bar

Max. Rated speed - 1550 rpm

Max. Nominal torque - 34 Nm

Max. Working Fluid Flow - 40 l/min

Max. output power - 4.5kW

• net: 399,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMP 80 cm?/obr (140 bar / max.175 bar) Waryński

Product code WMP-80

Availability: Available (quantity: 10)

Product features:

Description - WMP 80 cm³/rev orbital hydraulic motor (140 bar / max.175 bar - 14 MPa/140 bar - note: maximum continuous engine operating pressure) Waryński. WMP series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Connection threads - 1/2\\\\\\\" BSP

Drain connection thread - 1/4\\\\\\\" BSP

Max.Nominal pressure - 14.0/140 Mpa/bar

Max. Rated speed - 750 rpm

Max. Nominal torque - 148 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 10.0kW

• net: 399,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 125 cm3/obr (140 bar / max.200 bar) Waryński

Product code WMR-125

Availability: Available (quantity: 3)

Product features:

Description - Orbital hydraulic motor WMR 125 cm³/rev (140 bar / max.175 bar / max.momentary 200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 17.5 MPa (175 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 14 MPa (140 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 475 rpm

Max. Nominal torque - 237 Nm

Max Torque - 296 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 10kW

• net: 406,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 160 cm3/obr (140 bar / max.200 bar) Waryński

Product code WMR-160

Availability: Available (quantity: 10)

Product features:

Description - Orbital hydraulic motor WMR 160 cm³/rev (140 bar / max.175 bar / max.momentary 200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 17.5 MPa (175 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 14 MPa (140 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 370 rpm

Max. Nominal torque - 310 Nm

Max Torque - 378 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 10kW

• net: 412,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny (stosowany do owijarek) WMR 200 cm3/obr (140 bar / max.200 bar) Waryński

Product code WMR-200

Availability: Available (quantity: 48)

Product features:

Description - Orbital hydraulic motor WMR 200 cm³/rev (140 bar / max.175 bar / max.momentary 200 bar) Waryński (used for wrapping machines). WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 17.5 MPa (175 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 14 MPa (140 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 295 rpm

Max. Nominal torque - 369 Nm

Max Torque - 450 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 8kW

• net: 418,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 200 cm3/obr z wałkiem fi 32mm (140 bar / max.200 bar) Waryński

Product code WMR-200-FI32

Availability: Available (quantity: 3)

Product features:

Description - Orbital hydraulic motor WMR 200 cm³/rev with shaft fi 32mm (140 bar / max.175 bar / max. momentary 200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

• net: 431,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 25 cm3/obr (100 bar / max.200 bar) Waryński

Product code WMR-25

Availability: Available (quantity: 8)

Product features:

Description - Orbital hydraulic motor WMR 25 cm³/rev (100 bar / max.200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

• net: 406,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 25 cm3/obr z wałkiem fi 32mm (100 bar / max.200 bar) Waryński

Product code WMR-25-FI32

Availability: Available (quantity: 4)

Product features:

Description - Orbital hydraulic motor WMR 25 cm³/rev with shaft fi 32mm (100 bar / max.200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

• net: 418,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 250 cm3/obr (110 bar / max.160 bar) Waryński

Product code WMR-250

Availability: Available (quantity: 1)

Product features:

Description - Orbital hydraulic motor WMR 250 cm³/rev (110 bar / max.140 bar / max.momentary 160 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 14 MPa (160 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 11 MPa (110 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 235 rpm

Max. Nominal torque - 380 Nm

Max Torque - 470 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 6kW

• net: 424,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 315 cm3/obr (90 bar / max.130 bar) Waryński

Product code WMR-315

Availability: Available (quantity: 11)

Product features:

Description - Orbital hydraulic motor WMR 315 cm³/rev (90 bar / max.110 bar / max.momentary 130 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 11 MPa (110 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 9 MPa (90 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 185 rpm

Max. Nominal torque - 380 Nm

Max Torque - 470 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 5kW

• net: 431,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 32 cm3/obr (100 bar / max.200 bar) Waryński

Product code WMR-32

Availability: Available (quantity: 9)

Product features:

Description - Orbital hydraulic motor WMR 32 cm³/rev (100 bar / max.200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

• net: 406,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 40 cm3/obr (100 bar / max.200 bar) Waryński

Product code WMR-40

Availability: Available (quantity: 18)

Product features:

Description - Orbital hydraulic motor WMR 40 cm³/rev (100 bar / max.200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

• net: 406,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 400 cm3/obr (70 bar / max.110 bar) Waryński

Product code WMR-400

Availability: Available (quantity: 2)

Product features:

Description - Orbital hydraulic motor WMR 340 cm³/rev (70 bar / max.90 bar / max.momentary 110 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 9 MPa (90 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 7 MPa (70 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 150 rpm

Max. Nominal torque - 380 Nm

Max Torque - 470 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 4kW

• net: 437,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 400 cm3/obr z wałkiem fi 32mm (70 bar / max.110 bar) Waryński

Product code WMR-400-FI32

Availability: Available (quantity: 1)

Product features:

Description - Orbital hydraulic motor WMR 340 cm³/rev with shaft fi 32mm (70 bar / max.90 bar / max.momentary 110 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

• net: 468,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 50 cm3/obr (140 bar / max.200 bar) Waryński

Product code WMR-50

Availability: Available (quantity: 12)

Product features:

Description - Orbital hydraulic motor WMR 50 cm³/rev (140 bar / max.175 bar / max.momentary 200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 17.5 MPa (175 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 14 MPa (140 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 770 rpm

Max. Nominal torque - 93 Nm

Max Torque - 118 Nm

Max. Working Fluid Flow - 40 l/min

Max. output power - 7kW

• net: 387,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMR 80 cm3/obr (140 bar / max.200 bar) Waryński

Product code WMR-80

Availability: Available (quantity: 13)

Product features:

Description - Orbital hydraulic motor WMR 80 cm³/rev (140 bar / max.175 bar / max.momentary 200 bar) Waryński. WMR series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 17.5 MPa (175 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 14 MPa (140 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 745 rpm

Max. Nominal torque - 152 Nm

Max Torque - 189 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 10kW

• net: 393,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 100 cm3/obr (175 bar / max.220 bar) Waryński

Product code WMR-S-100

Availability: Available (quantity: 11)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 100 cm³/rev (175 bar / 200 bar / max. momentary 220 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 595 rpm

Max. Nominal torque - 236 Nm

Max Torque - 270 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 12kW

• net: 424,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 125 cm3/obr (175 bar / max.220 bar) Waryński

Product code WMR-S-125

Availability: Available (quantity: 8)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 125 cm³/rev (175 bar / 200 bar / max. momentary 220 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 475 rpm

Max. Nominal torque - 296 Nm

Max Torque - 338 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 12kW

• net: 431,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 160 cm3/obr (175 bar / max.220 bar) Waryński

Product code WMR-S-160

Availability: Available (quantity: 2)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 160 cm³/rev (175 bar / 200 bar / max. momentary 220 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 370 rpm

Max. Nominal torque - 378 Nm

Max Torque - 433 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 12kW

• net: 437,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny (stosowany do owijarek) wzmacniany WMR-S 200 cm3/obr (175 bar / max.200 bar) Waryński

Product code WMR-S-200

Availability: Available (quantity: 219)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 200 cm³/rev (175 bar / 190 bar / max. momentary 200 bar) Waryński (used for wrapping machines). WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum working conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the working parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 19 MPa (190 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 295 rpm

Max. Nominal torque - 450 Nm

Max Torque - 486 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 11kW

• net: 443,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 250 cm3/obr (140 bar / max.180 bar) Waryński

Product code WMR-S-250

Availability: Available (quantity: 3)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 250 cm³/rev (140 bar / 160 bar / max. momentary 180 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 16 MPa (160 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 14 MPa (140 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 235 rpm

Max. Nominal torque - 470 Nm

Max Torque - 540 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 9.5kW

• net: 449,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 315 cm3/obr (120 bar / max.150 bar) Waryński

Product code WMR-S-315

Availability: Available (quantity: 1)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 315 cm³/rev (120 bar / 140 bar / max. momentary 150 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of parallel or series connection. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 14 MPa (140 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 12 MPa (120 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 185 rpm

Max. Nominal torque - 485 Nm

Max Torque - 573 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 7.5kW

• net: 456,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 400 cm3/obr (100 bar / max.140 bar) Waryński

Product code WMR-S-400

Availability: Available (quantity: 2)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 400 cm³/rev (100 bar / 120bar / max. momentary 140 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 12 MPa (120 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 10 MPa (100 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 150 rpm

Max. Nominal torque - 500 Nm

Max Torque - 614 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 6.5kW

• net: 462,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 50 cm3/obr (175 bar / max.220 bar) Waryński

Product code WMR-S-50

Availability: Available (quantity: 14)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 50 cm³/rev (175 bar / 200 bar / max. momentary 220 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 770 rpm

Max. Nominal torque - 110 Nm

Max Torque - 135 Nm

Max. Working Fluid Flow - 40 l/min

Max. output power - 7.5kW

• net: 412,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny wzmacniany WMR-S 80 cm3/obr (175 bar / max.220 bar) Waryński

Product code WMR-S-80

Availability: Available (quantity: 8)

Product features:

Description - Orbital hydraulic motor reinforced WMR-S 80 cm³/rev (175 bar / 200 bar / max. momentary 220 bar) Waryński. WMR-S series motors have a lightweight compact design, high torque. Possibility of connecting in parallel or series. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMR-S Series motors have a reinforced design - thanks to which the operating parameters have been increased: pressure, torque and power in relation to WMR series motors.

Producent - WARYNSKI

Roller diameter - Ø25 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 745 rpm

Max. Nominal torque - 189 Nm

Max Torque - 216 Nm

Max. Working Fluid Flow - 60 l/min

Max. output power - 12kW

• net: 418,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMS 100 cm3/obr (175 bar / max.225 bar) Waryński

Product code WMS-100

Availability: Available (quantity: 5)

Product features:

Description - Orbital hydraulic motor WMS 100 cm³/rev (175 bar / max.200 bar / max.momentary 225 bar) Waryński. WMS series motors are characterized by compact design, high torque, high absorption. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. Reinforced shaft seal allows both series and parallel connections of motors. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø32 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 745 rpm

Max. Nominal torque - 242 Nm

Max Torque - 283 Nm

Max. Working Fluid Flow - 75 l/min

Max. output power - 16kW

• net: 762,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMS 125 cm3/obr (175 bar / max.225 bar) Waryński

Product code WMS-125

Availability: Available (quantity: 2)

Product features:

Description - Orbital hydraulic motor WMS 125 cm³/rev (175 bar / max.200 bar / max.momentary 225 bar) Waryński. WMS series motors are characterized by a compact design, high torque, high absorption. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. Reinforced shaft seal allows both series and parallel connections of motors. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø32 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 590 rpm

Max. Nominal torque - 303 Nm

Max Torque - 345 Nm

Max. Working Fluid Flow - 75 l/min

Max. output power - 16kW

• net: 774,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMS 160 cm3/obr (160 bar / max.225 bar) Waryński

Product code WMS-160

Availability: Available (quantity: 6)

Product features:

Description - Orbital hydraulic motor WMS 160 cm³/rev (160 bar / max.200 bar / max.momentary 225 bar) Waryński. WMS series motors are characterized by compact design, high torque, high absorption. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. Reinforced shaft seal allows both series and parallel connections of motors. In order to achieve longer service life, it is recommended that the optimum working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø32 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 16 MPa (160 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 465 rpm

Max. Nominal torque - 358 Nm

Max Torque - 429 Nm

Max. Working Fluid Flow - 75 l/min

Max. output power - 14kW

• net: 774,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMS 200 cm3/obr (160 bar / max.225 bar) Waryński

Product code WMS-200

Availability: Available (quantity: 2)

Product features:

Description - Orbital hydraulic motor WMS 200 cm³/rev (160 bar / max.200 bar / max.momentary 225 bar) Waryński. WMS series motors are characterized by a compact design, high torque, high absorption. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. Reinforced shaft seal allows both series and parallel connections of motors. In order to achieve a longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø32 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 16 MPa (160 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 370 rpm

Max. Nominal torque - 438 Nm

Max Torque - 540 Nm

Max. Working Fluid Flow - 75 l/min

Max. output power - 14kW

• net: 787,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMS 250 cm3/obr (125 bar / max.200 bar) Waryński

Product code WMS-250

Availability: Available (quantity: 4)

Product features:

Description - Orbital hydraulic motor WMS 250 cm³/rev (125 bar / max.160 bar / max.momentary 200 bar) Waryński. WMS series motors are characterized by compact design, high torque, high absorption. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. Reinforced shaft seal allows both series and parallel connections of motors. In order to achieve longer service life, it is recommended that the optimum working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø32 mm

Max. working pressure - 16 MPa (160 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 12.5 MPa (125 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 295 rpm

Max. Nominal torque - 440 Nm

Max Torque - 580 Nm

Max. Working Fluid Flow - 75 l/min

Max. output power - 11kW

• net: 799,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMS 315 cm3/obr (125 bar / max.200 bar) Waryński

Product code WMS-315

Availability: Available (quantity: 4)

Product features:

Description - Orbital hydraulic motor WMS 315 cm³/rev (125 bar / max.160 bar / max.momentary 200 bar) Waryński. WMS series motors are characterized by a compact design, high torque, high absorption. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. Reinforced shaft seal allows both series and parallel connections of motors. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø32 mm

Max. working pressure - 16 MPa (160 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 12.5 MPa (125 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 230 rpm

Max. Nominal torque - 551 Nm

Max Torque - 625 Nm

Max. Working Fluid Flow - 75 l/min

Max. output power - 10kW

• net: 824,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMS 80 cm3/obr (175 bar / max.225 bar) Waryński

Product code WMS-80

Availability: Available (quantity: 1)

Product features:

Description - Orbital hydraulic motor WMS 80 cm³/rev (175 bar / max.200 bar / max.momentary 225 bar) Waryński. WMS series motors are characterized by a compact design, high torque, high absorption. Disk distribution ensures high efficiency, efficiency, smooth operation and long service life. Reinforced shaft seal allows both series and parallel connections of motors. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø32 mm

Max. working pressure - 20 MPa (200 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1/2" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 17.5 MPa (175 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 805 rpm

Max. Nominal torque - 194 Nm

Max Torque - 218 Nm

Max. Working Fluid Flow - 65 l/min

Max. output power - 14kW

• net: 737,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMT 160 cm3/obr (200 bar / max.280 bar) Waryński

Product code WMT-160

Availability: Available (quantity: 4)

Product features:

Description - Orbital hydraulic motor WMT 160 cm³/rev (200 bar / max.240 bar / max.momentary 280 bar) Waryński. WMT series motors are characterized by compact design, high torque, high absorption. They work in the range of significant torques at rather low rotational speeds. Possibility of parallel or series connection. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø40 mm

Max. working pressure - 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/4" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 20 MPa (200 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 625 rpm

Max. Nominal torque - 450 Nm

Max Torque - 559 Nm

Max. Working Fluid Flow - 100 l/min

Max. output power - 20.1kW

• net: 1268,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMT 200 cm3/obr (200 bar / max.280 bar) Waryński

Product code WMT-200

Availability: Available (quantity: 3)

Product features:

Description - Orbital hydraulic motor WMT 200 cm³/rev (200 bar / max.240 bar / max.momentary 280 bar) Waryński. WMT series motors are characterized by compact design, high torque, high absorption. They work in the range of significant torques at rather low rotational speeds. Possibility of parallel or series connection. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø40 mm

Max. working pressure - 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/4" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 20 MPa (200 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 495 rpm

Max. Nominal torque - 561 Nm

Max Torque - 714 Nm

Max. Working Fluid Flow - 100 l/min

Max. output power - 25.2kW

• net: 1356,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMT 250 cm3/obr (200 bar / max.280 bar) Waryński

Product code WMT-250

Availability: Available (quantity: 3)

Product features:

Description - Orbital hydraulic motor WMT 250 cm³/rev (200 bar / max.240 bar / max.momentary 280 bar) Waryński. WMT series motors are characterized by compact design, high torque, high absorption. They work in the range of significant torques at rather low rotational speeds. Possibility of parallel or series connection. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø40 mm

Max. working pressure - 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/4" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 20 MPa (200 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 395 rpm

Max. Nominal torque - 710 Nm

Max Torque - 883 Nm

Max. Working Fluid Flow - 100 l/min

Max. output power - 25.2kW

• net: 1381,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMT 320 cm3/obr (200 bar / max.280 bar) Waryński

Product code WMT-320

Availability: Available (quantity: 1)

Product features:

Description - Orbital hydraulic motor WMT 320 cm³/rev (200 bar / max.240 bar / max.momentary 280 bar) Waryński. WMT series motors are characterized by compact design, high torque, high absorption. They work in the range of significant torques at rather low rotational speeds. Possibility of parallel or series connection. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

• net: 1393,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMT 400 cm3/obr (180 bar / max.240 bar) Waryński

Product code WMT-400

Availability: Available (quantity: 7)

Product features:

Description - Orbital hydraulic motor WMT 400 cm³/rev (180 bar / max.210 bar / max.momentary 240 bar) Waryński. WMT series motors are characterized by compact design, high torque, high absorption. They work in the range of significant torques at rather low rotational speeds. Possibility of parallel or series connection. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø40 mm

Max. working pressure - 21 MPa (210 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/4" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 18 MPa (180 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 245 rpm

Max. Nominal torque - 1008 Nm

Max Torque - 1255 Nm

Max. Working Fluid Flow - 100 l/min

Max. output power - 22kW

• net: 1418,74 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMT 500 cm3/obr (160 bar / max.210 bar) Waryński

Product code WMT-500

Availability: Available (quantity: 13)

Product features:

Description - Orbital hydraulic motor WMT 500 cm³/rev (160 bar / max.180 bar / max.momentary 210 bar) Waryński. WMT series motors are characterized by compact design, high torque, high absorption. They work in the range of significant torques at rather low rotational speeds. Possibility of parallel or series connection. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø40 mm

Max. working pressure - 18 MPa (180 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/4" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 16 MPa (160 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 185 rpm

Max. Nominal torque - 1121 Nm

Max Torque - 1377 Nm

Max. Working Fluid Flow - 100 l/min

Max. output power - 21kW

• net: 1456,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMT 630 cm3/obr (140 bar / max.190 bar) Waryński

Product code WMT-630

Availability: Available (quantity: 4)

Product features:

Description - Orbital hydraulic motor WMT 630 cm³/rev (160 bar / max.180 bar / max.momentary 210 bar) Waryński. WMT series motors are characterized by compact design, high torque, high absorption. They work in the range of significant torques at rather low rotational speeds. Possibility of parallel or series connection. Disc distribution ensures high efficiency, efficiency, smooth operation and long service life. In order to achieve longer service life, it is recommended that the optimal working conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Producent - WARYNSKI

Roller diameter - Ø40 mm

Max. working pressure - 16 MPa (160 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 3/4" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 14 MPa (140 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 155 rpm

Max. Nominal torque - 1124 Nm

Max Torque - 1317 Nm

Max. Working Fluid Flow - 100 l/min

Max. output power - 20kW

• net: 1481,24 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMV 315 cm3/obr (200 bar / max.280 bar) Waryński

Product code WMV-315

Availability: Available (quantity: 2)

Product features:

Description - Orbital hydraulic motor WMV 315 cm³/rev (200 bar / max.240 bar / max.momentary 280 bar) Waryński. WMV series motors have a compact design, high torque and high absorption. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMV series motors are characterized by smooth operation, efficiency, transfer of high longitudinal and transverse loads.

Producent - WARYNSKI

Roller diameter - Ø50 mm

Max. working pressure - 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 20 MPa (200 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 475 rpm

Max. Nominal torque - 873 Nm

Max Torque - 1119 Nm

Max. Working Fluid Flow - 150 l/min

Max. output power - 32kW

• net: 1537,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMV 400 cm3/obr (200 bar / max.280 bar) Waryński

Product code WMV-400

Availability: Available (quantity: 9)

Product features:

Description - Orbital hydraulic motor WMV 400 cm³/rev (200 bar / max.240 bar / max.momentary 280 bar) Waryński. WMV series motors have a compact design, high torque and high absorption. Possibility of parallel or series connection. In order to achieve longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMV series motors are characterized by smooth operation, efficiency, transfer of high longitudinal and transverse loads.

Producent - WARYNSKI

Roller diameter - Ø50 mm

Max. working pressure - 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 20 MPa (200 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 375 rpm

Max. Nominal torque - 1108 Nm

Max Torque - 1440 Nm

Max. Working Fluid Flow - 150 l/min

Max. output power - 32kW

• net: 1562,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMV 500 cm3/obr (200 bar / max.280 bar) Waryński

Product code WMV-500

Availability: Available (quantity: 14)

Product features:

Description - Orbital hydraulic motor WMV 500 cm³/rev (200 bar / max.240 bar / max.momentary 280 bar) Waryński. WMV series motors have a compact design, high torque and high absorption. Possibility of parallel or series connection. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMV series motors are characterized by smooth operation, efficiency, transfer of high longitudinal and transverse loads.

Producent - WARYNSKI

Roller diameter - Ø50 mm

Max. working pressure - 24 MPa (240 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 20 MPa (200 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 300 rpm

Max. Nominal torque - 1385 Nm

Max Torque - 1783 Nm

Max. Working Fluid Flow - 150 l/min

Max. output power - 32kW

• net: 1649,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMV 630 cm3/obr (180 bar / max.240 bar) Waryński

Product code WMV-630

Availability: Available (quantity: 17)

Product features:

Description - Orbital hydraulic motor WMV 630 cm³/rev (180 bar / max.210 bar / max.momentary 240 bar) Waryński. WMV series motors have a compact design, high torque and high absorption. Possibility of parallel or series connection. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMV series motors are characterized by smooth operation, efficiency, transfer of high longitudinal and transverse loads.

Producent - WARYNSKI

Roller diameter - Ø50 mm

Max. working pressure - 21 MPa (210 bar) - Note: maximum 6 seconds / 1 minute of engine operation (exceeding these parameters may damage the engine) MPa (bar)

Connection threads - 1" BSP" inch

Drain connection thread - 1/4" BSP" inch

Max.Nominal pressure - 18 MPa (180 bar) - Note: maximum continuous engine operating pressure MPa (bar)

Max. Rated speed - 240 rpm

Max. Nominal torque - 1570 Nm

Max Torque - 1951 Nm

Max. Working Fluid Flow - 150 l/min

Max. output power - 32kW

• net: 1662,49 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMV 800 cm3/obr (160 bar / max.210 bar) Waryński

Product code WMV-800

Availability: Available (quantity: 8)

Product features:

Description - Orbital hydraulic motor WMV 800 cm3/rev (160 bar / max.210 bar) Waryński. WMV series motors have a compact design, high torque and high absorption. Possibility of parallel or series connection. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMV series motors are characterized by smooth operation, efficiency, transfer of high longitudinal and transverse loads.

Producent - WARYNSKI

• net: 1774,99 PLN
• • Currency: zł € $

ZBMR hydraulic motor with brake - 315 A2 flange 25mm cylinder shaft

Product code ZBMR-315

Availability: Available (quantity: 3)

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 321,5 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 90 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-315P1AIIY/T10, ZBMR-315 P1AIIY/T10

• net: 1548,57 PLN
• • Currency: zł € $

Danfoss OMP X 315 hydraulic motor

Product code 151-0617

Availability: Currently not available

Notify me about availability

Product features:

Producent - Danfoss

Engine Series - OMP

Engine type - Orbitalne

• net: 1505,16 PLN
• • Currency: zł € $

Danfoss DH 60 hydraulic motor

Product code 151-2248

Availability: Currently not available

Notify me about availability

Product features:

• net: 6539,94 PLN
• • Currency: zł € $

Danfoss OMR 80 F hydraulic motor

Product code 151-6461

Availability: Currently not available

Notify me about availability

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Danfoss OMR 100 F hydraulic motor

Product code 151-6462

Availability: Currently not available

Notify me about availability

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Danfoss OMR 125 F hydraulic motor

Product code 151-6463

Availability: Currently not available

Notify me about availability

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Danfoss OMR 160 F hydraulic motor

Product code 151-6464

Availability: Currently not available

Notify me about availability

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Danfoss OMR 200 F hydraulic motor

Product code 151-6465

Availability: Currently not available

Notify me about availability

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Danfoss OMR 250 F hydraulic motor

Product code 151-6466

Availability: Currently not available

Notify me about availability

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Danfoss OMR 375 F hydraulic motor

Product code 151-6468

Availability: Currently not available

Notify me about availability

Product features:

Producent - White Drive Products

Engine Series - OMR F

Engine type - Orbitalne

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Shaft seal - NBR

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Danfoss OMP 200 Hydraulic Motor with Valve Block - Discontinued Product

Product code 158F8001

Availability: Currently not available

Notify me about availability

Product features:

Producent - Danfoss

Engine Series - OMP

Engine type - Orbitalne

Working volume - 200 cm3/obr

Comparison code - 11185913

Hydraulic motor BMRY-50 flange A2 cylinder shaft 25mm

Product code 2008243

Availability: Currently not available

Notify me about availability

Product features:

• net: 557,14 PLN
• • Currency: zł € $

BMR 100 orbital engine

Product code BMR-100

Availability: Currently not available

Notify me about availability

Product features:

Flow - 60 l

Producent - Zihyd

Working volume - 100.5 cm3 / rev

Max. working pressure (continuous) - 140 bar

Description - Replacement for: OMR, KR

• net: 385,71 PLN
• • Currency: zł € $

BMR 125 orbital engine

Product code BMR-125

Availability: Currently not available

Notify me about availability

Product features:

Flow - 60 l

Producent - Zihyd

Working volume - 126.3 cm3 / rev

Max. working pressure (continuous) - 140 bar

Description - Replacement for: OMR, KR

• net: 392,86 PLN
• • Currency: zł € $

BMR 50 orbital engine

Product code BMR-50

Availability: Currently not available

Notify me about availability

Product features:

Flow - 40 l

Producent - Zihyd

Working volume - 51.7 cm3 / rev

Max. working pressure (continuous) - 140 bar

• net: 342,86 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny BMSY-160E4-BDH

Product code BMS-160

Availability: Currently not available

Notify me about availability

Product features:

Silnik hydrauliczny orbitalny BM3250/BMS250

Product code BMS-250

Availability: Currently not available

Notify me about availability

Product features:

• net: 424,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny BMV 985 cm3/obr 140 bar

Product code BMV-985

Availability: Currently not available

Notify me about availability

Product features:

Description - BMV 985 cm3/rev 140 bar orbital hydraulic motor. BMV series motors have a compact design, high torque and high absorption. Possibility of parallel or series connection. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters.

Roller diameter - Ø50 mm

Connection threads - 1\" BSP

Drain connection thread - 1/4\" BSP

Max.Nominal pressure - 14/140 Mpa/bar

Max. Rated speed - 150 rpm

Max. Nominal torque - 1900 Nm

Max Torque - 2133 Nm

Max. Working Fluid Flow - 150 l/min

Max. output power - 24kW

• net: 1249,99 PLN
• • Currency: zł € $

Silnik hydrauliczny orbitalny WMV 985 cm3/obr (140 bar / max.180 bar) Waryński

Product code WMV-985

Availability: Currently not available

Notify me about availability

Product features:

Description - Orbital hydraulic motor WMV 985 cm3/rev (140 bar / max.180 bar) Waryński. WMV series motors have a compact design, high torque and high absorption. Possibility of parallel or series connection. In order to achieve a longer service life, it is recommended that the optimum operating conditions are at the level of 1/3 to 2/3 of the maximum parameters. WMV series motors are characterized by smooth operation, efficiency, transfer of high longitudinal and transverse loads.

Producent - WARYNSKI

• net: 1899,99 PLN
• • Currency: zł € $

ZBMR hydraulic motor, A2 flange, 25mm cylinder shaft

Product code ZBMR-100

Availability: Currently not available

Notify me about availability

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 100,5 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-100P1AIIY/T10, ZBMR-100 P1AIIY/T10

ZBMR hydraulic motor, A2 flange, 25mm cylinder shaft

Product code ZBMR-125

Availability: Currently not available

Notify me about availability

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 126,3 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-125P1AIIY/T10, ZBMR-125 P1AIIY/T10

ZBMR hydraulic motor, A2 flange, 25mm cylinder shaft

Product code ZBMR-160

Availability: Currently not available

Notify me about availability

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 160,8 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-125P1AIIY/T10, ZBMR-125P1AIIY/T10

ZBMR hydraulic motor, A2 flange, 25mm cylinder shaft

Product code ZBMR-200

Availability: Currently not available

Notify me about availability

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 200,9 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-200P1AIIY/T10, ZBMR-200P1AIIY/T10

ZBMR hydraulic motor, A2 flange, 25mm cylinder shaft

Product code ZBMR-250

Availability: Currently not available

Notify me about availability

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 252,6 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 110 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-200P1AIIY/T10, ZBMR-200 P1AIIY/T10

ZBMR hydraulic motor, A2 flange, 25mm cylinder shaft

Product code ZBMR-400

Availability: Currently not available

Notify me about availability

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 401,9 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 70 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-400P1AIIY/T10, ZBMR-400 P1AIIY/T10

ZBMR hydraulic motor, A2 flange, 25mm cylinder shaft

Product code ZBMR-80

Availability: Currently not available

Notify me about availability

Product features:

Producent - Zihyd

Engine Series - ZBMR

Engine type - Orbitalne

Working volume - 80,5 cm3/obr

Turning direction - Two-way

Max. working pressure (continuous) - 140 bar

Flange type - 106.4mm, 2 bolts

Spacing of mounting holes - 106,4 mm

Centering diameter - 82,5 mm

Roller type - Cylindrical ø25 mm

Main ports - BSP threads

Compressing port - G 1/2"

Suction port - G 1/2"

Drainage port - G 1/4"

Description -

ZBMR Hydraulic Motor - Replacement for Danfoss OMR F
The ZBMR series orbital motors with brake are durable and reliable hydraulic units designed for harsh operating conditions. They are a full-featured replacement for Danfoss OMR F motors, maintaining installation compatibility and operating parameters, with the added safety of a brake.

Main features:

• Integrated brake guarantees stable load stopping

• Bidirectional rotation (left/right)

• High torque at low speed

• Solid construction and durable seals

• Resistance to heavy loads

Application:
Agricultural, forestry, municipal, construction and industrial machinery - wherever a reliable orbital engine is needed.

Note: Please verify the engine dimensions corresponding to the given working volume.

Comparison code - ZBMR-80P1AIIY/T10, ZBMR-80 P1AIIY/T10
