Product code R902202038
Availability: Available
(quantity: 1)
, shipping within 80 dni
Product features:
Pump type - Piston variable displacement
Producent - Rexroth
Marking - A18VO055DRS00/11NLWK0E810-0
Adapter - bez
Working volume - 54.8 cm3 / rev
Additional functions - Bez funkcji dodatkowych, standardowe
Turning direction - on the left
Receiving company (external) - Standard without reception
Max. working pressure (continuous) - 350 bar
Electromagnet plugs - without plug
Flow - 137 l/min
Control - DRS
Flange type - ISO 7653-1985
Direction of rotation - L
Centering diameter - 80mm
Roller type - Spline 8x32x35
Gross weight - 21.612 kg

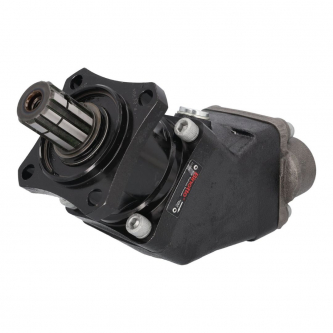

Description - The A18VO is a variable displacement pump with a conical piston drive, an axial piston design with a swash plate, for open-circuit hydrostatic drives. The pump is specifically designed for demanding applications and the convenient control of work equipment in commercial vehicles, such as large truck cranes and truck superstructures. The pump's flow is proportional to the drive speed and displacement volume. Adjusting the pivot axis allows for infinitely variable flow adjustment.
Load-Sensing setting - 30
Comparison code - A18VO055DRS00/11NLWK0E810-0-77720.3216
Max displacement volume - 55 cm³
Max flow - 133 l/min
Working pressure max. - 350 bar
Max rotational speed - 2500
Min. displacement volume - 0 cm³
Min. flow - 0 l/min
Mounting flange - Special flange ISO 7653-1985
Net weight - 21.612 kg
Paint coat/primer coat - without
Paint coat/topcoat - without
Connection A - DIN ISO 228 – G 3/4 open
Connection and mounting thread - Metric
M1 connection - DIN 3852 M12x1.5 closed
MA connection - DIN 3852 M10x1 closed
Connection plate for service lines - Threaded connections A and S on the back
R connection - DIN 3852 M18X1.5 closed
T-connection - DIN 3852 M12x1.5 open
Connection X - ISO 11926 7/16-20 UNF-2B open
Connection X2 - without
Pressure regulator setting - 350
Product family - A18V
Seal material - FKM (kauczuk fluorowy) 2 WDR
Type series - 11
Shaft end - Pinion shaft similar to DIN ISO 14
Size - 55
Nominal size (displacement volume) - 55 cm³
Suction port - without
Suction connection S - DIN ISO 228 – G 1 open
Inspection certificate - without
Language abbreviation for inspection certificate - Without
Type - A18V
Startup method - Pump, open circuit
Libra - 21.62 kg
Steering - DRS
Type - A18V
Size - 55
Direction of rotation - L
